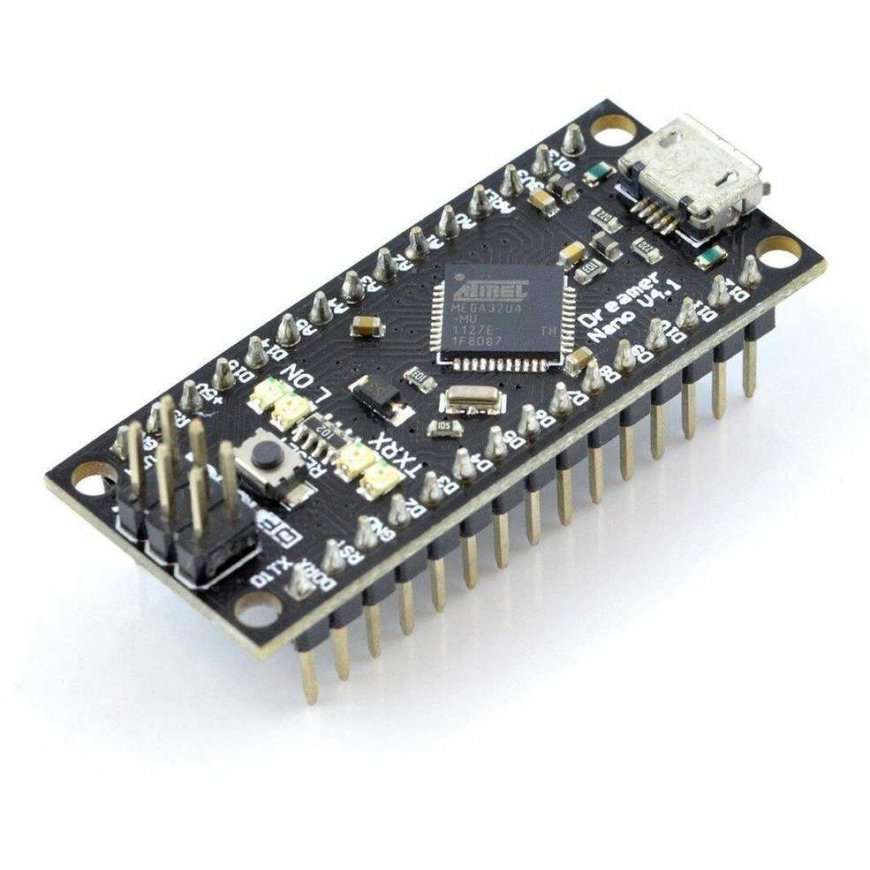

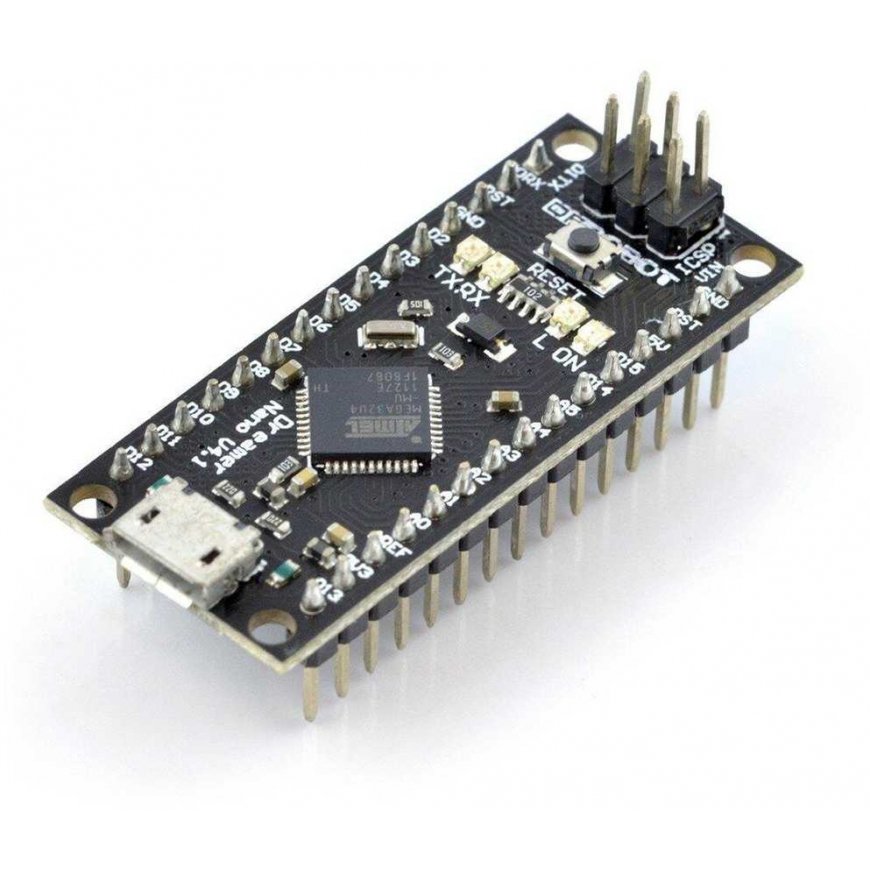

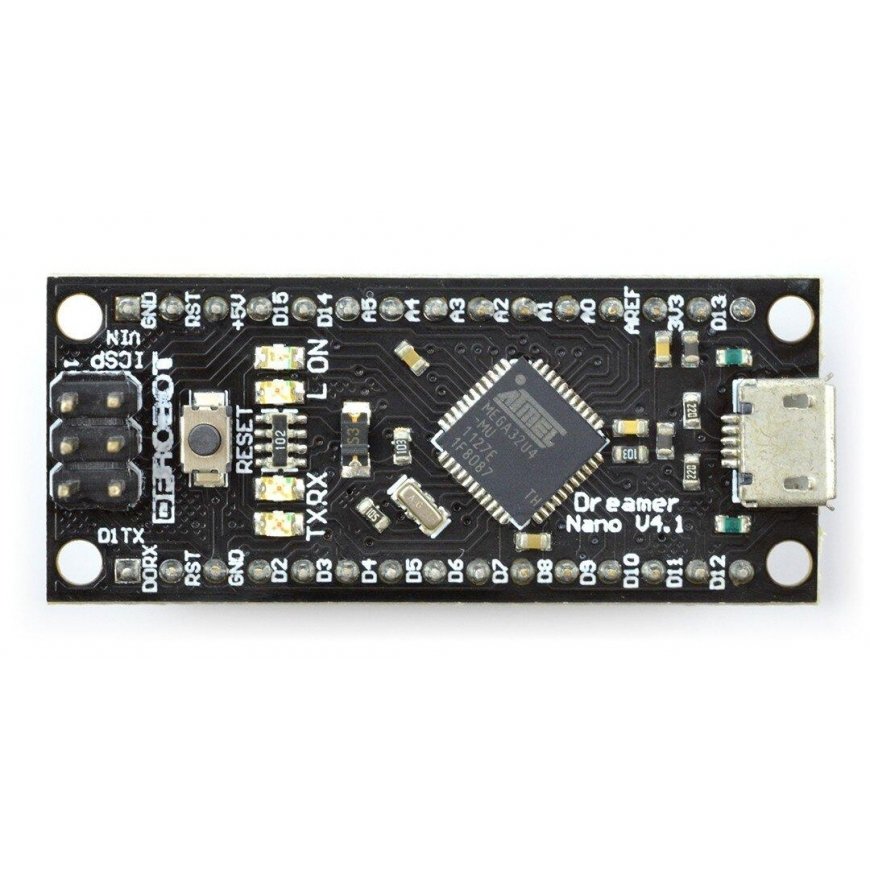

Dfrobot Dreamer Nano v4.0, Arduino compatible
29.00 €
3628562 AN-02687
5904422360955
Piegāde 8-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The board has an ATmega32u4 microcontroller with 20 digital inputs/outputs, 7 of which can be used as PWM outputs (e.g. for motor control) and 12 as analog inputs. Modified with a 16 MHz clock signal. The module also has: a micro USB connector, a socket, a RESET button and outputs for connecting an AVR programmer.
Specifications:
- Supply voltage: 6.5 to 12 V
- Logic output voltage: 5 V
- Programmable via micro USB
- Fully compatible with Arduino Leonardo
- Microcontroller: ATmega 32u4
- Maximum clock frequency: 16 MHz
- SRAM: 2.5KB
- Memory: 32 kB (8 kB for bootloader)
- EEPROM memory: 1 kB
- I/O ports: 20
- PWM outputs: 7
- Number of analog inputs: 12 (A/C converter channels)
- Serial interfaces: UART, SPI, I2C
- External interrupts
- Connector: micro USB socket (USB cable sold separately)
- ISP connector soldering
- I2C interface connections are available on digital outputs: SDA - D2 and SCL - D3
- Dimensions: 45 x 20 x 20 mm
