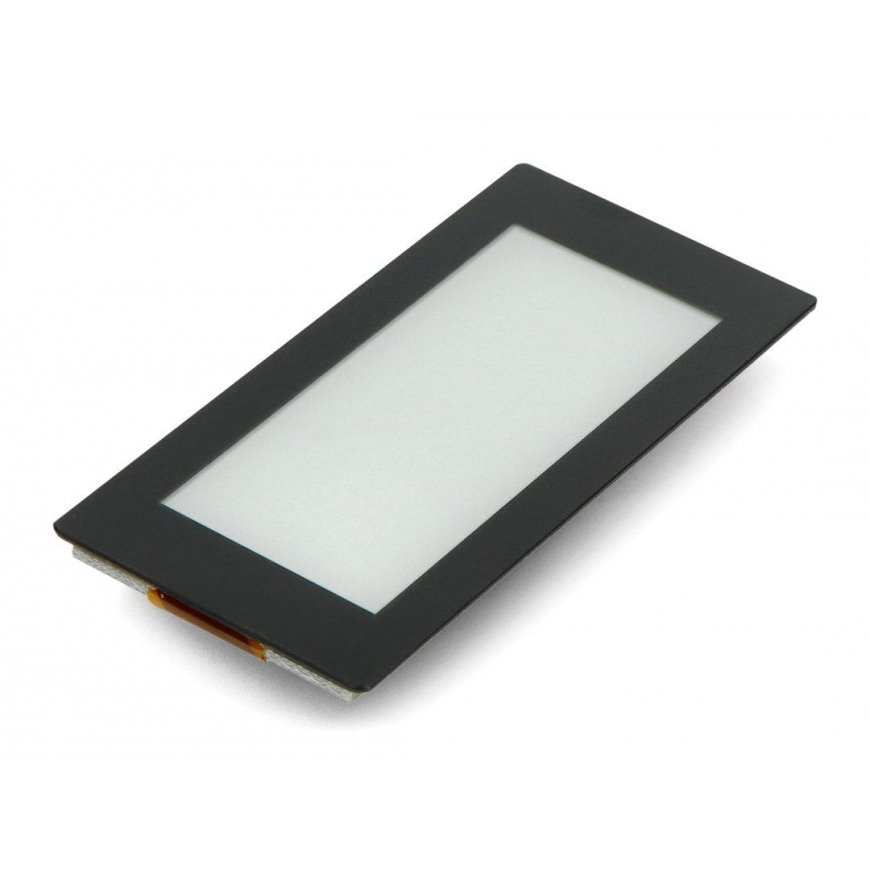

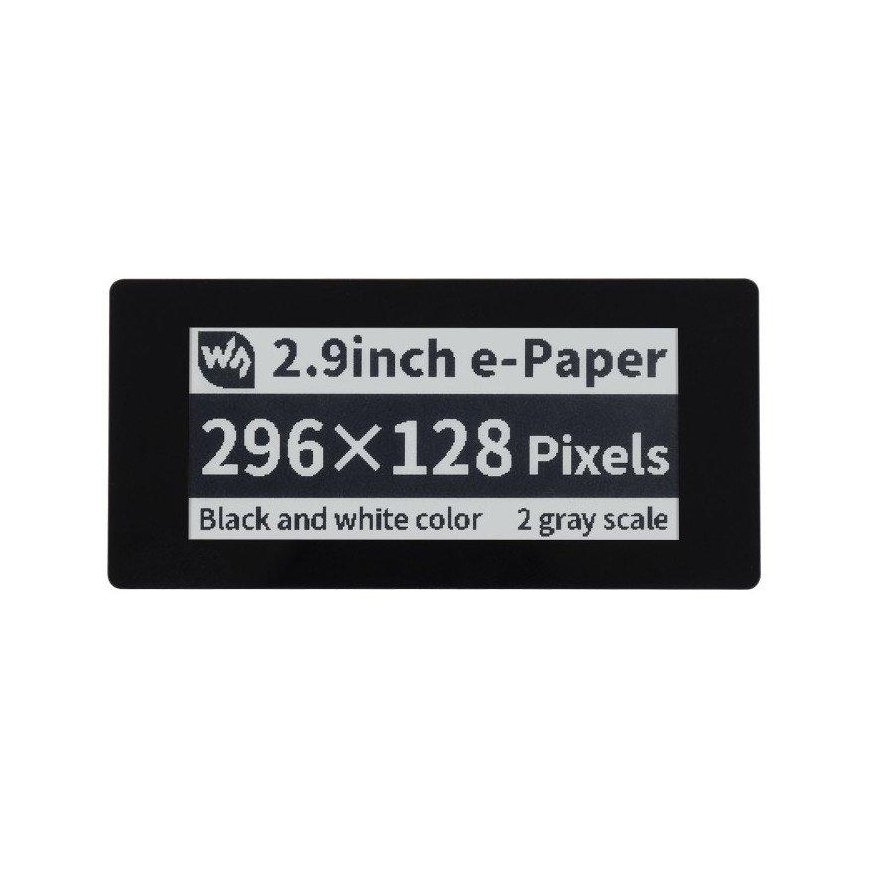

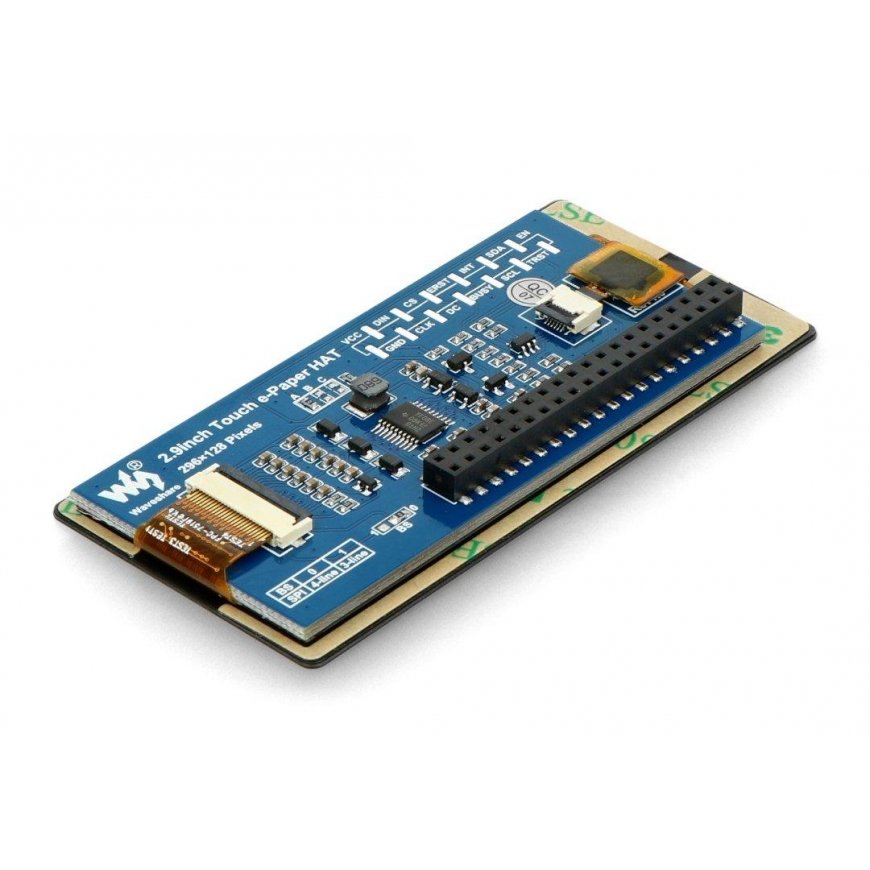

Capacitive touch screen E-paper E-Ink, 2.9” 296x128px, SPI/I2C, monochrome, for Raspberry Pi, Waveshare 19967
39.00 €
Ikm. maksa no 1,90 €
3628434 AN-19723
5904422347291
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The touch screen is created using Waveshare e-paper technology with a 2.9” diagonal and a resolution of 296x128px. The screen works with any 40-pin Raspberry Pi version, and can also be used with Arduino and STM32. The image is displayed in two colors: black and white. The module uses SPI and I2C interfaces for interaction. Due to e-paper technology, this type of screen is suitable for use in e-book and e-magazine readers.Main features:
- 2.9” display with 296x128px resolution and capacitive touch
- Supports 5 touch points, user-defined screen wake-up gesture
- Lack of backlighting keeps the last displayed image for a long time after power is turned off
- Ultra-low power consumption, power is only needed to refresh the screen
- SPI/I2C interface

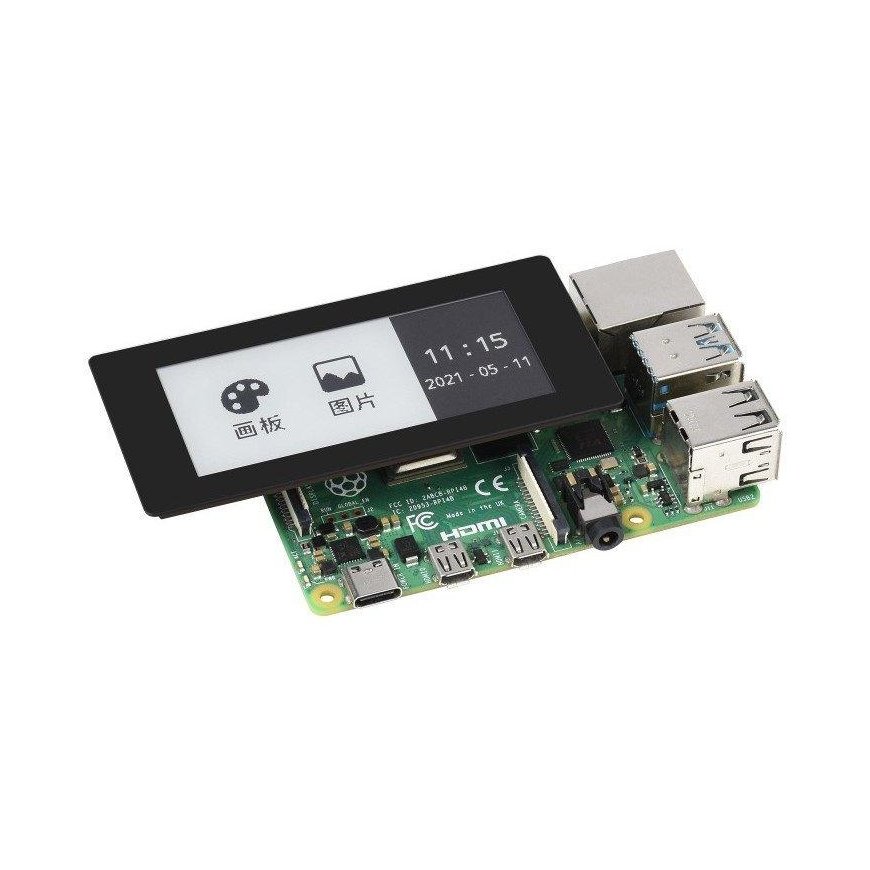

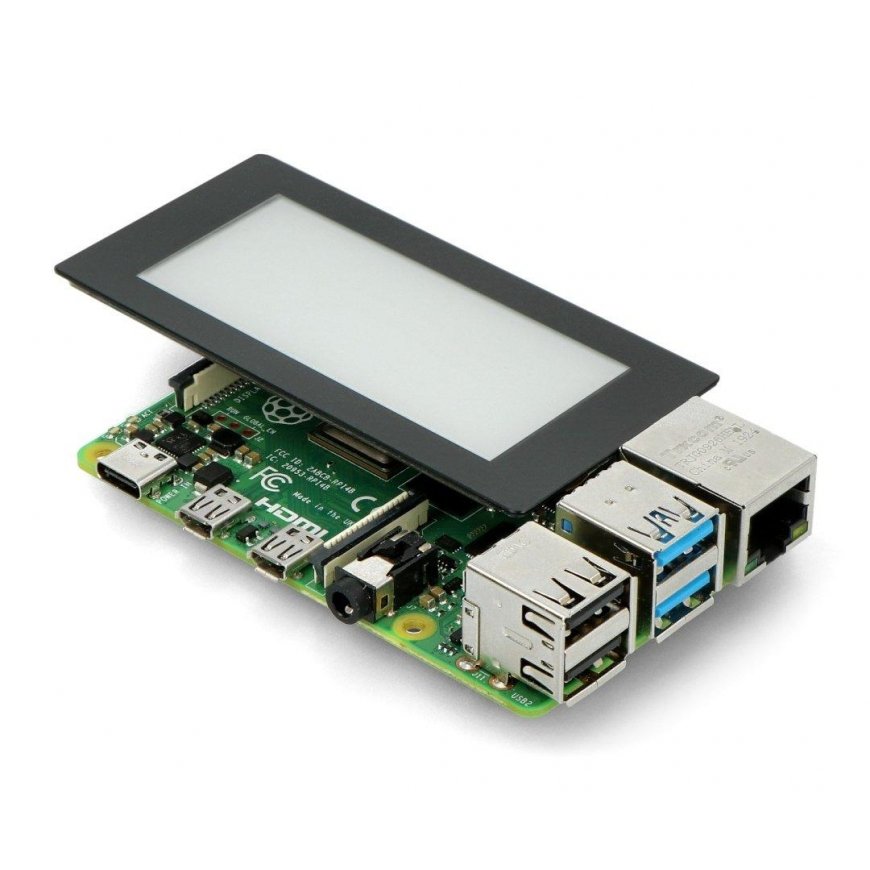

- Works with any 40-pin Raspberry Pi version
- Also works with boards like Arduino and STM32
- Operating voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI, I2C
- Colors shown: black and white
- Grayscale: 2
- Full refresh time: 0.3s
- Total refresh time: 2s
- Current consumption when updating: 26.4 mW
- Idle current consumption: up to 0.01 uA
- Viewing angle: up to 170°
- Capacitive touch
- Number of touch points: 5
- Diagonal size: 2.9”
- Resolution: 296x128px
- Pixel size: 0.227 x 0.226 mm
- External dimensions: 89.1 x 42.7 mm
- Screen dimensions: 66.89 x 29.05 mm
