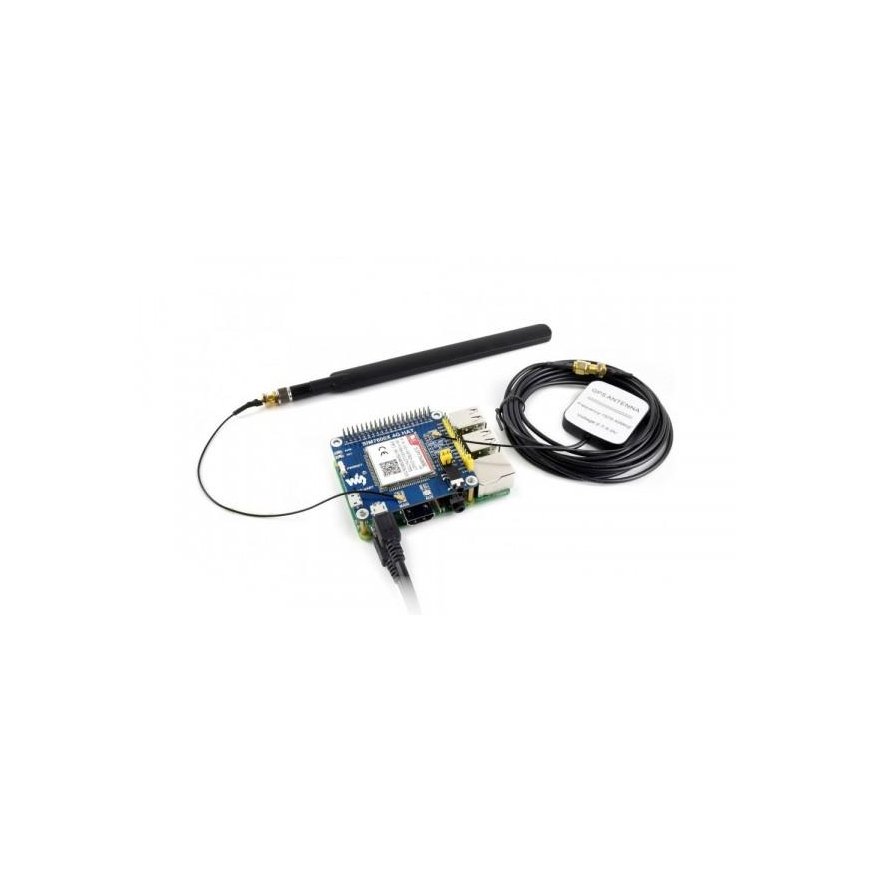

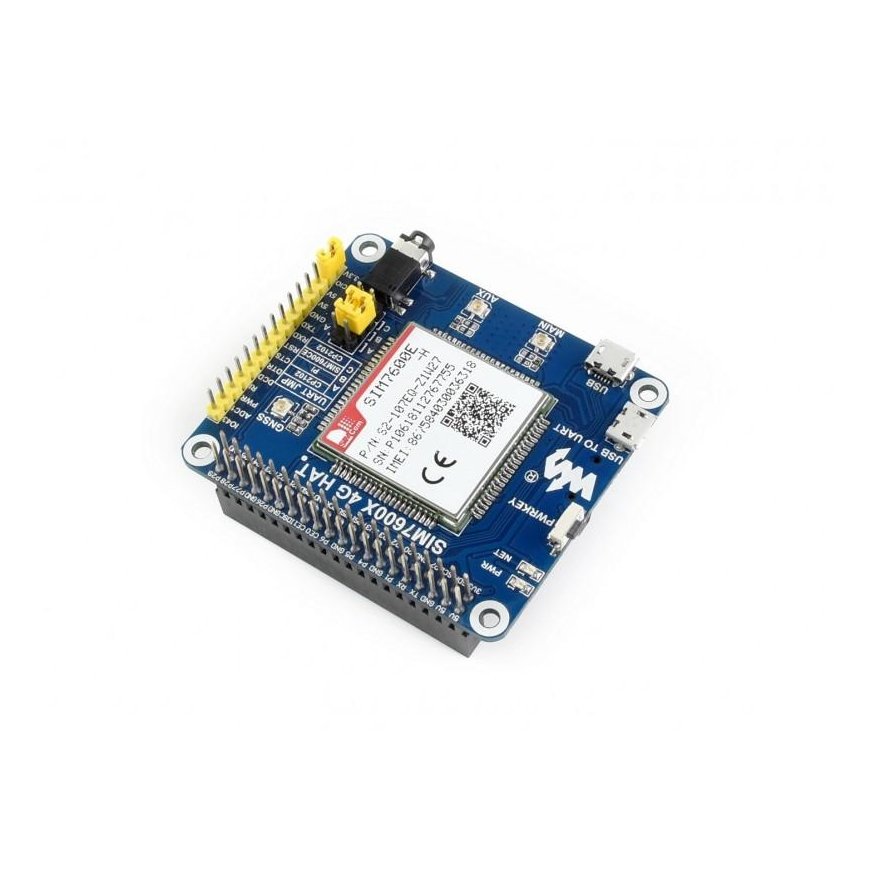

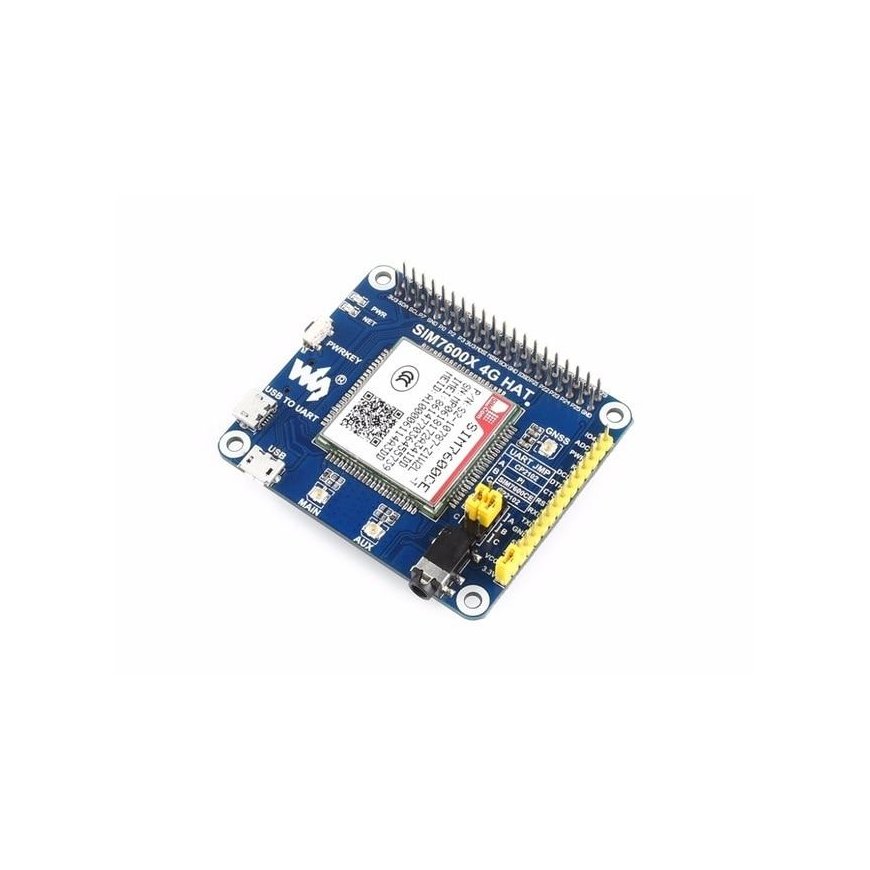

Waveshare LTE GPS HAT - LTE/GPRS/GPS SIM7600E-H - Model For Raspberry Pi
119.00 €
Ikm. maksa no 3,96 €
3627700 AN-12533
5904422319519
Piegāde 8-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
SIM7600E-H 4G HAT is a 4G/3G/2G communications and GNSS positioning module that supports LTE CAT4 for up to 150Mbps data transmission. You can connect this 4G module to your computer to browse the internet, or connect it to your Raspberry Pi to enable the functions.
Technical data:
- Raspberry Pi connector, compatible with Raspberry Pi Zero / Zero W / Zero WH / 2B / 3B / 3B +/4B
- Supports dial-up, phone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, LBS base station positioning
- USB interface to test AT commands, receive GPS positioning data, etc.
- CP2102 USB to UART converter for multiple debugging.
- Breakout UART control pins, connected to mainboards such as Arduino/STM32
- SIM card slot supports 1.8V/3V SIM cards
- TF card slot for data such as files, messages, etc.
- Audio jack and audio decoder for phone calls
- 2x LED indicators for easy monitoring
- In the voltage converter, the operating voltage can be configured to 3.3V or 5V via a jumper
- Baud rate: 300 bps ~ 4Mbps (default: 115200 bps)
- Autobauding baud rate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005 and V.25TER command set)
- Supports SIM Application Toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- SIM7600 set-top box
- GSM antenna
- GPS antenna
- 2x microUSB cables
- 2x adapter SMA - u.Fl
- Screw set
