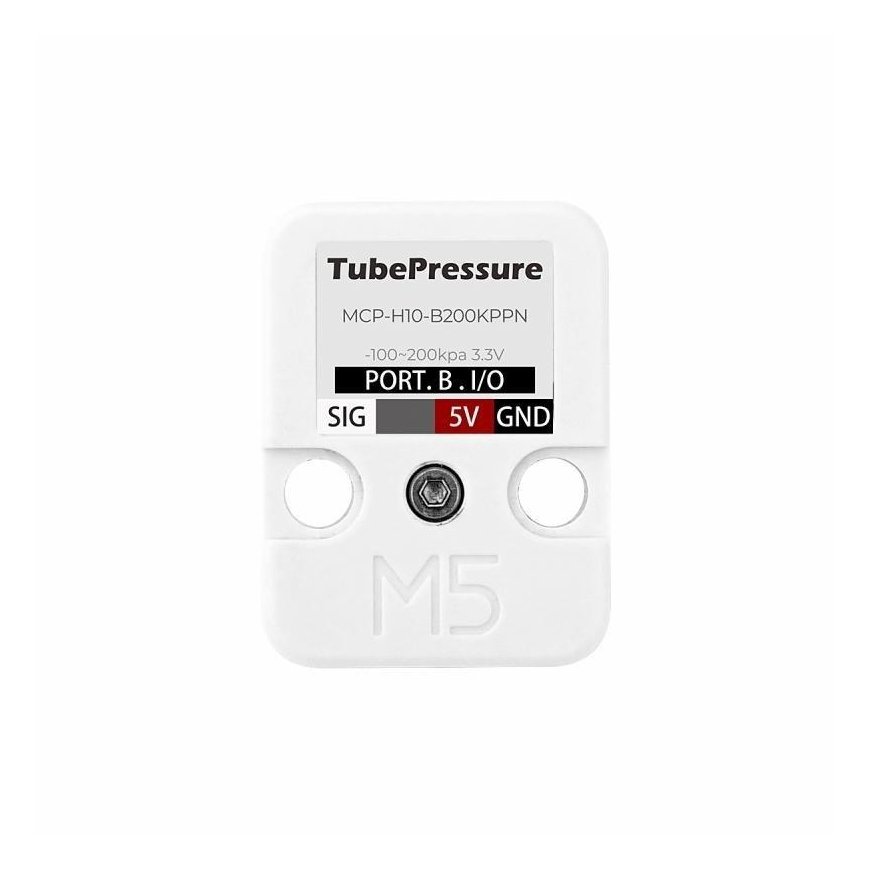

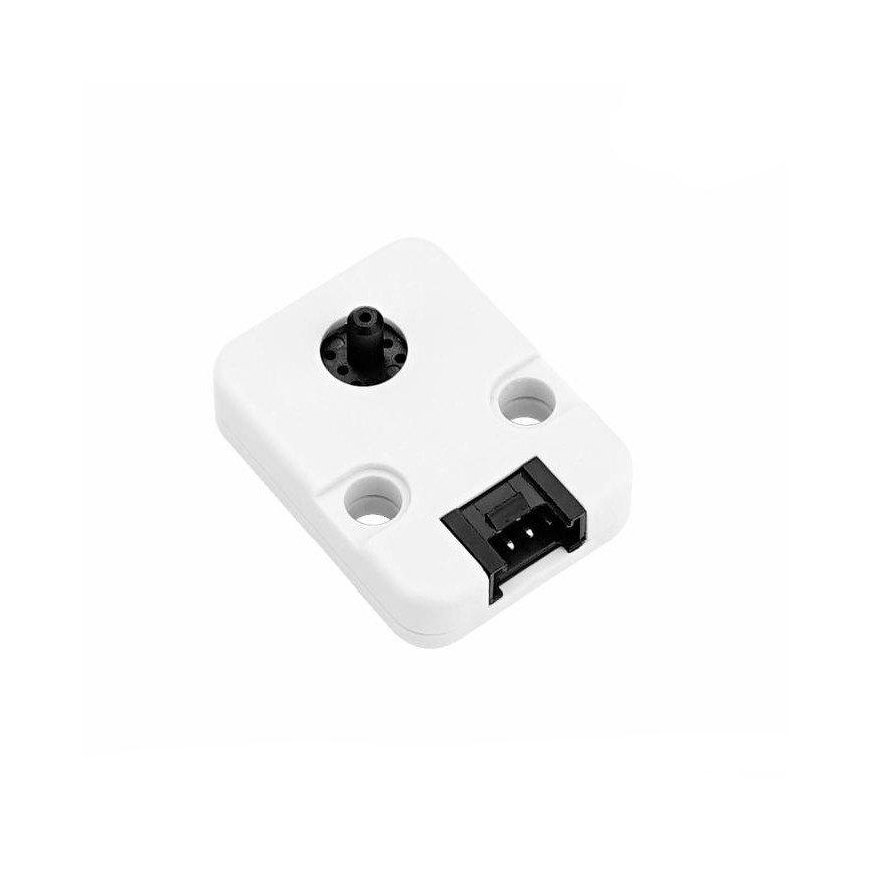

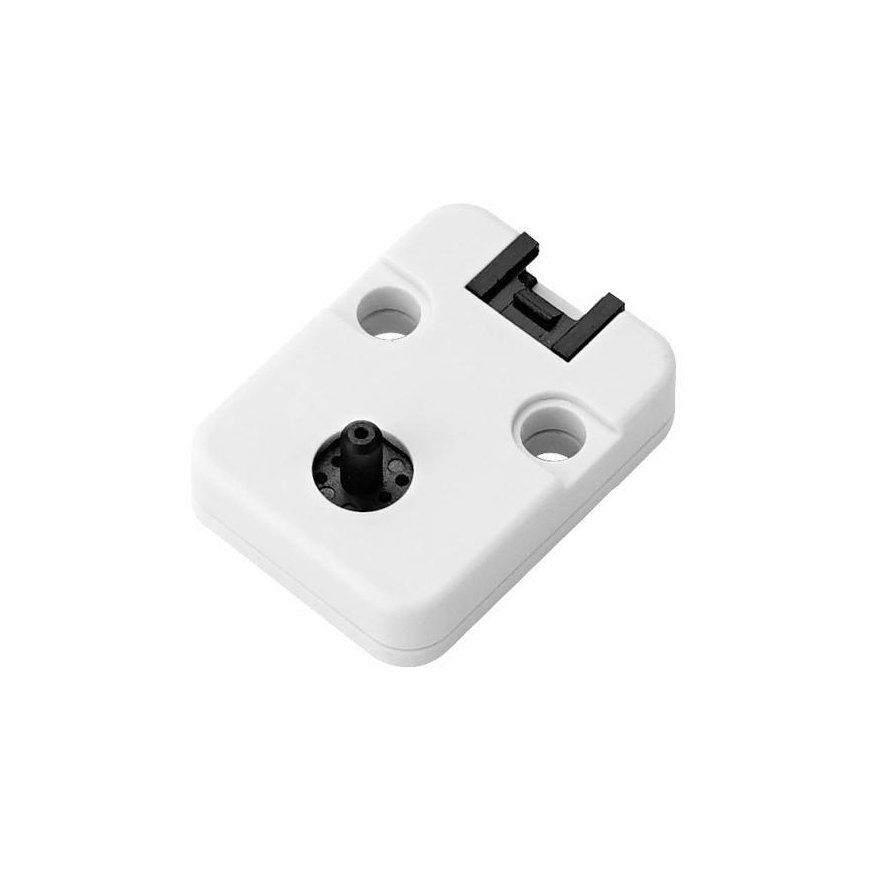

MCP-H10-B200KPPN air pressure sensor - device expansion module for development modules M5Stack
21.32 €
3626798 AN-20446
5904422380977
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

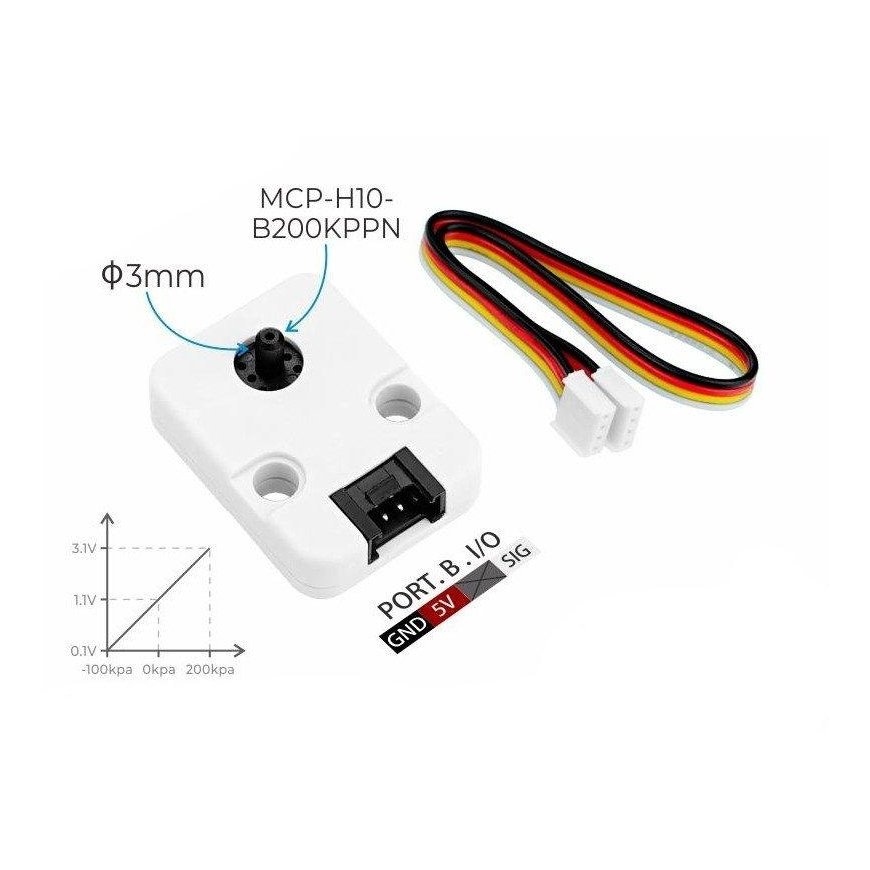

The sensor measures air pressure in a closed circuit from -100 kPa to 200 kPa. The measurement accuracy is 1.5 kPa. The module has an integrated piezoresistive pressure sensor with wide temperature compensation. The device-type extension form factor has a protective housing that ensures long-term operational stability and resistance to damage. In addition, it also has two LEGO-compatible mounting holes.Specifications:
- Integrated circuit: MCP-H10-B200KPPN
- Detection: gas
- Measuring range: -100 kPa to 200 kPa
- Measurement accuracy: 1.5 kPa at temperatures from 0 °C to 85 °C
- Supply voltage: 5V
- Output voltage: 0.1 V to 3.1 V
- Programming: block (graphical) UIFlow

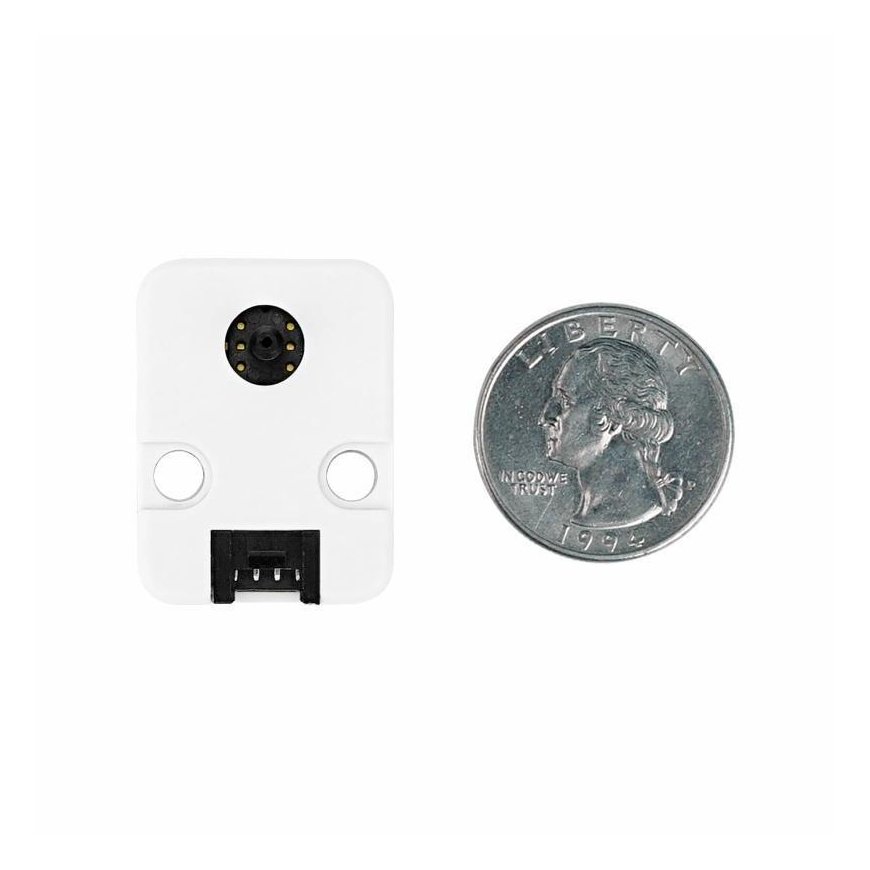

- Sensor dimensions: 24 x 32 x 12 mm
- Weight: 4.5 g
- Air pressure sensor MCP-H10-B200KPPN - M5Stack development module expansion block
- Special connection cable
