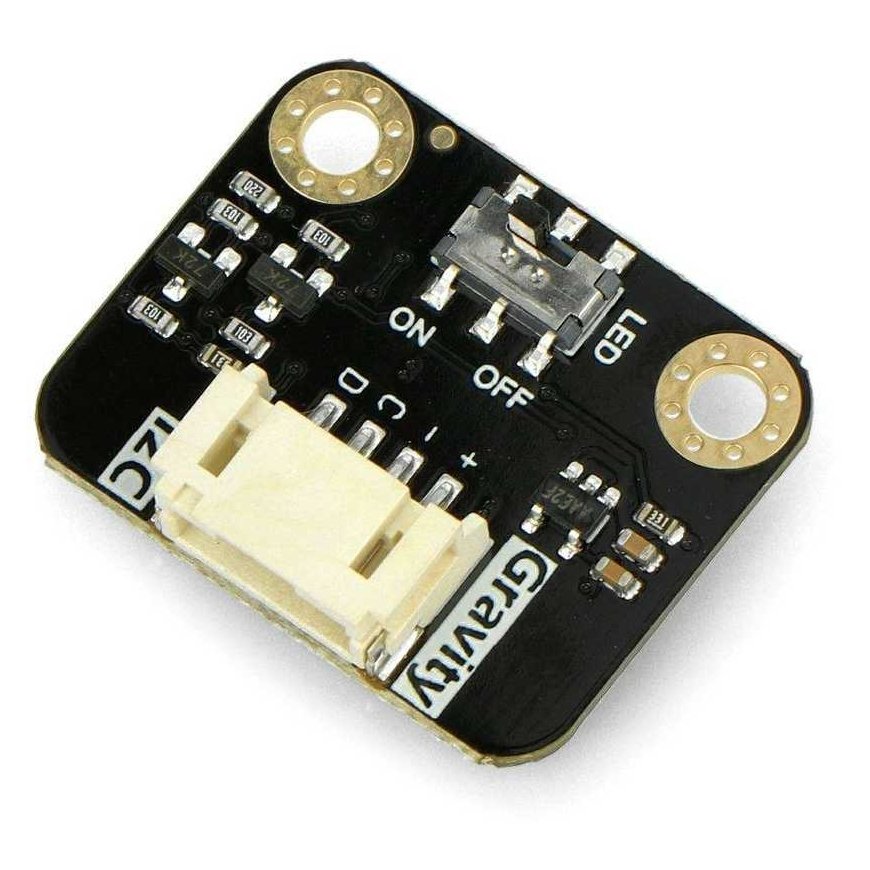

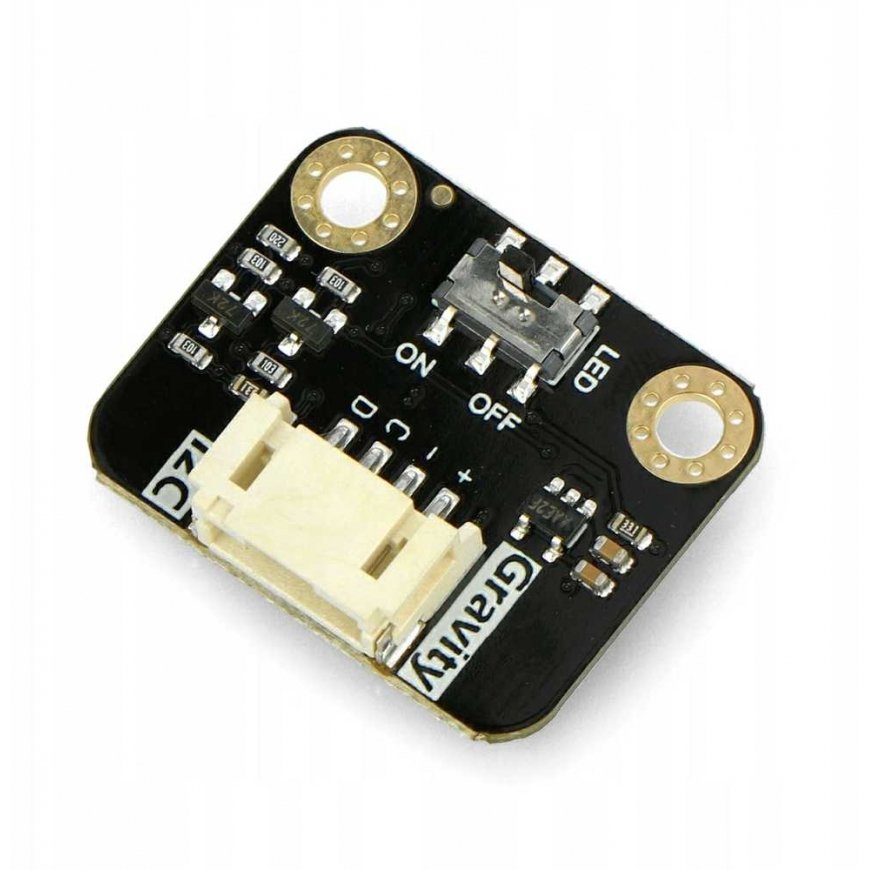

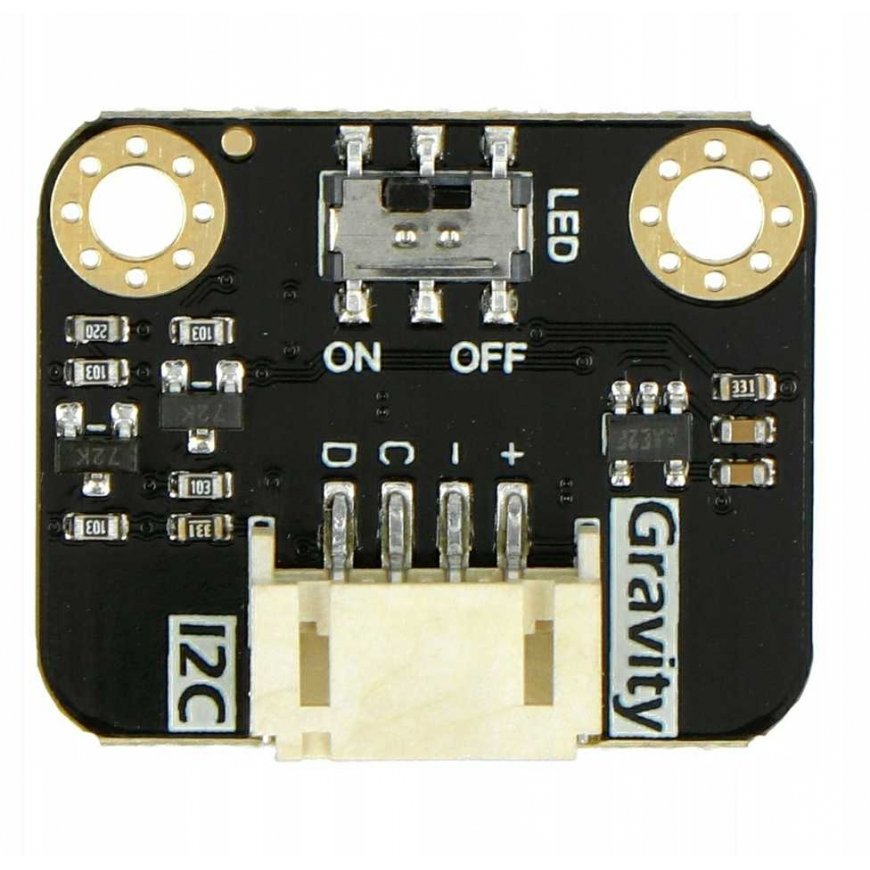

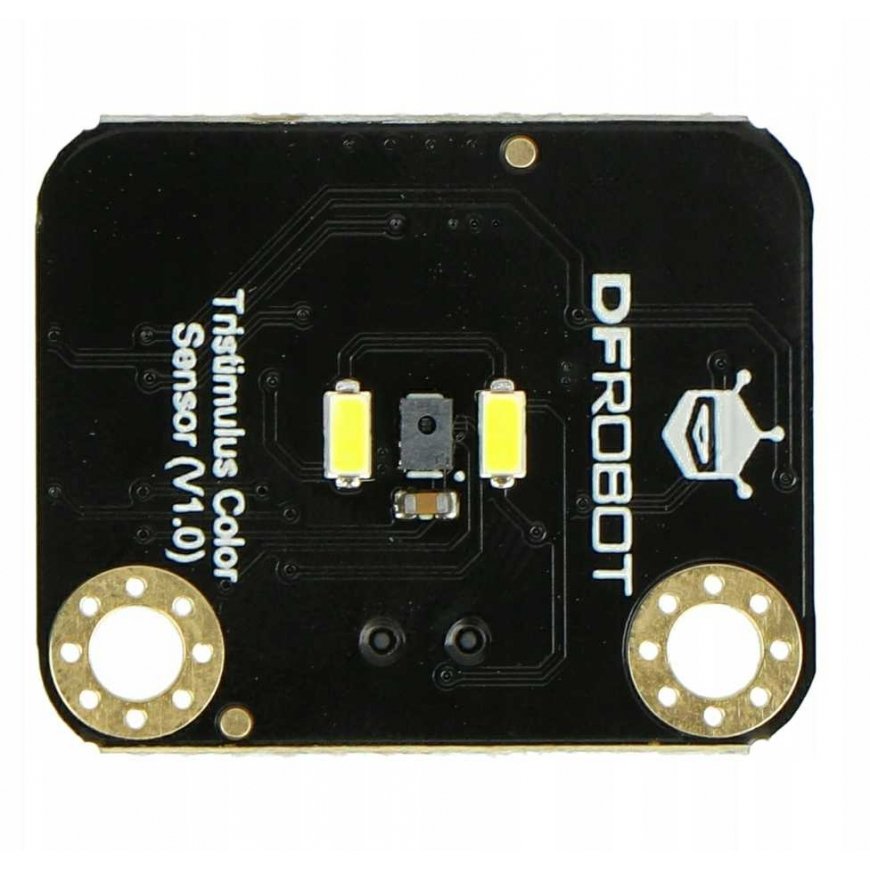

Gravity - color sensor TCS3430 Tristimulus - DFRobot SEN0404
30.43 €
3625295 AN-19904
5904422350581
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
This color sensor manufactured by DFRobot is equipped with TCS3430 Tristimulus chip. It offers advanced digital ambient light detection (ALS) and CIE 1931 trichromatic color detection (XYZ). It can adjust ±10% illumination and adjust color temperature accuracy. It features wide dynamic range and high measurement sensitivity.Specifications:
- Power supply range: 3.3V to 5V
- Current consumption: <5 mA
- Interface: I2C bus
- Interface address: 0x39
- Operating temperature range: -30 °C to 85 °C
- Module dimensions: 22 x 27 mm

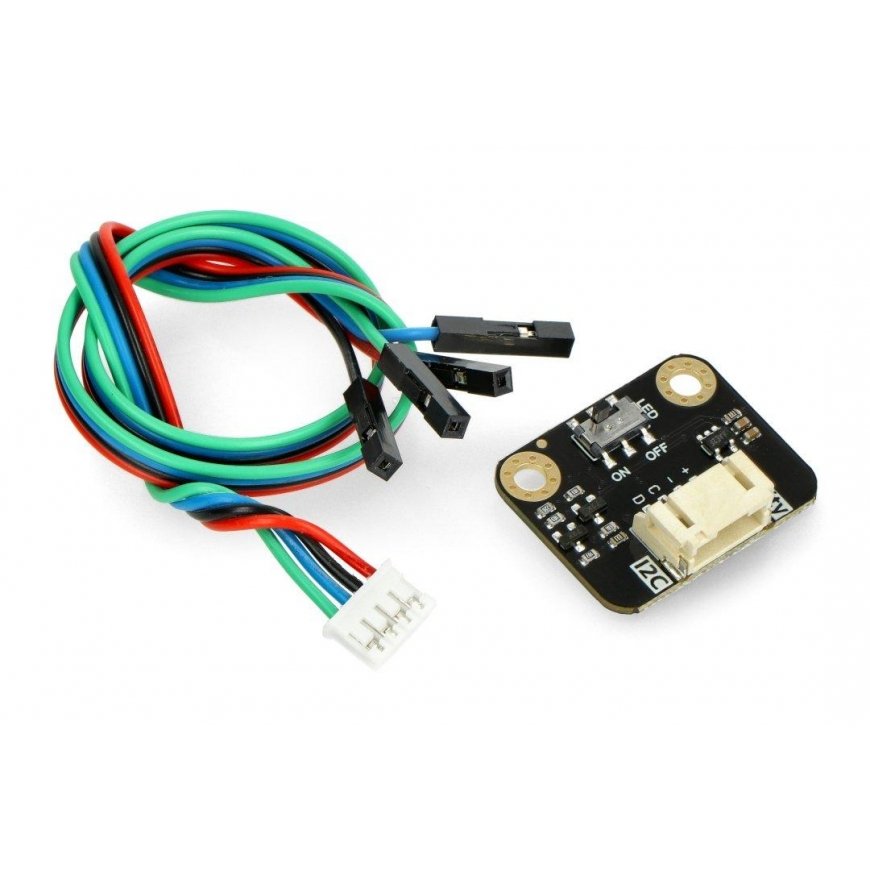

- Gravity - TCS3430 Tristimulus Color Sensor - x1
- Connection cable with Gravity 4-pin I2C / UART connector - x1
