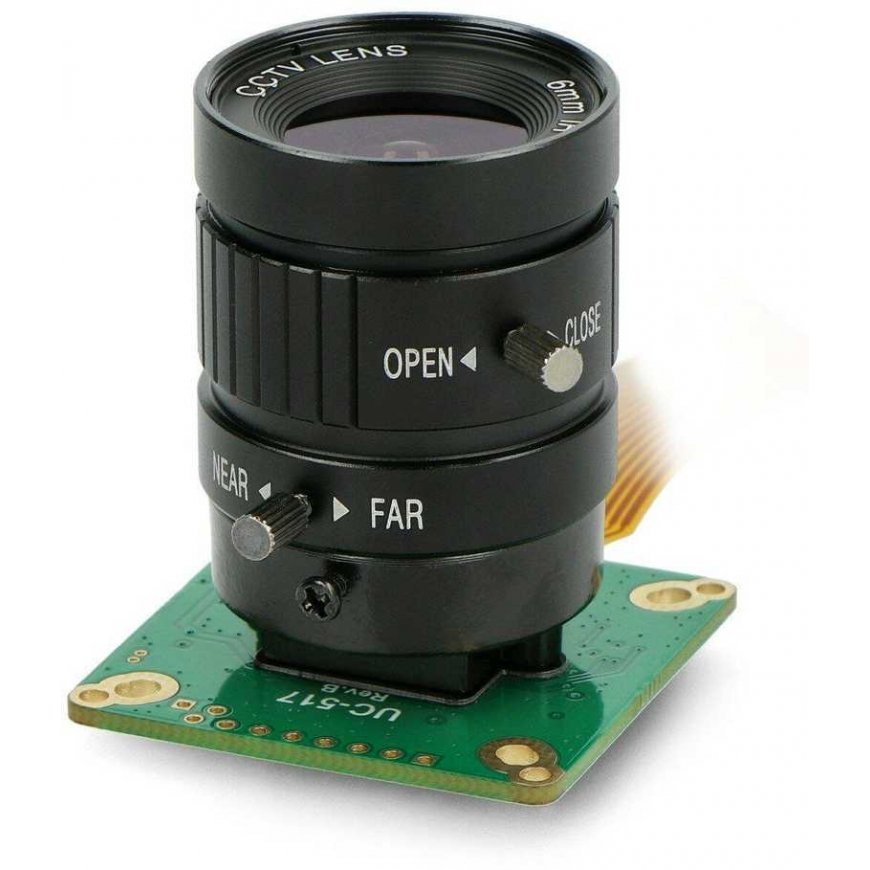

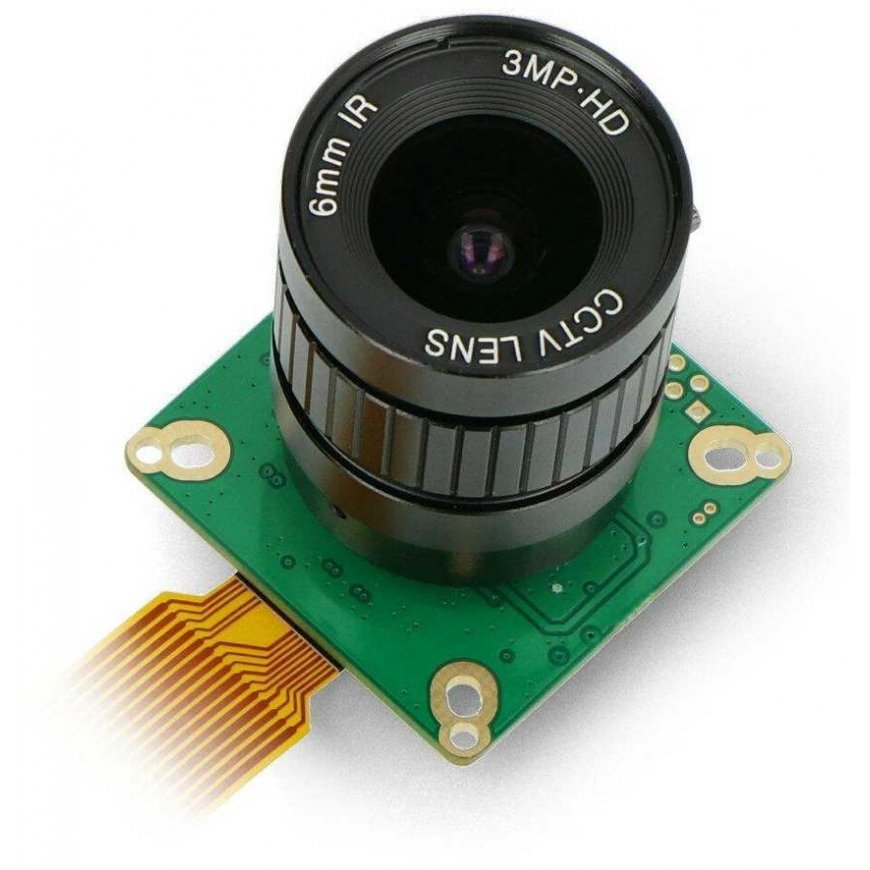

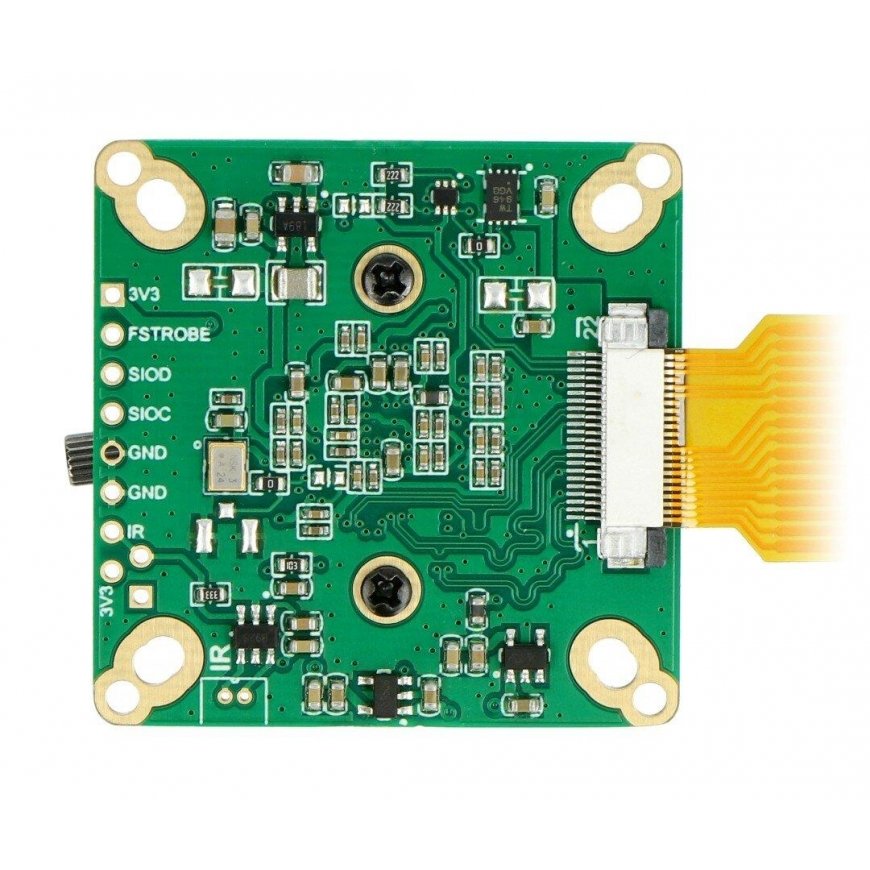

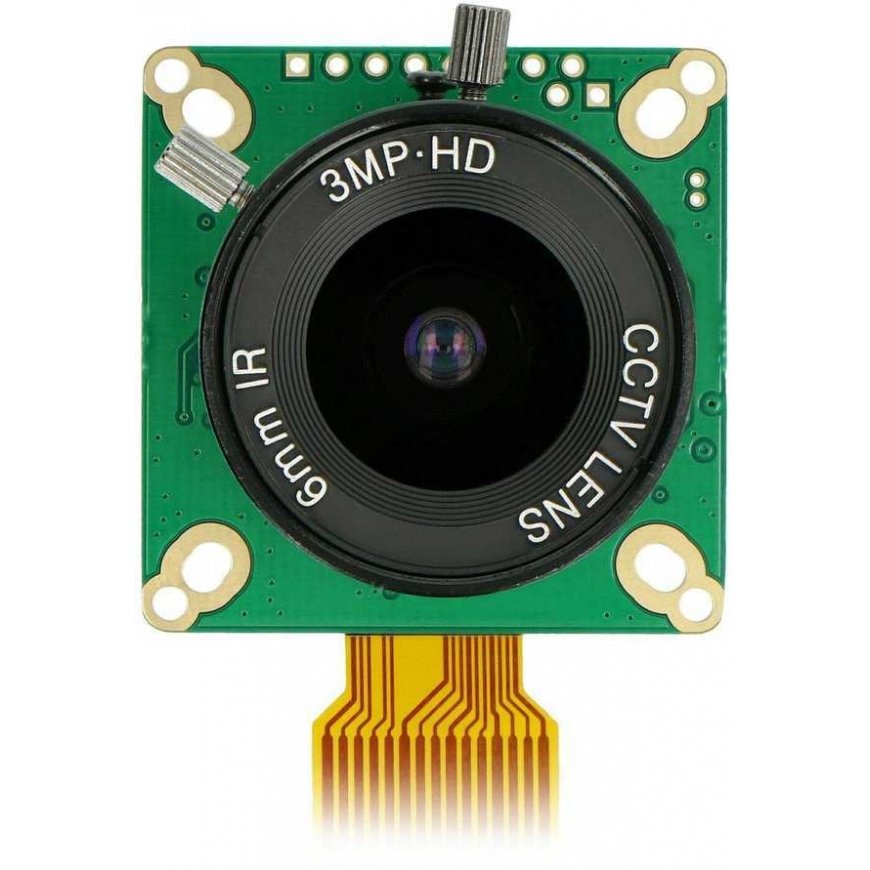

IMX477 12.3MPx HQ camera with 6mm CS mount, for Raspberry Pi, ArduCam B0240
109.00 €
Ikm. maksa no 3,71 €
3623912 AN-17454
5904422327583
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Camera with 1/2.3” IMX477 sensor and 12.3 MPx resolution. The maximum resolution is 4056x3040px. The camera is equipped with a 6 mm focal length lens, mounted in CS-Mount mode. Designed for Raspberry Pi and Jetson Nano mini computers.
Specifications:
- Camera:
- sensor: IMX477
- format: 1/2.3"
- resolution: 4056x3040px, 12.3 MPx
- pixel size: 1.55 x 1.55 mm
- IR sensitivity: daylight
- interface: 4-line MIPI CSI-2
- lens mount type: CS-Mount
- the speed of the cages:
- full resolution / 60 fps, 4k2k / 60 fps, 1080p / 240 fps
- full resolution / 40 frames per second (12 bit)
- full resolution / 3 frames per second (DOL-HDR)
- Lens:
- format: 1/2.3"
- focal length: 6 mm
- iris: F1.4
- viewing angle: 65°
- Mounting: CS-Mount
- rear focal length: 12.5 mm
- MOD (minimum object distance): 0.1 m
- dimensions: 28 x 26.58 mm
- weight: 29 g
- Module dimensions: 40 x 40 mm

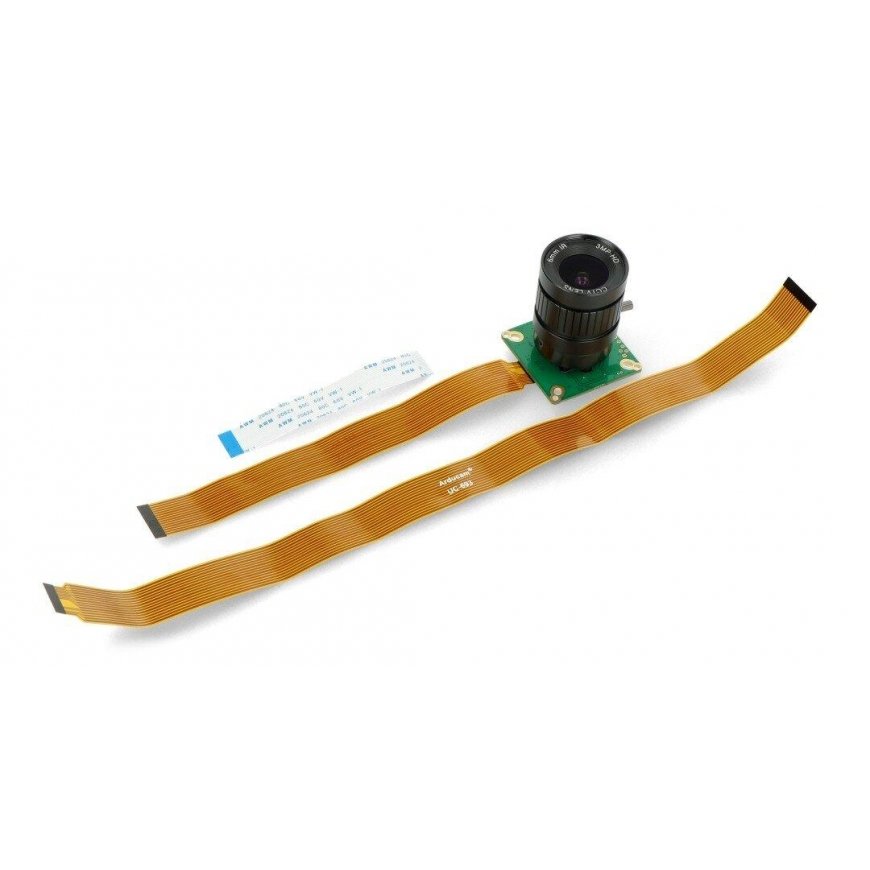

Included:
- Camera IMX477 12.3 MPx
- 6mm CS mount lens
- 300mm 15-pin cable for Raspberry Pi A/B
