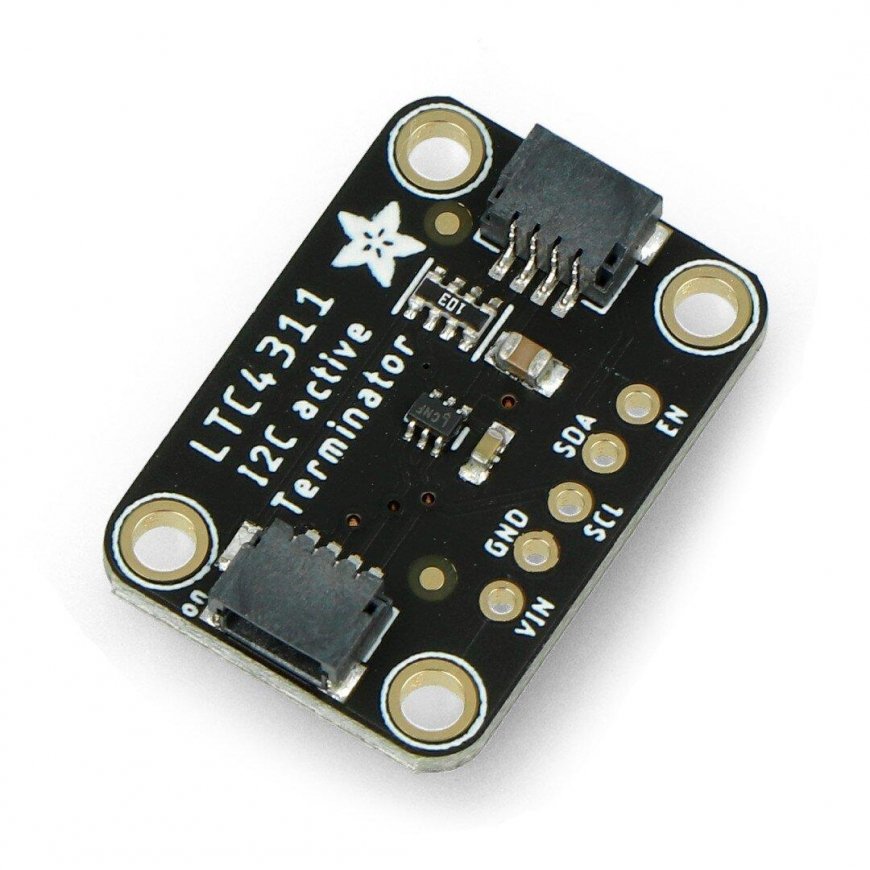

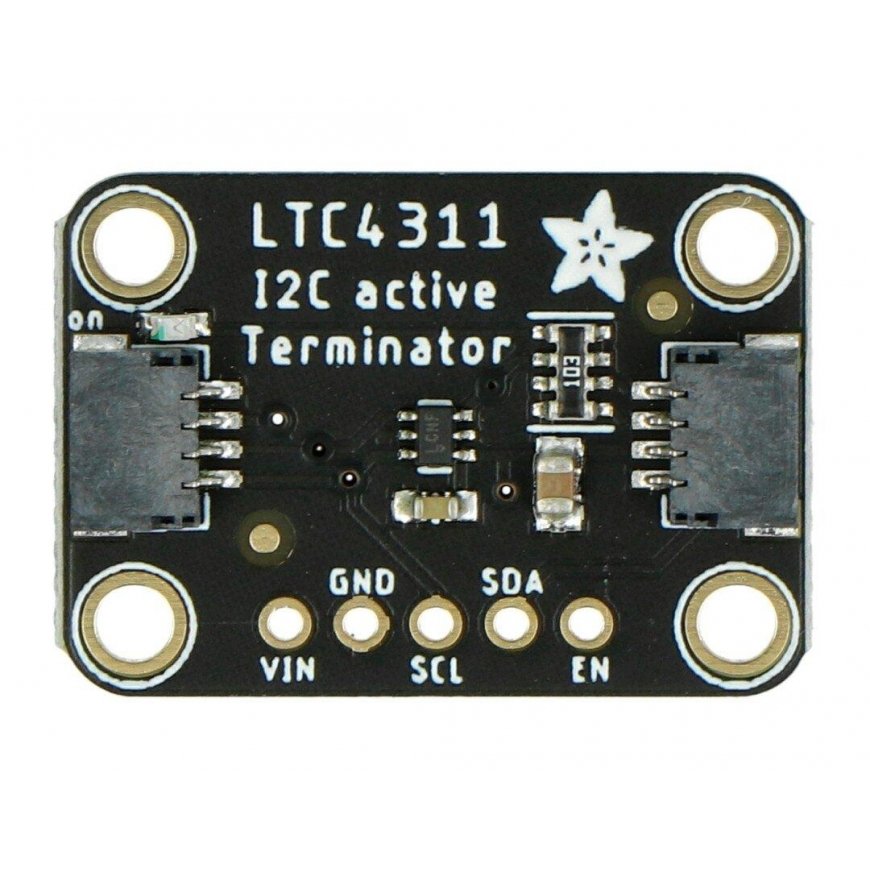

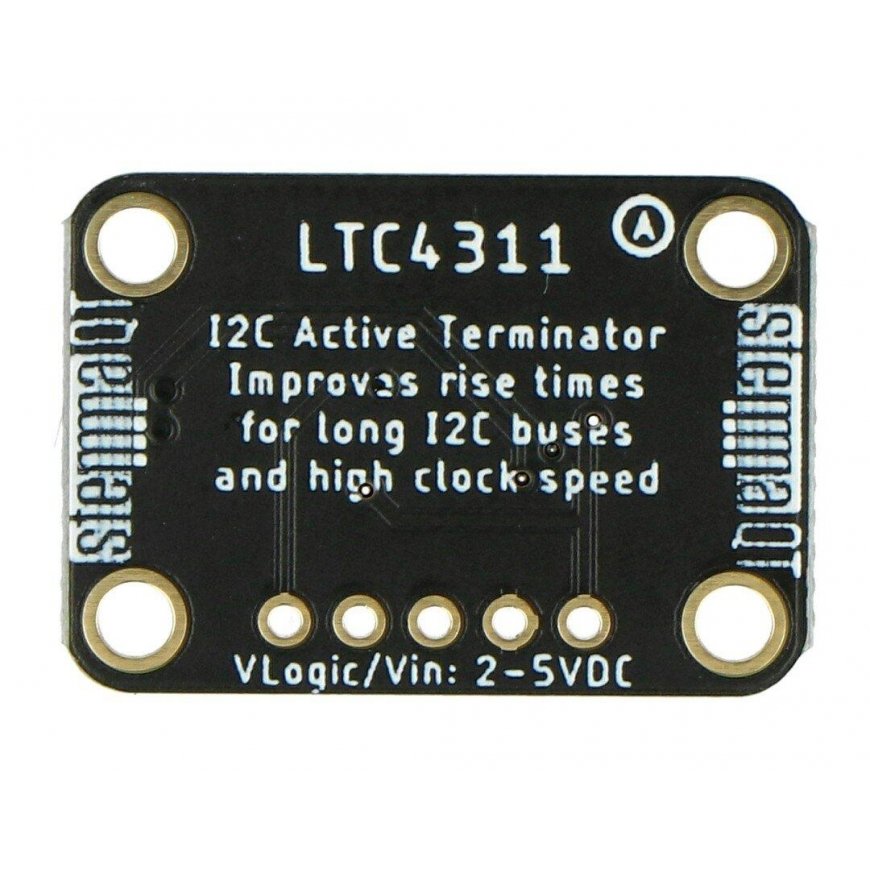

Extender / Active Terminator LTC4311, I2C signal amplifier, Adafruit 4756
29.00 €
3619437 AN-18234
5903351245463
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
I2C signal amplifier in the form of an Adafruit module. It provides the user with faster data transmission without additional wires. In addition, it allows the signal to be transmitted over much greater distances and without interference. Ensures data integrity in many devices that use the I2C communication interface. No additional software or configuration is required for proper operation. Proper connection of the outputs is enough.
Specifications:
- Supply voltage: 2 V to 5 V
- Communication interface: I2C
- Maximum operating frequency: 400 kHz
- Current draw: up to 5 µA in low power mode
- Automatically sets low power consumption in standby mode
- Dimensions: 50 x 23 x 3.5 mm
- Weight: 4.9 g
Included:

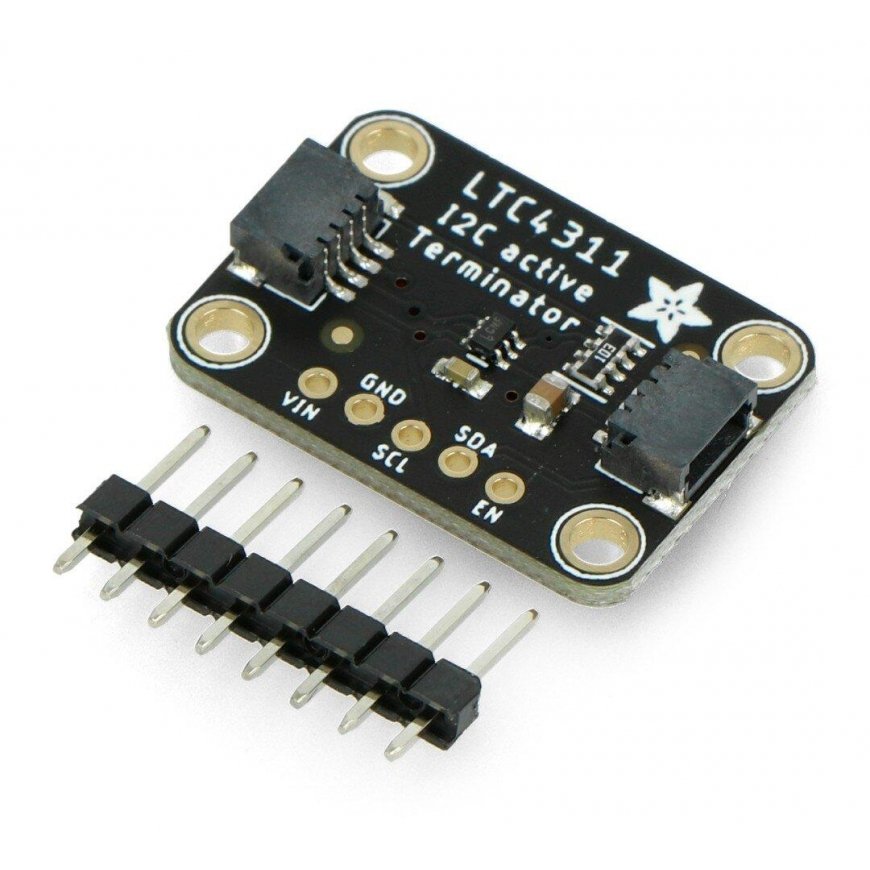

- LTC4311 I2C Signal Amplifier Module
- Goldpin connectors 2.54 mm
Links:
Manufacturer's page
Manual
