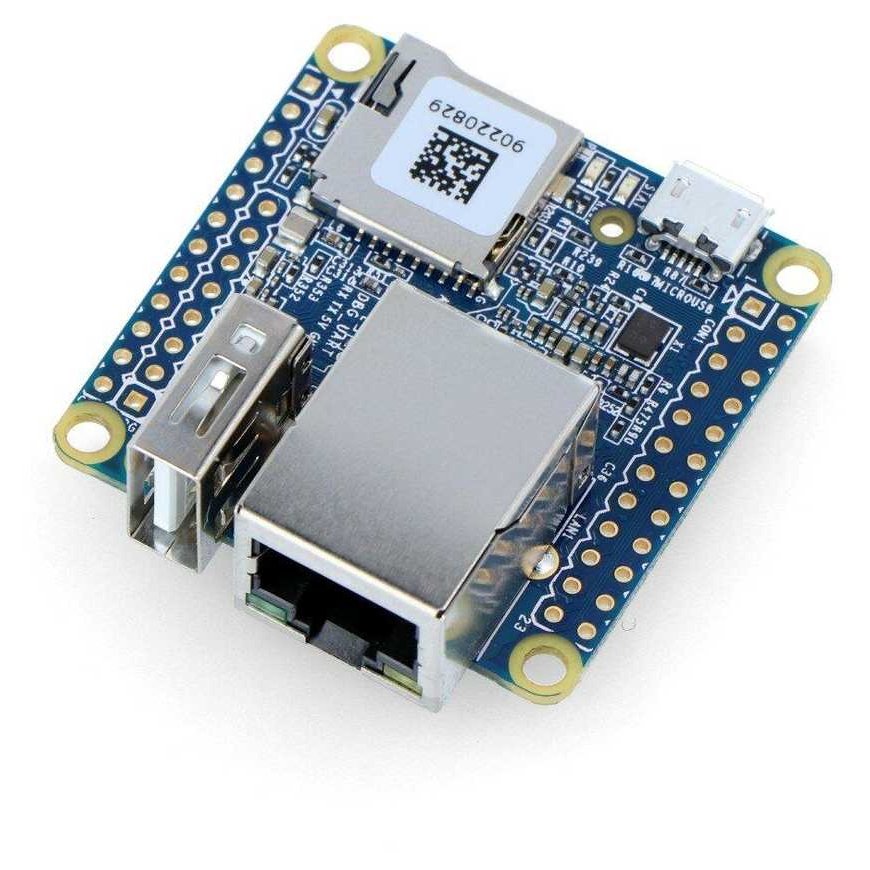

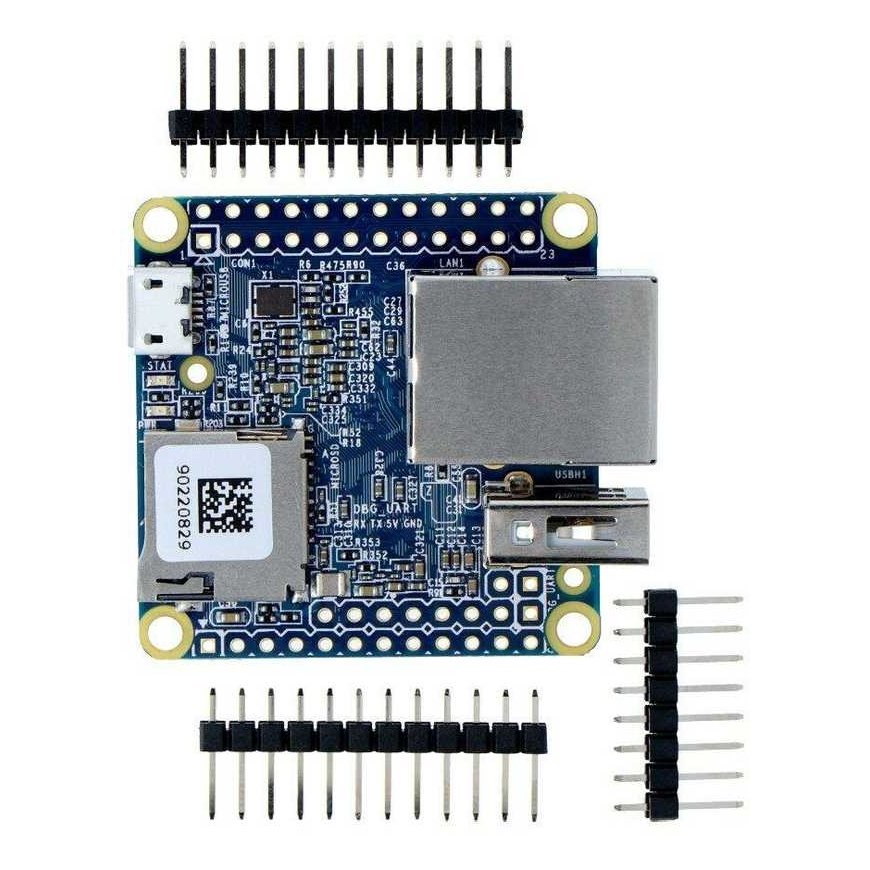

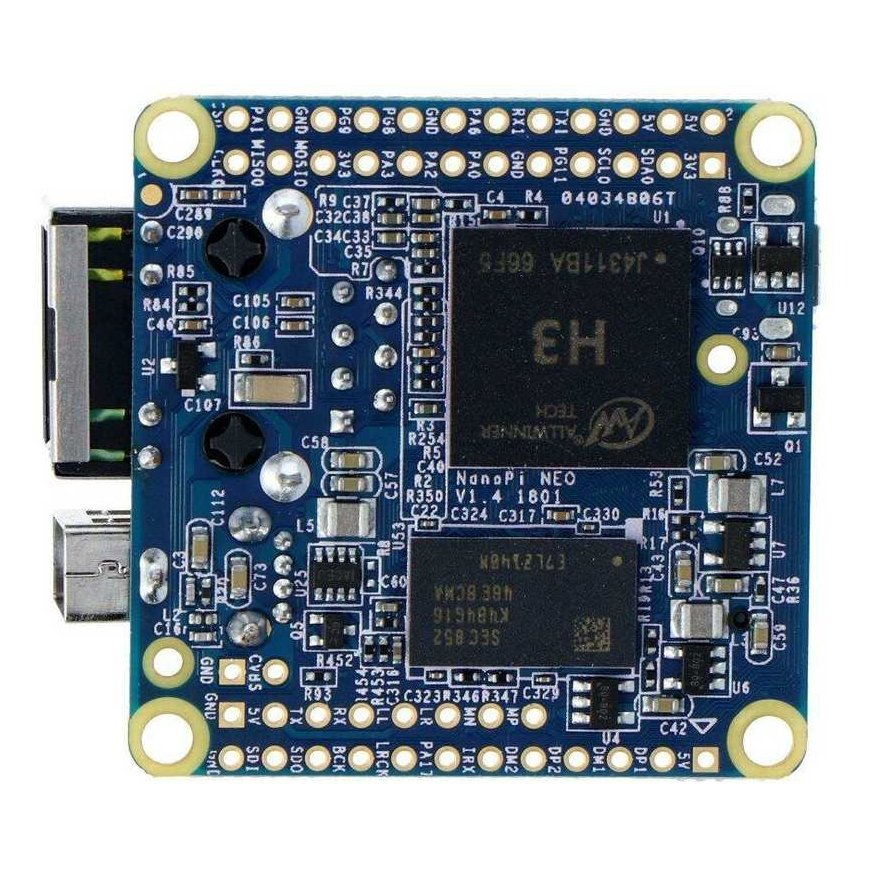

Friendlyarm NanoPi NEO v1.4 - Allwinner H3 quad core 1.2GHz + 512MB RAM - no connectors
109.00 €
Ikm. maksa no 3,71 €
3616716 AN-14635
5904422377656
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Miniature NanoPi computer in Neo 1.4 version with 1.2 GHz Allwinner H3 quad-core ARM Cortex-A7 processor. The board has 512 MB DDR3 RAM, built-in Ethernet port and USB + 2 x USB Host socket on 2.54 mm pins, 36 GPIO, microSD card slot. Works with u-boot and UbuntuCore systems.Specifications:
- Model: NanoPi Neo
- Processor: Allwinner H3
- Core: Quad-core ARM Cortex A7
- Systems: u-boot, UbuntuCore
- Clock: 1.2GHz
- Memory RAM: 512 MB
- Memory: microSD card
- GPIO socket: 36-pin connector for self-soldering
- Power supply: 5V / 2A - microUSB
- Dimensions: 40 x 40 mm
- USB: 1 x USB socket A, 2 x USB on 2.54 mm pins
- Network interface: Ethernet 10/100 Mbps
- Video: -
- Audio: audio output and microphone, on GPIO connector
- Interface: UART, SPI, I2C, GPIO, PWM
- Adapter: Serial port 4-pin / 2.54 mm
- Additional: Integrated LED, CVBS 2-pin interface, supports IC power management, radiator mounting holes
