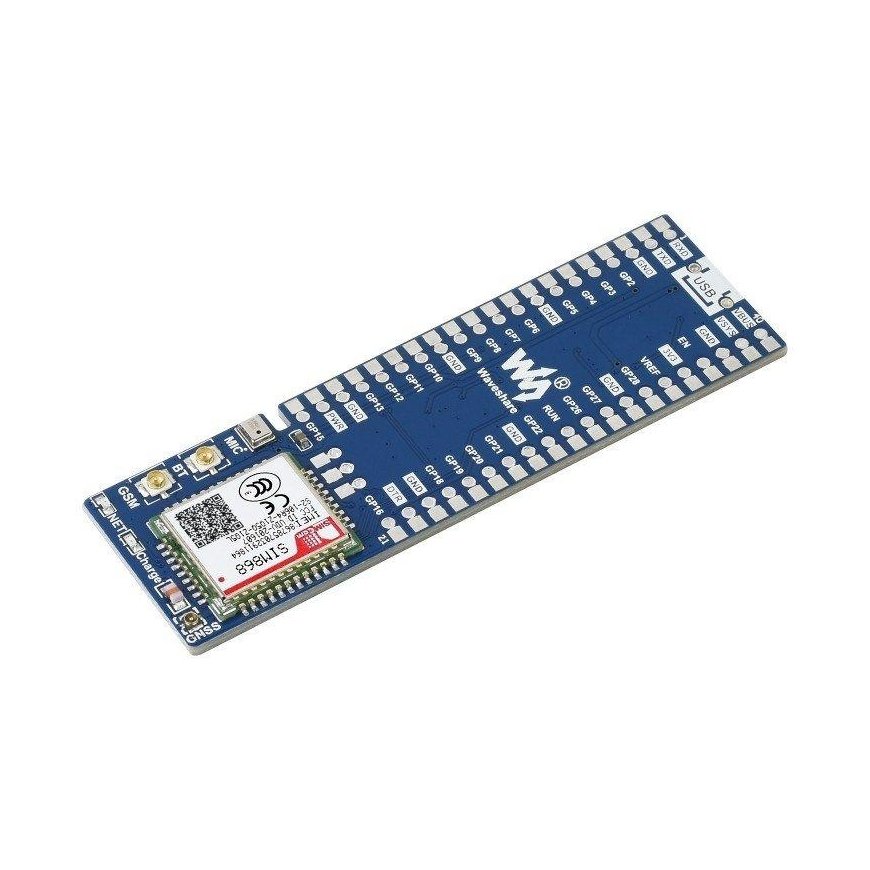

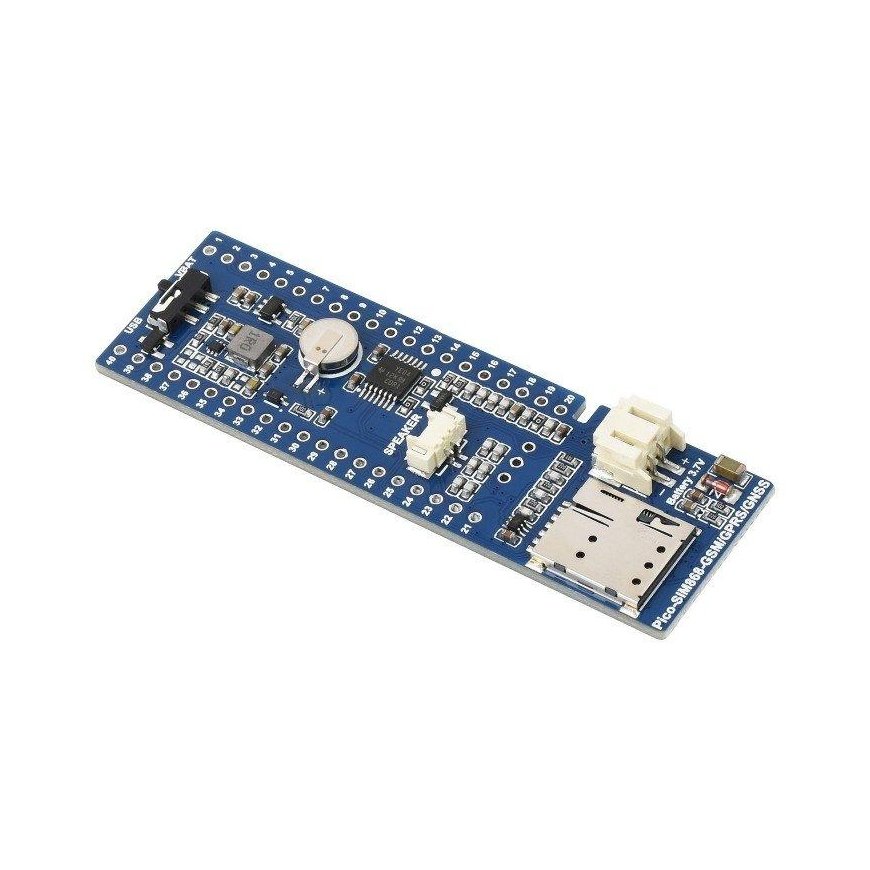

SIM868 GSM/GPRS/GNSS + Bluetooth - Raspberry Pi Pico communication module - Waveshare 20268
40.41 €
Ikm. maksa no 1,94 €
3613986 AN-20092
5904422380113
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
SIM868 GSM/GPRS/GNSS + Bluetooth is a communication module for Raspberry Pi Pico. It supports a wide range of 2G frequency bands and communication protocols, such as TCP / UDP / HTTP / SSL / FTP / POP3 / SMTP / MQTT and many others. SIM868 GSM/GPRS/GNSS + Bluetooth module can also be controlled by AT commands. This allows, among other things, making calls, sending SMS, 2G communication, global positioning, as well as Bluetooth transmission.Main features:
- Equipped with a connector that is compatible with the Raspberry Pi version Pico
- The UART interface can be controlled with AT commands
- Supports a wide range of communication protocols and cloud platforms
- Supports SMS, phone calls, GPRS, DTMF, HTTP, FTP, MMS, email
- Supports Bluetooth 3.0 connectivity for data transfer
- Integrated RTC real-time clock
- Equipped with Li-Pol 3.7 V battery connector
- Built-in microphone with speakerphone jack can be used for phone calls
- 2x LEDs for monitoring the module's operating status
- Built-in nanoSIM card slot, supports 2G/4G SIM card
- Includes development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
- Compatible with Raspberry Pi Pico
- Chip: SIM868
- 2G frequency band: GSM 850 / EGSM 900 / DCS 1800 / PCS 1900 MHz
- GNSS frequency band: GPS, GLONASS, BeiDou
- Data transfer rate:
- reception: 85.6 kbps
- transmission: 85.6 kbps
- Interface: UART
- Communication protocol: TCP / UDP / HTTP / SSL / FTP / POP3 / SMTP / MQTT
- Module power supply:
- external power supply: Li-Pol battery (3.7 V–4.2 V)
- Raspberry Pi Pico USB port (3.3V)
- Current consumption:
- idle mode: 12 mA
- sleep mode: 0.65 mA
- standby mode: 8 μA
- Audio input/output: built-in microphone and speaker connector
- Indicators:
- NET: network indicator
- charging: charging indicator
- SIM card: 2G SIM card (1.8V/3V)
- Antenna connection: LTE, GNSS, BT
- Module dimensions: 76.15 x 24 mm

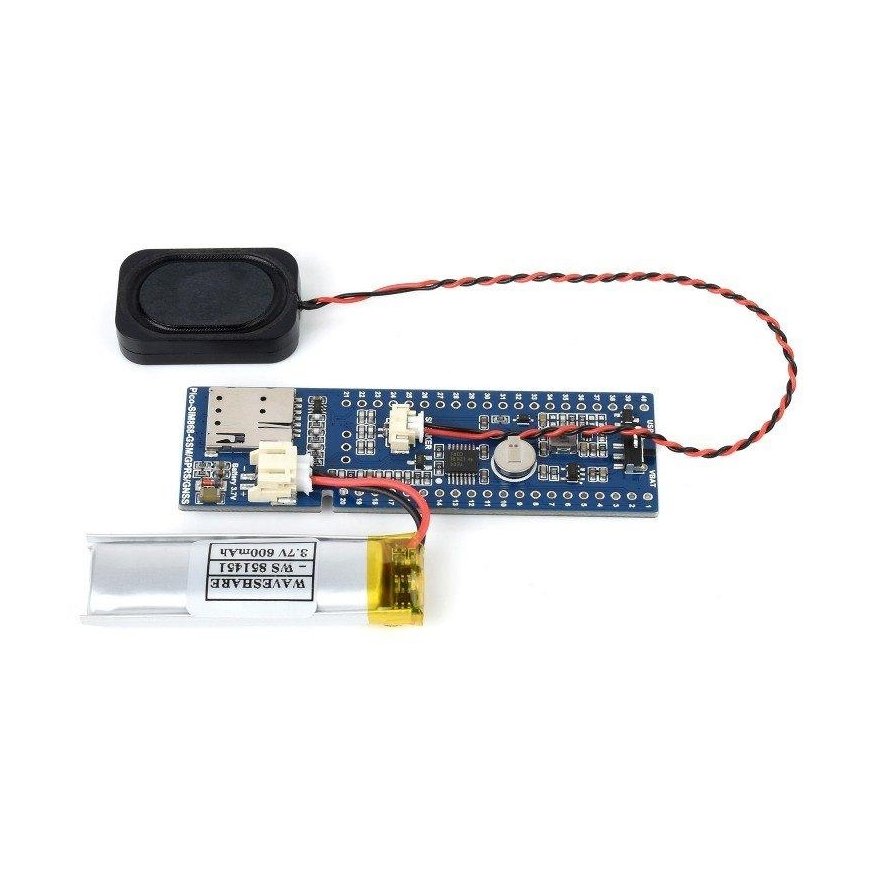

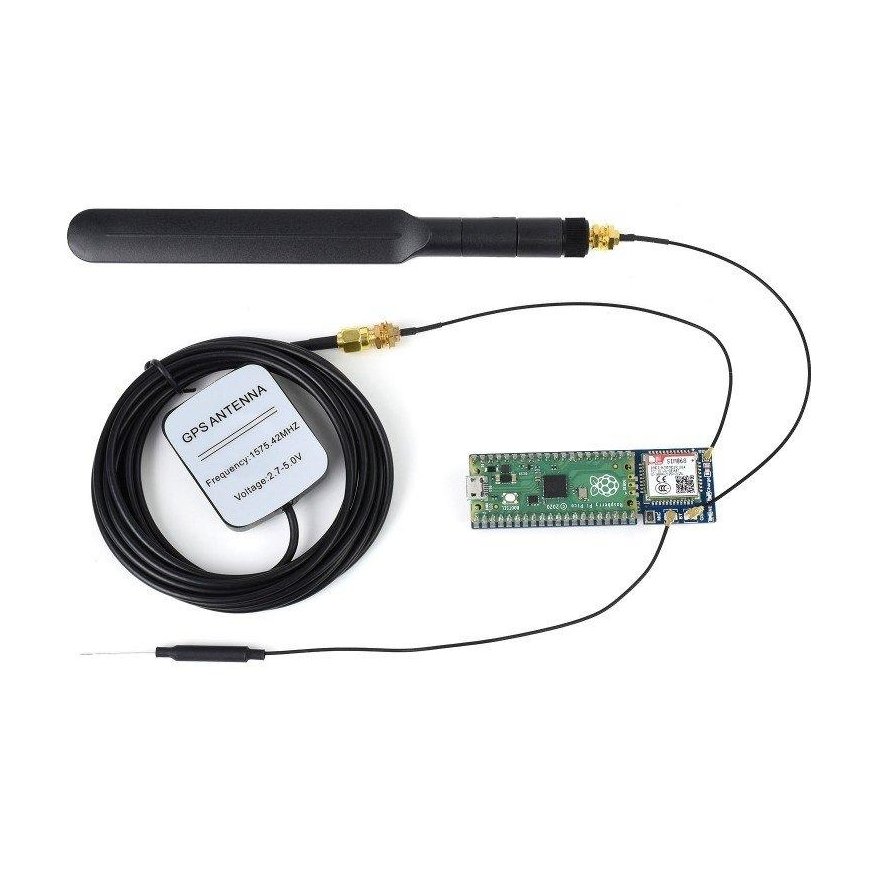

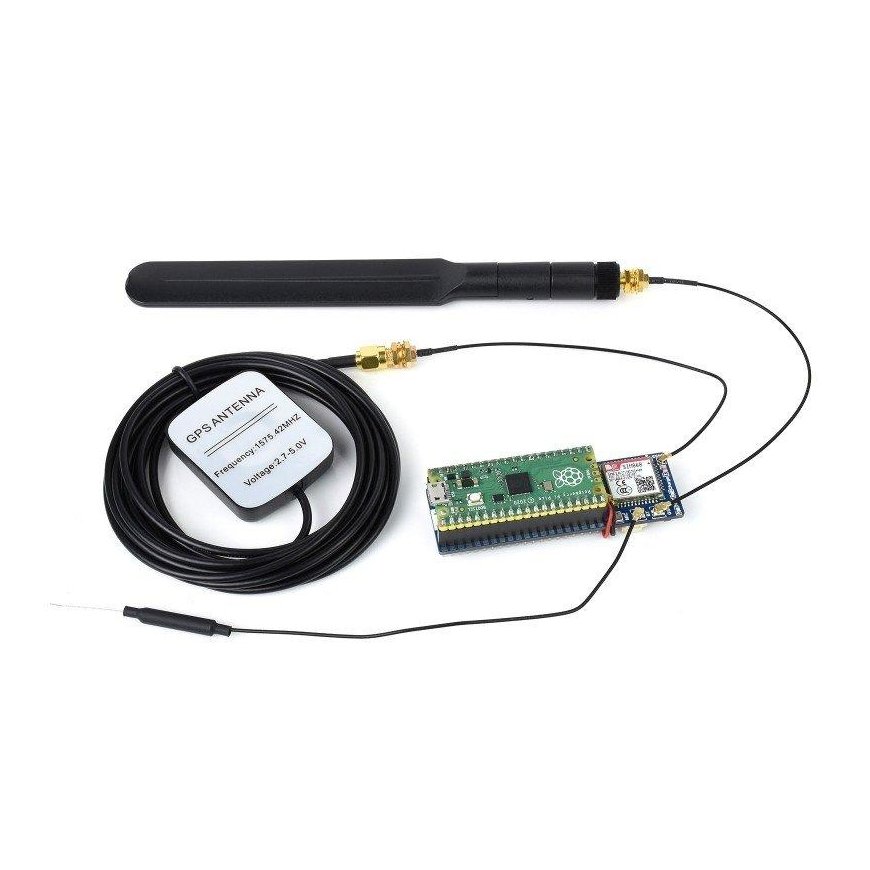

- SIM868 GSM/GPRS/GNSS + Bluetooth communication module for Raspberry Pi Pico - 1 pc
- LTE antenna - 1 pc.
- GPS antenna - 1 pc.
- Bluetooth antenna - 1 pc.
- Socket strip 20 contacts 2.54 mm pitch - 2 pcs.
- Pin terminal block 40 contacts 2.54 mm pitch - 1 pc.
- Li-Pol 3.7 V battery - 1 pc.
- Speaker - 1 pc.
