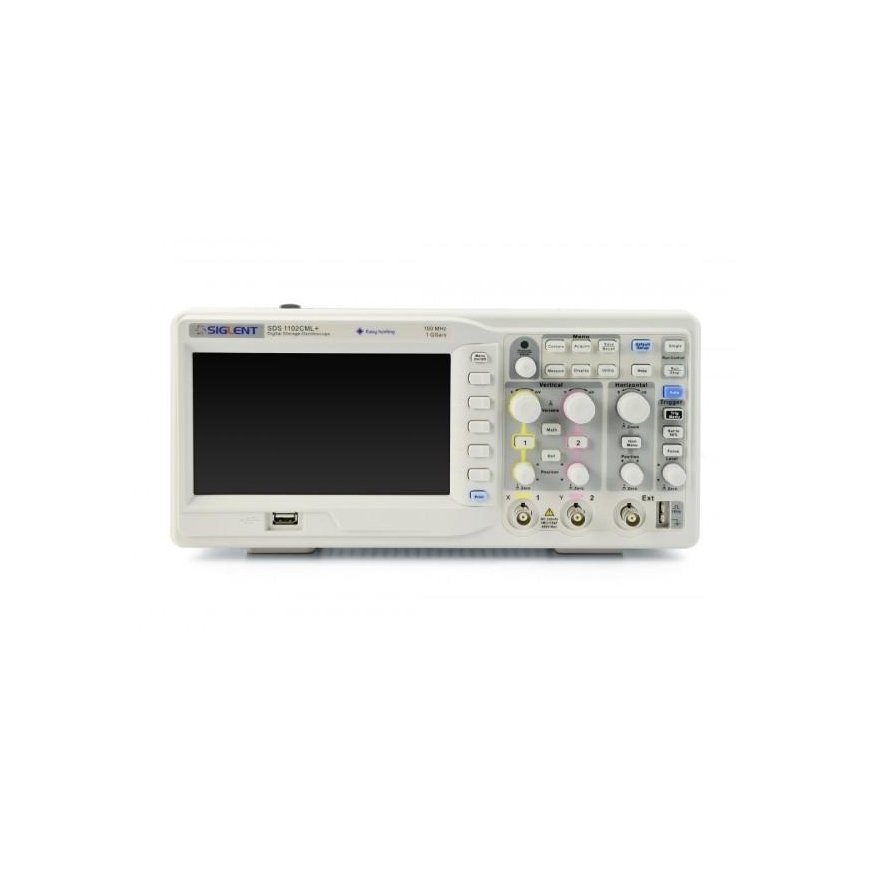

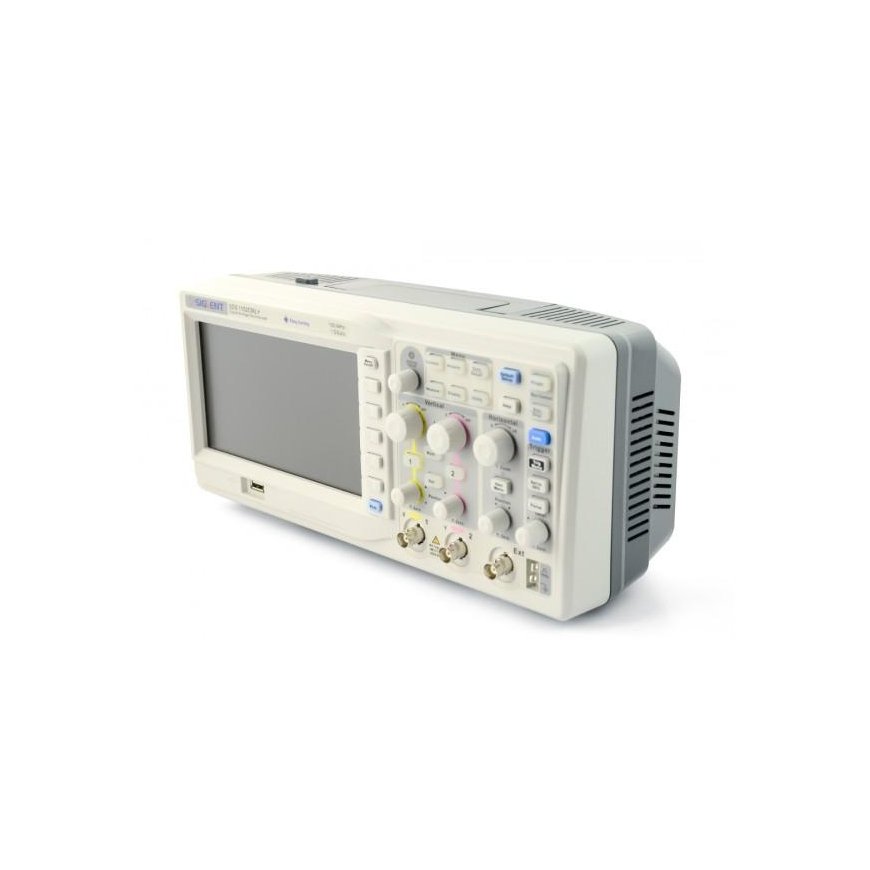

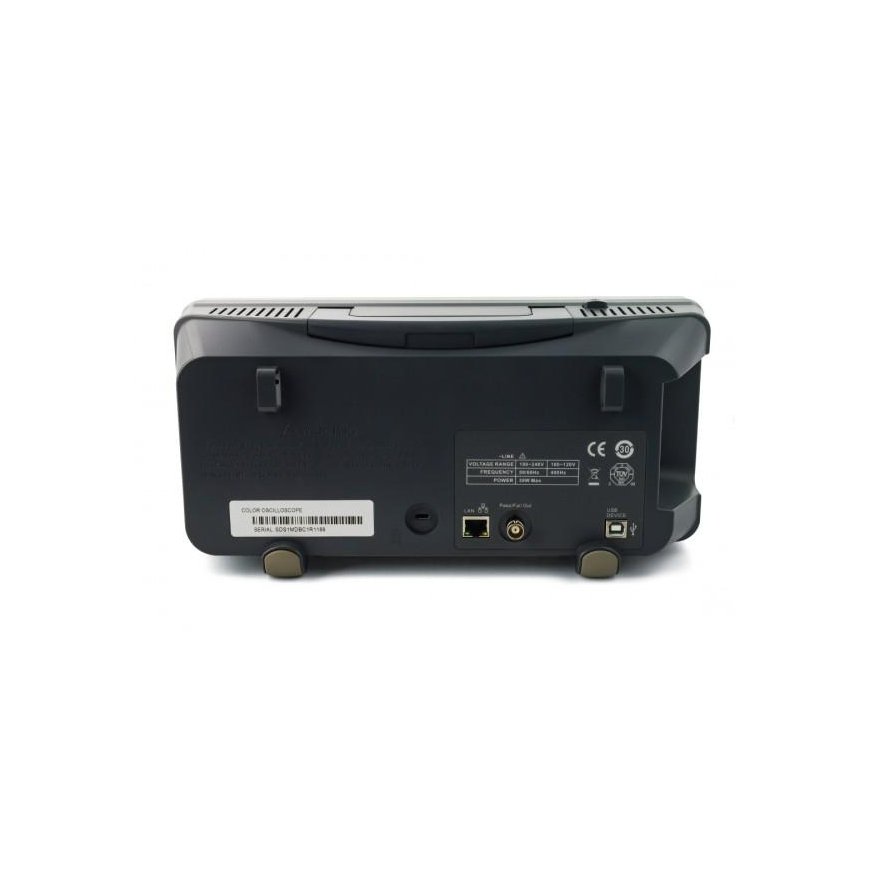

Oscilloscope Siglent SDS-1102CML+ 100MHz - 2 channels
509.00 €
Ikm. maksa no 14,01 €
3613709 AN-13731
5904422321222
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Digital two-channel oscilloscope with 100 MHz bandwidth and sampling rate up to 1 GSa / s. Includes 2 oscilloscope probes, power cord, USB cable and software. The new Siglent series oscilloscope was equipped with a modern TFT-LCD display with a resolution of 800 x 480 px and a diagonal length of 7 inches.Specifications:
- Manufacturer: Siglent
- Bandwidth: 100MHz
- Number of input channels: 2
- Real-time sampling rate: up to 1 GSa/s
- Mileage (number of points recorded): 2 Mpts
- Display: 7-inch color TFT-LCD display
- Screen resolution: 800 x 480 px
- Trigger modes:
- Edge level
- Pulse Width
- Video - (PAL, SECAM, NTSC)
- Slope - slope type
- increasing
- decreasing
- Alternative - Variables (CH1 and CH2)
- Unique digital filter function and waveform recording
- Illuminated buttons
- Automatic measurements of 32 parameters
- Measurements using markers and FFT analysis in split screen
- support for SCPI teams
- Interfaces: USB HOST
In the kit:
oscilloscope
2 probes
Power cord
USB cable
CD with software
