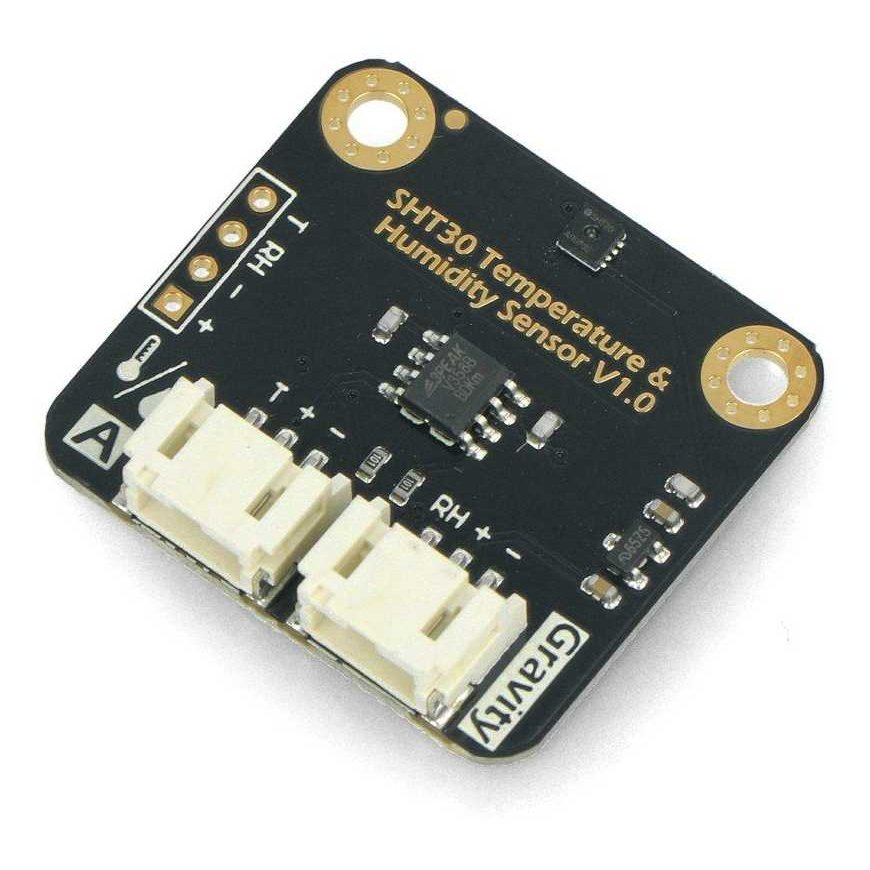

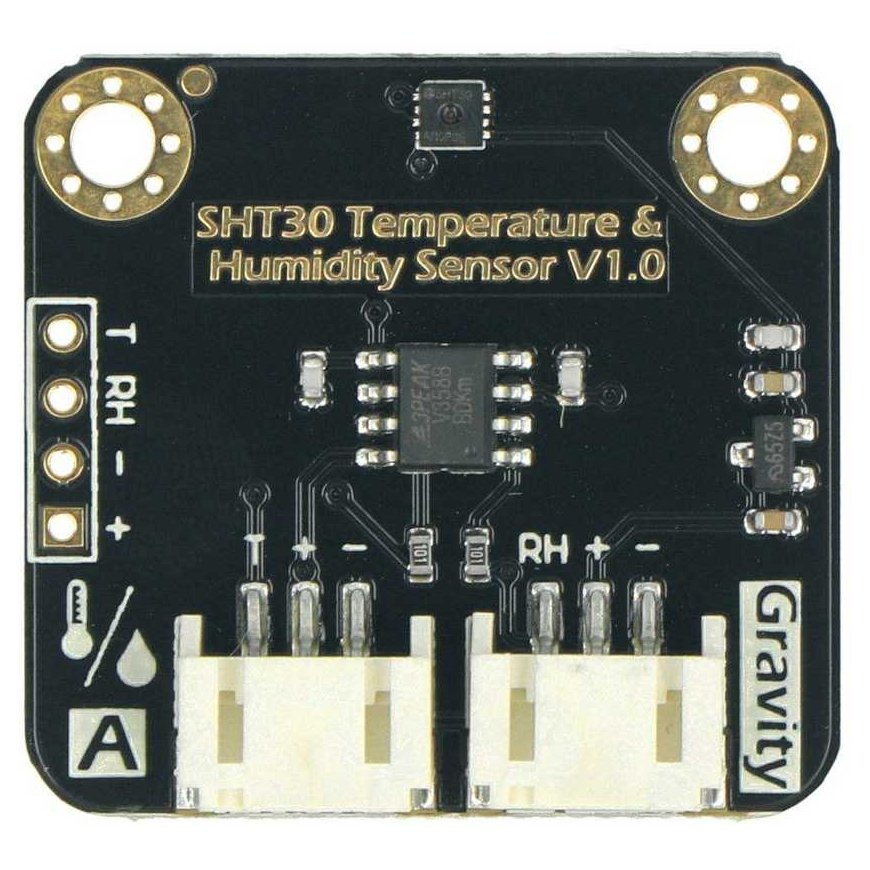

Gravity, analog temperature and humidity sensor, SHT30, DFRobot DFR0588
19.00 €
3611343 AN-19383
5904422379384
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Analog temperature and humidity sensor manufactured by DFRobot. The module is equipped with a high-quality next-generation Sensirion SHT30 chip. It uses CMOSens technology, which guarantees reliable measurements and long-term stability with low power consumption. Compatible with controllers operating at 3.3 V / 5 V, including Arduino, ESP32 and micro:bit. The SHT30 allows you to measure temperature from -40 °C to 125 °C and humidity from 0% to 100% RH.Main features:
- Internal self-calibration, linear analog voltage output
- High-precision measurement, low power consumption, fast response time
- The sensor is compatible with controllers operating at 3.3 V / 5 V voltage
- Suitable for applications such as urban environmental monitoring, smart home and building projects, and general industrial automation
- Type: Analog temperature and humidity sensor
- Embedded chip: Sensirion SHT30
- Input voltage range: 3.3V to 5.5V
- Connection: Gravity/soldering fields
- Quiescent current: <0.5 mA
- Temperature:
- measuring range: -40 °C to 125 °C
- measurement resolution: 0.01 °C, 14 bit
- measurement accuracy: ± 0.2 °C from 10 °C to 55 °C / ± 1.5 °C from -40 °C to 125 °C
- response time > 2s
- Humidity:
- measuring range: 0% to 100% RH
- measurement resolution: 0.006%, 14 bits
- measurement accuracy: ± 3% RH from 10% to 90% RH / ± 8% RH from 0% to 100% RH
- response time: >8s
- Module dimensions: 30 x 32 mm
- Weight: 4 g

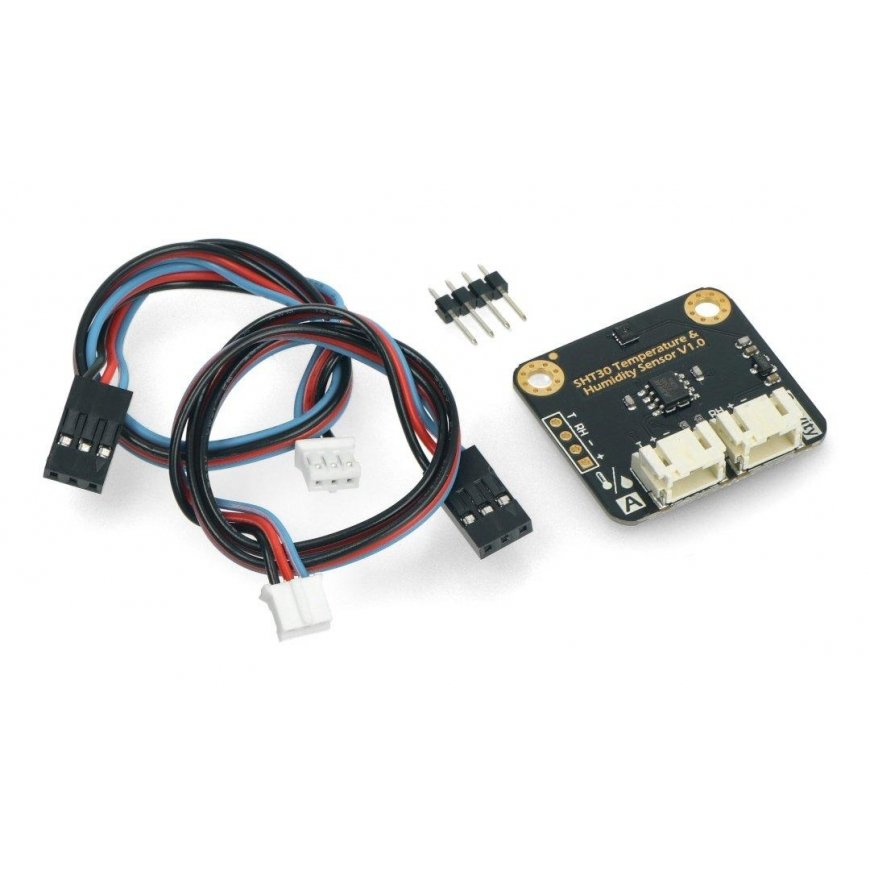

- Gravity - analog temperature and humidity sensor
- Gravity connector - x2
- Gold Pin Strip 1x4
