DRV8838, single channel motor controller 11V/1.7A, Pololu 2990
19.79 €
3608921 AN-02695
5903351244855
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

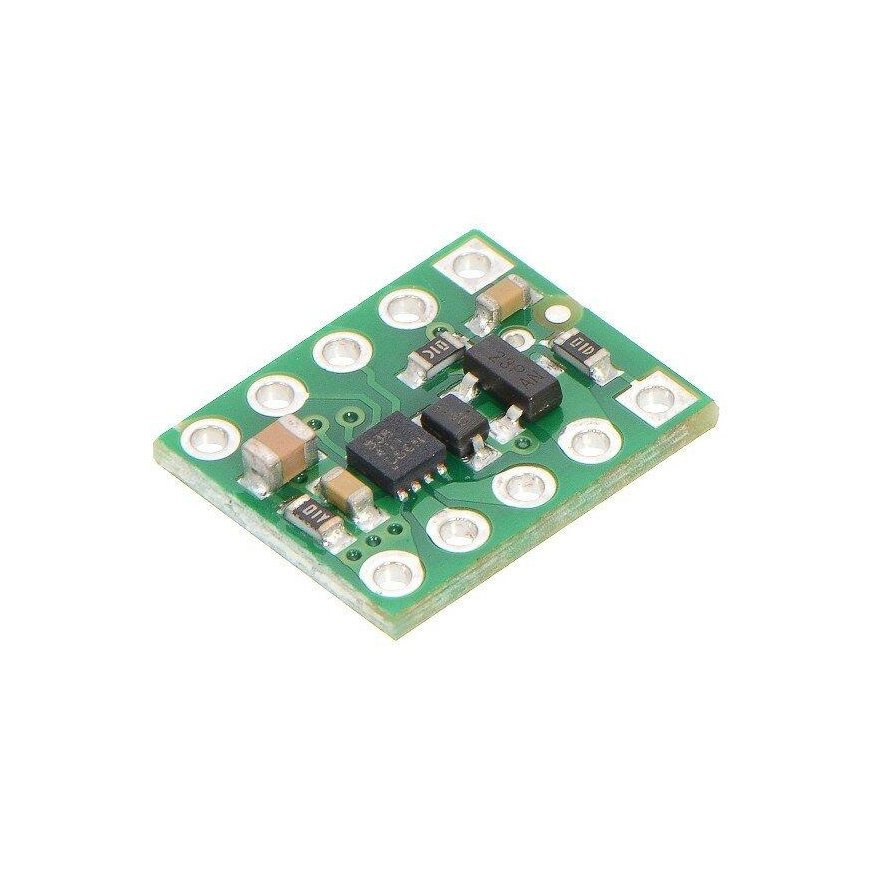

The DRV8838-based module allows you to control one DC motor. The motor can be supplied with a voltage of up to 11 V with a constant current consumption of up to 1.7 A, and temporarily (for a few seconds) up to 1.8 A.
Specifications:
- Number of channels: 1
- Supply voltage: 0 V to 11 V
- Logic operating voltage: 1.8 V to 7.0 V
- Continuous current per channel: 1.7 A
- Maximum instantaneous current per channel: 1.8 A
- PWM frequency: 250 kHz
- Dimensions: 10.2 x 12.7 mm
- Weight: 0.3 g (without connectors)
Included:

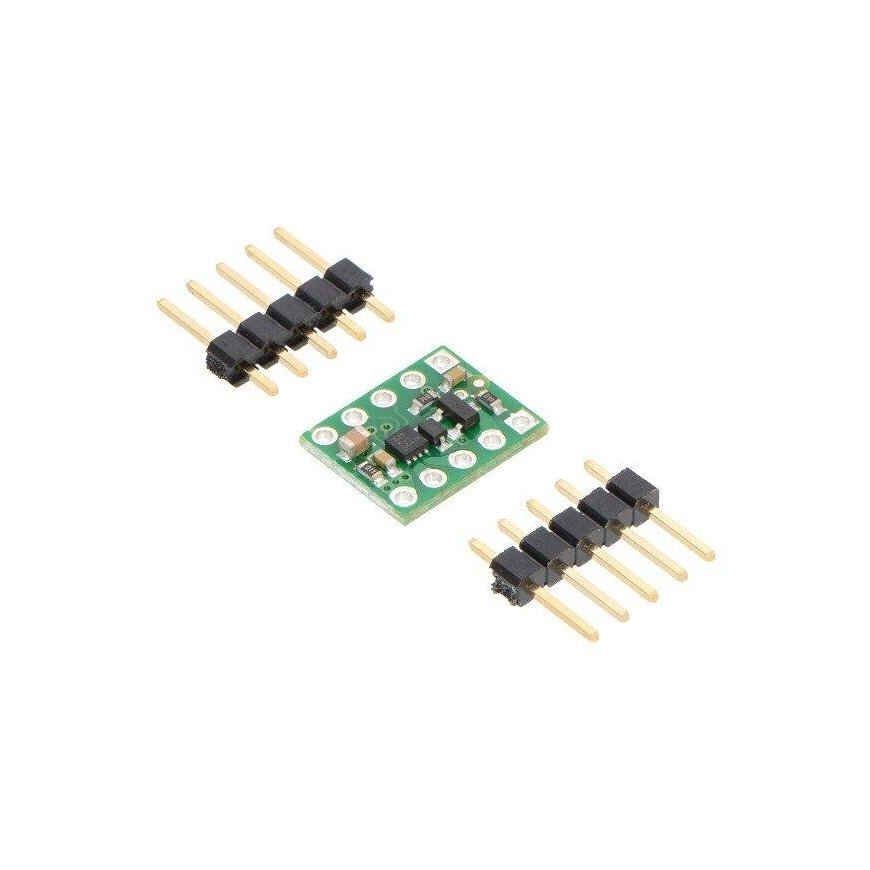

- Module
- Goldpin connectors
Links:
Manufacturer's page
