Fermion - MiCS-5524 - MEMS - DFRobot SEN0440 Carbon Monoxide, Alcohol and VOC Detector
23.27 €
3607992 AN-20379
5903351245494
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

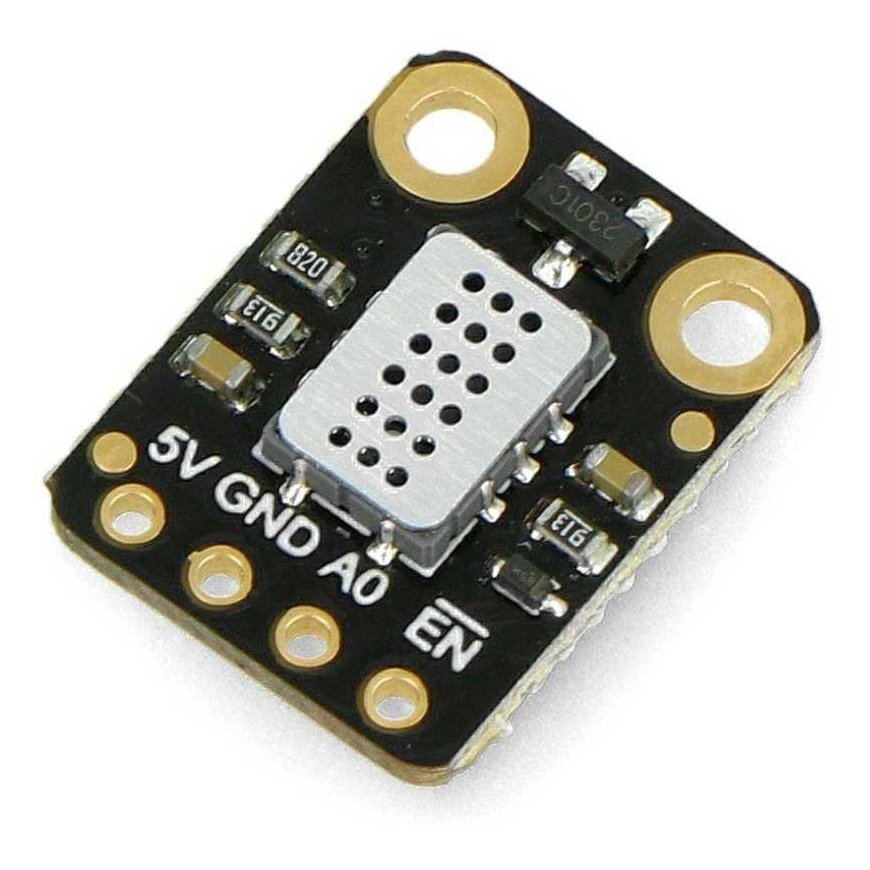

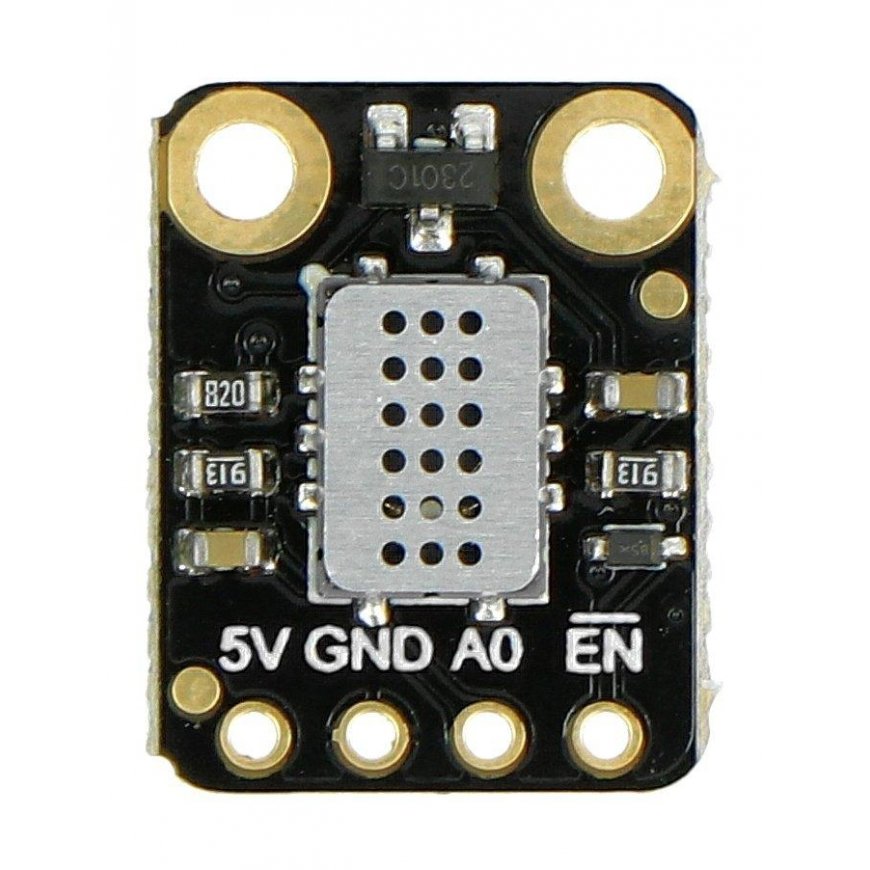

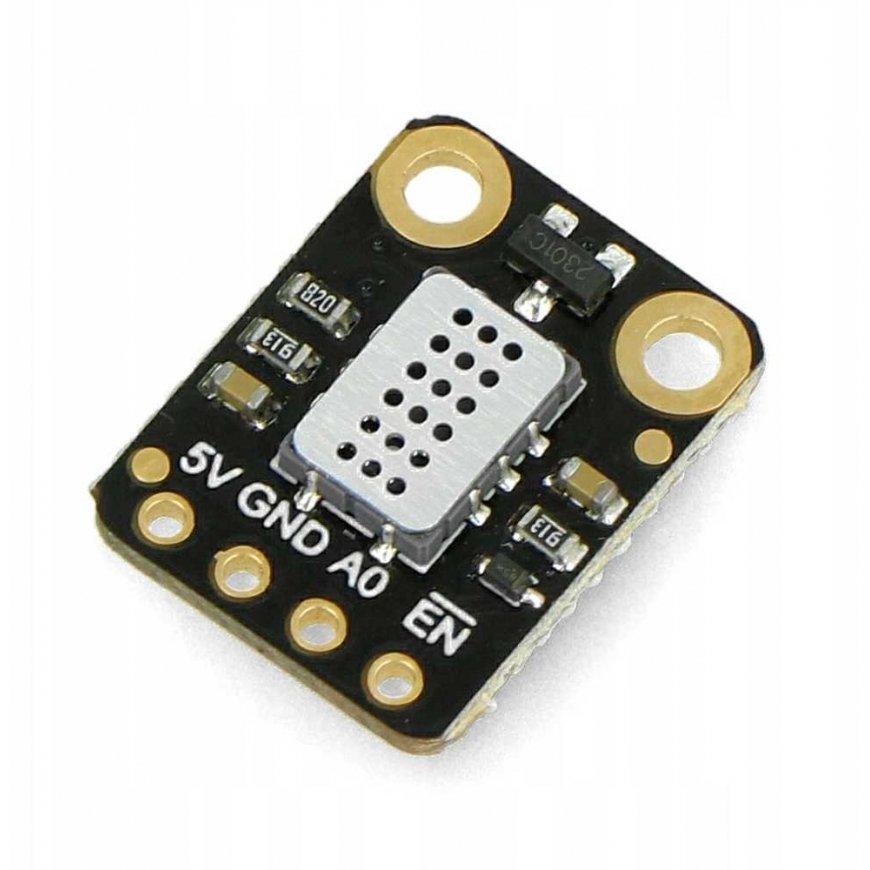

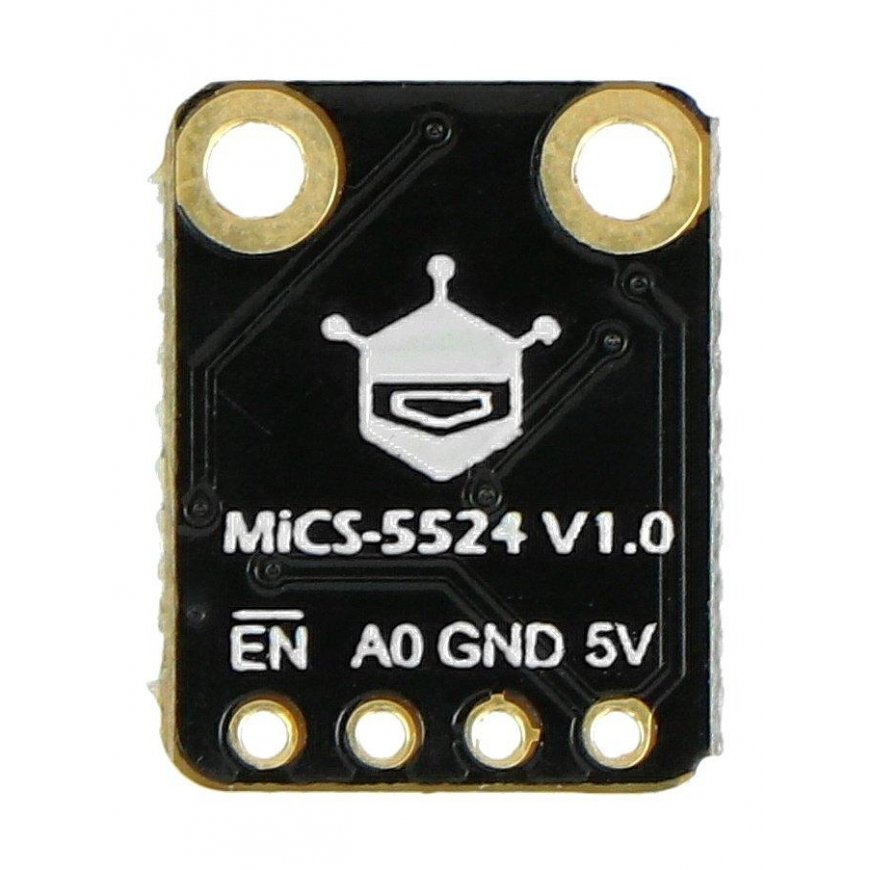

Gas sensor module with integrated MiCS-5524 chip, manufactured using MEMS technology. Detects the concentration and leakage of gases such as carbon monoxide (CO), methane (CH4), ethanol (C2H5OH), propane (C3H8), butane (C4H10), hydrogen (H2), hydrogen sulfide (H2S) and ammonia (NH3). The sensor only detects the concentration of gases in the air, but does not distinguish between gas types. It is not possible to determine which gas has been detected using it. The module is intended for educational purposes. Proper operation in medical, security or similar applications is not guaranteed.Specifications:
- Detection: gas concentration or gas leakage
- Gas detection: carbon monoxide (CO), methane (CH4), ethanol (C2H5OH), propane (C3H8), butane (C4H10), hydrogen (H2), hydrogen sulfide (H2S) and ammonia (NH3)
- Technology: MEMS
- Supply voltage: 5V
- Power consumption: 0.45 W
- Compatible with controllers with voltages from 3.3V to 5.5V
- Interface: analog
- Output signal: analog
- Measuring range:
- From 1 ppm to 1000 ppm (carbon monoxide CO)
- 10-500 ppm (ethanol C2H5OH)
- From 1 ppm to 1000 ppm (hydrogen H2)
- 1-500 ppm (ammonia NH3)
- > 1000 ppm (methane CH4)
- Operating temperature: -30 °C to 85 °C
- Operating humidity: 5% to 95% relative humidity (non-condensing)
- Module dimensions: 12 x 16 mm
- Mounting hole diameter: 2 mm
- Fermion - Carbon Monoxide, Alcohol and VOC Sensor MiCS-5524 - MEMS - DFRobot SEN0440

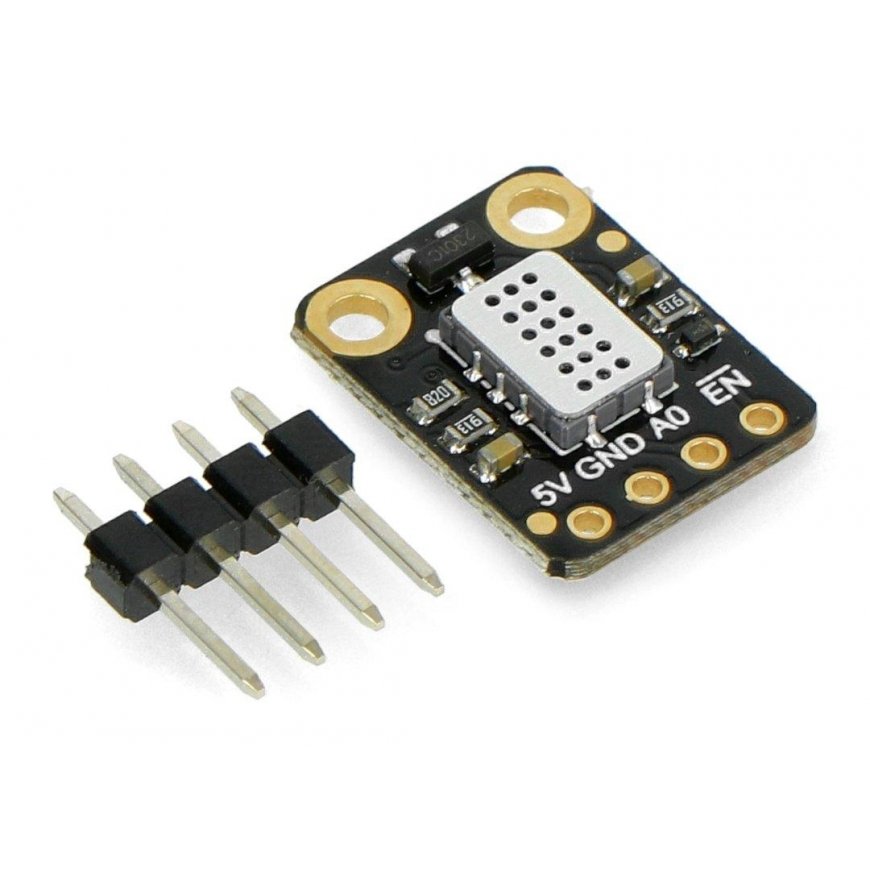

- 1x4 gold pin strip - 2.54 mm pitch
