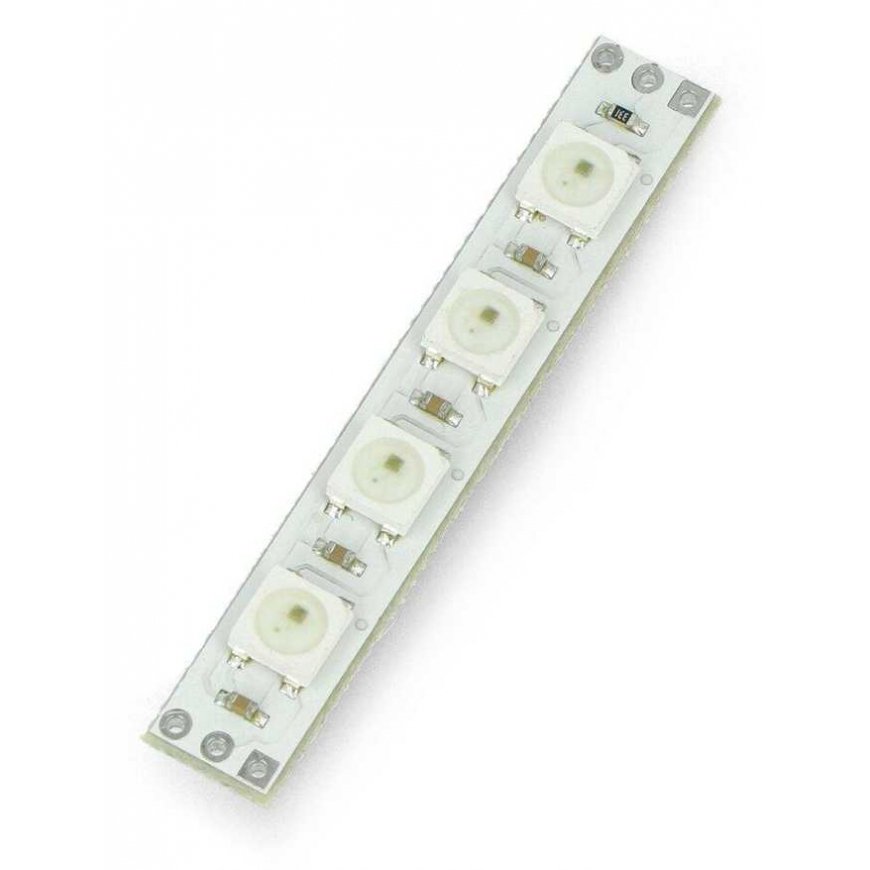

Pixel x4 module with addressable diodes LED RGB WS2812B 5050 - 48mm
19.00 €
3607951 AN-08788
5904422300470
Piegāde 8-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The strip consists of 4 individually addressable RGB LEDs with an integrated controller. The module requires only one microcontroller pin, e.g. Arduino. The LEDs are spaced evenly on a 48 mm long strip. Each of them consumes 20 mA, which in this case gives a total value of approximately 80 mA. The strip can be powered from 3.3 V to 5 V.Specifications:
- Supply voltage: 3.3V to 5V
- Current consumption: approx. 20 mA (per diode)
- Applicable light: LED RGB WS2812B
- Number of LEDs: 4
- Band dimensions: 48 x 8 mm
