Teensy 4.0 ARM Cortex-M7 Compatible with Arduino SparkFun DEV-15583
49.00 €
Ikm. maksa no 2,16 €
3607881 AN-19850
0714833879480
Piegāde 8-12 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

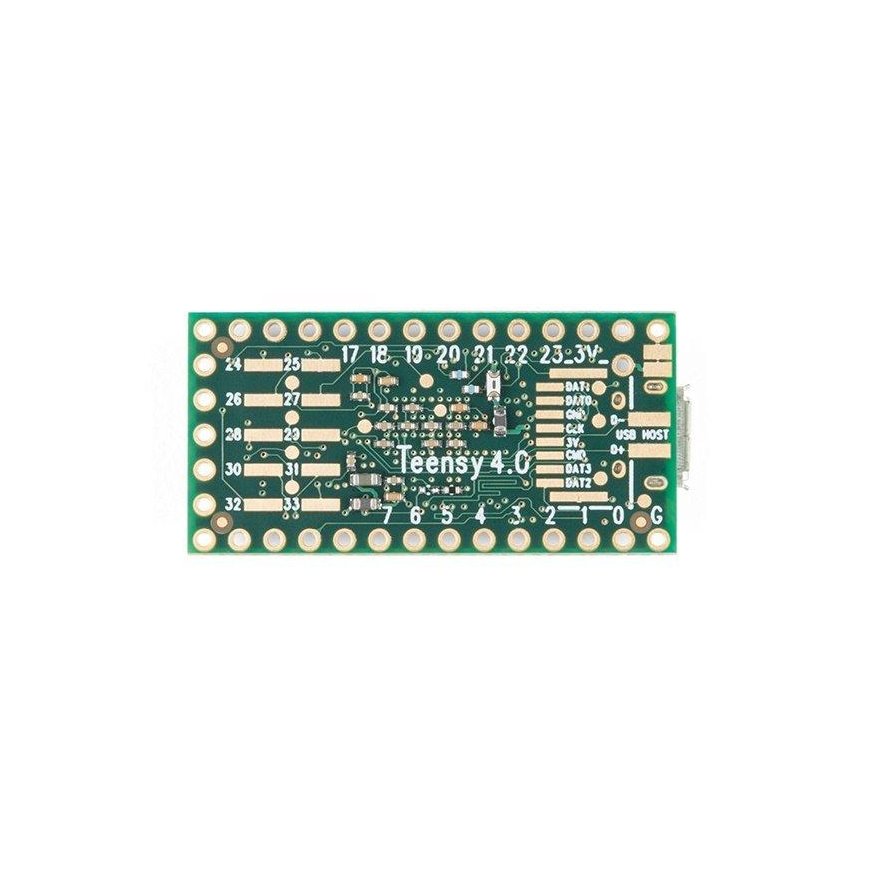

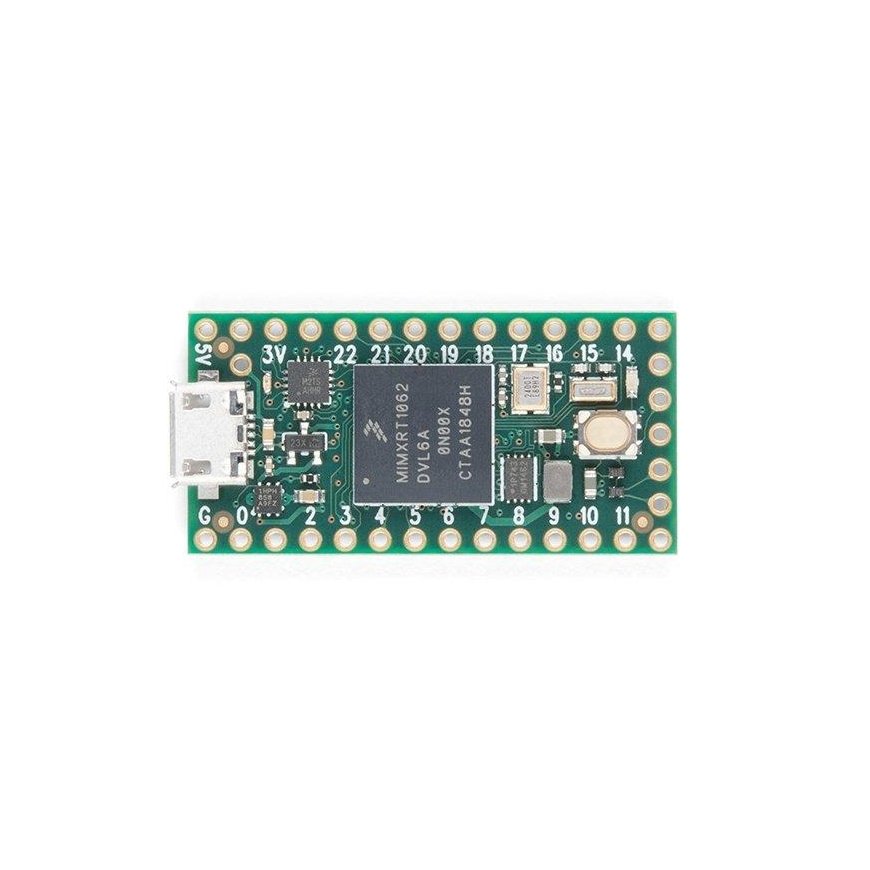

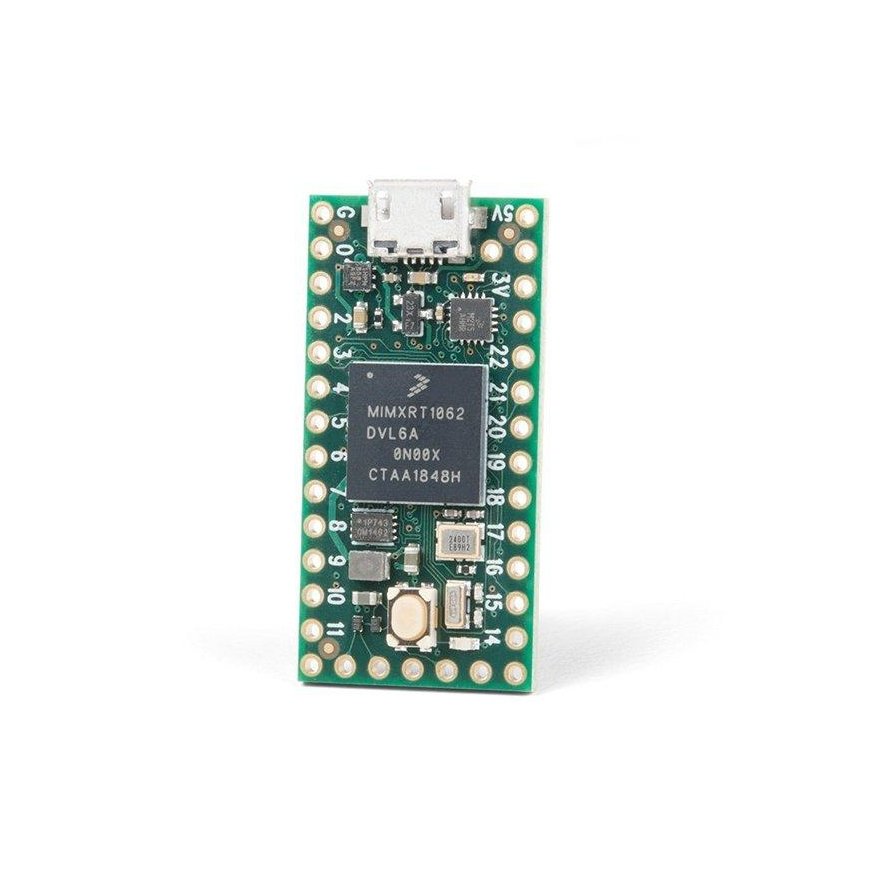

A small module with big capabilities. Teensy 4.0 is a development board designed for use with breadboards. The module contains a 32/64-bit microcontroller with an ARM Cortex-M7 600 MHz core, 1024 kB Flash, 1024 kB RAM. The fastest microcontroller currently available, the NXP iMXRT1062, was used here. The module has 40 I/O pins, including 31 PWM channels, 14 analog inputs, a DMA controller, and popular communication interfaces: SPI, I2C, I2S, CAN. Teensy 4.0 is the same size and shape as the Teensy 3.2 and supports compatibility with most of the Teensy 3.2 pin functions.Specifications:
- Supply voltage: 3.5 V to 6 V
- Microcontroller: NXP iMXRT1062
- Core: ARM Cortex M7 600 MHz
- Flash memory: 2048 kB (64 K for EEPROM recovery and emulation)
- RAM: 1024 KB
- 14 high-resolution analog inputs
- 40 digital inputs/outputs
- 31 PWM output
- 14 hardware timers
- MicroSD card port, native (4-bit SDIO)
- 2x Hi-Speed USB ports (480 Mbps)
- 7 UART interfaces (4 with FIFO and high speed)
- 1 S/PDIF digital audio port
- Interfaces: 3x SPI, 3x I2C, 2x I2S, 3x CAN bus (1 with CAN FD)
- 32 DMA channels
- Random number generator
- Cryptographic unit
- Programmable FlexIO
- RTC - date and time
- On/Off control
- Dimensions: 35 x 18 mm
