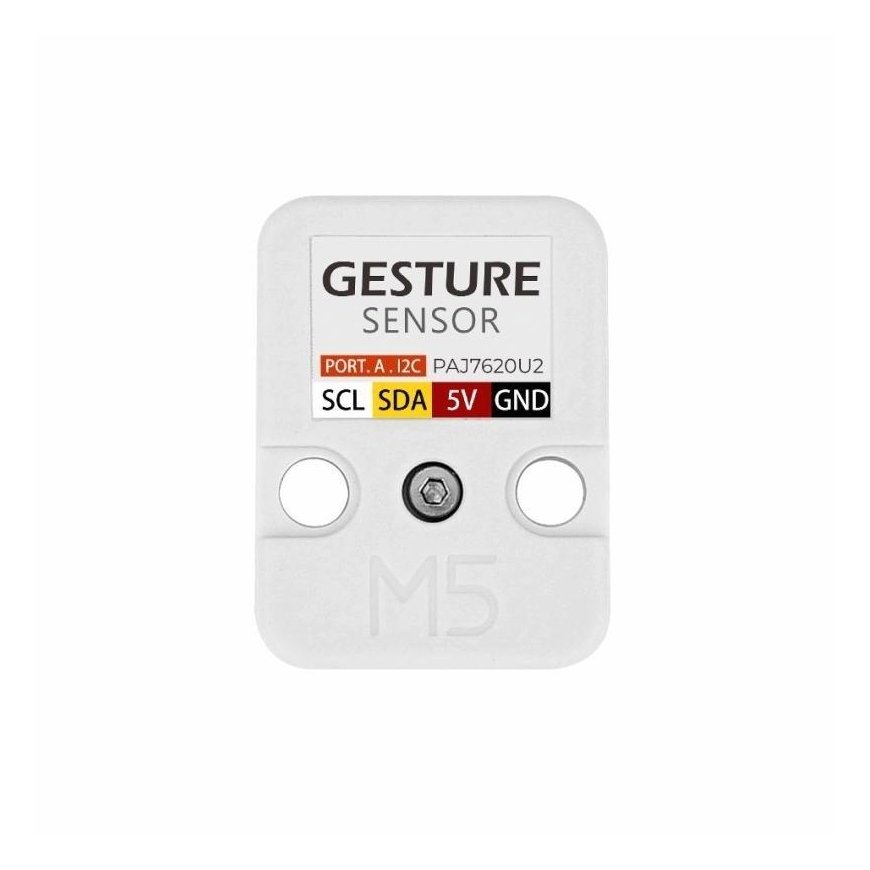

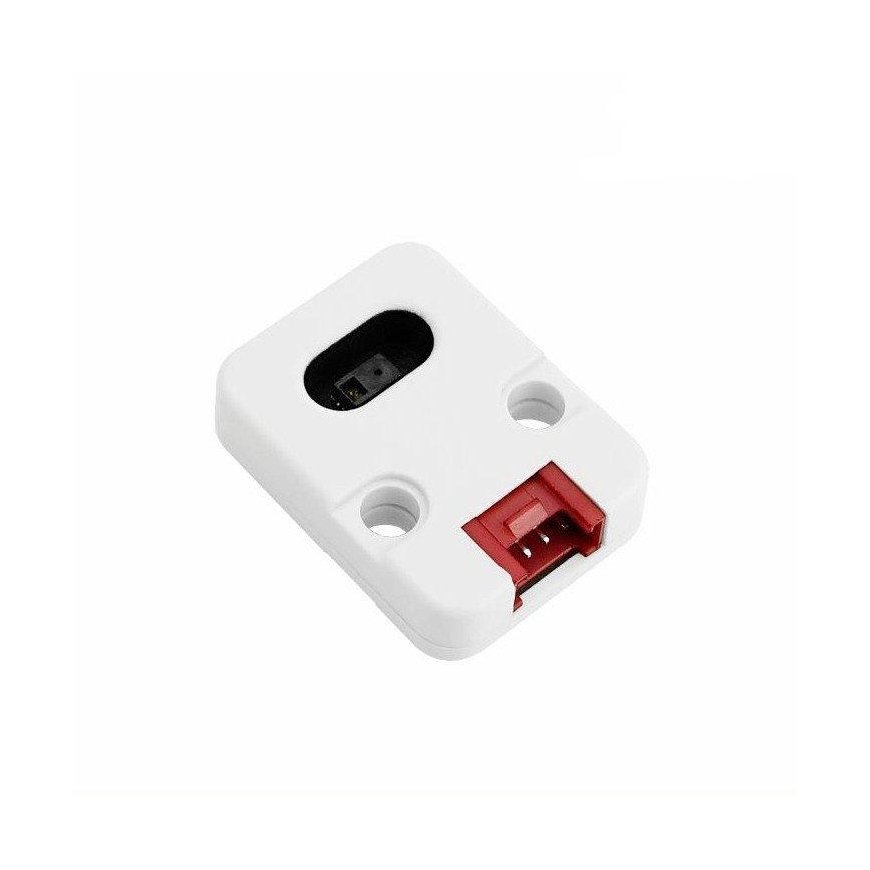

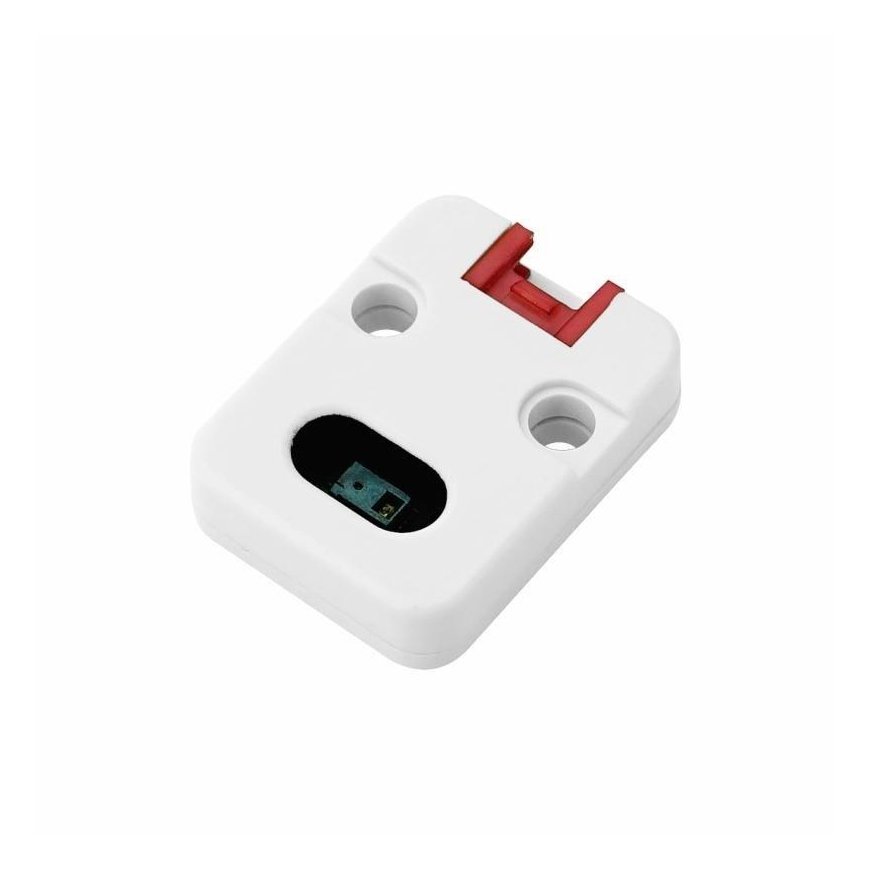

PAJ7620U2 Gesture Recognition Sensor - M5Stack Development Board Expansion Module
30.43 €
3607772 AN-20292
5904422380625
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The M5Stack PAJ7620U2 is a non-contact sensor that recognizes up to 9 different types of gestures. It uses the I2C bus to communicate with the development module. The effective gesture recognition distance is from 5 cm to 15 cm, and the gesture recognition frequency is from 120 Hz to 240 Hz. The gesture recognition sensor is used in interactive applications where a robot can be controlled based on hand movement.Main features:
- Recognizes up to 9 types of gestures
- Integrated PAJ7620U2 chip with I2C interface
- Fast and accurate analysis
- Development support - ability to add a combination of recognized gestures
- The effective recognition distance ranges from 5 cm to 15 cm
- The module has a built-in IR LED and optical lens, thanks to which the sensor can operate in low light and darkness.
- Supported programming platforms include Arduino and UIFlow
- Type: Gesture recognition sensor
- Integrated chip: PAJ7620U2
- Number of recognized gestures: up to 9 types
- Effective recognition distance: 5 cm to 15 cm
- Gesture recognition rate:
- standard: 120Hz
- maximum: 240 Hz
- Gesture support: 9 built-in + 4 software extensions + support for software algorithm extensions
- Ambient light resistance: < 100,000 lux
- Interface: I2C bus
- Interface address: 0x73
- Operating current: 2.2 mA

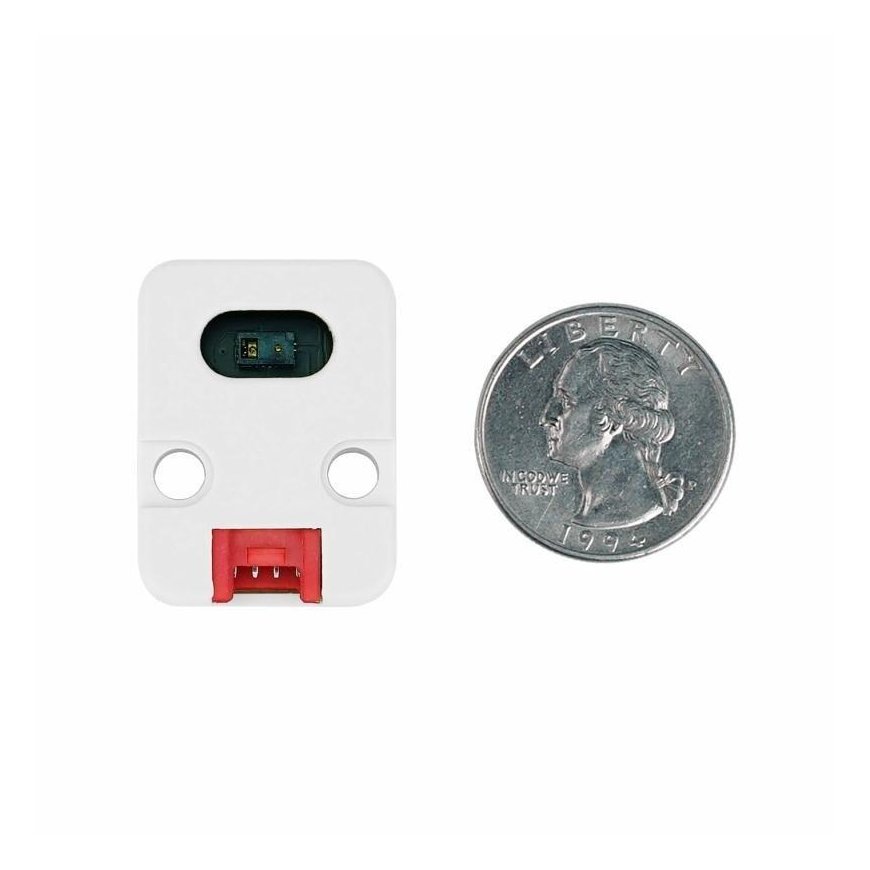

- Dimensions: 24 x 32 x 8 mm
- Weight: 4.3 g

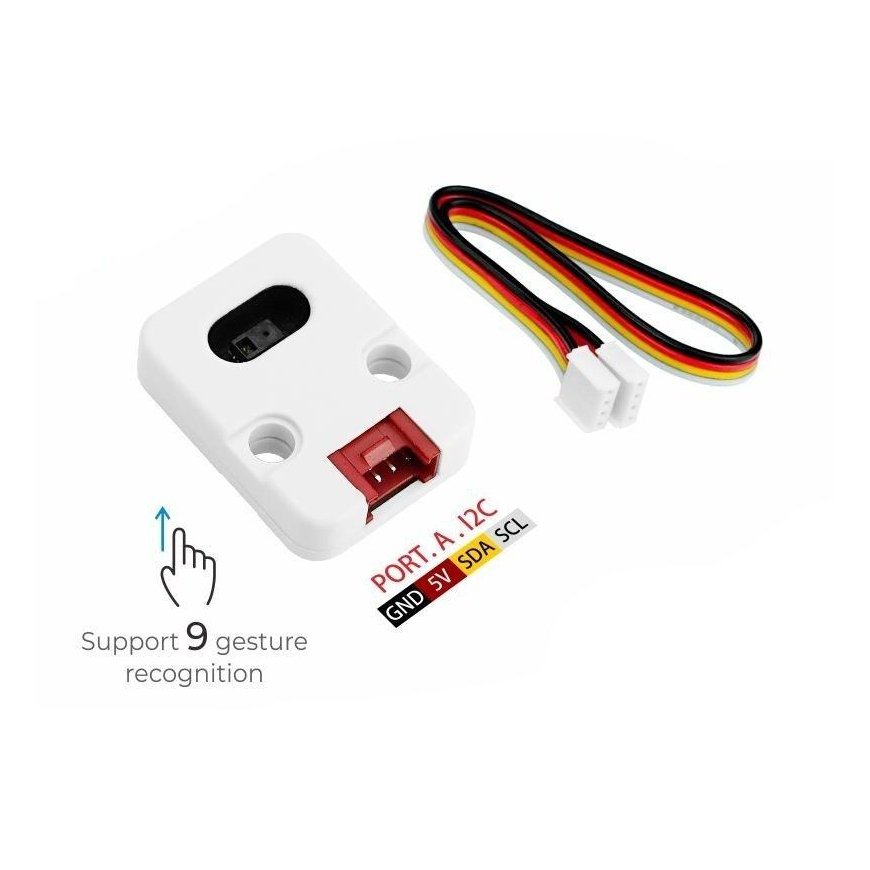

- PAJ7620U2 Gesture Recognition Sensor - Expansion of M5Stack Development Modules
- Special HY2.0-4P connection cable
