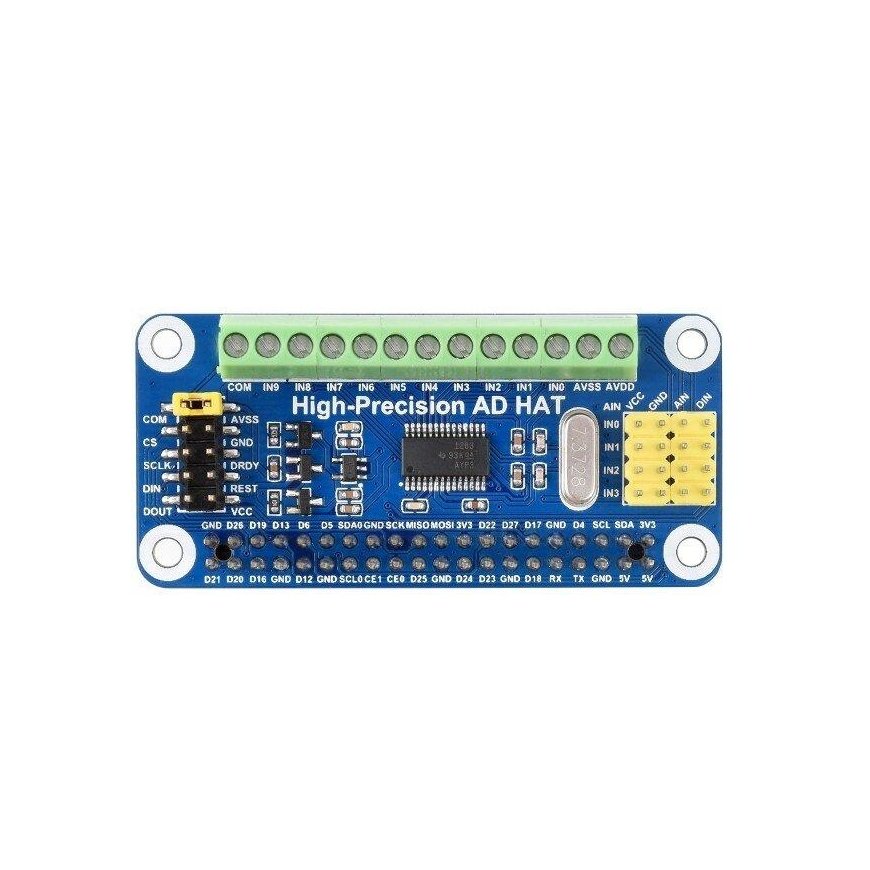

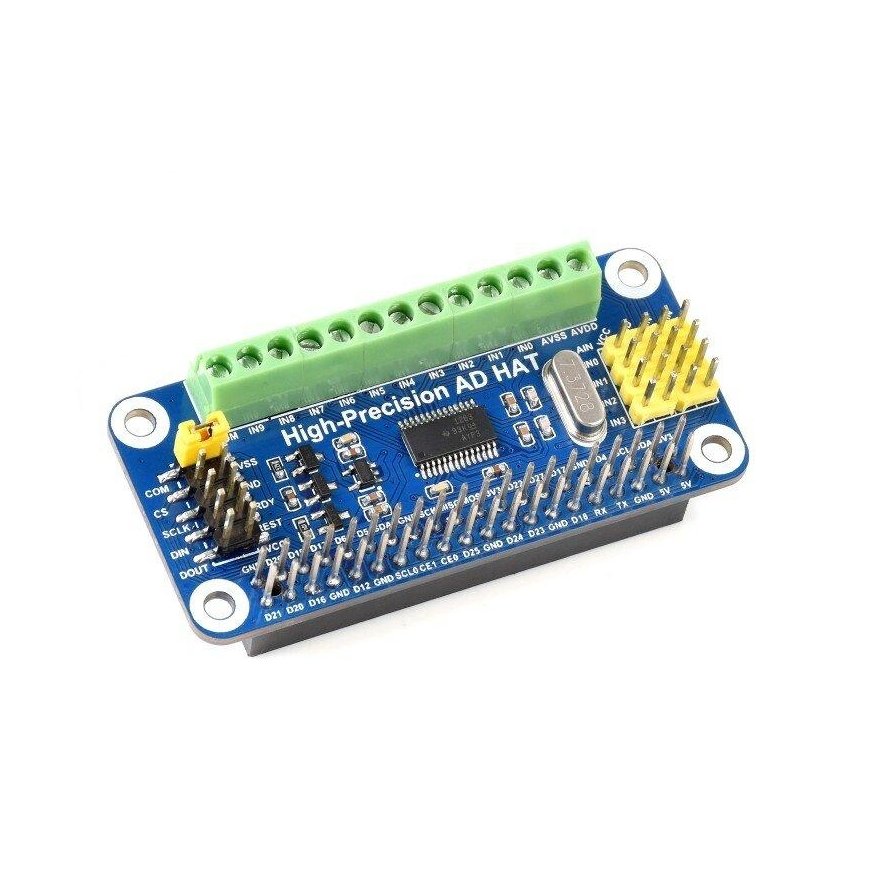

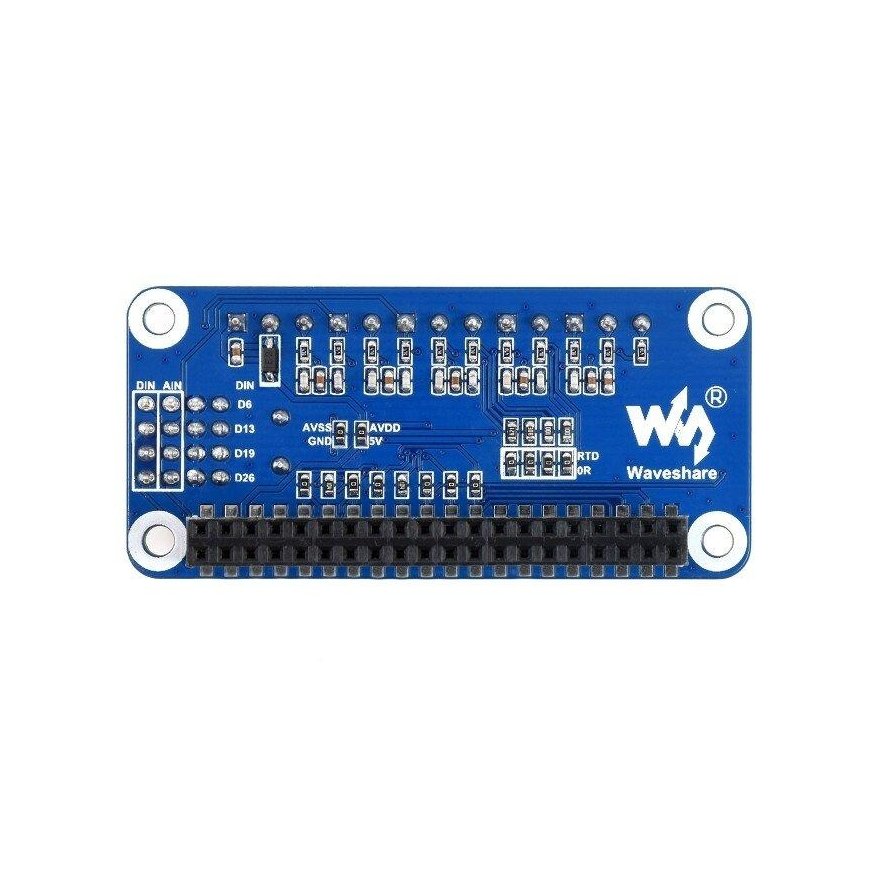

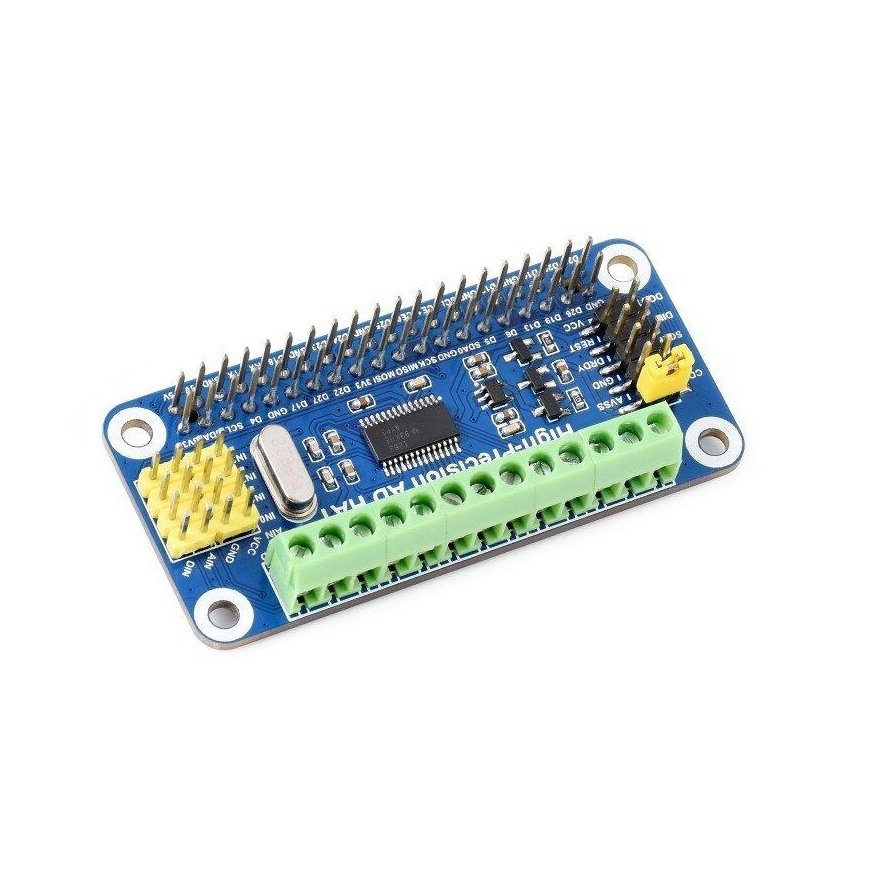

ADC ADS1263 converter 32-bit, 10 channels, Raspberry Pi board, Waveshare 18983
69.01 €
Ikm. maksa no 2,68 €
3604856 AN-19042
5904422371746
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
High-precision ADC in the form of a Raspberry Pi minicomputer front end, also compatible with the Nvidia Jetson Nano platform. The powerful ADS1263 chip is responsible for the operation of the Waveshare converter. The converter module has 10 input channels, and its resolution is 32 bits. The maximum sampling rate is 38 kSPS.Specifications:
- Module: ADC converter
- Chip: ADS1263
- Resolution: 32 bits
- Number of input channels: 10
- Maximum sampling rate: 38 kSPS
- Maximum PGA increase: 32
- Interface: SPI
- Structure: Delta-Sigma
- Input type: differential, single-ended
- Input voltage range:
- maximum from 2.5 V to 5 V
- minimum from -2.5 V to 0 V
- External dimensions: 65 x 58 mm
