Oem Inductive distance sensor LJ30A3-15-Z/BX 15mm 6-36V
19.91 €
3604686 AN-11873
5903351247559
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

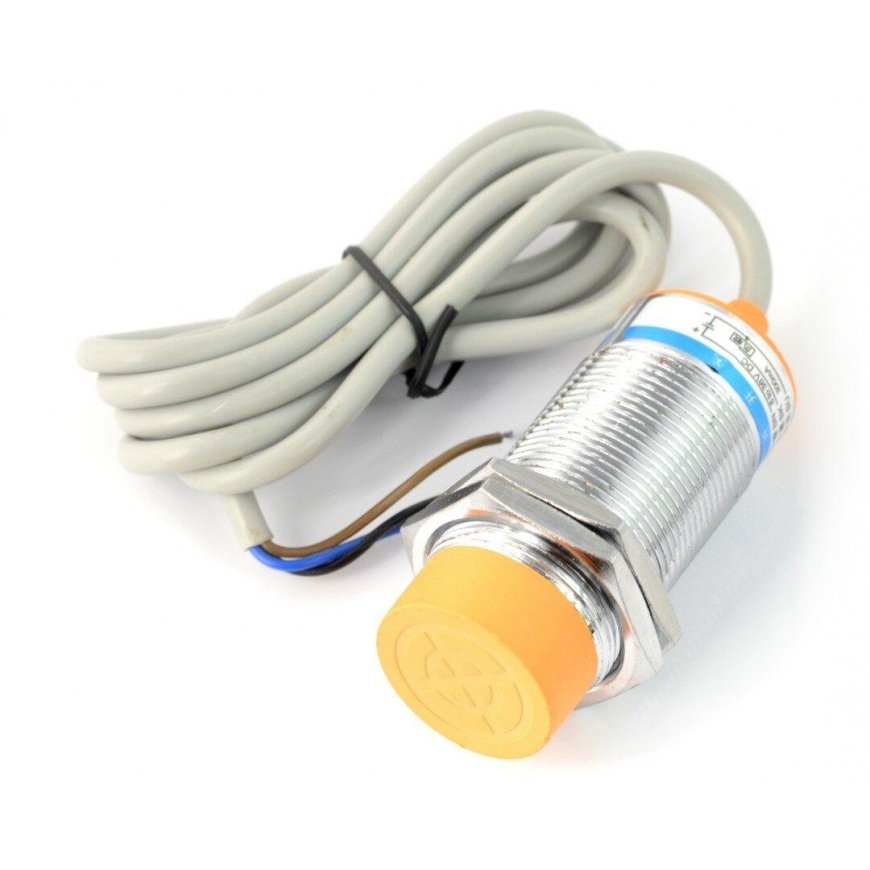

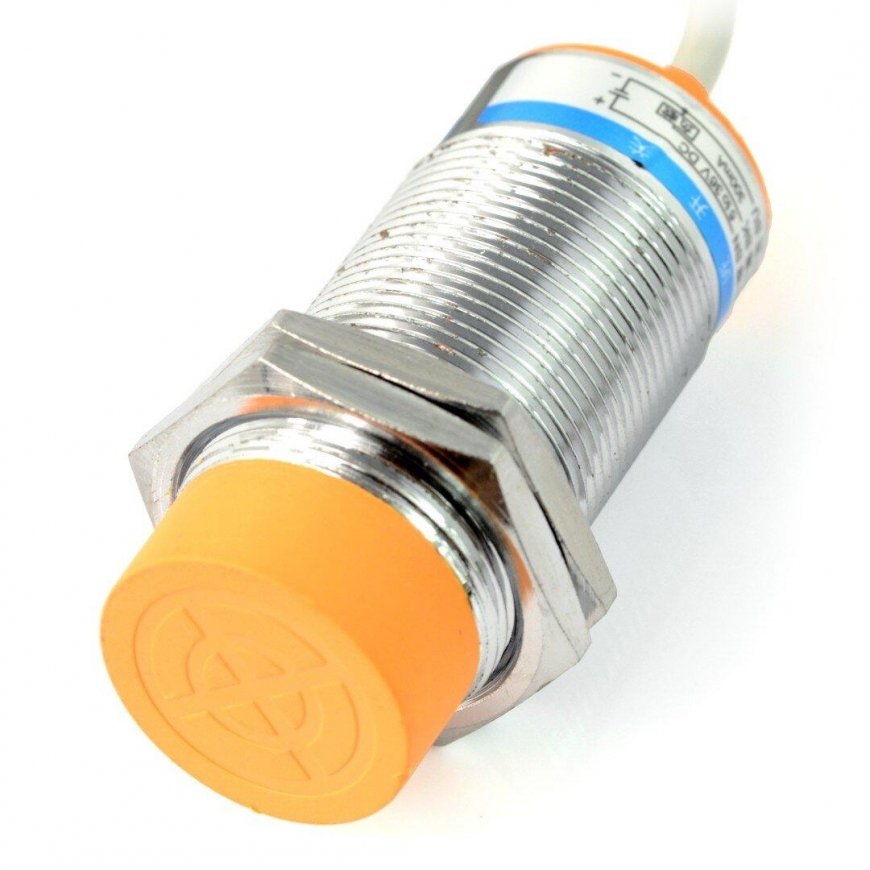

Inductive digital distance sensor with 100 cm cable and nuts for easy installation. It detects metal up to 15 mm away. Object detection is signaled by a high state at the output. Powered by voltage from 6 V to 36 V. Type: NPN.
Specifications:
- Supply voltage: 6 V to 36 V
- Current consumption: 10 mA
- Measuring range: 0-15 mm ± 10%
- Output signal: digital 300 mA
- Output state: by default, low state, when an object is detected, it changes to high state
- Output type: NPN - NO (open by default)
- LED indicating object detection
- Detection object: metal
- Response time: less than 2ms
- Operating temperature: -30 °C to 65 °C
- Diameter: 30 mm
- Sensor length: 70 mm
