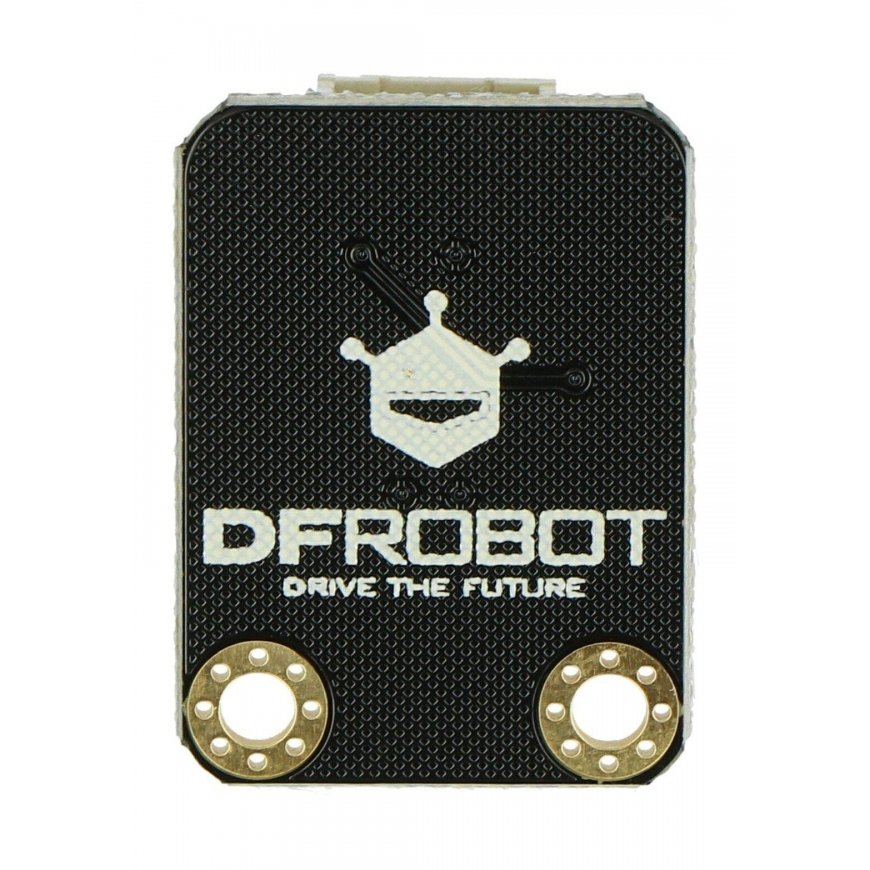

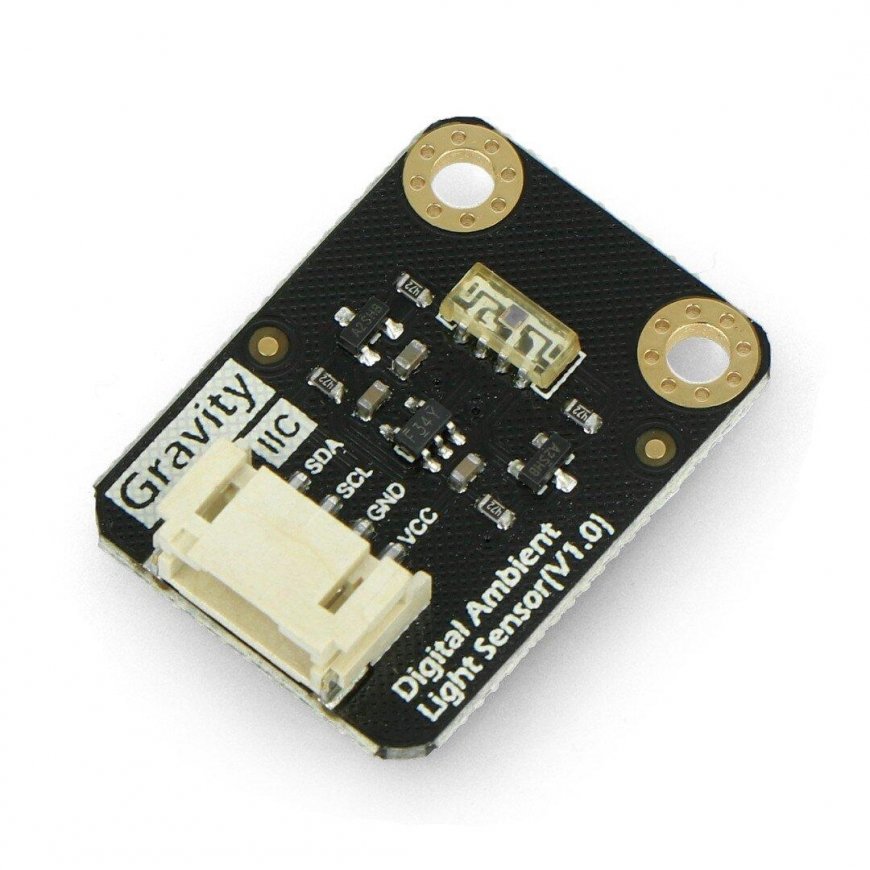

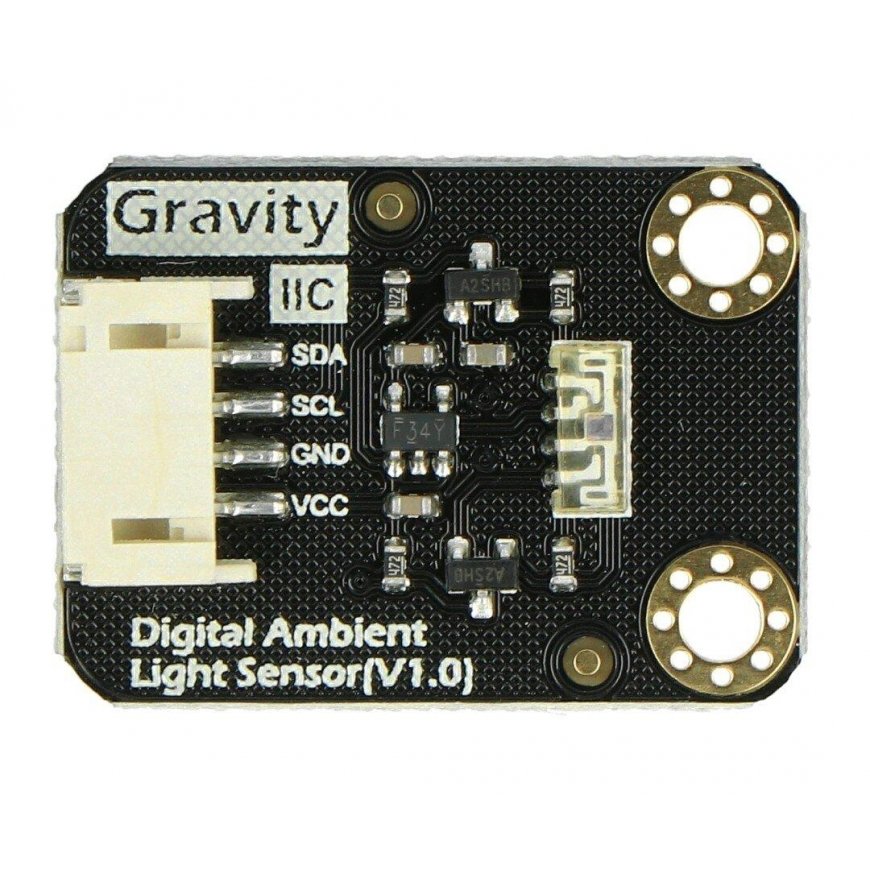

DFRobot Gravity digital ambient light sensor VEML7700, I2C
21.63 €
3600381 AN-09528
5903351243735
Piegāde 8-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The module has a built-in digital light sensor with a resolution of 16 bits, powered by a voltage of 3.3 V to 5.5 V. The data from the sensor is transmitted directly in Lux (Lx). When objects are illuminated by light waves with a value of 1 lux per square meter, their light intensity is then 1 lx. The kit includes a cable adapted for the Gravity DFRobot IO expansion attachment.
Specifications:
- Supply voltage: 3.3V to 5V
- Current: 45 µA
- Shutdown mode: 0.5 µA
- Measuring range: 0 to 120 klx
- Accuracy: 0.0036 lx/ct
- Operating temperature: -25 to 85 °C
- Dimensions: 30 x 22 mm
- Weight: 12 g
Included:

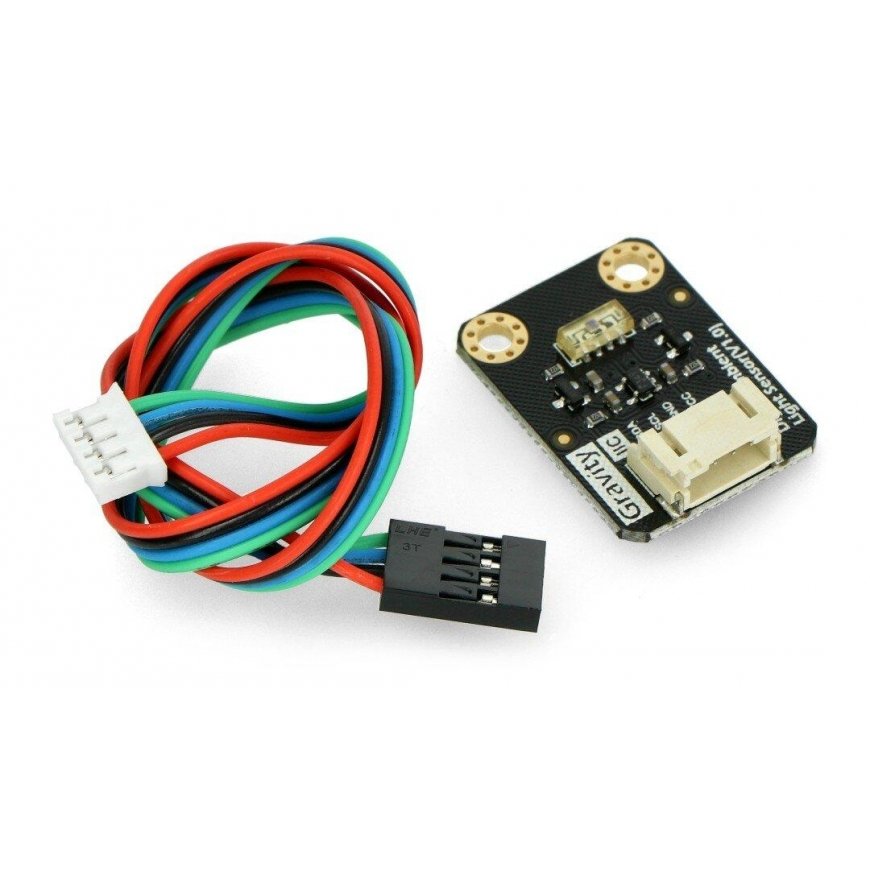

- Gravity I2C PH2.0-4P cable x1
