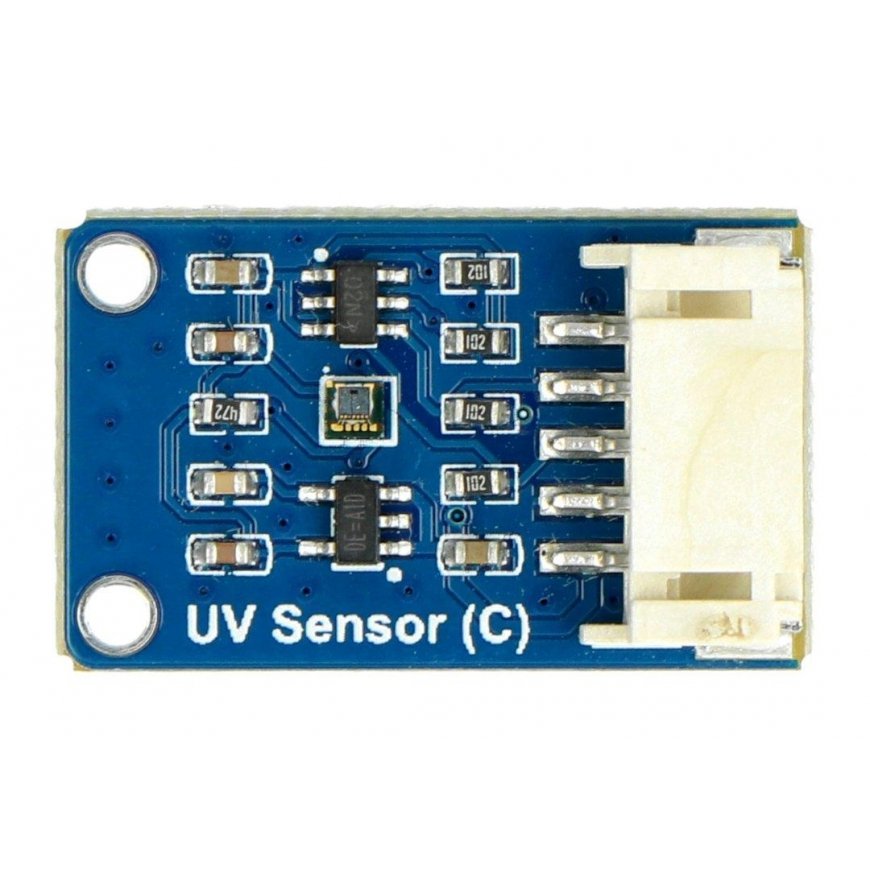

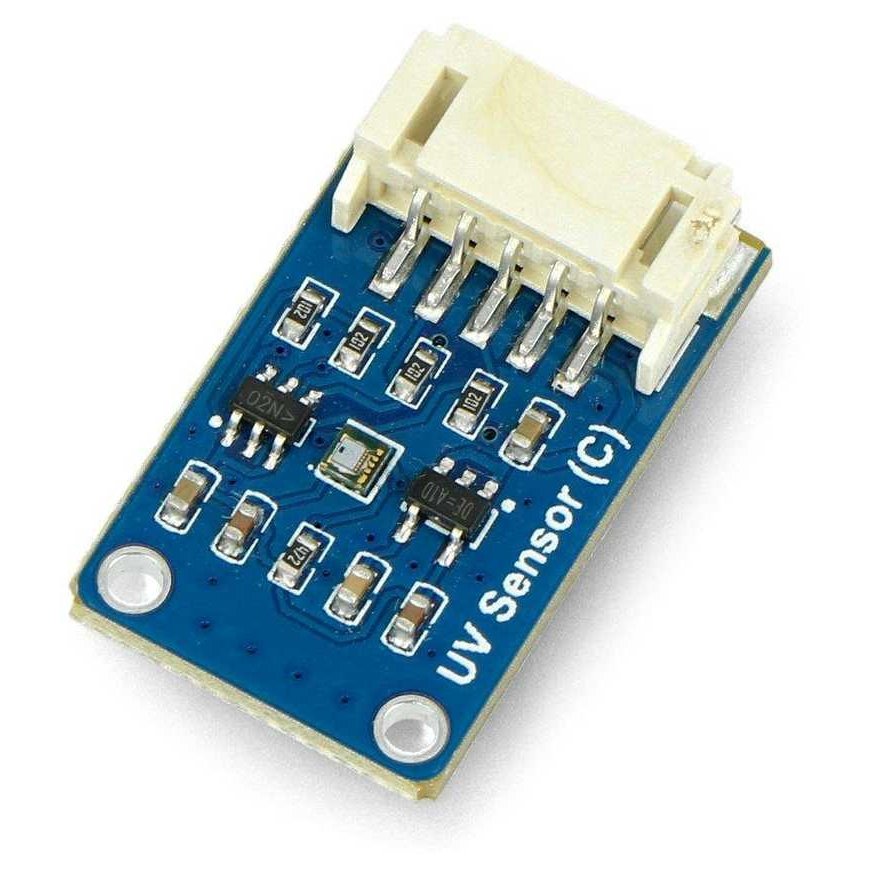

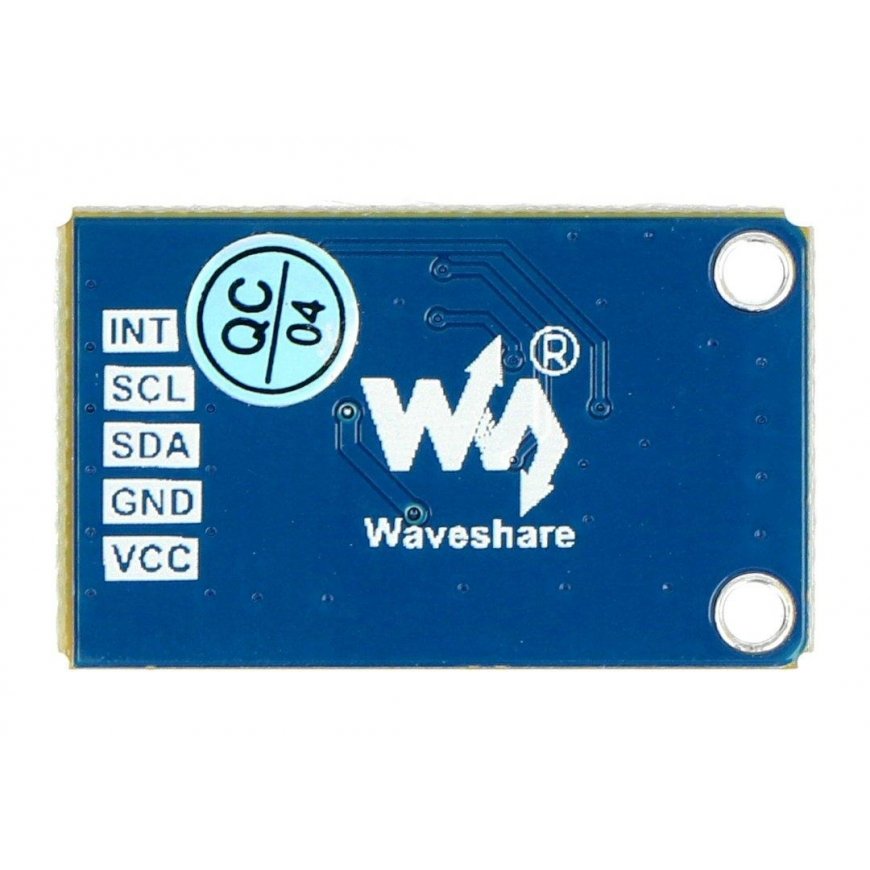

Ultraviolet UV Light Sensor - LTR390-UV I2C - Waveshare 20467
21.75 €
3597339 AN-20117
5904422349226
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
UV digital ultraviolet light sensor module with LTR390 chip. Designed for measuring ultraviolet and visible light. It has high sensitivity, fast response and compact size. Allows easy integration with other devices. It has a built-in ADC converter. Allows you to measure wavelength radiation from 280 nm to 430 nm. Powered from 3 V to 5 V, uses the I2C bus to interface with the controller module.Main features:
- Contains LTR390-UV-01 chip for measuring ultraviolet and visible light
- Equipped with ADC converter
- Uses I2C bus to interact with main modules
- Includes programming resources and manual (Raspberry Pi/Arduino/STM32 examples)
- Allows you to measure radiation in the wavelength range from 280 nm to 430 nm
- Type: Ultraviolet UV sensor
- Integrated chip: LTR390-UV-01
- Interface: I2C bus
- Interface address: 0x53 (fixed)
- Radiation measurement in the wavelength range: from 280 nm to 430 nm
- Operating voltage range: 3.3V/5V
- Mounting hole diameter: 2 mm
- Module dimensions: 27 x 20 mm
- UV Light Sensor - LTR390-UV I2C - Waveshare 20467

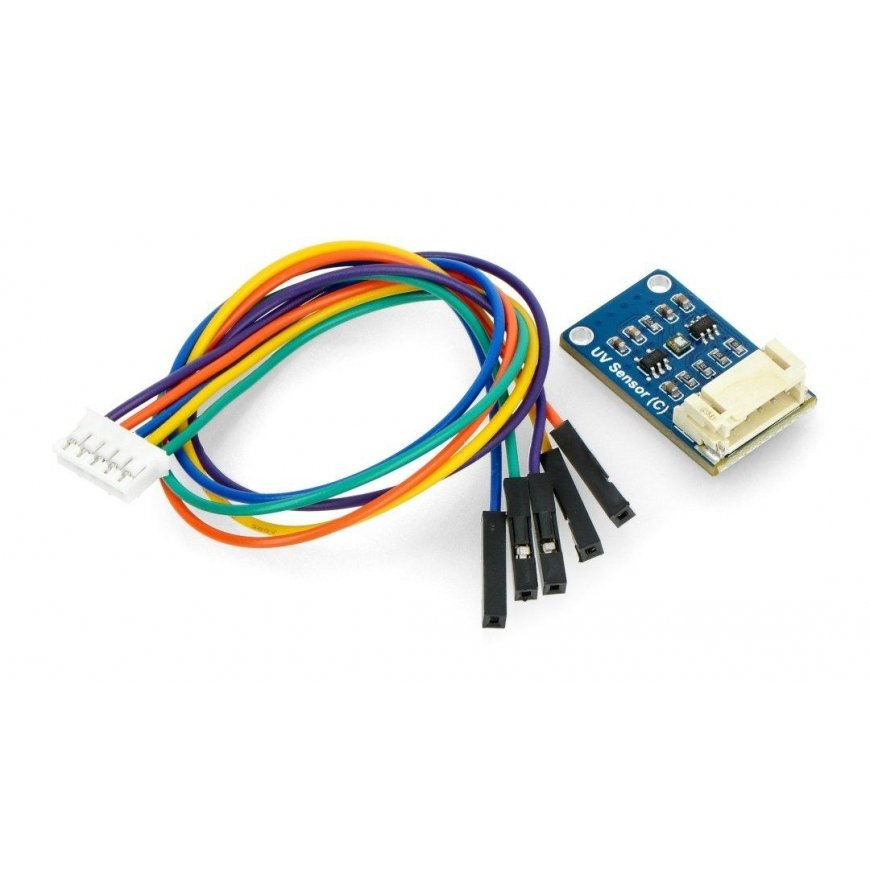

- Dedicated connection cable - 5 pins
