USB-A, USB-C tester, QC1.0/ 2.0/ 3.0/ 4.0 (Type C) and QC1.0/ 2.0/ 3.0 (Type A) protocols, 0~99999mAh 0~1000Wh 1~480?, 4~24VDC,

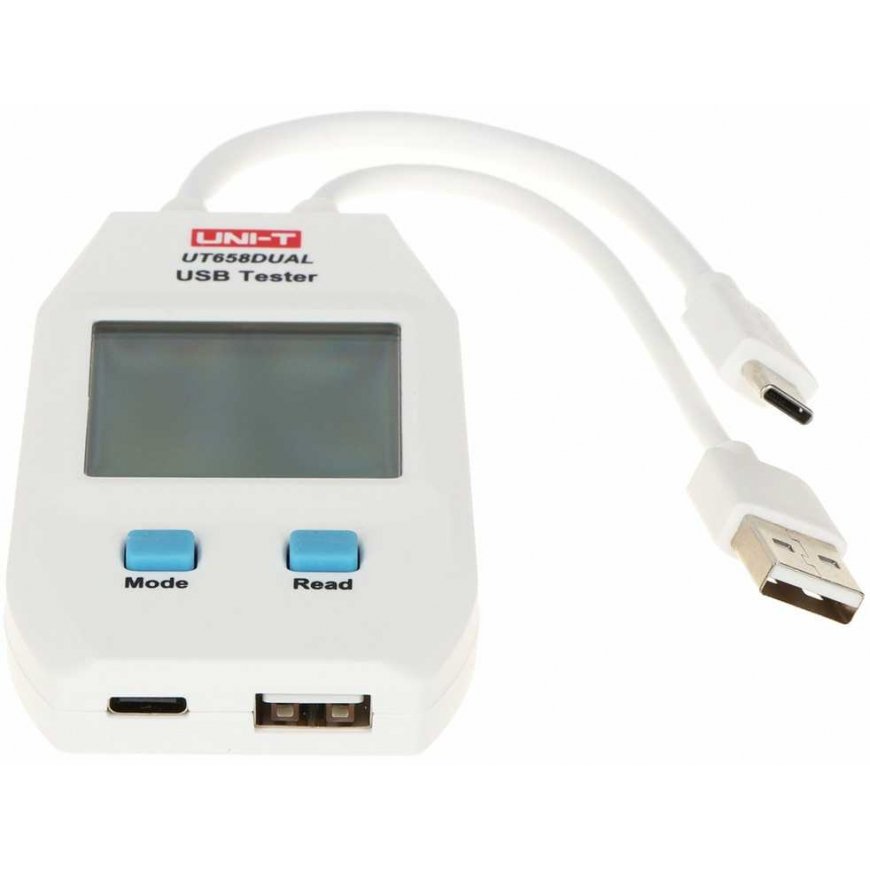

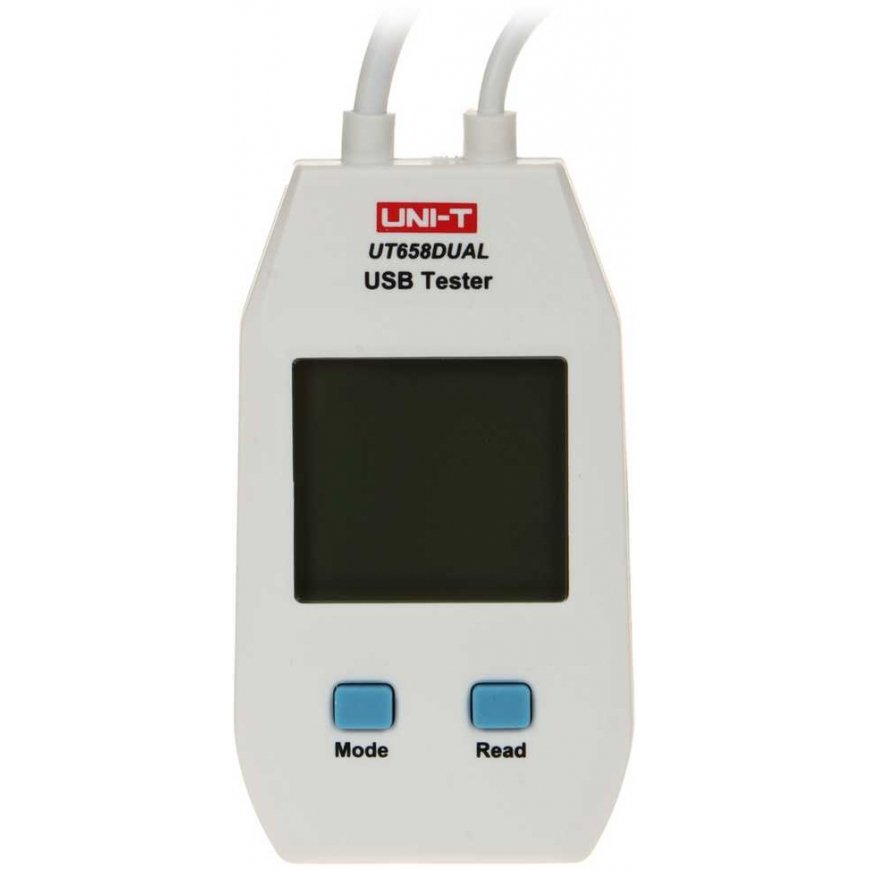

3597148 UT658DUAL
6935750565896
Piegāde 3-5 d.d.
UT658 series USB testers
The second generation UT658 series USB testers can test USB chargers, portable power supplies, USB Type-A and Type-C cables and other electronic charging devices. The UT658 measures the output voltage, current, energy, capacitance, circuit equivalent resistance, D+ and D- voltages of USB data transmission cables. This series is designed to be accurate, reliable, stable and portable. They are excellent tools for applications such as manufacturing verification, engineering testing and DIY.
UT658 series models: UT658A, UT658C, UT658DUAL, UT658LOAD
Features of UT658 series USB testers
Certificates: CE, UKCA
● A/C type interface
● CE certificate
● 10 sets of data storage
● Loop equivalent resistance measurement (1-480Ω)

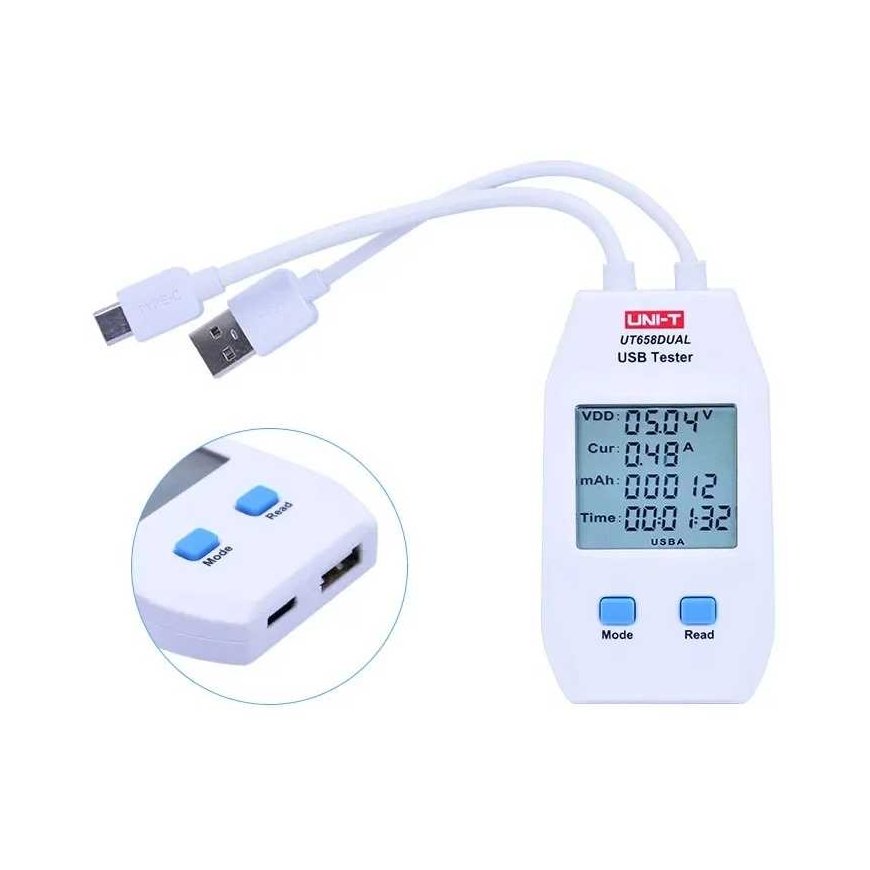

● The same screen displays voltage, current, power, capacity, etc.
● Support for fast charging protocol
UT658 Series USB Tester Specifications
Specifications | Description | UT658A | UT658C | UT658DUAL | UT658LOAD |
Input and output ports (Type A) | √ | √ | √ | ||
Input and output ports (Type-C) | √ | √ | |||
Data and charging protocol | 2.0/3.0 | 2.0/4.0 | 2.0/(3.0/4.0) | 2.0/3.0 | |
Voltage range | 4~24 VDC, resolution: 0.01V | √ | √ | √ | √ |
Current range (type A) | 0.05~3ADC, resolution: 0.01A | √ | √ | √ | |
Current range (Type C) | 0.05~5ADC, resolution: 0.01A | √ | √ | ||
Capacity | 0 ~ 99999 mAh, resolution: 1 mAh, resolution: 1 mAh | √ | √ | √ | √ |
Energy | 0 ~ 1000Wh | √ | √ | √ | √ |
Measuring the equivalent resistance of a circuit | 1~480Ω | √ | √ | √ | √ |
USB data cable voltage (D+, D-) | 0~3.3V | √ | √ | √ | √ |
Data storage | 10 sets | √ | √ | √ | √ |
Electrical load (UT658LOAD only) | 0.5A, 1A, 2A, 3A (maximum power: 60W) | √ | |||
Maximum recording time | 99h, 59min, 59sec; resolution: 1s | √ | √ | √ | √ |
Fast Charging Protocol (Type A) | QC 3.0 fast charging protocol | √ | √ | √ | |
Fast charging protocol (Type-C) | QC 4.0 fast charging protocol | √ | √ | ||
General characteristics | |||||
Product color | White | ||||
Product net weight | UT658A/C: 50.6g; UT658DUAL: 65.8g; UT658LOAD: 114.4g | ||||
Product size | UT658A/C: 93mm x 45mm x 13mm; UT658DUAL: 93mm x 55mm x 13mm; UT658LOAD: 122mm x 53mm x 27mm | ||||
Standard individual packaging | Gift box, English manual | ||||
Standard quantity per box | 60 pcs. | ||||
Standard cardboard box measurement | UT658A/C/DUAL: 280mm x 220mm x 225mm; UT658LOAD: 320mm x 300mm x 225mm. | ||||
Standard gross weight of a carton box | UT658A/C: 4 kg; UT658DUAL: 5.5 kg; UT658LOAD: 9 kg | ||||
