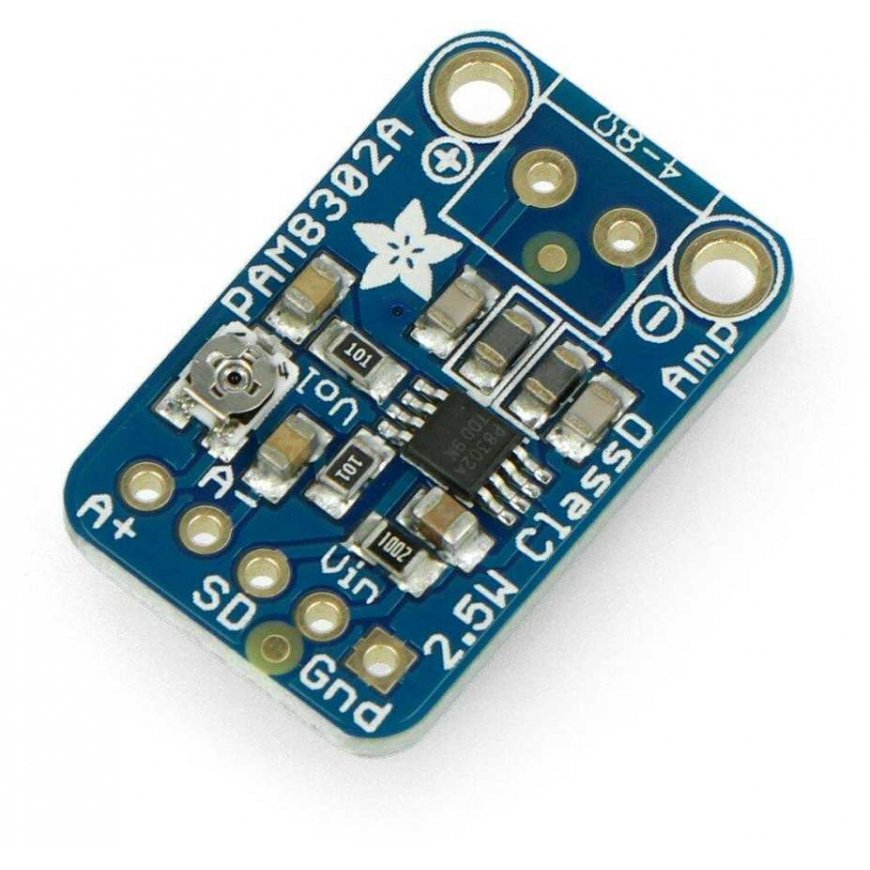

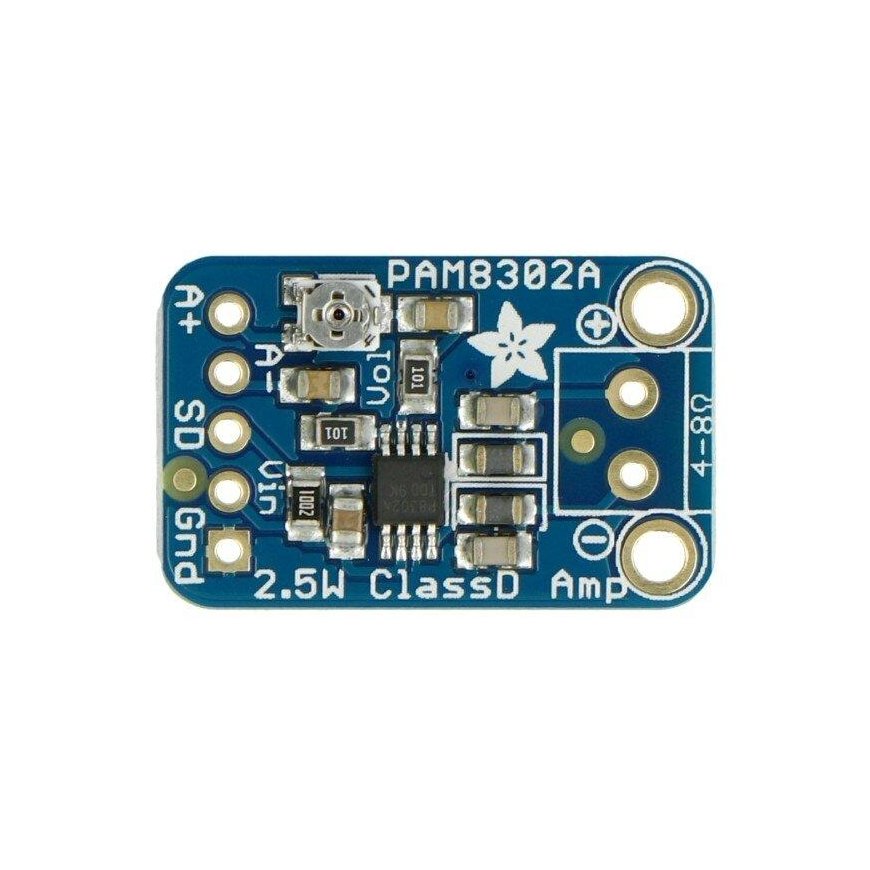

Mono 2.5WD class audio amplifier, PAM8302, Adafruit 2130
19.05 €
3596896 AN-06381
5904422348960
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Module with audio amplifier, class D. Characterized by low power losses. Allows you to connect a speaker from 4 to 8 ohms, power 2.5 W. It has a built-in potentiometer for volume adjustment. Operates when the supply voltage is from 2.0 V to 5.5 V.
Specifications:
- Power supply: 2.5V to 5.5V
- Low power consumption; 4 mA in standby and 1 µa in sleep mode
- Power: 2.5 W (8 ohms)
- Class D amplifier
- Built-in potentiometer for volume adjustment
- Short circuit and overcurrent protection
- 50 dB PSRR at 1 kHz

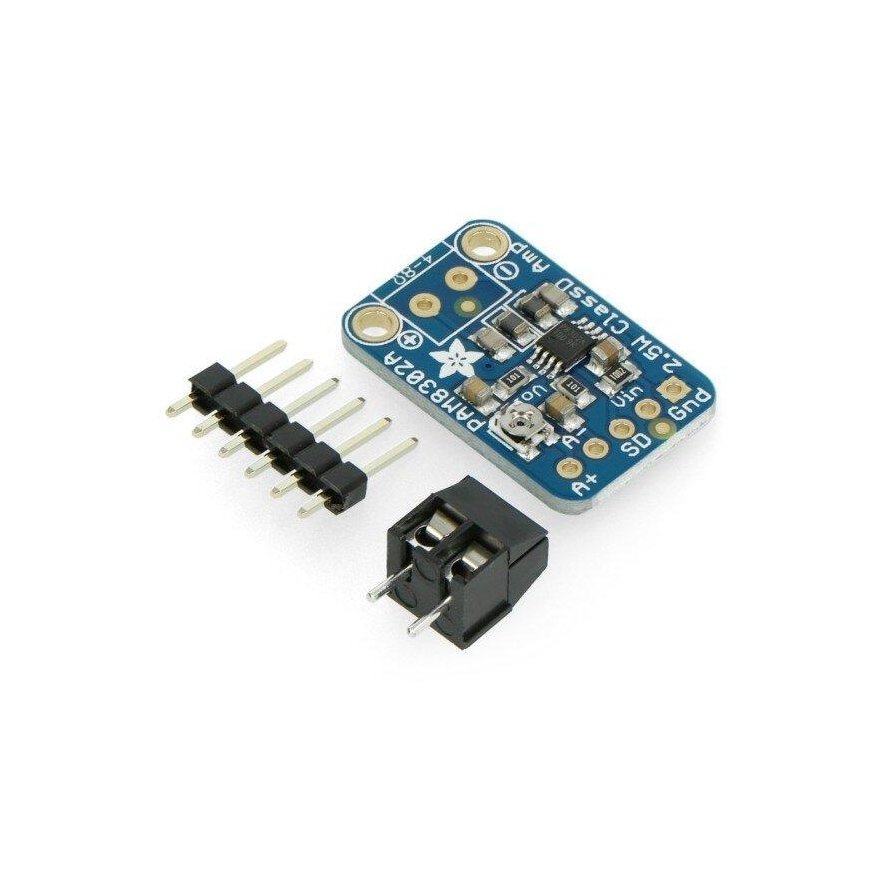

- Gold pin connector and screw connection for soldering
- Dimensions: 15 x 24 x 2 mm
- Weight: 1.4 g
