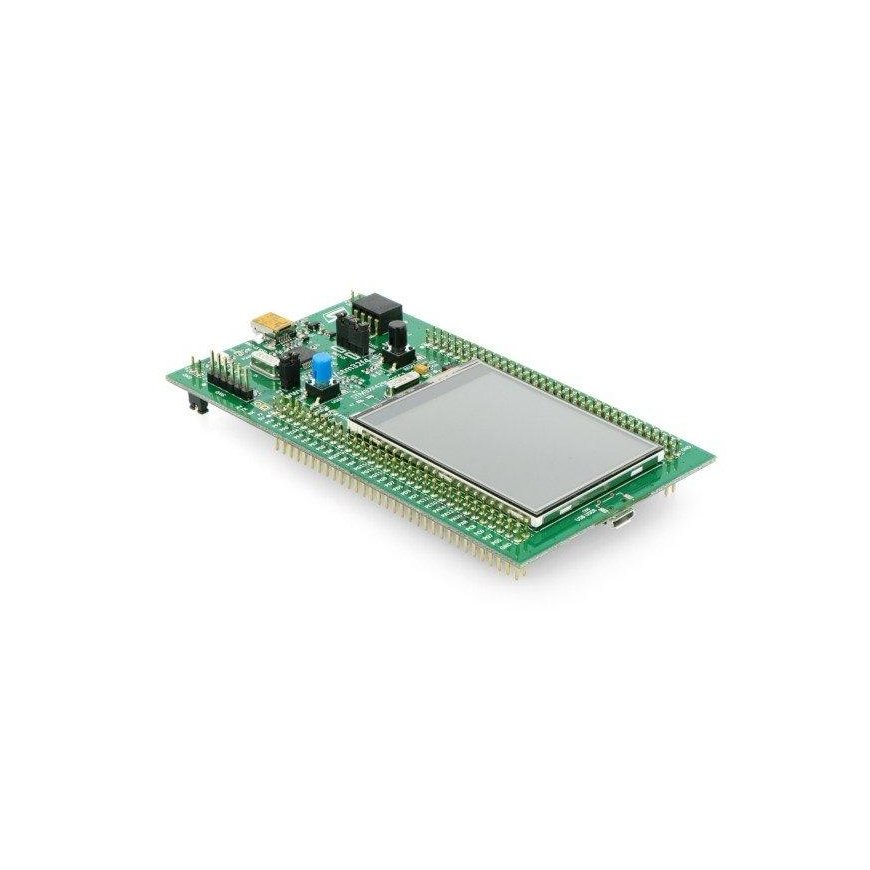

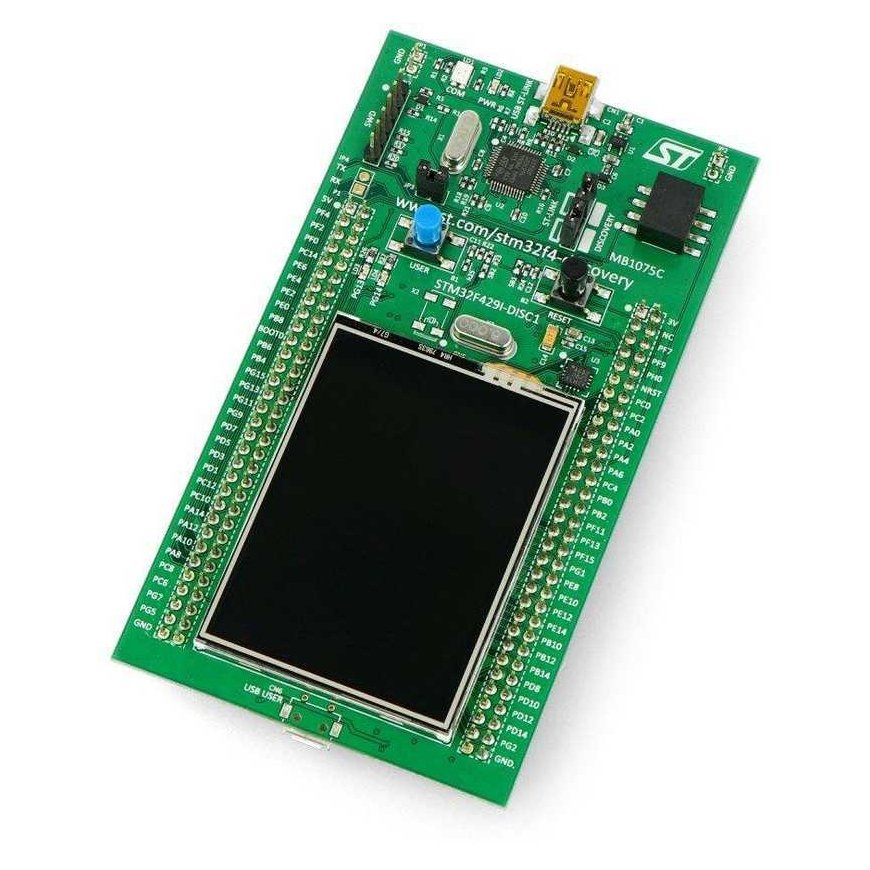

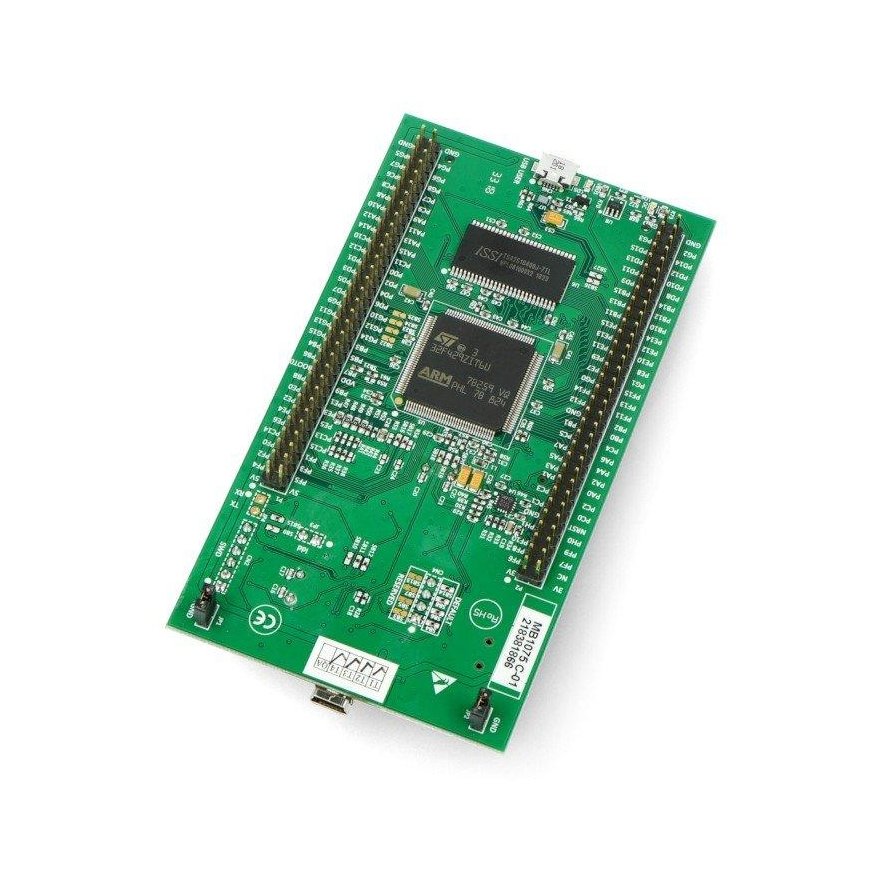

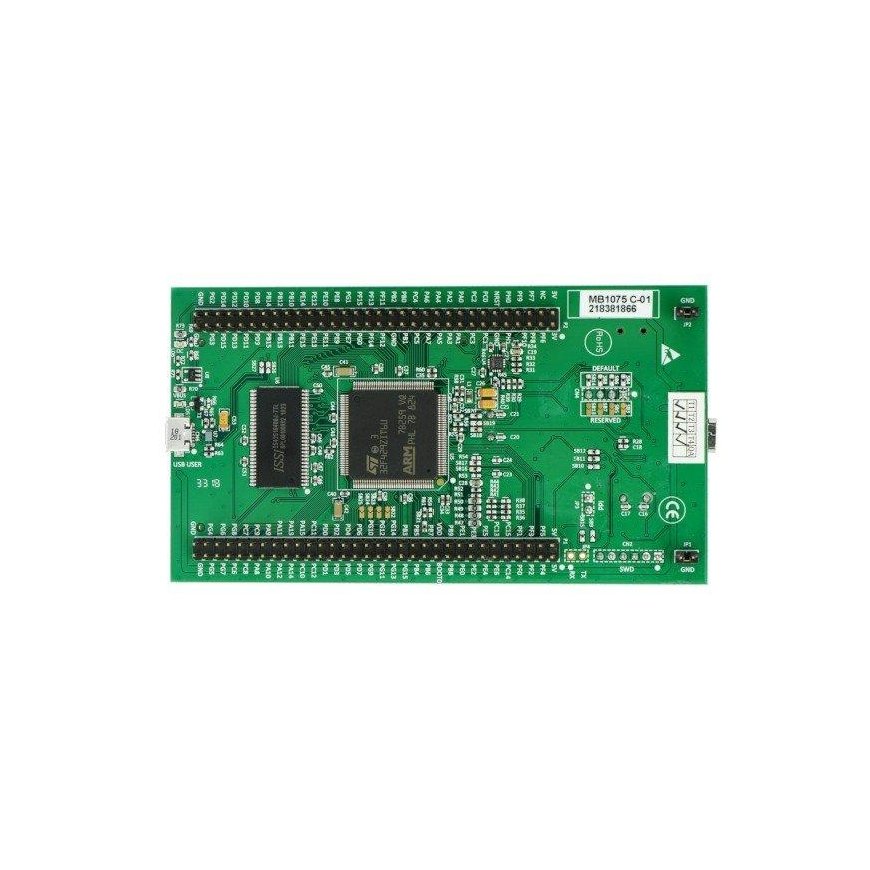

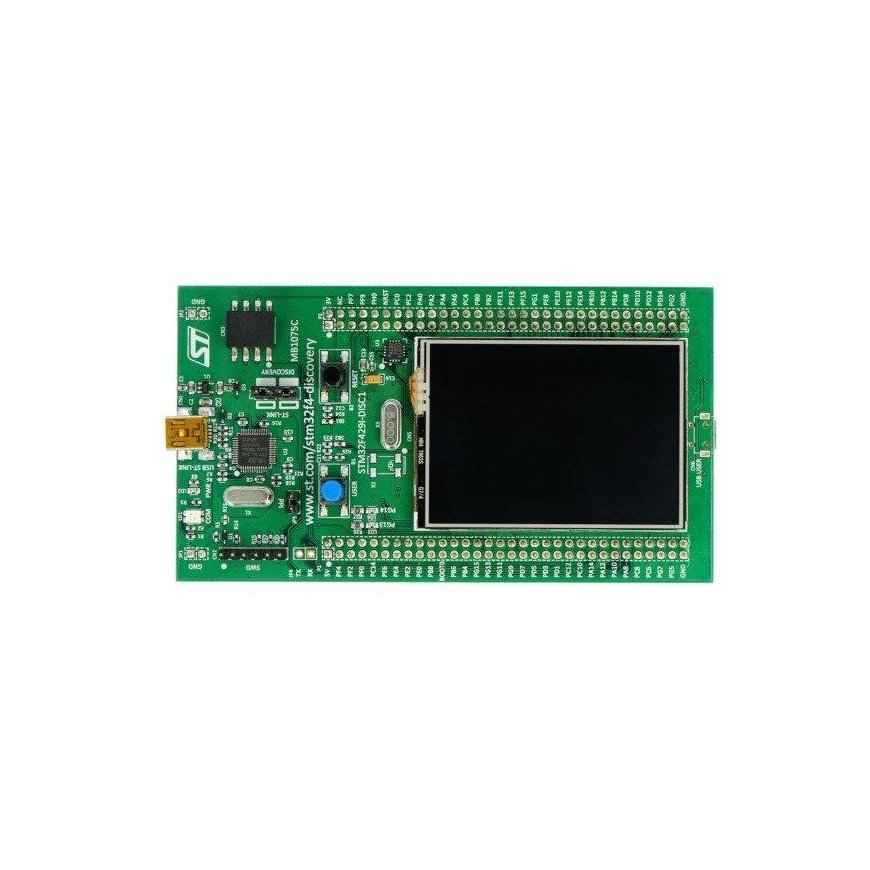

Stmicroelectronics STM32F429I-DISC1 – Discovery – STM32F429IDISCOVERY + 2.4” display
99.00 €
Ikm. maksa no 3,45 €
3595248 AN-01940
5904422330422
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The development kit is based on the STM32f429zit6 board (180 MHz, 2 MB Flash, 256 KB RAM, Cortex-M4F ARM). The board also includes a 3-axis gyroscope, a 2.4” QVGA TFT touch screen, and an ST-LINK/V2-B programmer/debugger.Specifications:
- Microcontroller STM32F429ZIT6:
- Core: Cortex M4F
- Clock frequency 180 MHz
- ADC converter 12 bit
- DAC converter
- 2MB Flash
- 256KB RAM
- Debugger ST-LINK/V2-B with the ability to work as a standalone device with SWD output
- The system operates via USB or with an external power supply: 5 V / 3.3 V
- The board also contains:
- 3-axis gyroscope
- Touchscreen 2.4: QVGA TFT LCD screen
- Six LEDs (two are user-accessible)
- Two buttons (user and reset)
- Micro-AB USB connector
- Gold-plated pins for I/O ports
- Board dimensions (with gold connectors): 120 x 65 x 15 mm
