Gravity - Raspberry Pi Pico Expansion Board - DFRobot DFR0848
19.99 €
3592334 AN-20373
5904422380748
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

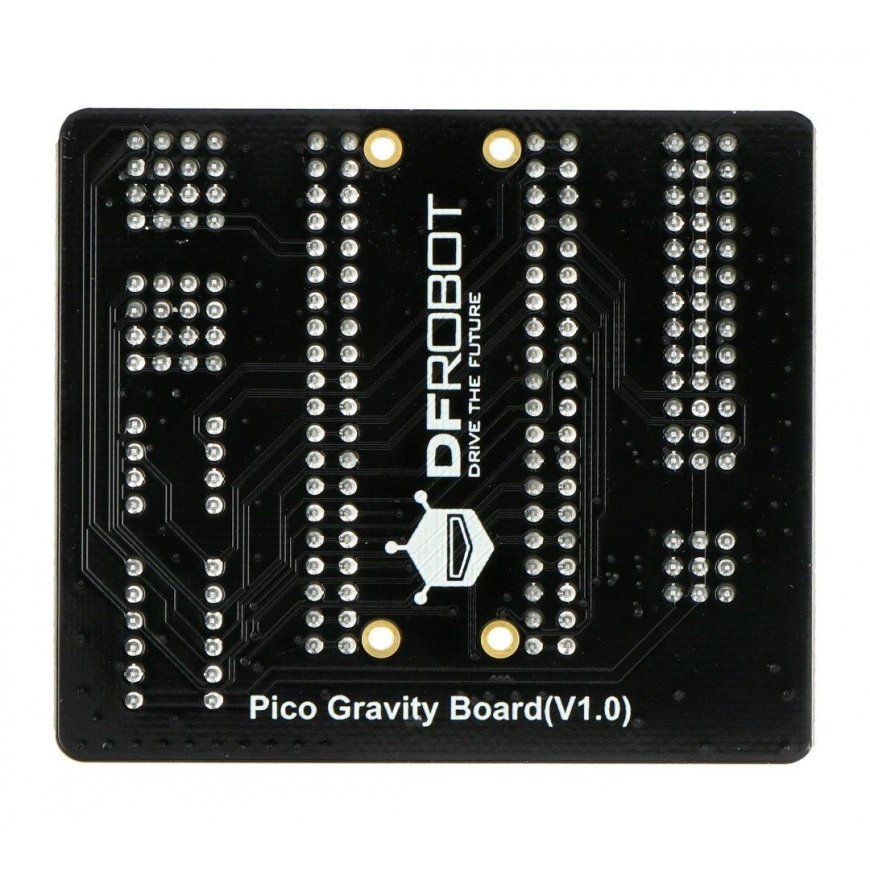

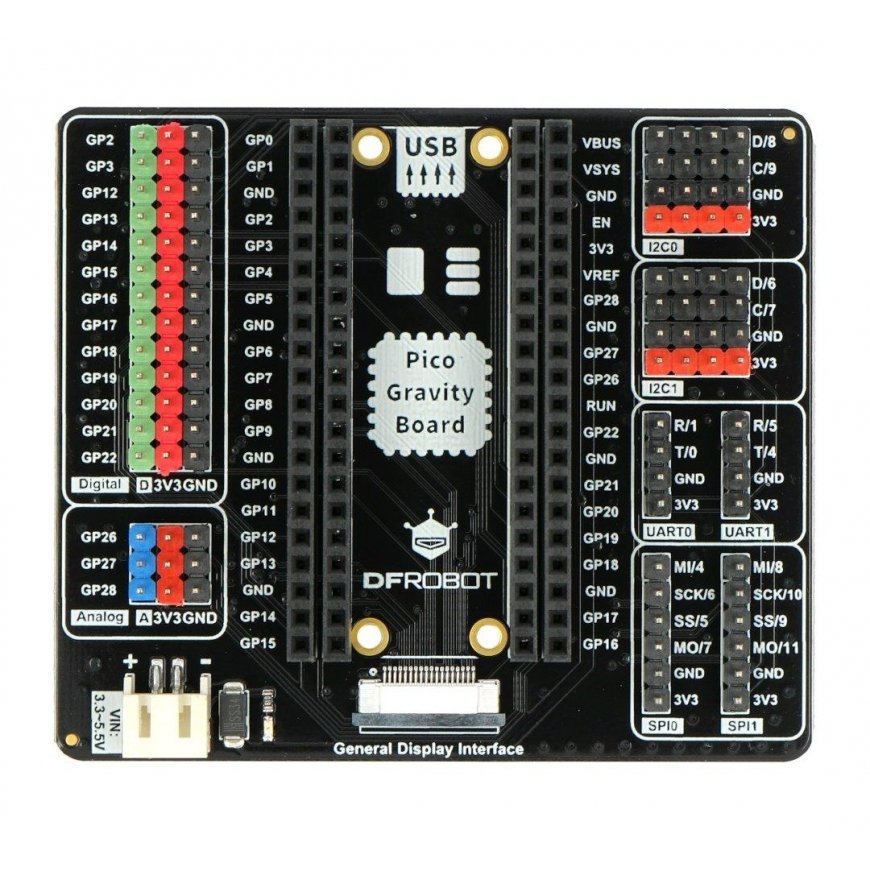

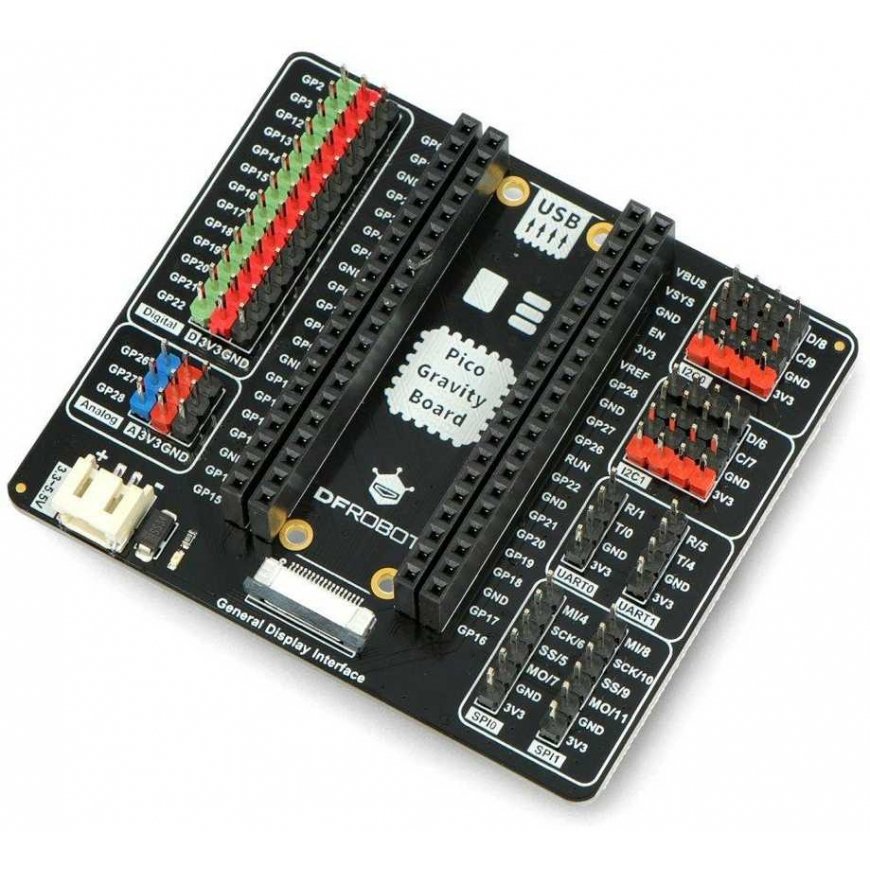

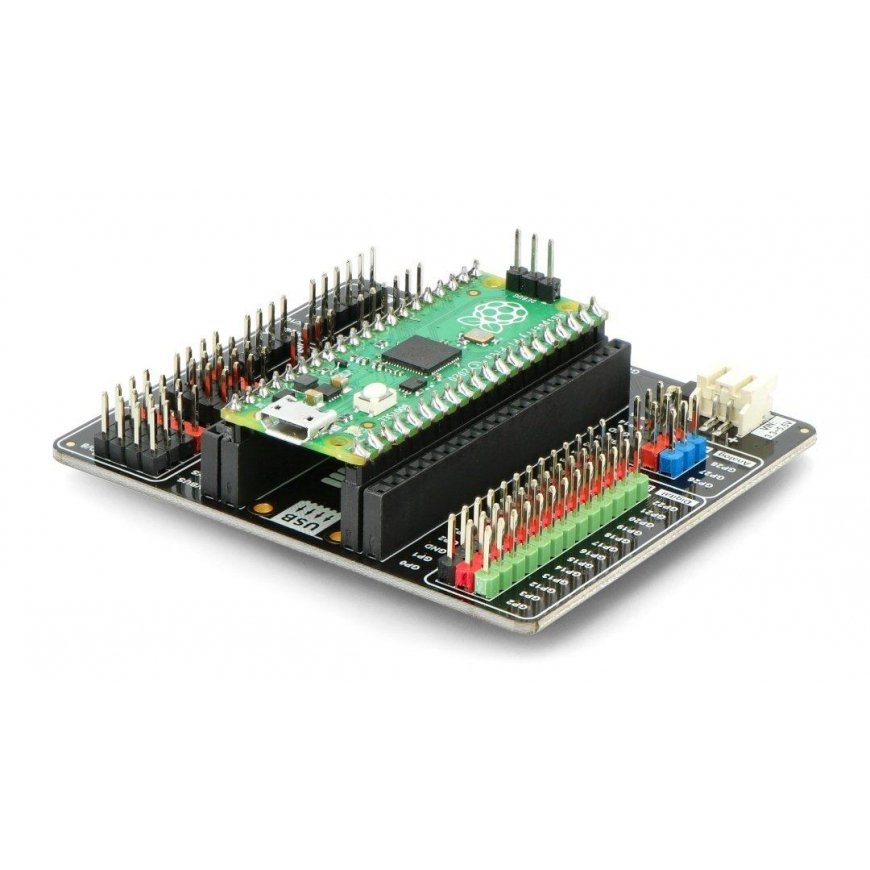

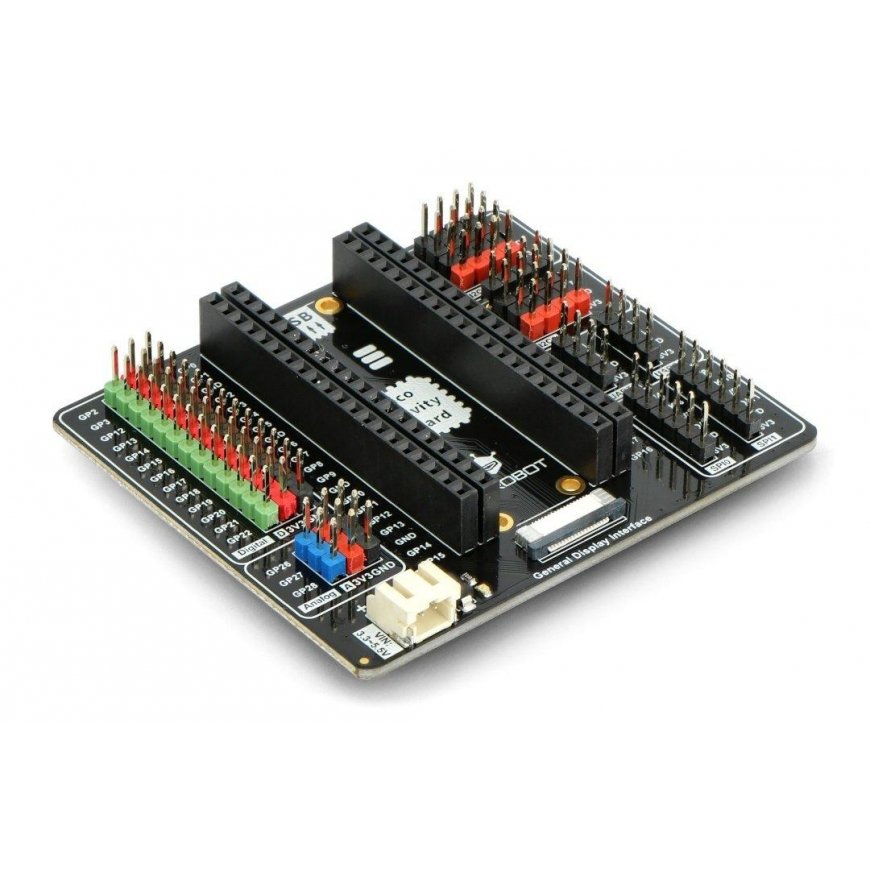

DFRobot has developed an expansion module for the Raspberry Pi Pico board. It allows you to easily connect Gravity series sensors to the Raspberry Pi Pico module thanks to the dedicated Gravity connectors. The manufacturer has placed a socket on the board to connect the Raspberry Pi Pico module, and has brought out all its input/output connections to external pins and a socket, which is placed on the left side of the board, as well as analog connectors on this side. On the right side, interfaces compatible with Gravity connectors are placed. All pins are labeled, making it easier to find the right interface.Main features:
- No soldering required, plug and play
- Supports all types of Gravity sensors and modules
- Equipped with a JST PH2.0 interface for power supply from 3.3V to 5.5V
- Integrated GDI port, compatible with DFRobot GDI display series
- All Pico pins are labeled
- Digital IO x 13: GP2, GP3, GP12-22
- Analog IO x 3: GP26-GP28
- UART x2
- I2C x2
- SPI x2
- Power supply: JST PH2.0
- Supply voltage: 3.3V to 5.5V
- Display interface: GDI
- Dimensions: 73 x 63 mm
