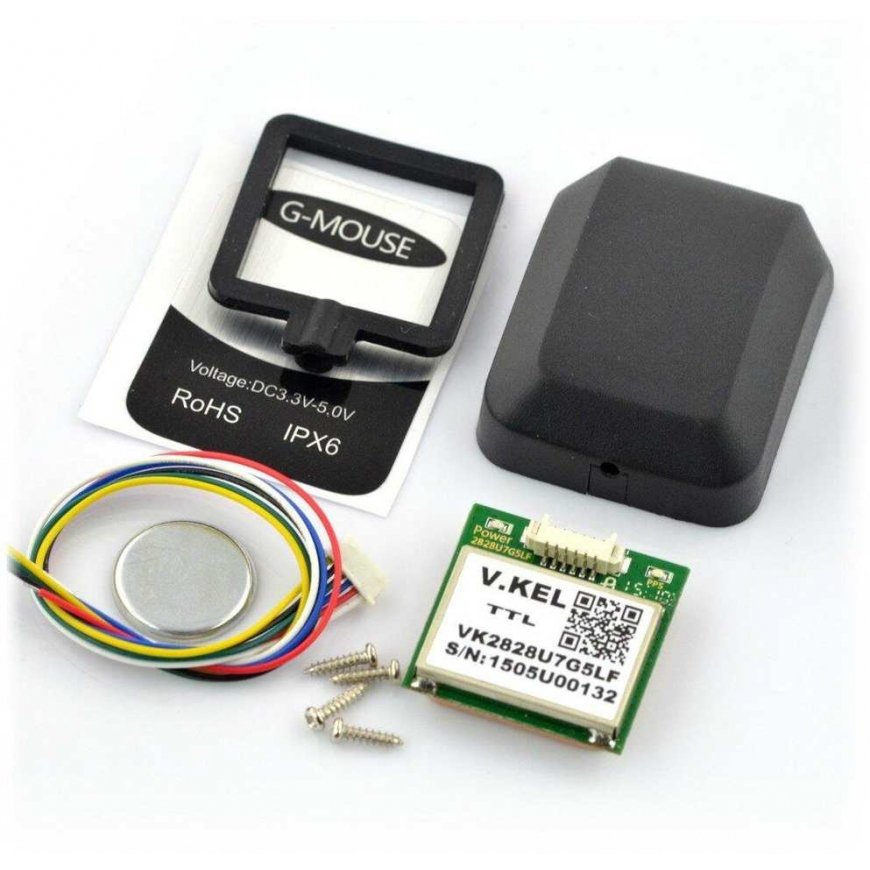

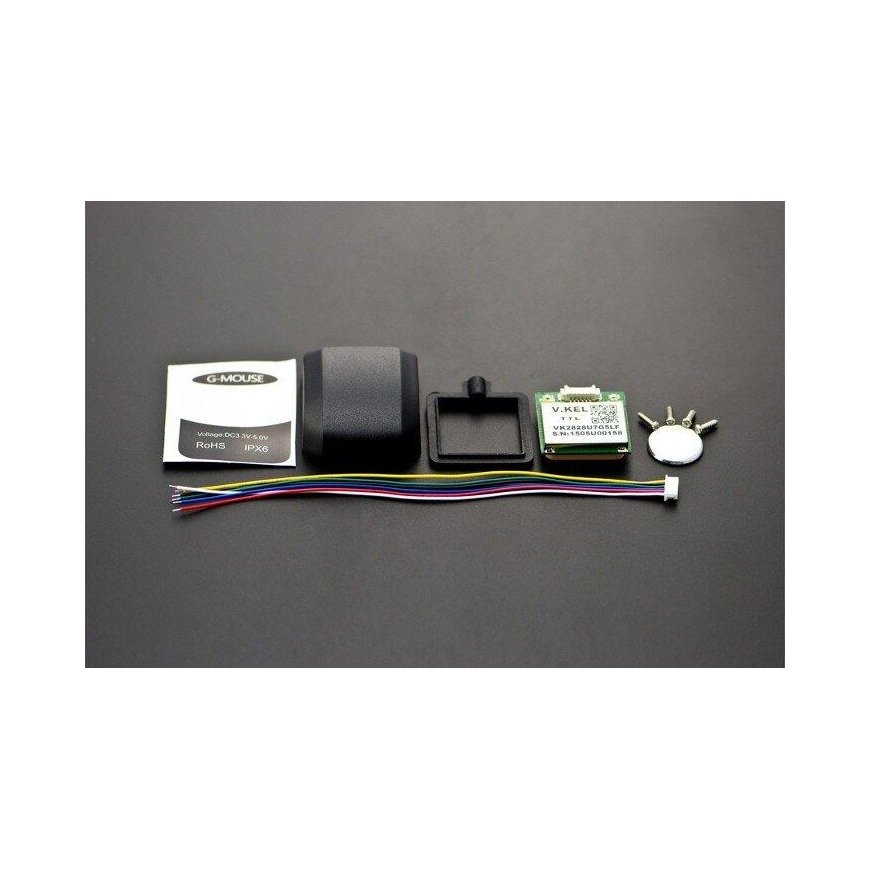

DFrobot GPS module UBX-G7020-KIT + case
39.00 €
Ikm. maksa no 1,90 €
3592211 AN-04596
5904422361242
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The GPS module UBX-G7020-KT supports communication via a serial (RX, TX) interface, has a 56-channel receiver, operates at a voltage of 3.3 V to 5 V. The system has a built-in antenna with a sensitivity of -161 dBm. The update frequency is from 1 to 10 Hz. The measurement accuracy is up to 2 meters.
Specifications:
- Refresh rate: 1 to 10 Hz
- Current consumption: 30 mA
- 56 channel receiver

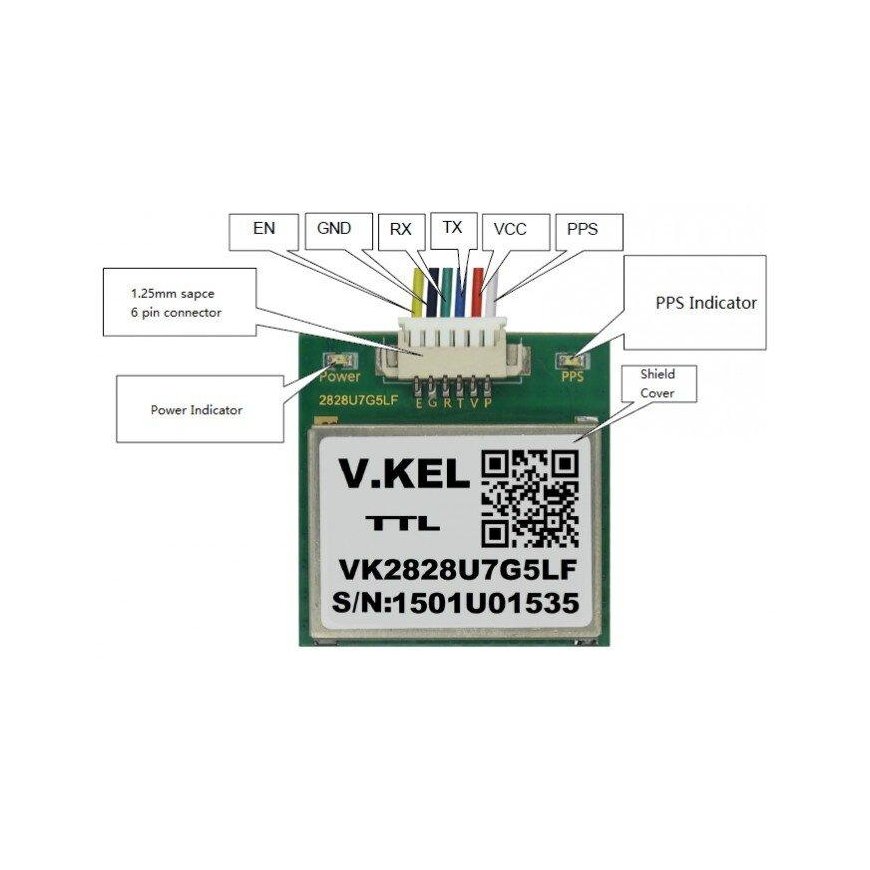

- Communication: Serial UART interface
- High sensitivity: -161 dBm
- Accuracy:
- Autonomous: 2.5 m
- SBAS: 2 m
- Operating temperature: - 40 to 85 °C
- Cold start: 29s
- Warm start: 28s
- Hot start: 1s
- Module dimensions: 28 x 28 x 8.6 mm

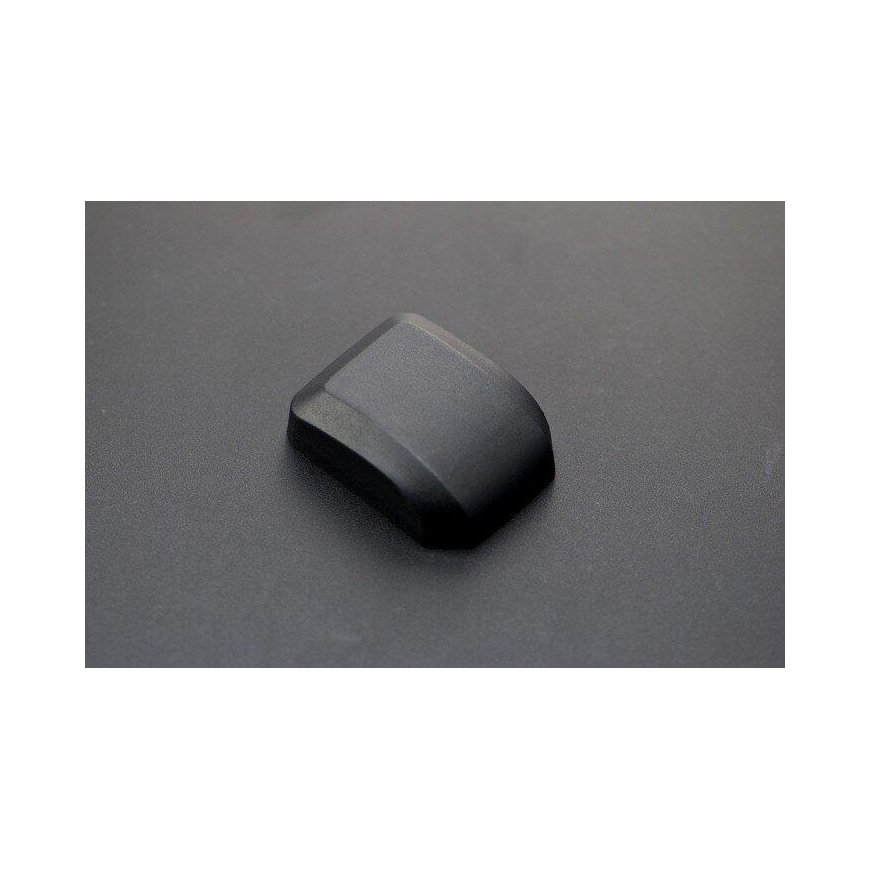

- Case dimensions: 37 x 48 x 16 mm
