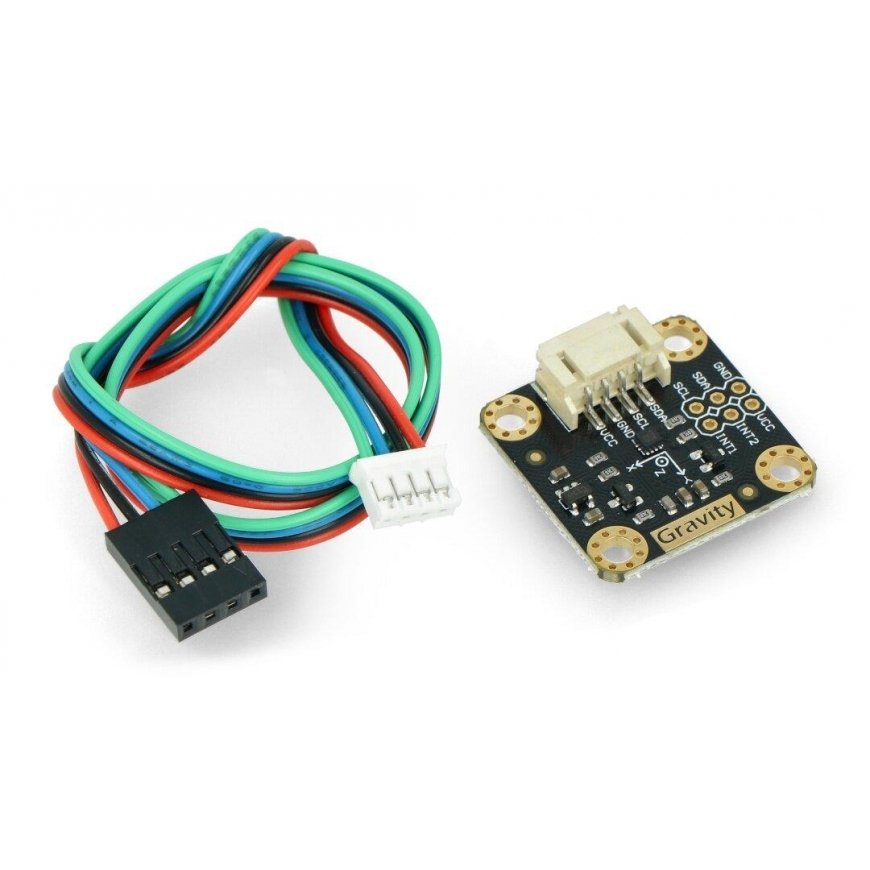

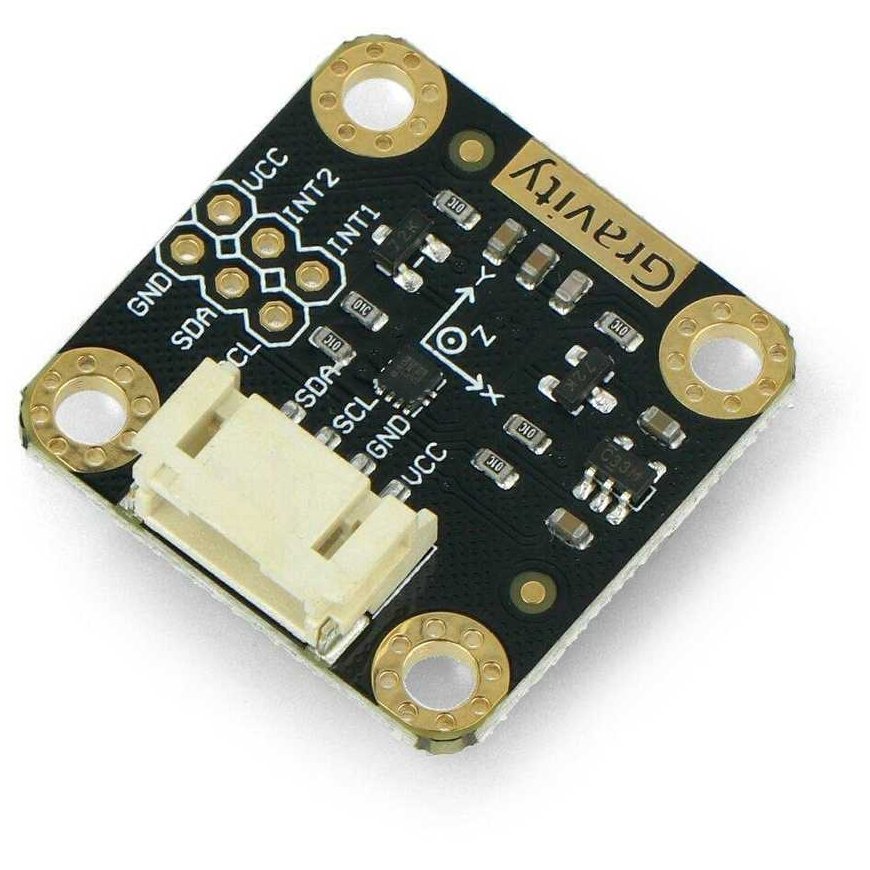

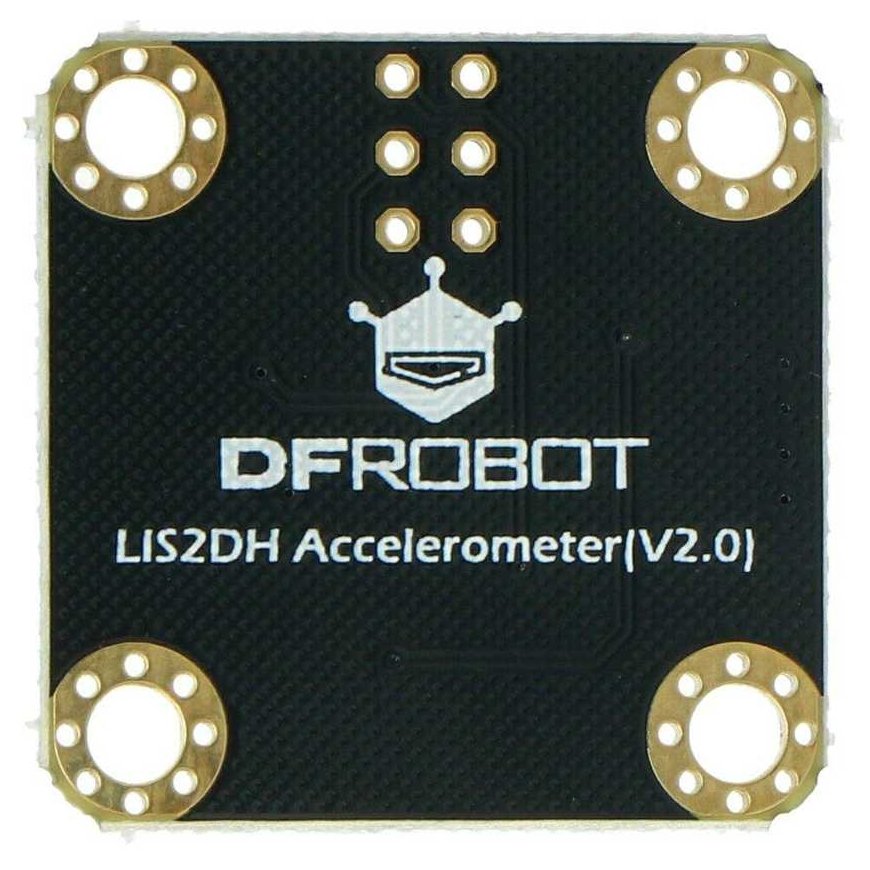

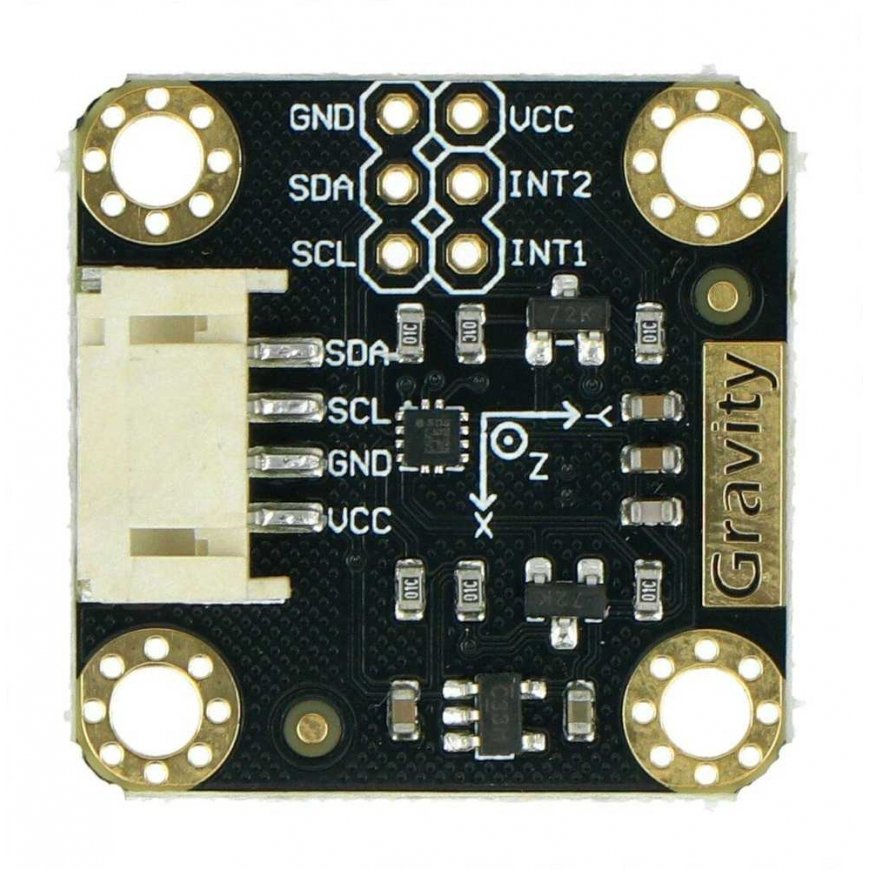

DFRobot Gravity SEN0224, LIS2DH, 3-axis I2C accelerometer
19.00 €
3590550 AN-08831
5903351243599
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The sensor is designed to measure three-axis acceleration in the range of ±2 g, ±4 g, ±8 g, or ±16 g. The module is powered by a voltage of 3.3 to 5 V, has a voltage regulator, and communicates via the I2C bus. The sensor is characterized by low current consumption, in standard mode, about 11 µa. The module has two programmable systems for determining free fall and movement, and a built-in temperature sensor.
Specifications:
- Voltage: 3.3V to 5V
- Current consumption: from 2 µa to 11 µa
- Communication: Gravity - I2C
- Sensitivity range: ±2 g / ±4 g / ±8 g / ±16 g
- Frequency: 1 Hz to 5 kHz
- 2 programmable noise generators for free fall and motion detection
- Built-in temperature sensor
- Operating temperature: -40℃ to 85℃
- Dimensions: 26.2 x 26.2 mm
- Weight: 12 g
Included:
- Gravity-4pin cable x1
