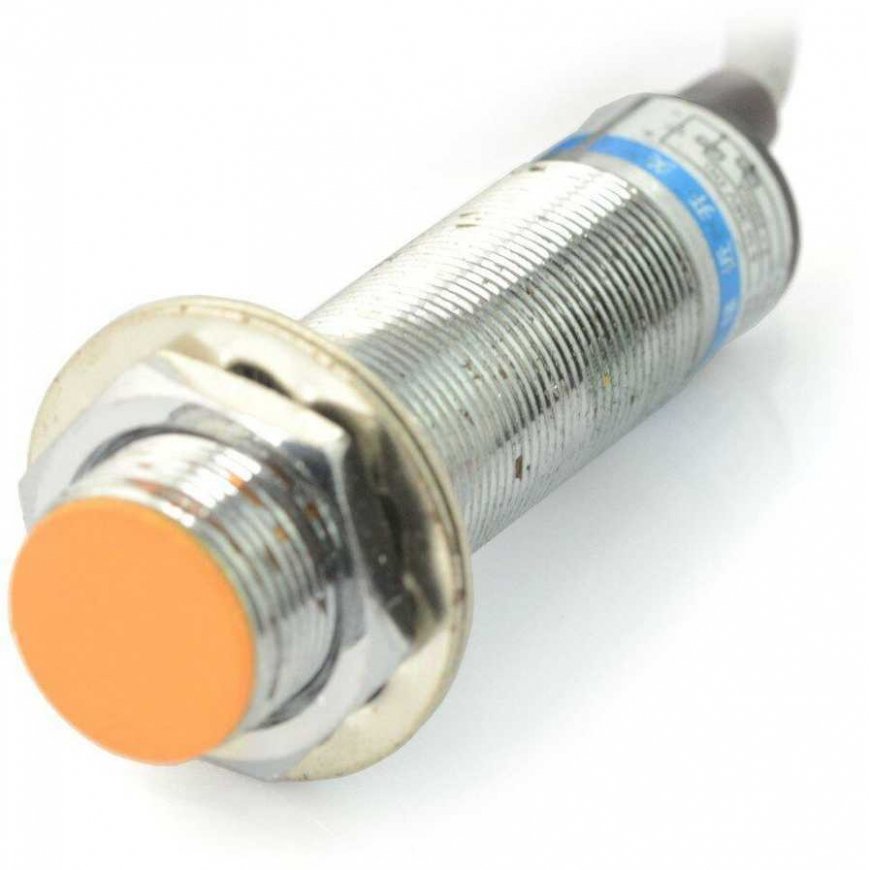

Oem Inductive distance sensor LJ18A3-5-Z/CY 5mm 6-36V
20.26 €
3589286 AN-11858
5904422318116
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

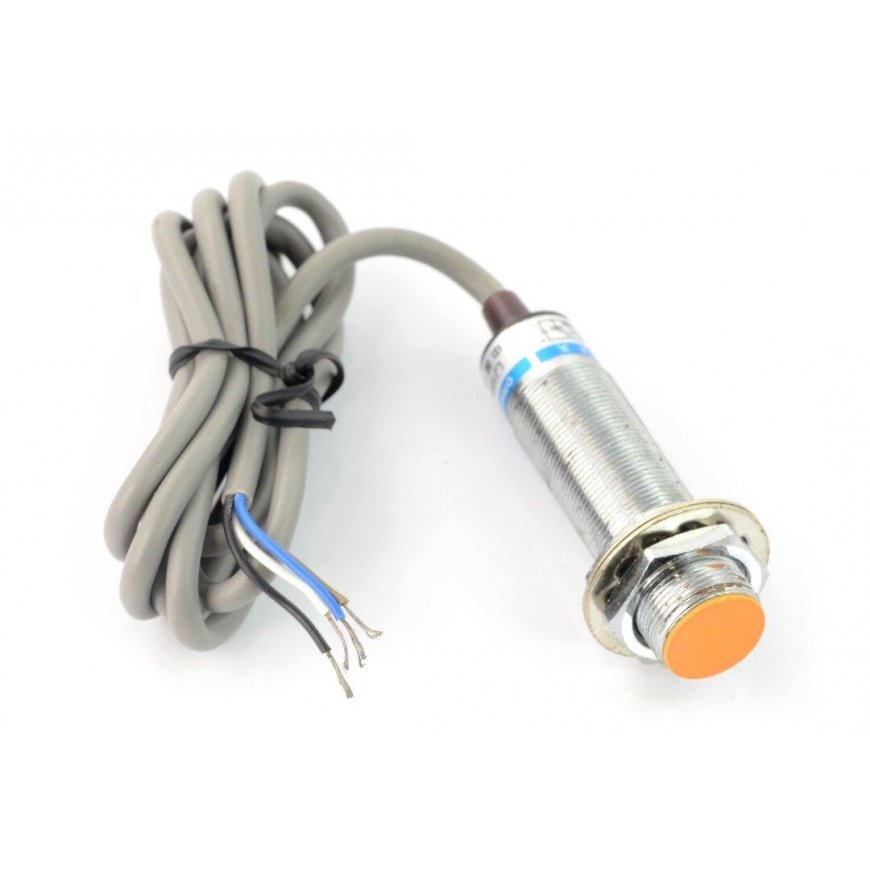

Inductive digital distance sensor with 100 cm cable and nuts for easy installation. It detects metal up to 5 mm away. Object detection is signaled by a low state at the output. Powered by voltage from 6 V to 36 V.
Specifications:
- Supply voltage: 6 V to 36 V
- Current consumption: 10 mA
- Measuring range: 0-5 mm ± 10%
- Output signal: digital 200 mA
- Output state: by default, low state, when an object is detected, it changes to high state
- LED indicating object detection
- Detection object: metal
- Response time: less than 2ms
- Operating temperature: -30 °C to 65 °C
- Diameter: 18 mm
- Sensor length: 70 mm
