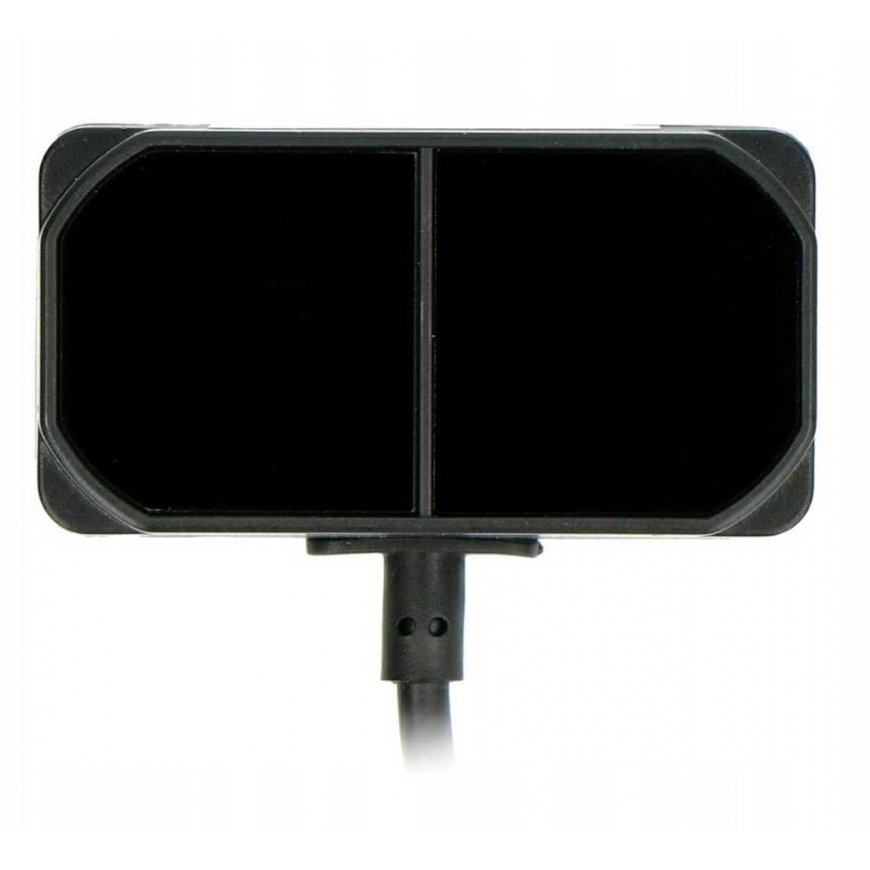

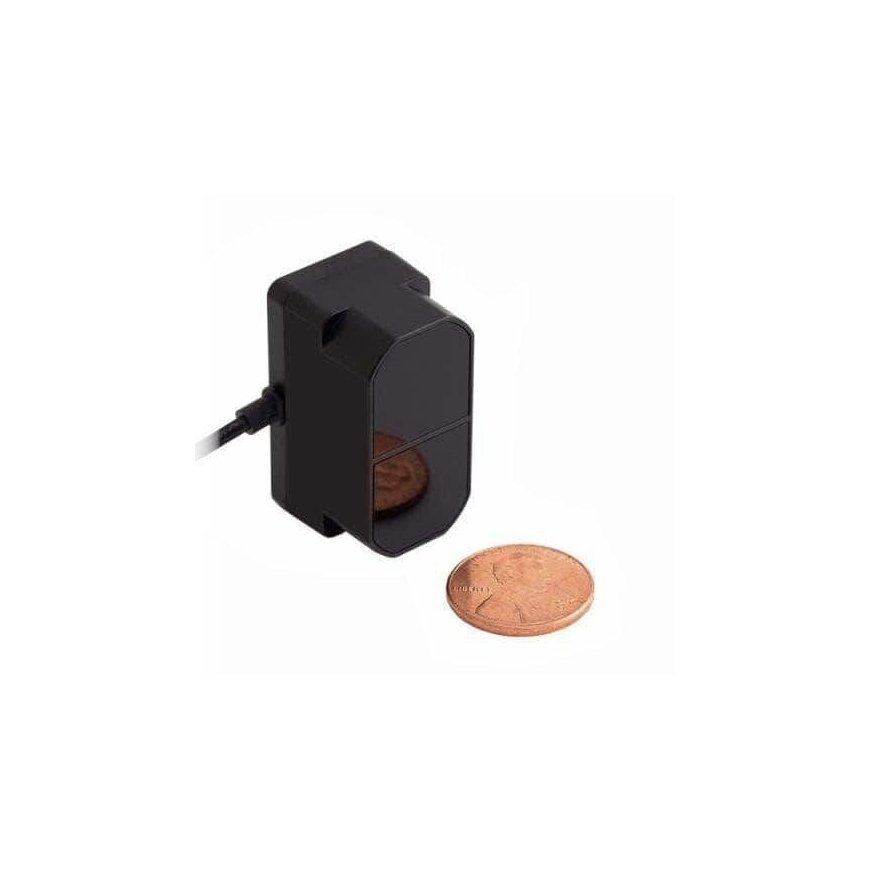

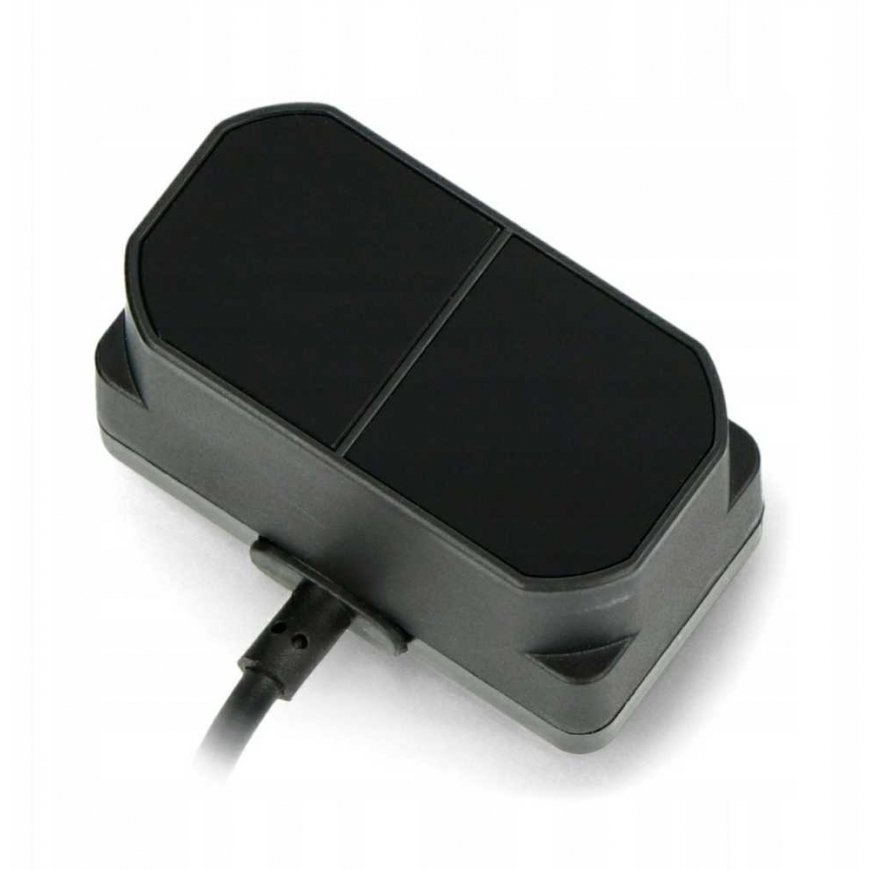

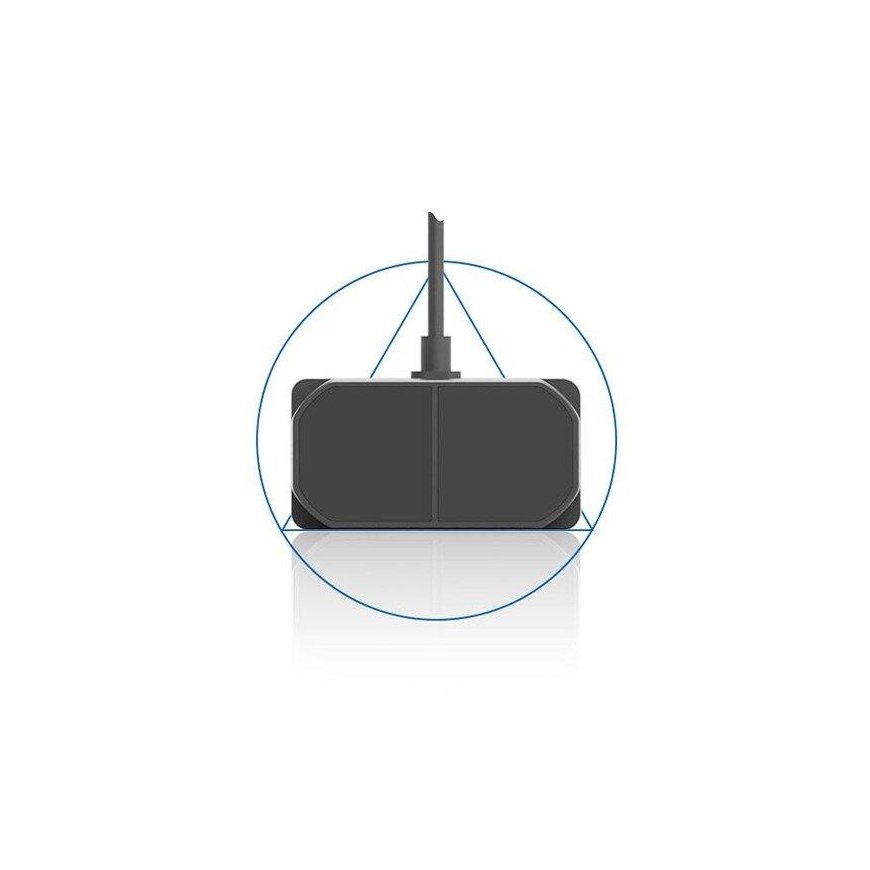

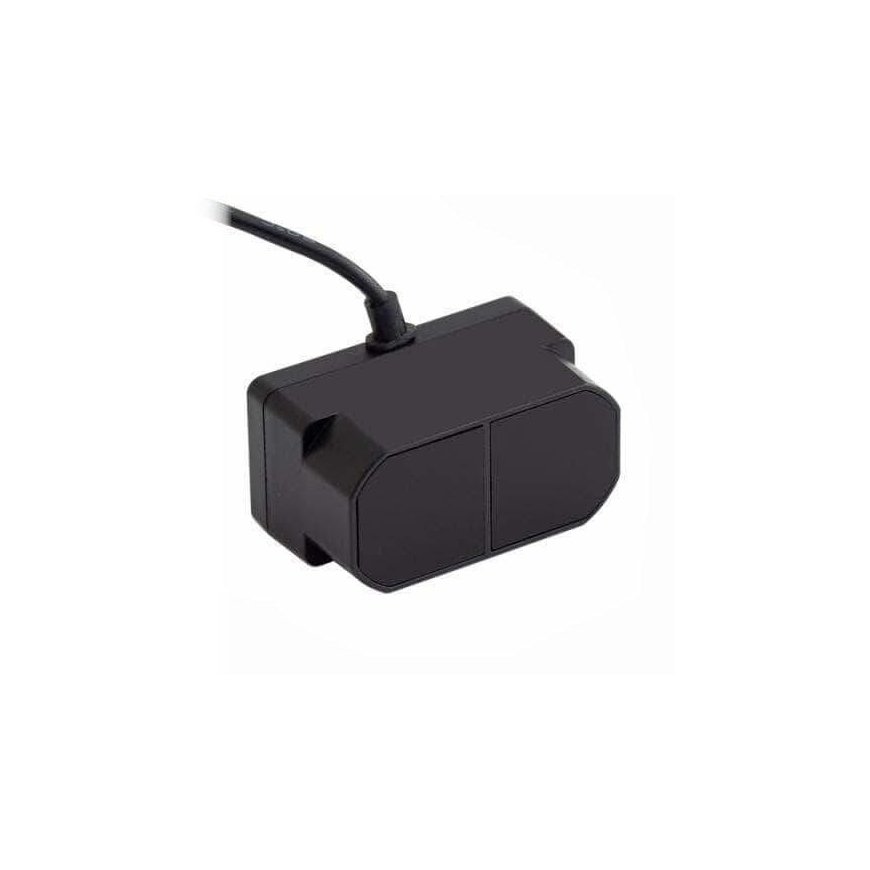

Benewake Laser Distance Sensor Lidar TFMini Plus UART/I2C - 12m
88.99 €
Ikm. maksa no 3,19 €
3587612 AN-13634
5903351249089
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Precise, laser distance sensor operating in the range from 0.1 to 12 m with an accuracy of 0.05 m. Supply voltage 5 V. The device communicates using UART and I2C interface. The wavelength of the emitted light is 850 nm.Specifications:
- Supply voltage: 5V ± 0.5V
- Current consumption: 110 mA
- Range: 0.1 to 12 m
- Accuracy:
- from 0.1 m to 6 m: ± 5
- from 6 months to 12 months: 1%
- Operating frequency: 1 Hz to 1000 Hz (adjustable)
- Viewing angle: 3.6°
- Operating temperature: -20 °C to 75 °C
- Interface: UART, I2C
- The kit includes a 4-pin connecting cable with a pitch of 1.27 mm
- Dimensions: 35 x 21 x 18.5 mm
- Weight: 11 g
- IP65
