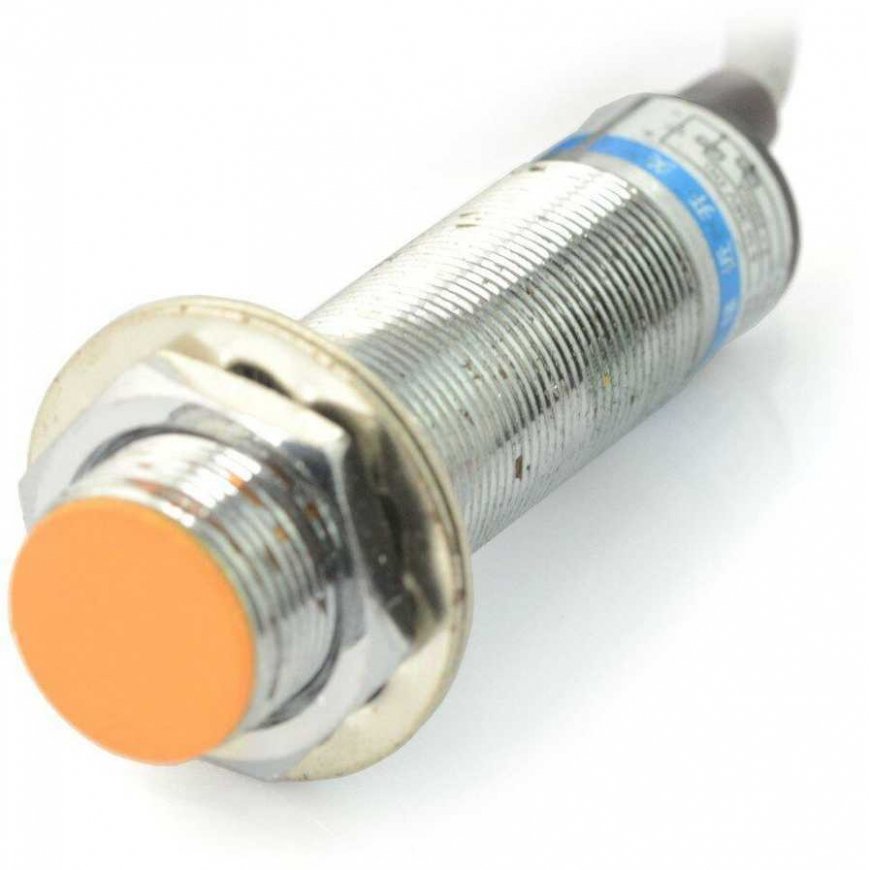

Oem Inductive distance sensor LJ18A3-5-Z/BY 5mm 6-36V
19.00 €
3586783 AN-11869
5903351247504
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

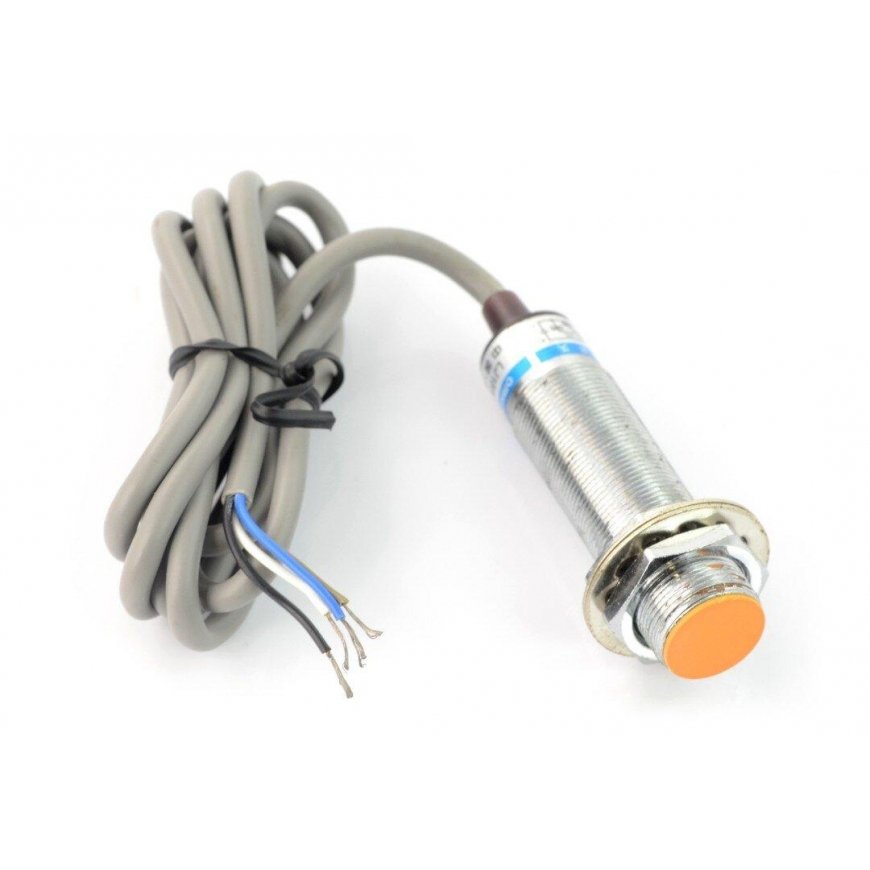

Inductive digital distance sensor with 100 cm cable and nuts for easy installation. It detects metal up to 5 mm away. Object detection is signaled by a high state at the output. Powered by voltage from 6 V to 36 V. Type: PNP.
Specifications:
- Supply voltage: 6 V to 36 V
- Current consumption: 10 mA
- Measuring range: 0-5 mm ± 10%
- Output signal: digital 300 mA
- Output state: by default, low state, when an object is detected, it changes to high state
- Output type: PNP - NO (open by default)
- LED indicating object detection
- Detection object: metal
- Response time: less than 2ms
- Operating temperature: -30 °C to 65 °C
- Diameter: 12 mm
- Sensor length: 56 mm
