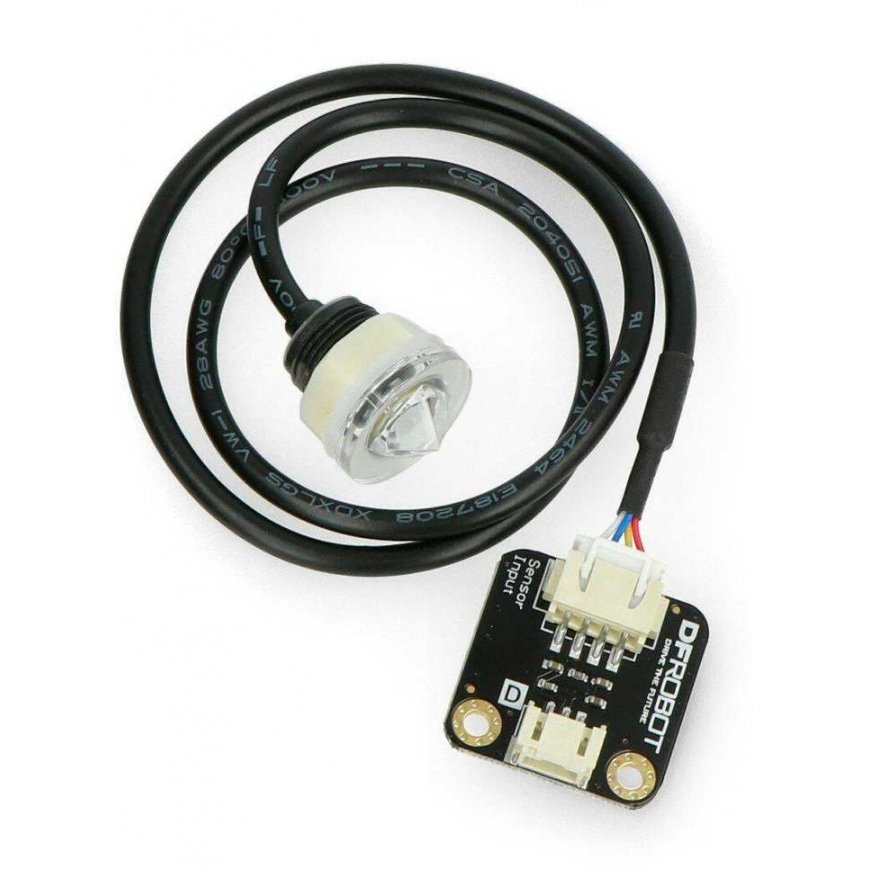

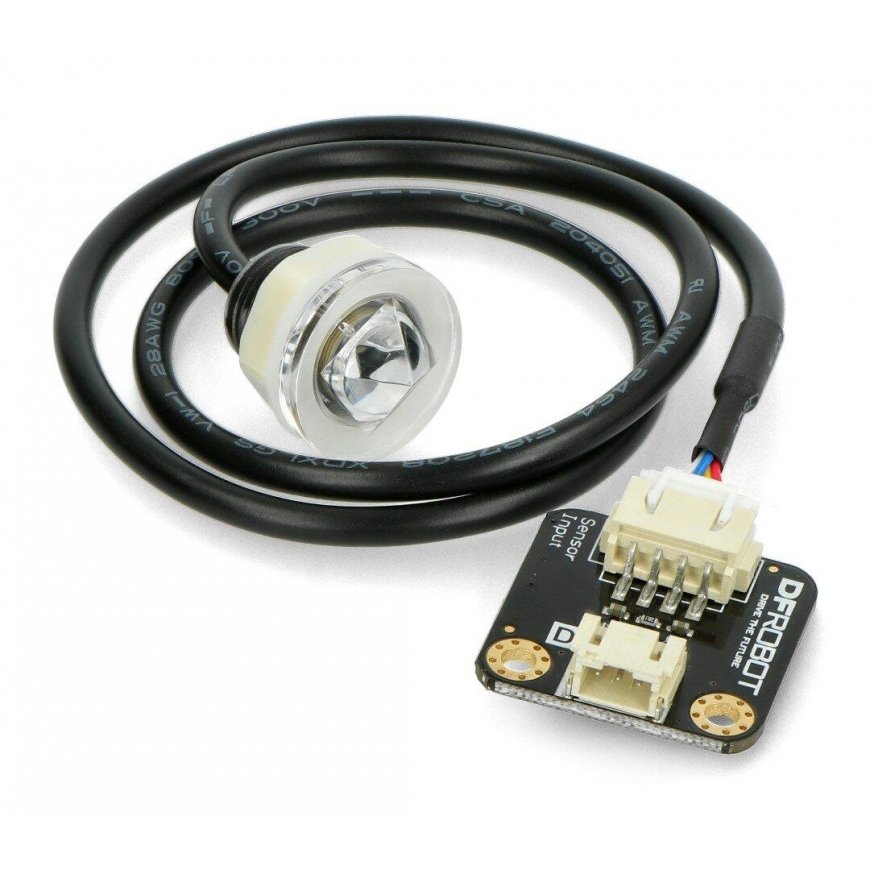

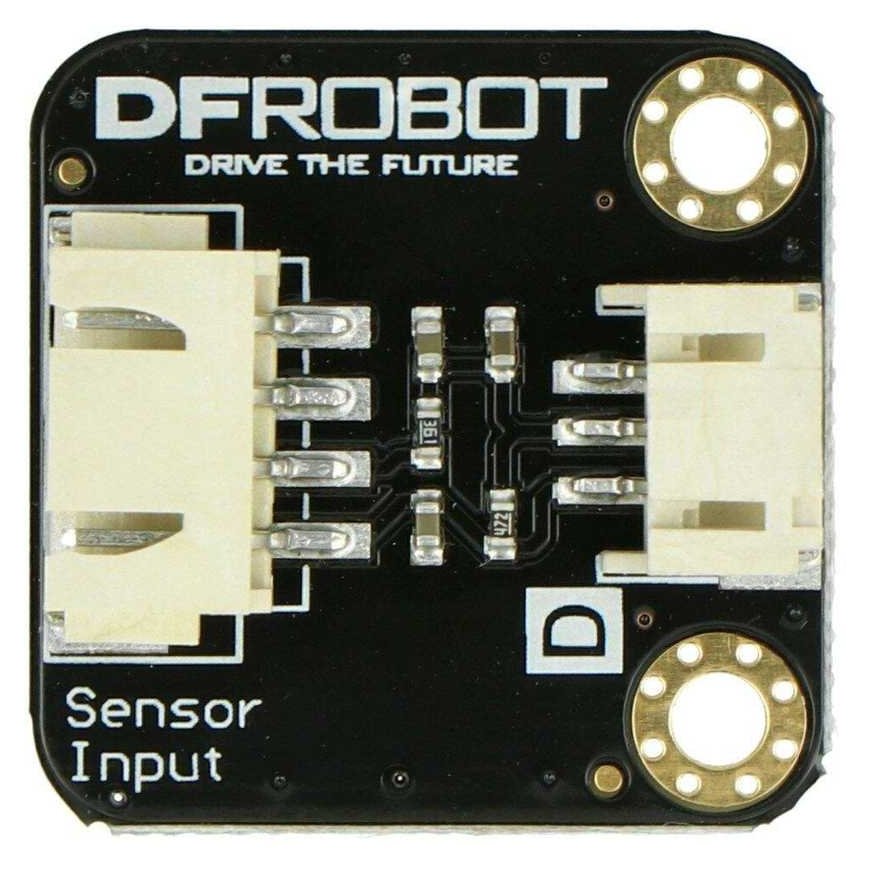

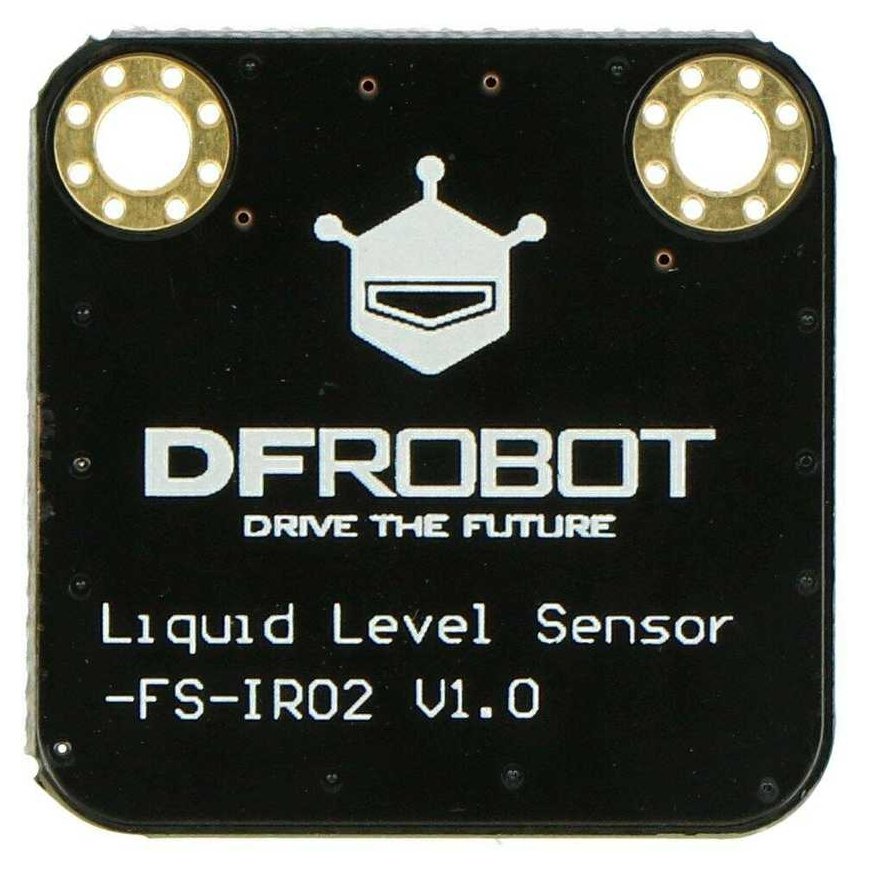

Dfrobot Gravity analog liquid level sensor (FS-IR02)
19.34 €
3586505 AN-06612
5903351243391
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Photoelectric water liquid level sensor, operating on the optical principle. The advantages of the sensor: good sensitivity, and no mechanical parts required, which means less calibration. The corrosion-resistant probe is easy to install and can operate at high temperatures and high pressures. The liquid sensor has an interface adapter compatible with the DFRobot Gravity interface.
Specifications:
- Model: FS-IR02
- Type: photoelectric liquid level sensor
- Supply voltage: 5V
- Output current: 12 mA
- Operating temperature: -25 °C to 105 °C
- Low state output: less than 0.1 V
- High state output: 4.6 V
- Liquid level measurement accuracy: +/- 0.5 mm
- Material: polycarbonate
- Measurement range: no limits
- Cable length: 450 mm
- Communications: digital signal 0/1
- Dimensions: 28 x 28 mm

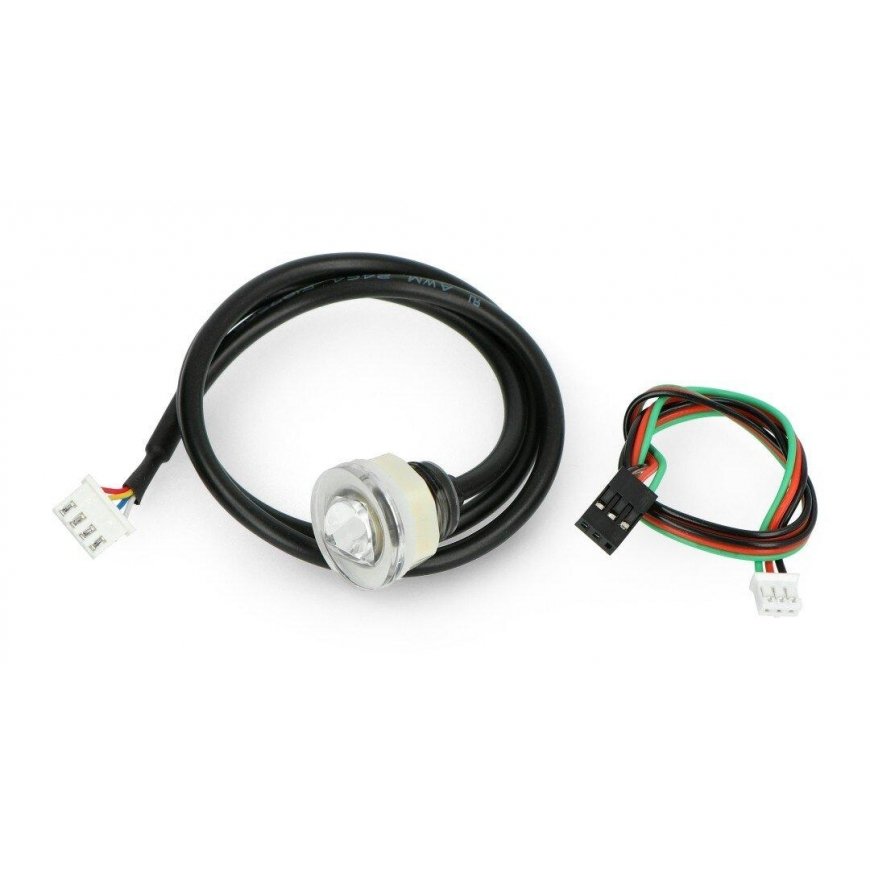

In the package:
- Probe x1
- Connecting cable x1
Links:
Manufacturer's page
Manual
