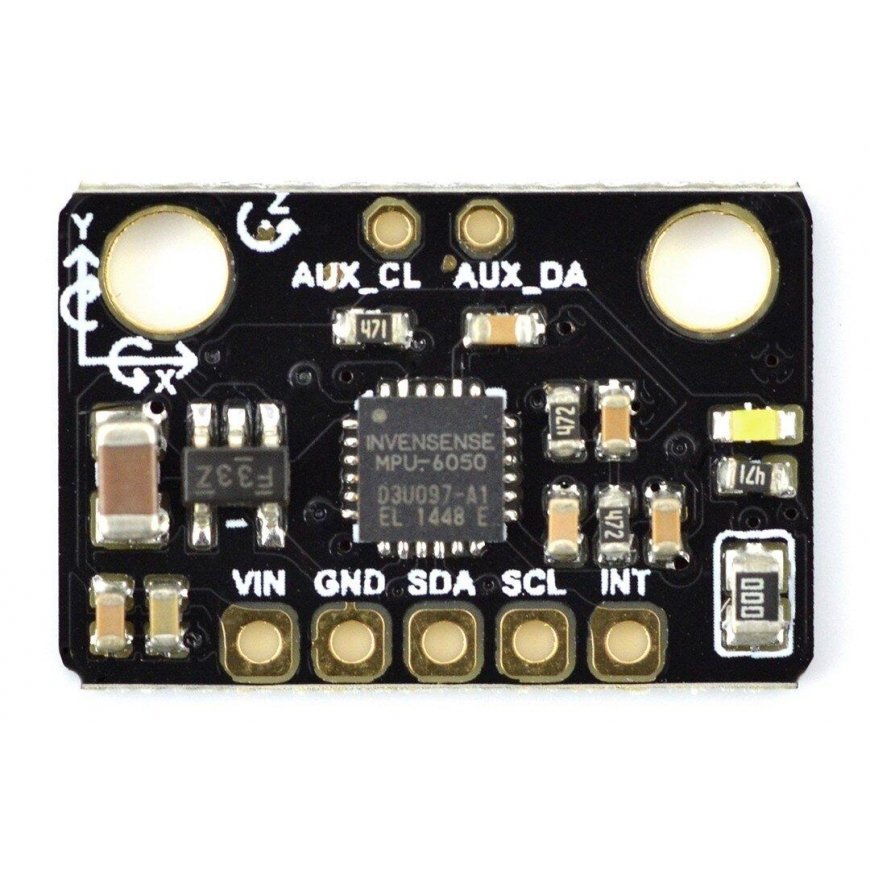

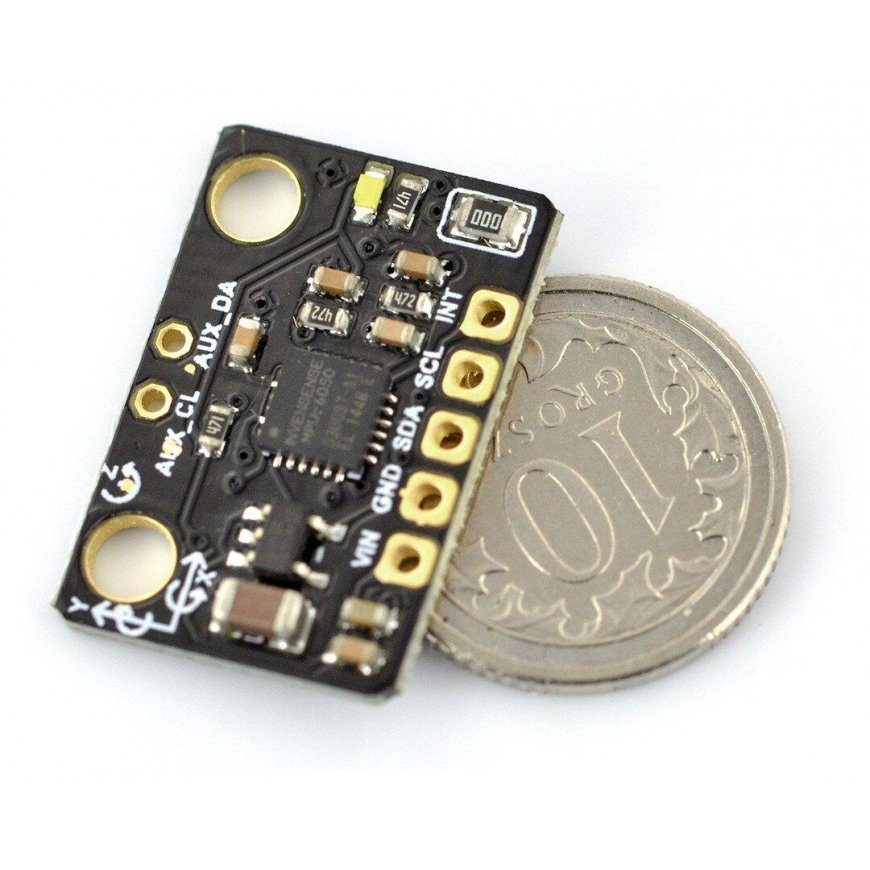

MPU-6050 3-axis accelerometer and I2C gyroscope DFRobot module
30.55 €
3583503 AN-03888
5904422300852
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The MPU-6050 sensor is designed to measure acceleration and direction. The module uses a 3-axis accelerometer and gyroscope, suitable for analyzing three-dimensional space. One of the most important features is the simplicity of operations. It transmits data via the I2C bus, using a voltage of 3 V to 5 V.
Specifications:
- Voltage: 3V to 5V
- Operating voltage: 3 V to 5 V
- Current consumption: approximately 5mA
- Three axes: X, Y, Z
- Communication interface: I2C (TWI) - 400 kHz
- Resolution: 16 bits per axis
- Measurement range (changeable):
- Accelerometer: ±2g, ±4g, ±8g, ±16g
- Gyroscope: ±250 °/s, ±500 °/s, ±1000 °/s, ±2000 °/s

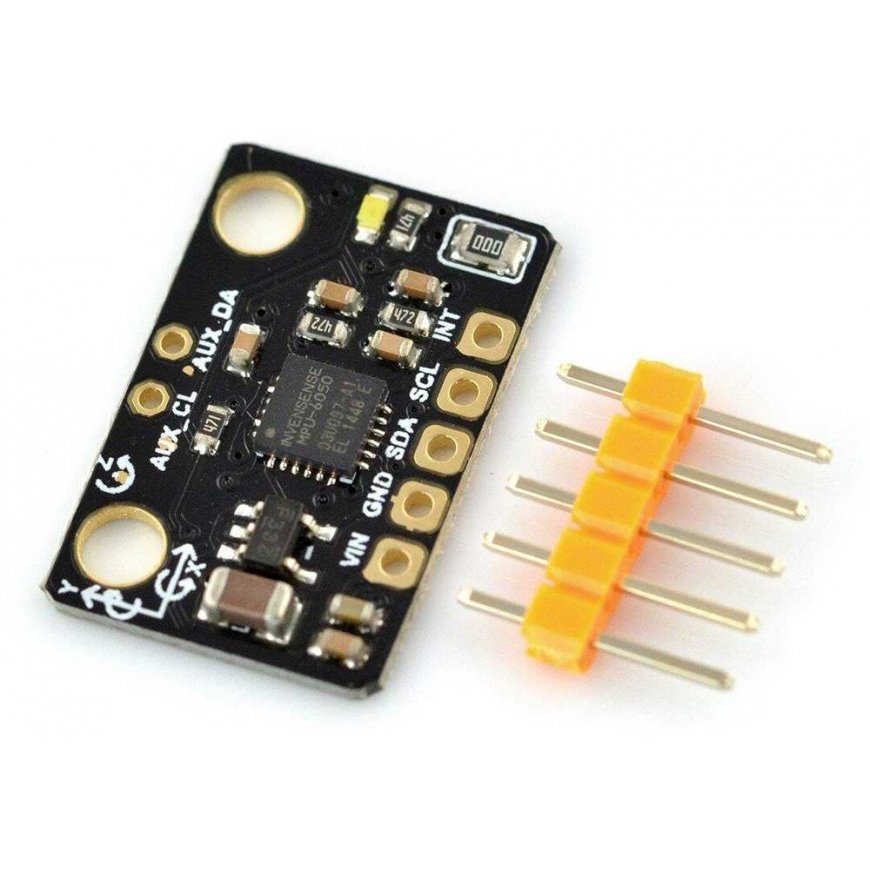

- The kit includes gold-plated pin connectors for soldering
- 2 mounting holes with a diameter of 3 mm
- Dimensions: 21 x 14 mm
- Weight: 0.9 g
