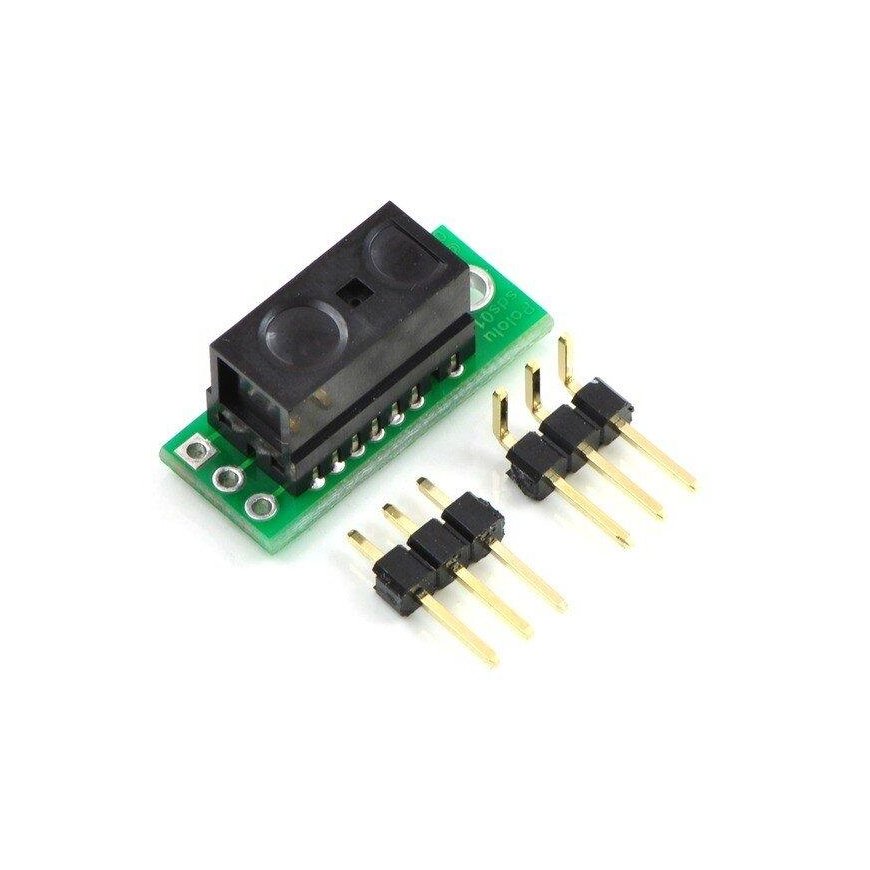

Sharp GP2Y0D810Z0F, digital distance sensor 10cm with PCB base, Pololu 1134
32.38 €
3581700 AN-01623
5904422305932
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The sensor can detect objects up to 10 cm away. The output is a digital signal. A high state (logical one) indicates no object in the sensor's field of view. A low state (logical zero) appears when an object is detected.
Specifications:
- Supply voltage: 2.7 to 6.2 V
- Average current consumption: 5 mA
- Measurement range: 2 to 10 cm
- Output value: digital signal (low state when detecting an object, high state otherwise)
- Response time: 2.55 ms (max. 3.77 ms)
- Solderable stand PCB
- Weight: 0.7 g
