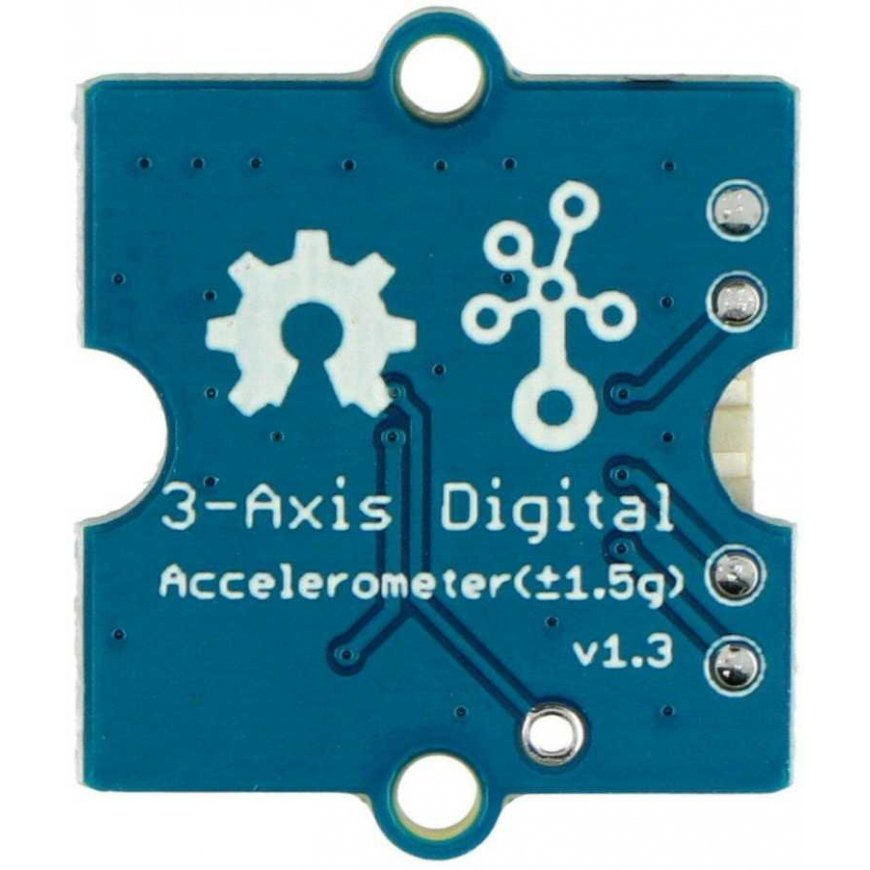

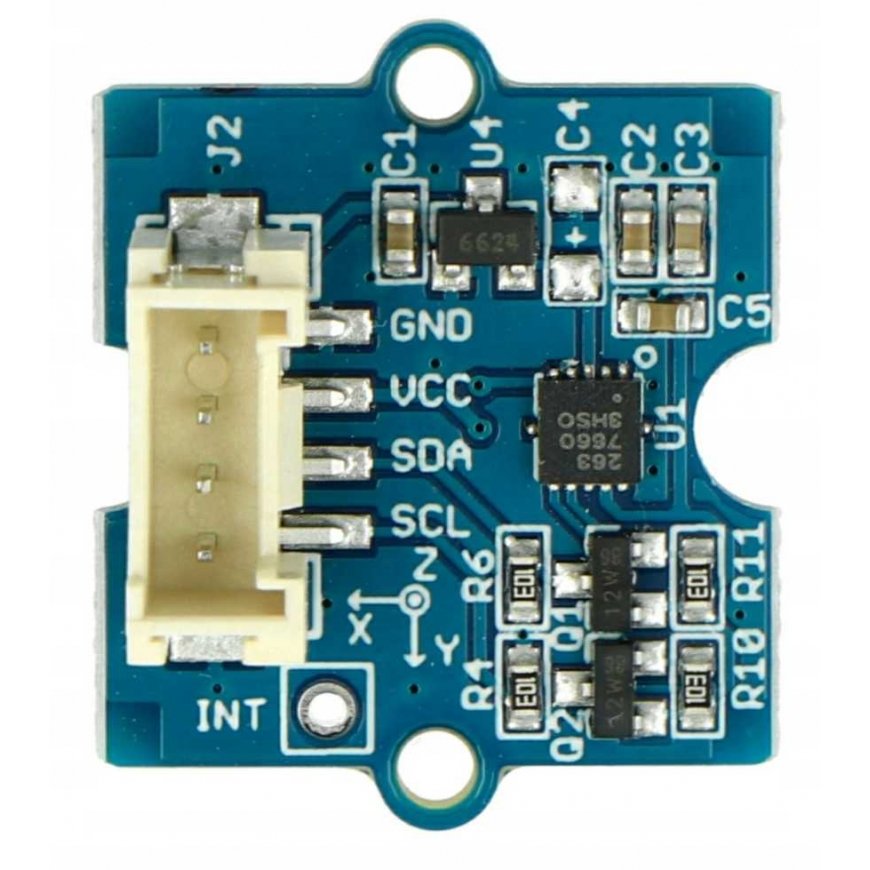

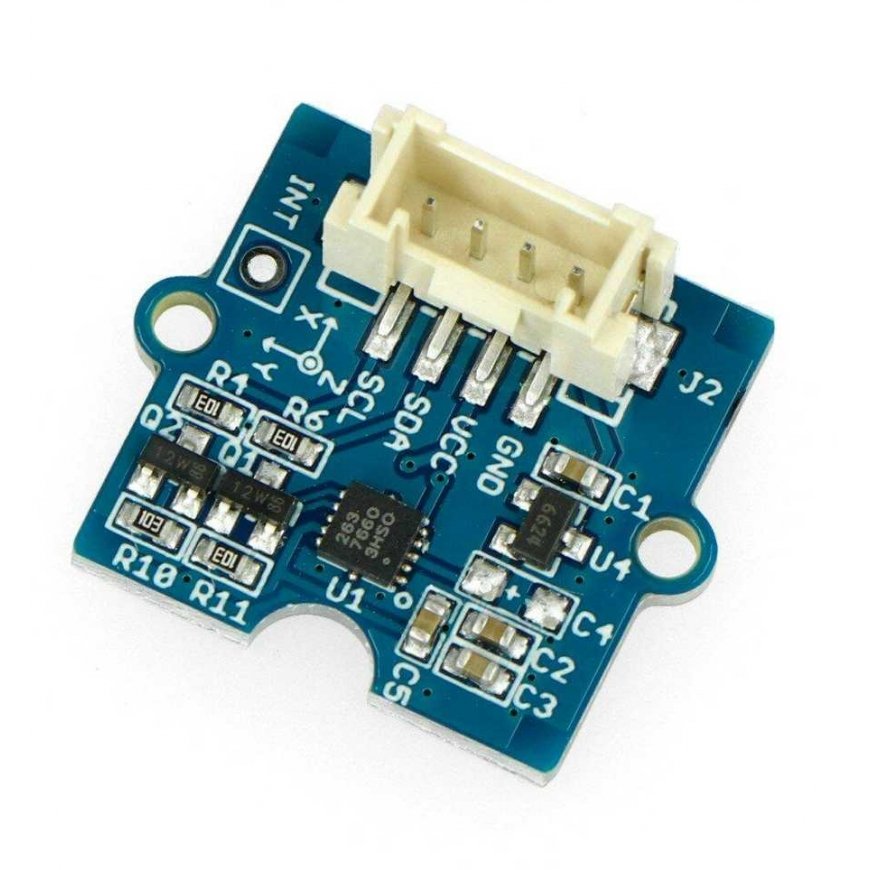

Seeed Studio Grove, 3-axis digital accelerometer I2C MMA7660FC
23.42 €
3579538 AN-15444
5904422377861
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
3-axis accelerometer module based on the MMA7660FC chip with digital I2C output and Grove connector. The MEMS sensor consumes low power and has a low profile. The module can detect changes in position, orientation and gestures in INT. Powered from 3V to 5V.
Main features:
- Grove interface
- 3-axis motion/positioning
- Digital I2C output
- Input voltage from 3 V to 5 V
Specifications:
- Supply voltage: 3 V to 5 V
- Current consumption in OFF mode: 0.4 μA
- Current consumption at standstill: 2 μA
- Current consumption during operation: 47 μA
- Acceleration range: ± 1.5 g
- Sensitivity: 21 counts/g
- Dimensions: 20 x 20 x 15 mm
- Weight: 8 g
