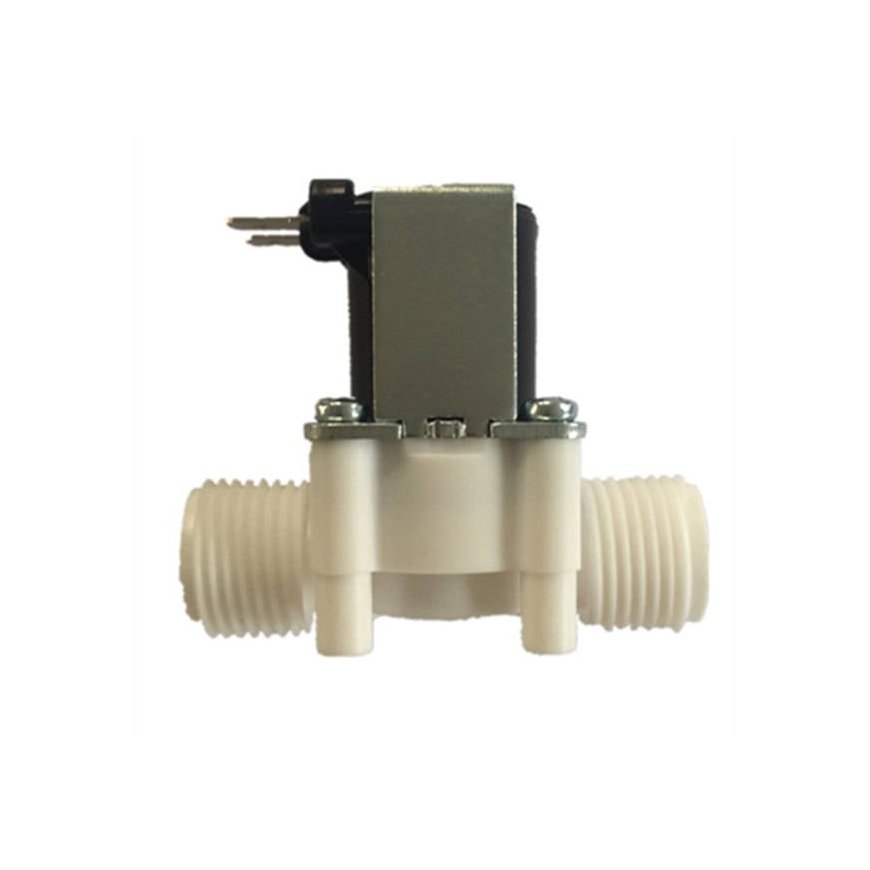

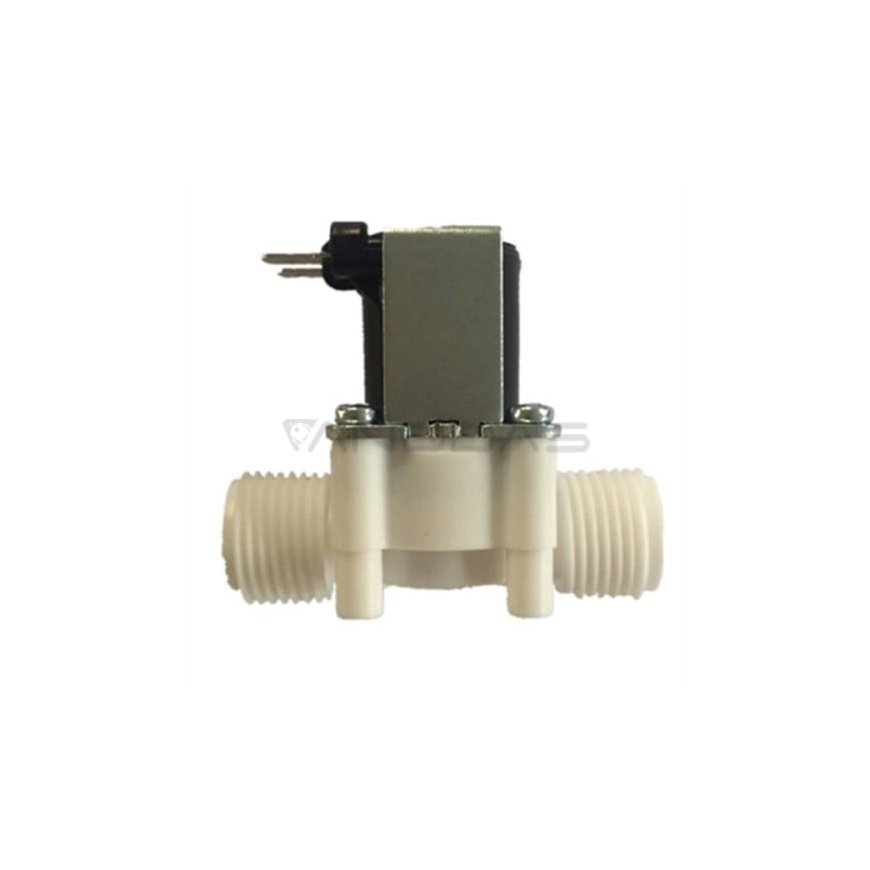

Drilled Oem Solenoid Valve 220V - 0.02~0.8MPA - 3/4 Inch Solenoid Valve

Viss par produktu

The 220V solenoid valve, with a pressure range of 0.02-0.8 MPA and a 3/4 inch connection size, provides effective flow control in automation systems, water and pneumatic devices. Due to its high adaptability and durability, it is a key element in the installation

Features:

• Power supply: operates on 220V AC voltage, which is standard in many industrial and home devices.
• Pressure range: can operate in a pressure range from 0.02 MPa (about 0.2 bar) to 0.8 MPa (about 8 bar), so it can be used for a variety of purposes from low to medium pressure.
• Thread size: 3/4 inch thread, which is a common size suitable for standard installations.
• Valve type: Solenoid, which means that its operation is electrically controlled and can be remotely controlled by various types of electronic systems.
• Material: High-quality materials resistant to corrosion and chemicals, which increase the durability and safety of the valve.
• Speed of operation: Fast opening and closing of the flow, which is very important in systems that require immediate response.
• Application: Can be used in irrigation systems, cooling systems, industrial installations, as well as home heating systems or as a process automation element.
• Installation: Generally easy to install and replace, suitable for standard pipes and fittings.

This solenoid valve is a reliable solution for precisely controlling the flow of water or other media at various pressures, making it easy to operate and adapt to various technical needs.

Specifications:

• Capacity:
• - 0.02 Mpa > 1.5 l/min
• - 0.10Mpa > 7L/min
• - 0.30Mpa > 12L/min
• - 0.80Mpa ~ 20L/min
• Power supply voltage: 220V AC
• Closed in rest position
• 3/4 inch thread
• Time: opening ≤ 0.15s, closing ≤ 0.3s
• Pressure range: 0.02-0.8Mpa
• Max. liquid temperature: 0-100°C
• Connector: 6.3mm connectors
• Max. dimensions: 65x58x33mm
