Nano Screw Terminal Adapter - Screw Terminals - Arduino Nano Attachment - Arduino ASX00037
29.00 €
3574905 AN-22374
7630049203297
Piegāde 8-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

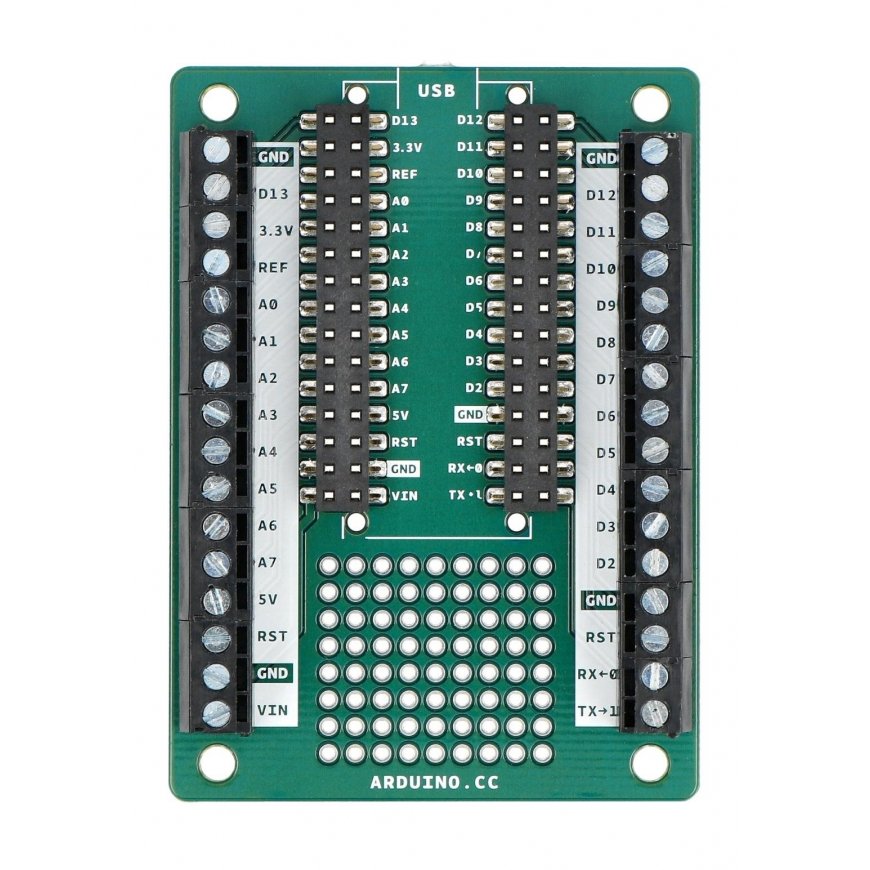

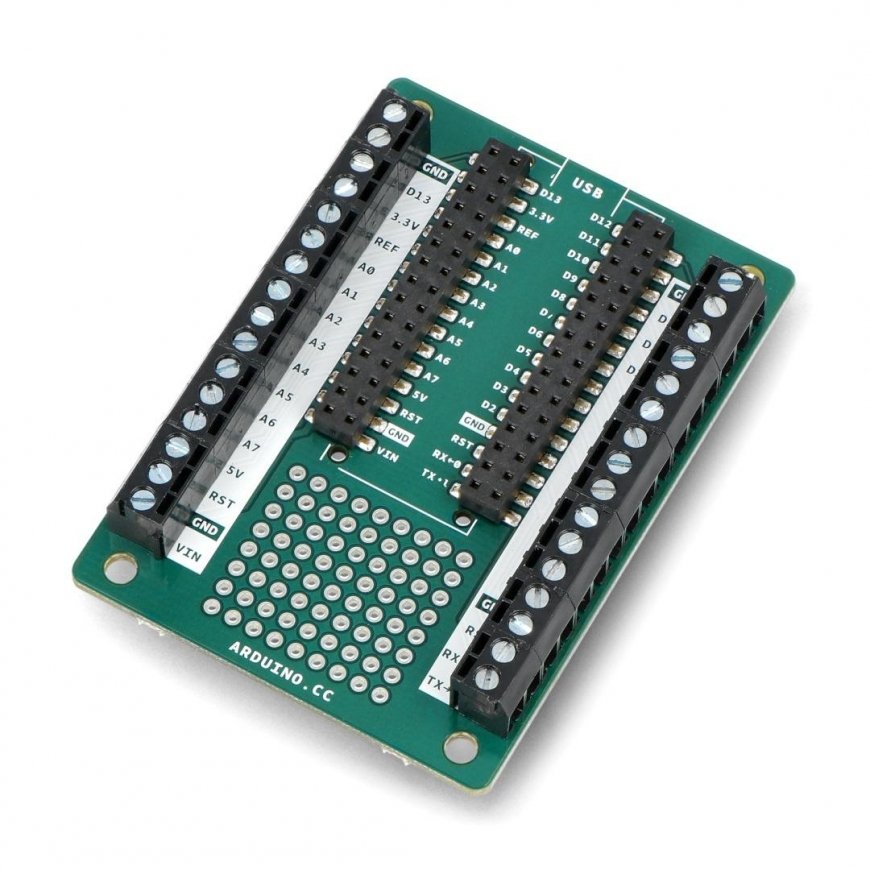

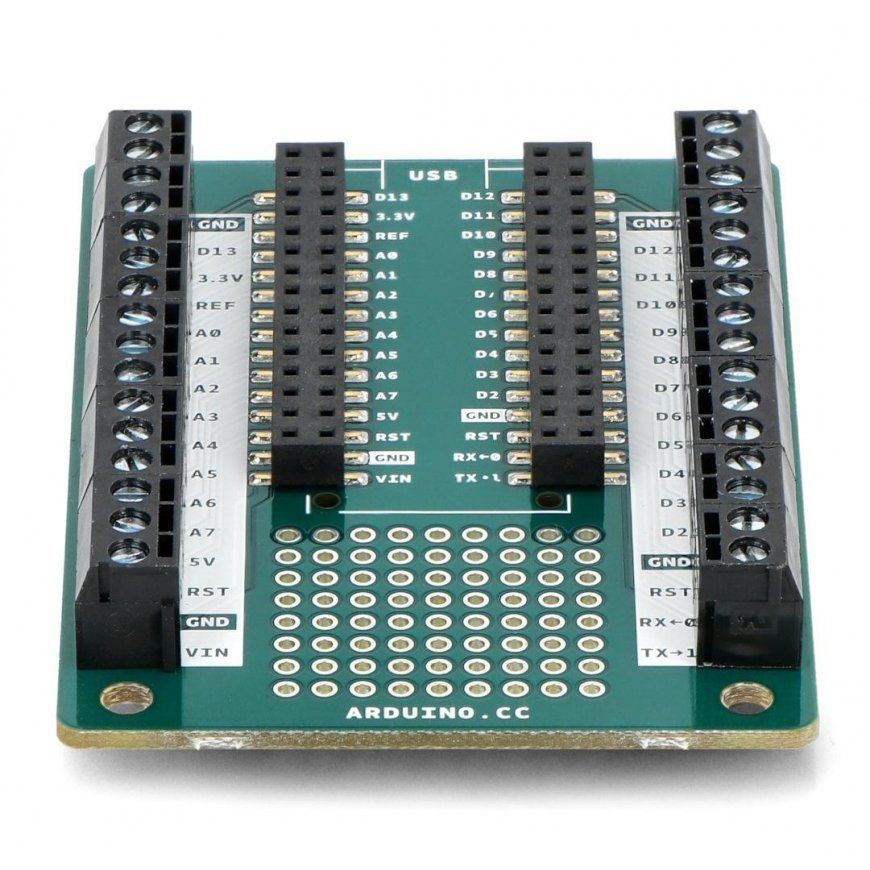

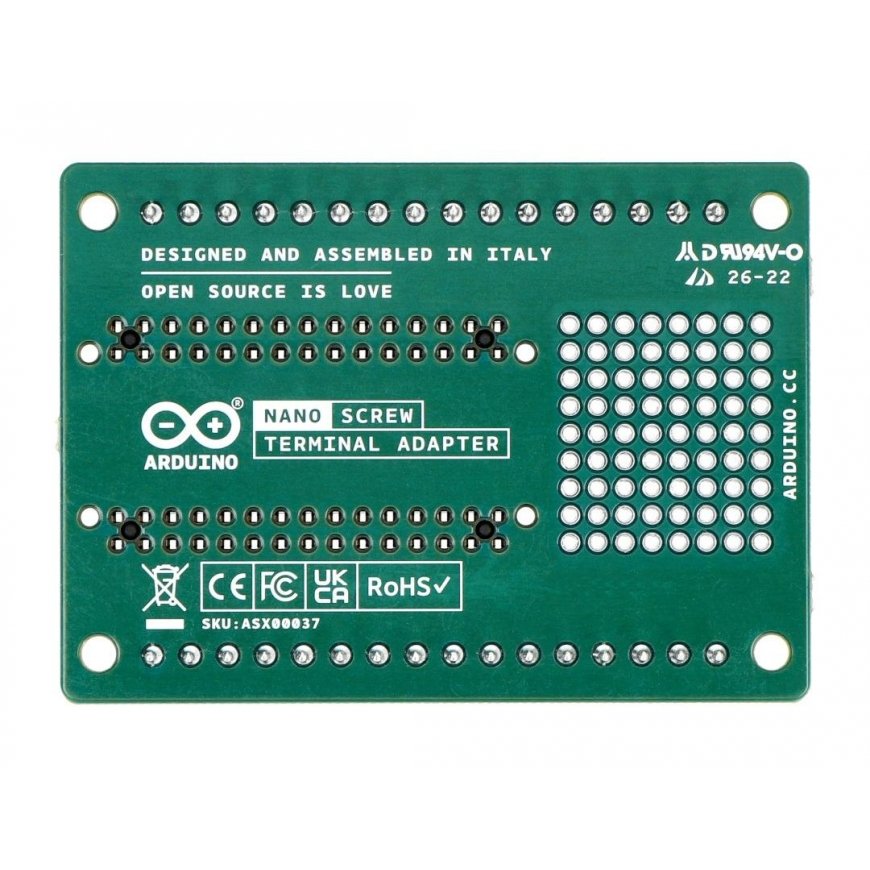

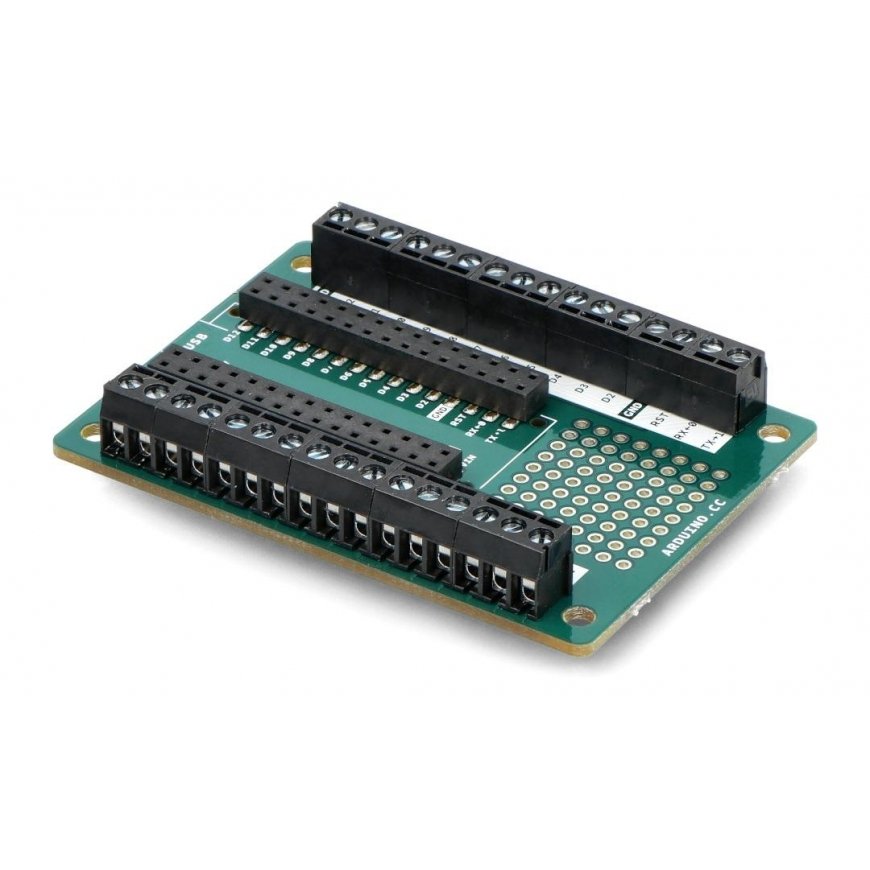

The Nano Screw Terminal Adapter is an add-on for the Arduino Nano series board that allows you to create detailed prototypes without soldering. The board has as many as 32 screw connections, a 2x15 socket for connecting the Arduino Nano board, and a 9x8 area with a 2.54 mm pitch, which is convenient for additional prototyping. The Nano Screw Terminal Adapter measures 50.5 x 70 mm and weighs 29 g. Specifications:
- Purpose: For Arduino Nano series boards
- Pins:
- screw terminals: 32, pitch 3.5 mm, 16 to 30 AWG
- gold sockets (Arduino): 2 rows of 2x15 sockets, 2.54 mm pitch
- prototype area: 9x8 solder pads, 2.54 mm pitch
- Board dimensions: 50.5 x 70 mm
- Weight: 29 g
