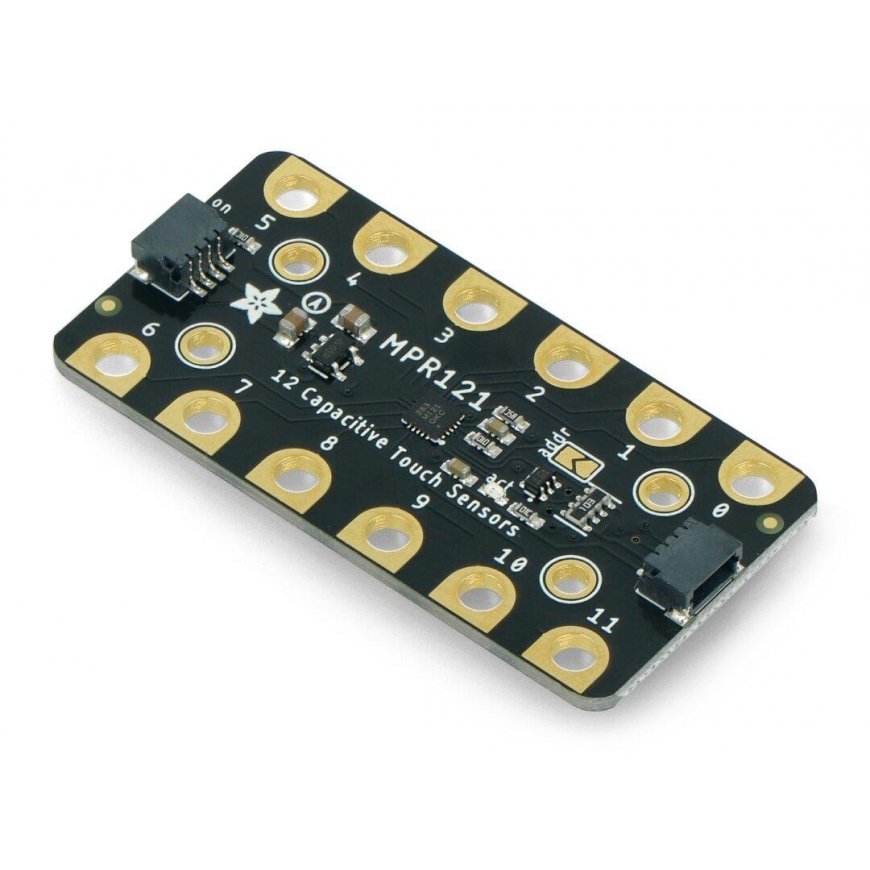

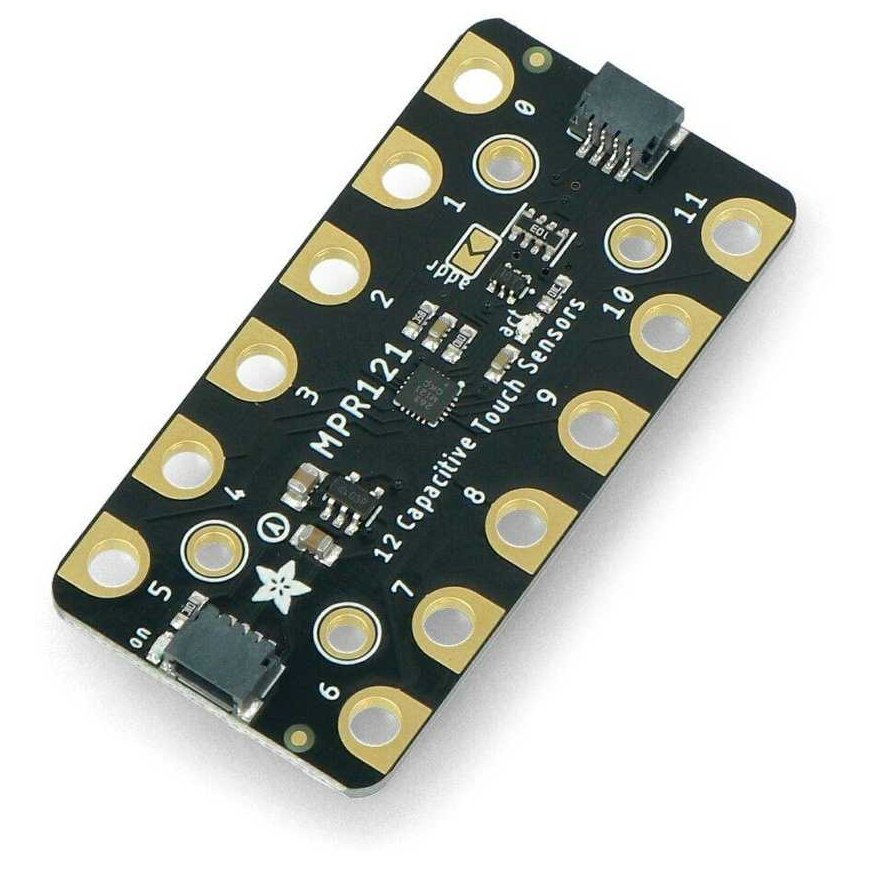

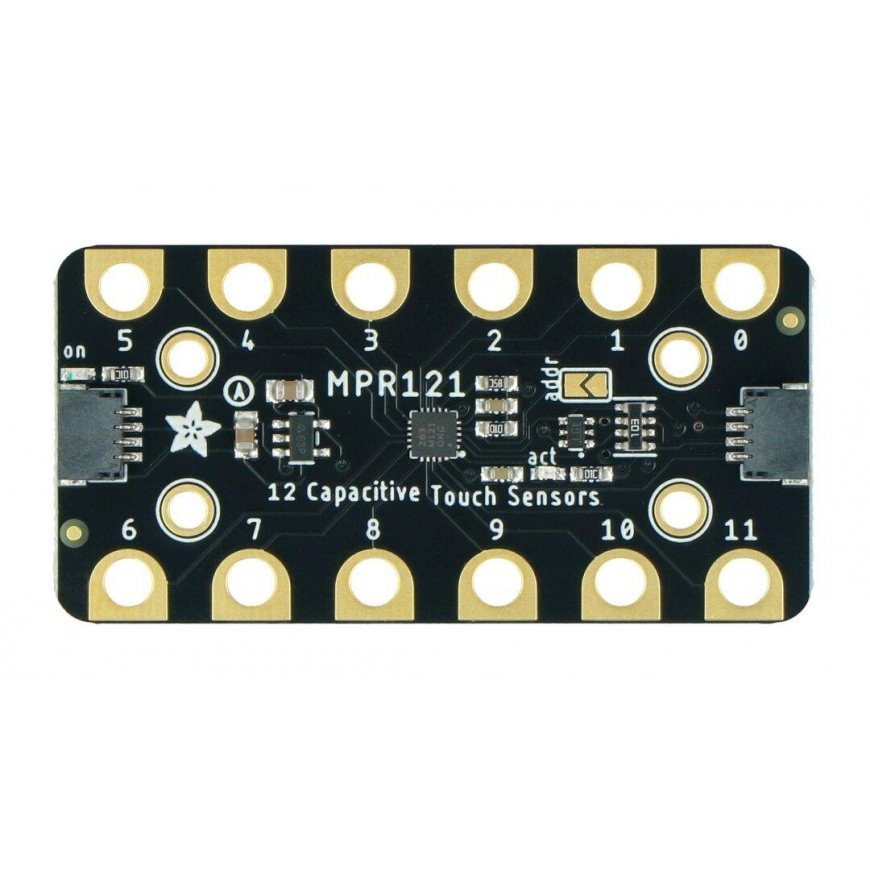

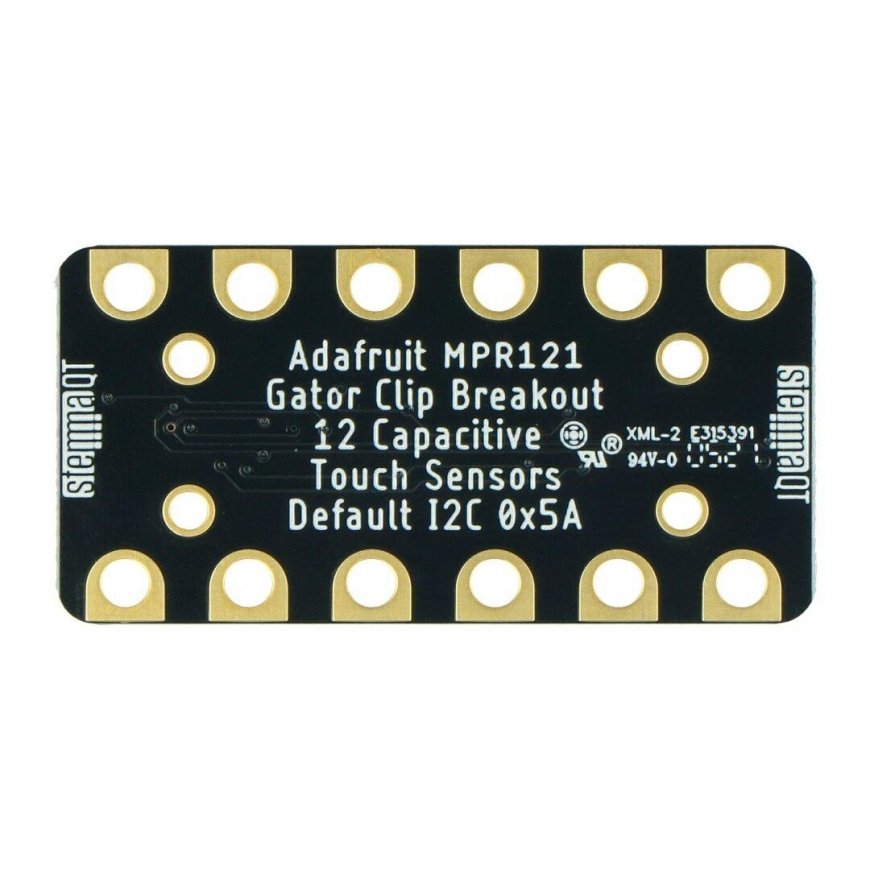

MPR121, Gator Breakout Touch Sensor, 12 Channel, Capacitive, STEMMA QT / Qwiic, Adafruit 4830
22.61 €
3573956 AN-19005
5904422300838
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The Gator Breakout sensor allows you to detect touches. It is equipped with a chip MPR121. It has capacitive technology, provides the user with 12 channels, which allows you to get 12 independent measurements. Each channel can be connected to separate touch panels using crocodile cables. The module is compatible with the popular Arduino microcontroller and derivative boards such as Metro. It also works with Raspberry Pi. It uses the I2C bus at address 0x5A for communication.Specifications:
- Compatible with Arduino and Raspberry Pi
- Chip: MPR121
- Technology: capacitive
- Number of channels: 12
- Communication interface: I2C
- Interface address: 0x5A
- Connectors: STEMMA QT / Qwiic
- Dimensions: 51 x 25.2 x 4.5 mm
