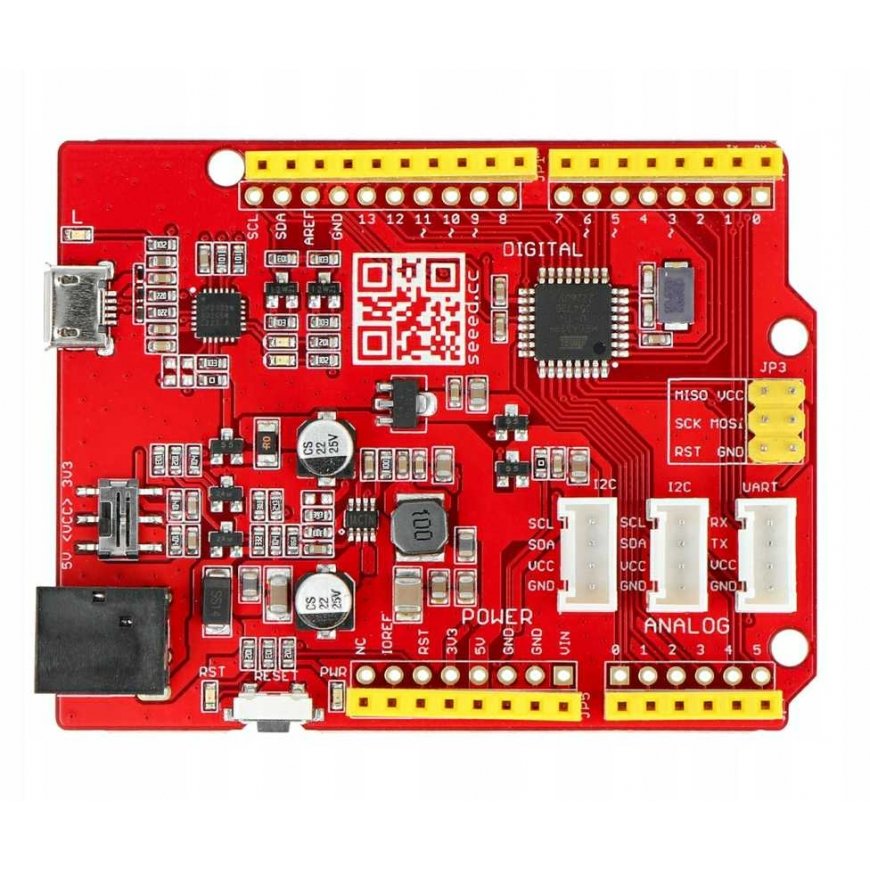

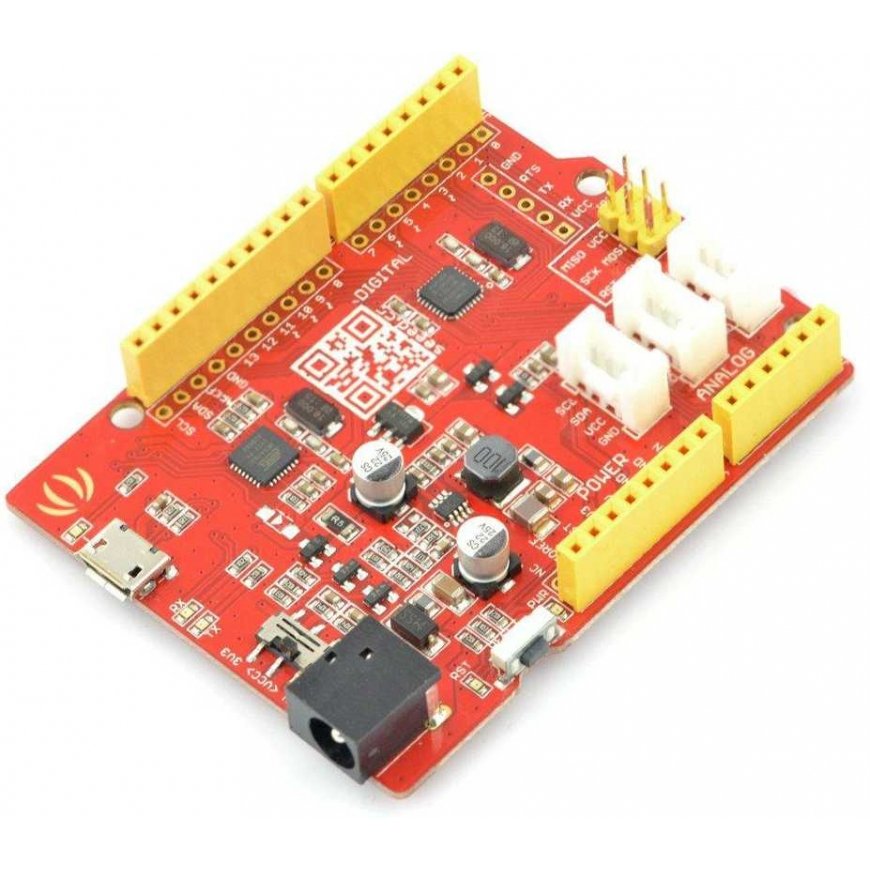

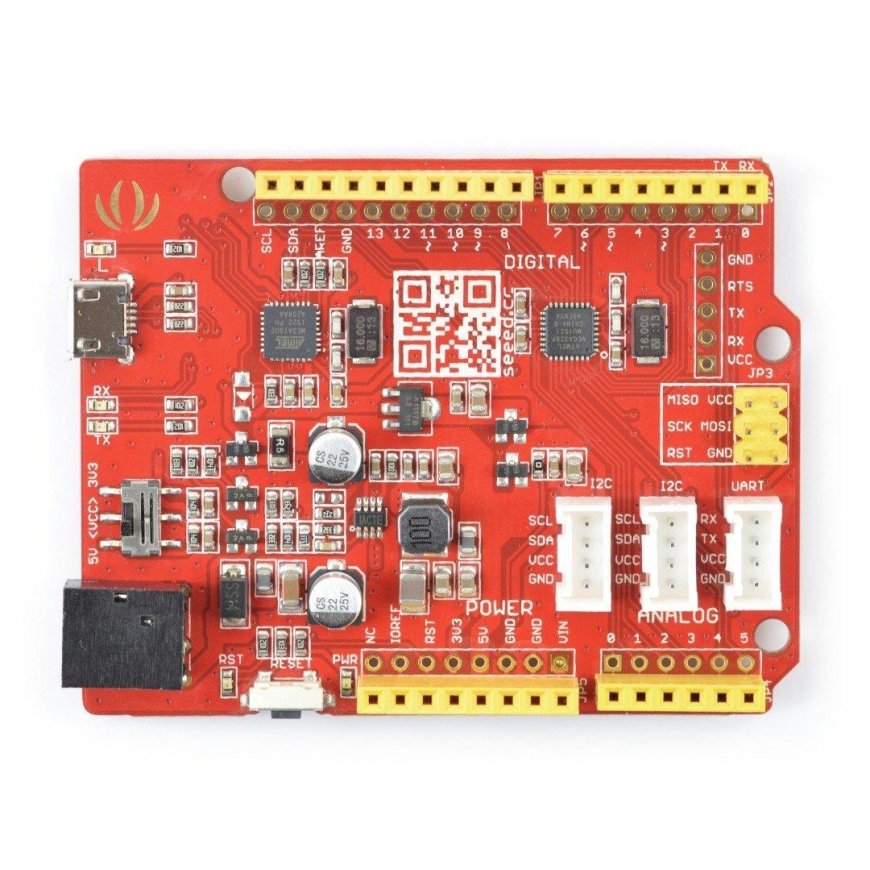

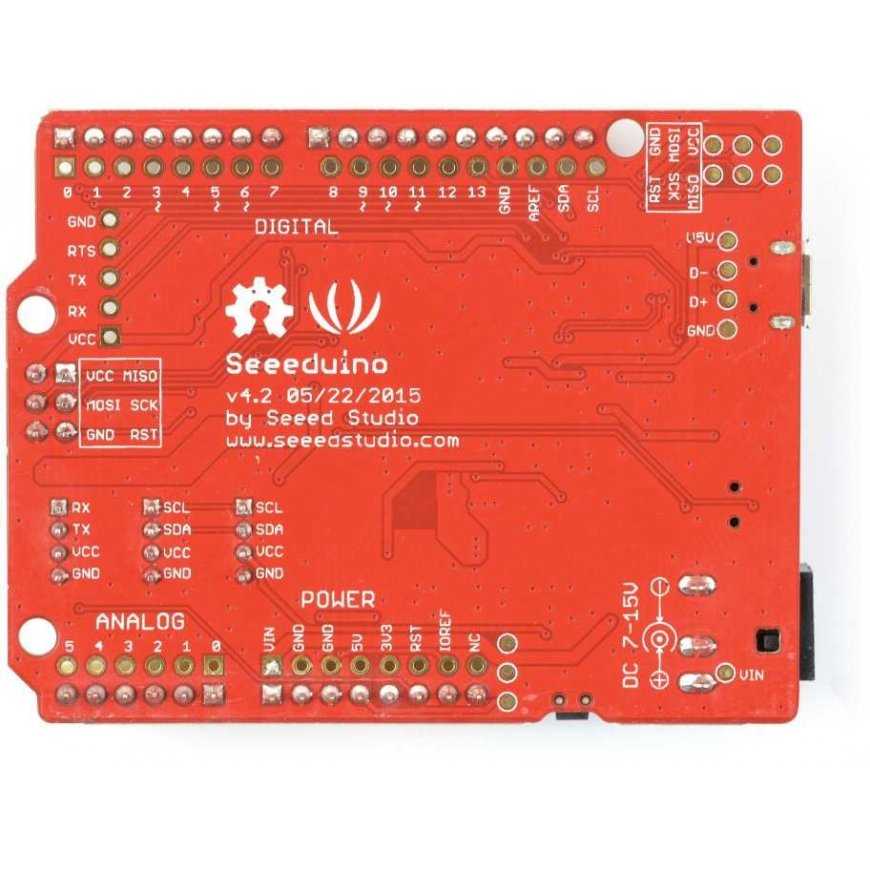

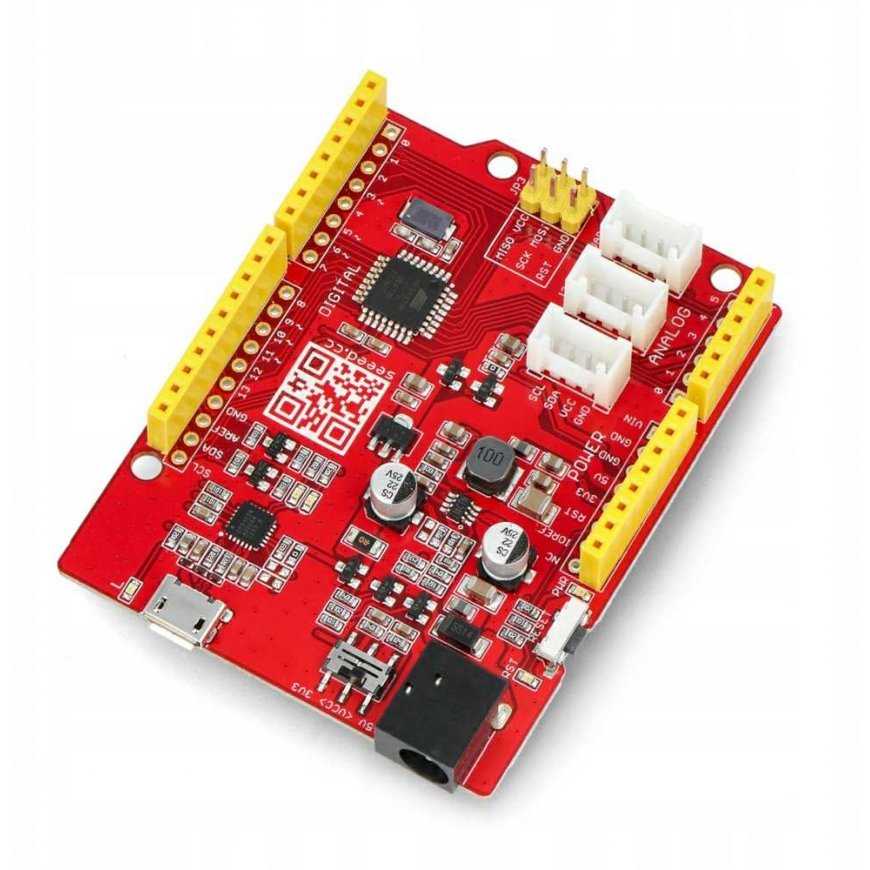

Seeed Studio Seeeduino v4.2 3.3V/5V Compatible with Arduino
29.00 €
3573592 AN-05237
5904422369194
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The module, developed by Seeedstudio, contains an ATmega328 microcontroller. The pinout is compatible with the Arduino Uno. It has 14 digital inputs/outputs, 6 PWM channels, 6 analog inputs, as well as popular communication interfaces. The board is equipped with an FTDI chip and a microUSB connector. The module allows you to work with a voltage of 3.3 V or 5 V, selected by a switch. In addition, the board has three connectors for connecting Grove series sensors.
Main features:
- ATMega328 microcontroller with Arduino Uno charger at 16 MHz
- 3 connectors for connecting Grove series sensors
- Ability to operate at 3.3 V or 5 V voltage (selected by switch)
- The pinout is compatible with Arduino, so add-ons will work properly
Specifications:
- The module is compatible with Arduino Uno
- Embedded microcontroller: ATmega328P 16 MHz
- It operates at 3.3V or 5V
- 3 connectors 4-pin Grove
- MicroUSB connector for board programming
- DC power supply: 7 to 12 V
- 14 input/output connectors
- 6 PWM outputs
- 6 analog inputs
- ISP connection
- Flash memory: 32 KB
- RAM: 2 KB
- EEPROM: 1 KB
- Dimensions: 69 x 53 mm
