Oem BBC micro:bit 2 Club - 10x educational kit
3572073 V2.2
5051259252615
Piegāde 11-18 d.d.
Viss par produktu

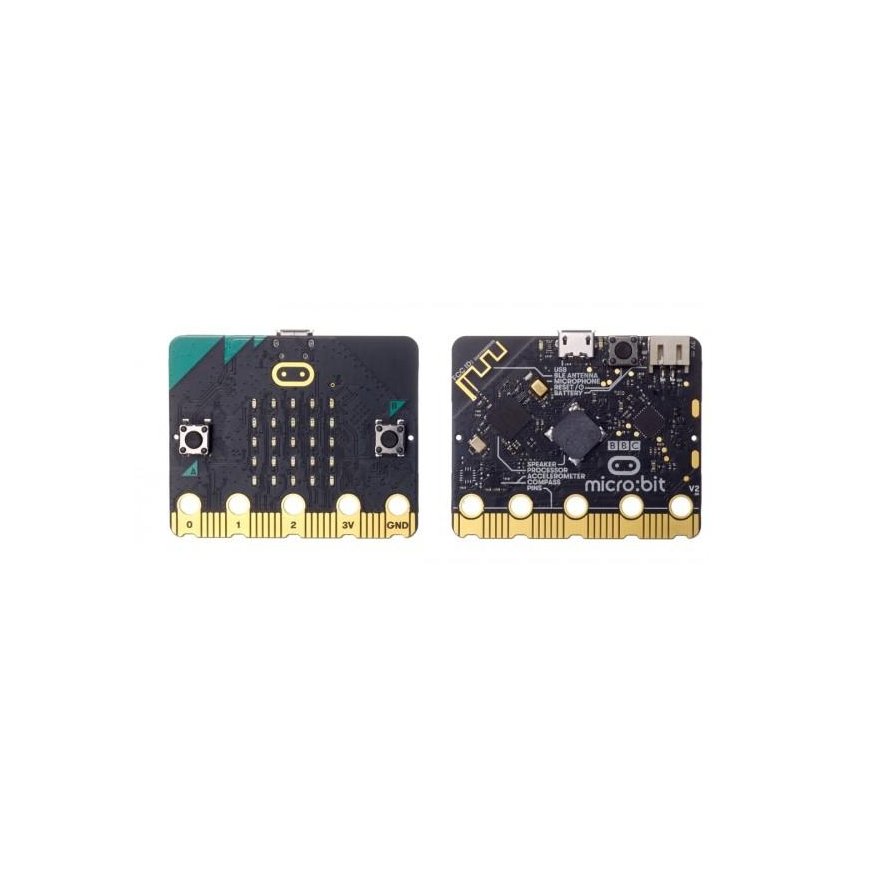

Educational micro:bit 2 module based on nRF52833 chip with ARM Cortex-M4 core with built-in microphone, speaker, touch button, accelerometer, magnetometer, Bluetooth, 5x5 LED display, Tact Switch buttons. The kit includes 10 units: micro:bit 2 boards, battery baskets, wires and 20 units of AAA batteries.
The BBC micro:bit 2 can be powered via a microUSB connector, a battery, or a dedicated connector. It has 25 GPIO pins, including 5 holes for connecting banana cables. The kit includes 10 parts needed to get started with the module. In addition to the micro:bit 2 boards, there are: battery baskets, microUSB cables, and 20 AAA batteries, as well as user guides.
Changes compared to the previous version
- Tap the logo button
- Integrated MEMS microphone
- LED power and microphone activity indicator
- Built-in speaker
- There is a recess in the 20-pin connector located on the edge of the PCB
BBC micro:bit 2 module programming
The micro:bit 2 educational board was designed to teach children programming in an accessible way. The module can be programmed in a web environment, in the micro:bit editor or in the Mu editor. To upload a prepared script to the board, connect the micro:bit 2 to your computer via USB and transfer it to the micro:bit folder. The board appears on your computer as a flash drive.
https://www.youtube.com/watch?v=1NYyblein6w
The module can also be programmed wirelessly using Bluetooth and a mobile application for Android and iOS devices, providing greater integration options with the BBC micro:bit 2 platform.
Specifications:
- Chip: nRF52833, 32-bit, 3.42 CoreMark/MHz; 1.25/1.52/1.91 DMIPS/MHz microprocessor.
- Flash memory: 512kB
- RAM memory: 128 kB
- Microphone: MEMS with activity LED
- Built-in speaker
- Touch the logo: touch the button
- Edge connector: 20 pins, 4 GPIO, PWM, I2C, SPI, external power supply
- 5 ring terminals
- Connection: 2.4GHz / Bluetooth 5.0
- Power supply: 5 V - microUSB / 3V - edge connector or batteries. Power LED indicator, power off button (press and hold)
- Pin current efficiency: 200 mA
- Motion sensor: ST LSM303, 3 three-axis digital accelerometer
- There is a compass and a 3D magnetometer
- Dimensions: 50x40mm

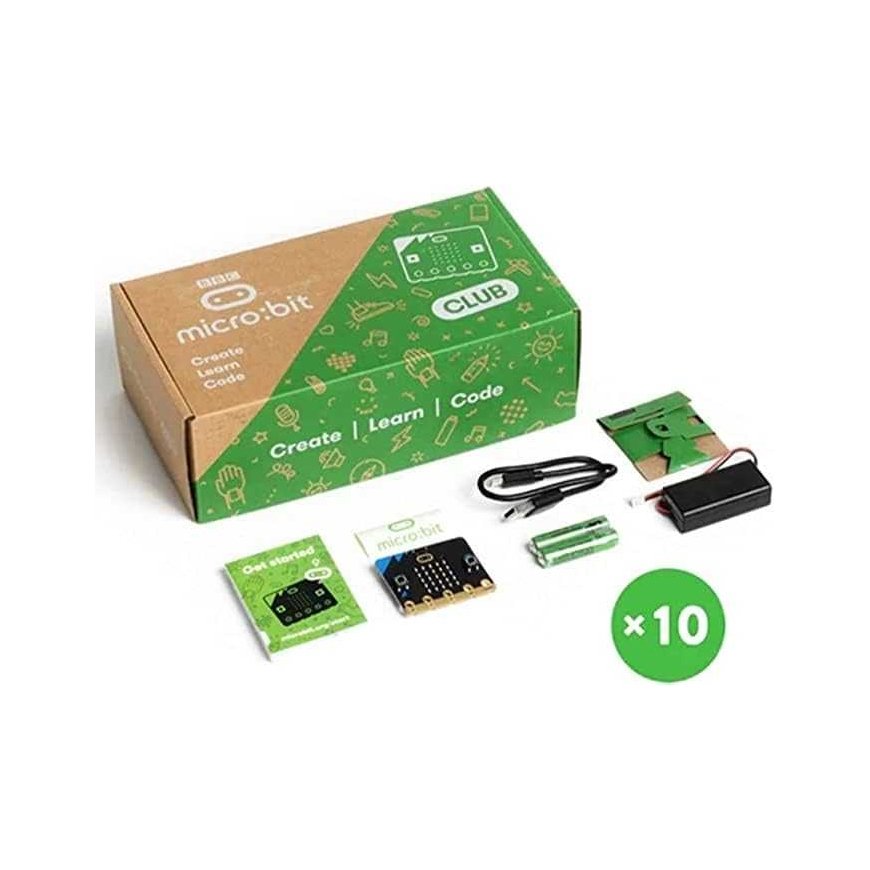

In the kit:
- BBC micro:bit 2 minicomputer
- MicroUSB cable 10cm long
- Battery compartment for 2 AAA batteries
- AAA battery x 20
