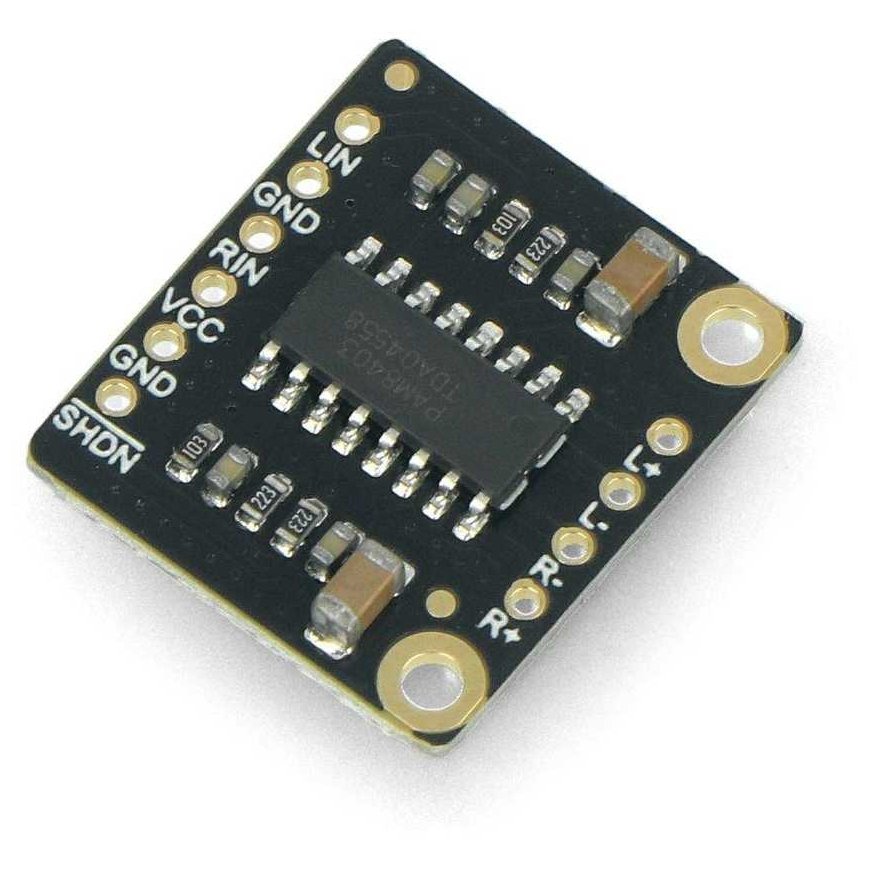

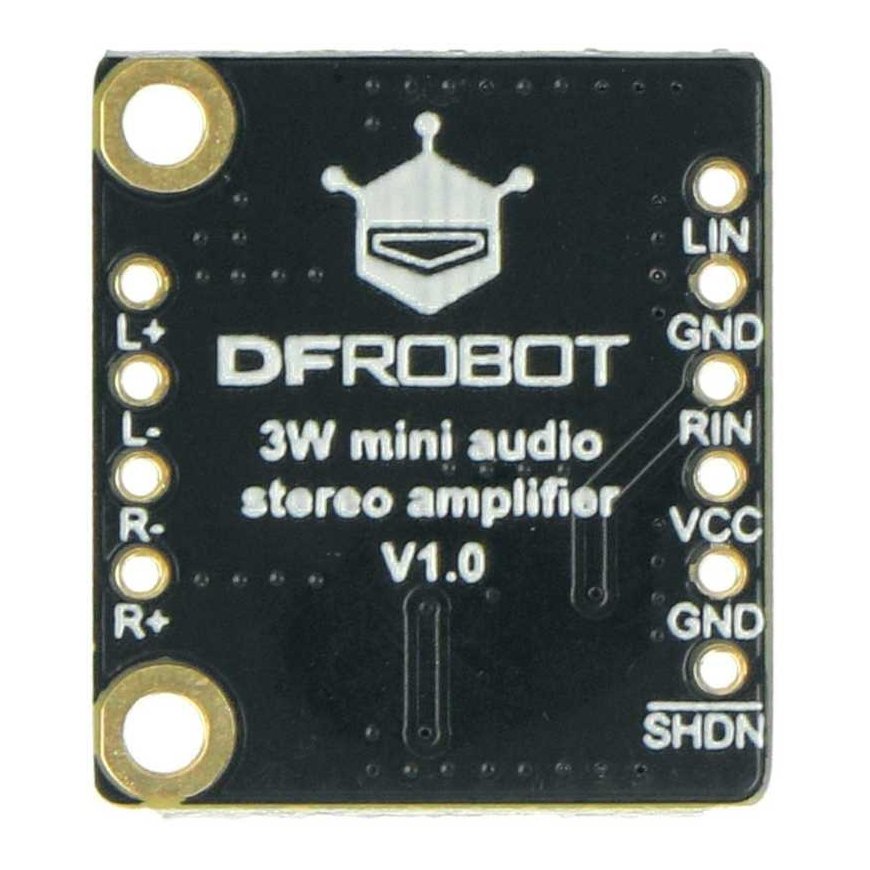

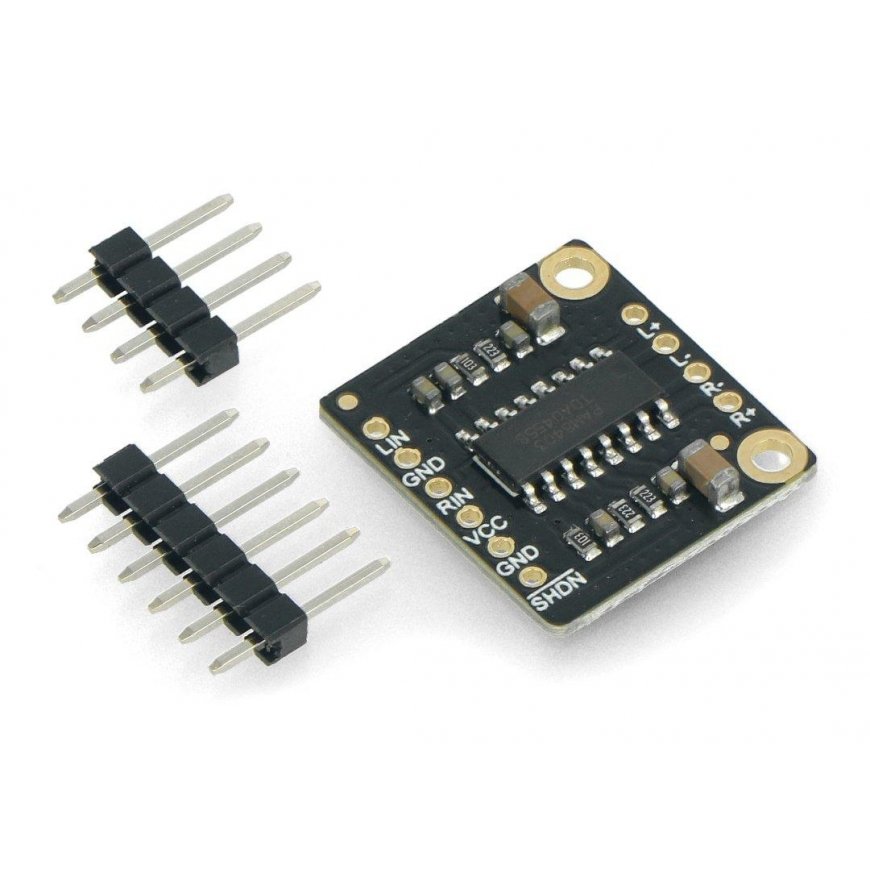

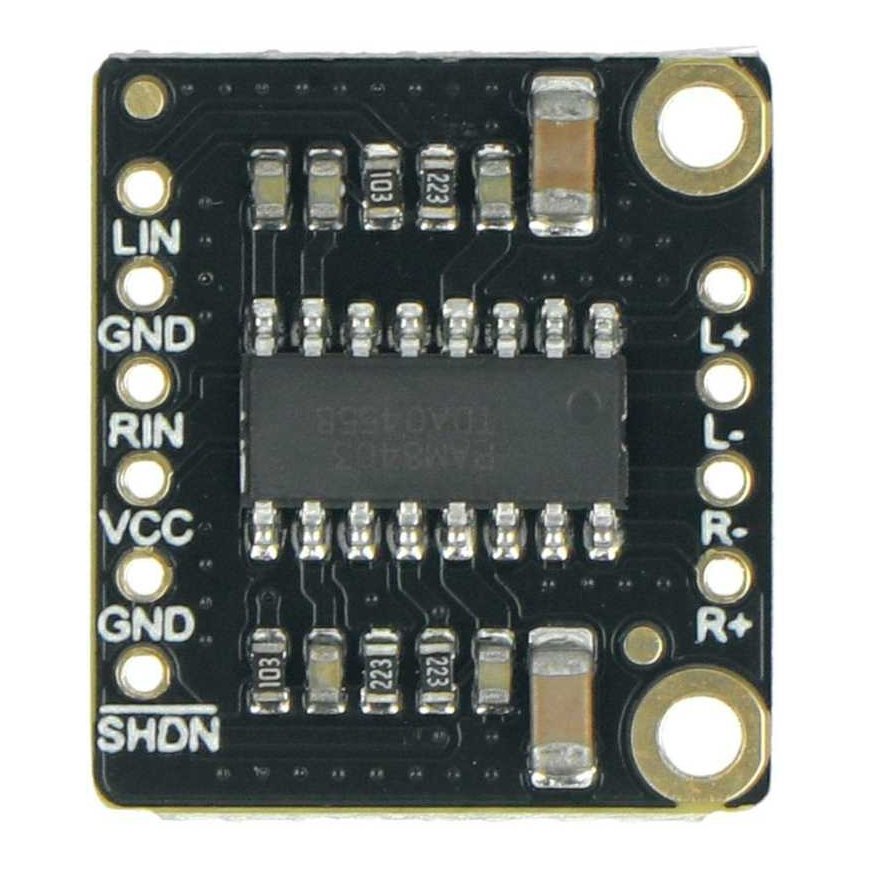

Fermion, Mini Audio Stereo Amplifier, 3W, DFRobot DFR0119-O
19.00 €
3570875 AN-19379
5904422346478
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Mini stereo audio amplifier that allows you to connect 3 W power and 4 ohm speakers. The module is manufactured by DFRobot. It is equipped with two channels: right and left, which can produce stereo surround sound. Small dimensions and convenient distance of mounting holes and wires allow you to mount the element on any device. It is used in voice systems in robot projects, DIY music boxes or scenarios related to sound modification.Specifications:
- Type: mini audio amplifier
- Power supply: 3.6 V to 5.5 V DC
- Output power: 3 W (4 ohms) 5 V
- Amplifier class: D
- Supports two channels: left and right
- Two working modes: sleep mode / work mode
- Efficiency: >90%
- Module dimensions: 15.5 x 24 mm
- Mounting hole diameter: 2 mm
- Solder pad distance: 2.54 mm
- Weight: 7 g
- Mini stereo 3W amplifier from DFRobot
- Connector gold pin - 2.54 mm:
- 1x4 pin - x1
- 1x6 pin - x1
