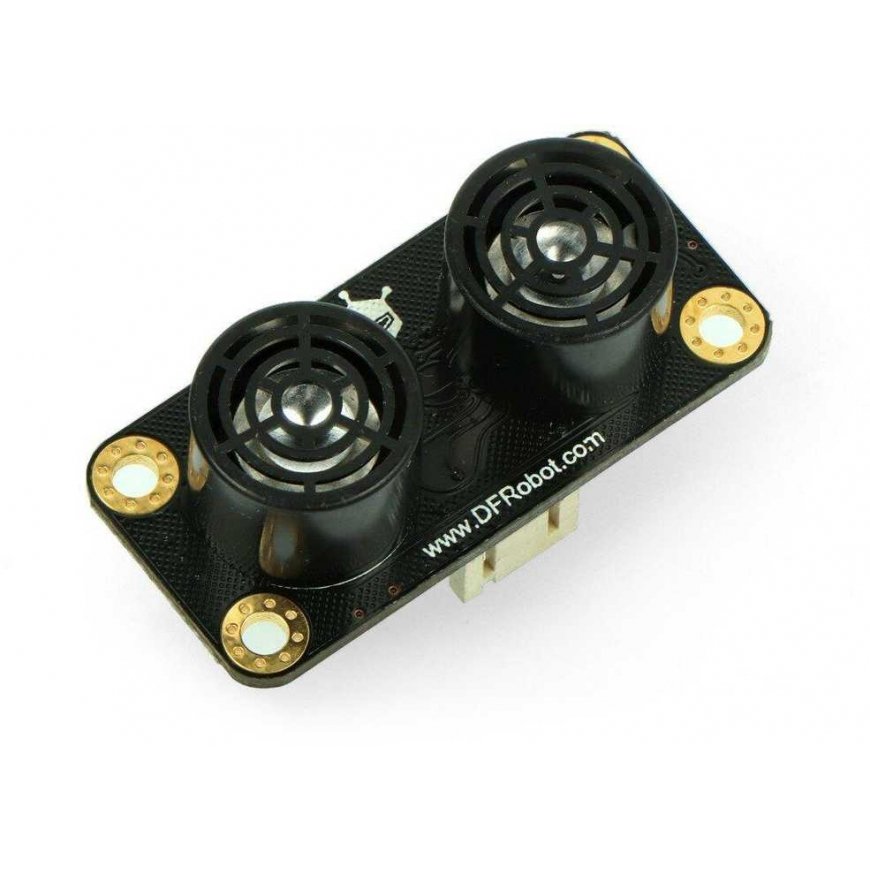

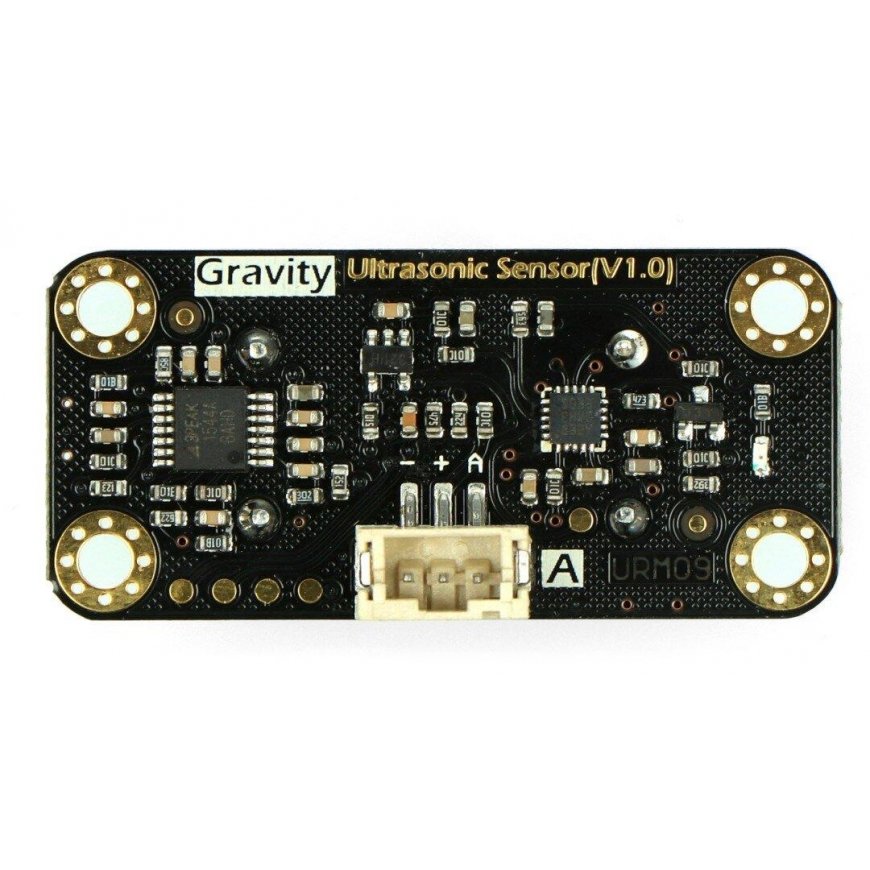

DFRobot SEN0307 Gravity ultrasonic distance sensor 2-500 cm, sensor analog URM09
19.91 €
3570840 AN-14859
5904422349967
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Module with ultrasonic distance sensor URM09, measuring range from 2 to 500 cm. Supply voltage from 3.3 to 5.5 V. Measurement frequency can reach 30 Hz. It communicates via analog interface. Ultrasonic sensor measures distance using sound waves. It sends waves of a certain frequency and waits for the waves to bounce off the object and return.
Specifications:
- Supply voltage: 3.3 to 5.5 V
- Power consumption: 20 mA
- Measuring range: 2 to 500 cm
- Resolution: 1 cm
- Accuracy: 1%
- Frequency: max. 30 Hz
- Operating temperature: -10 °C to 70 °C
- Dimensions: 47 x 22 mm
- Distance calculation formula: Distance = Vout (mV) x 520 / Vin (mV)
In the package:

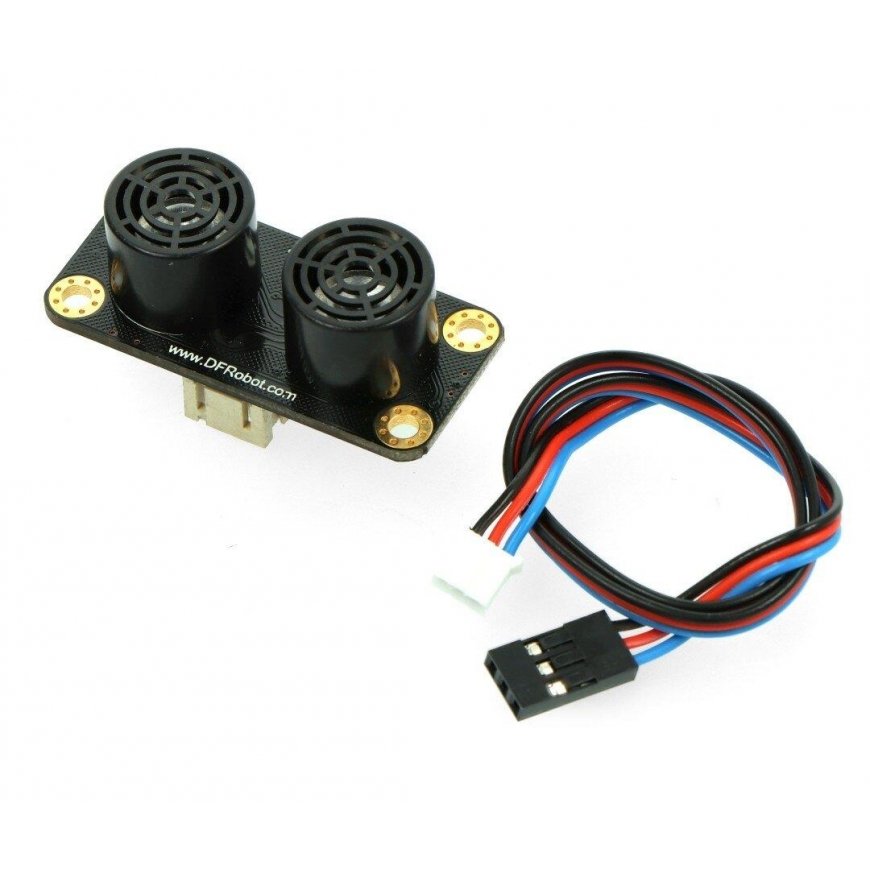

- Gravity cable x1
Links:
Manual
