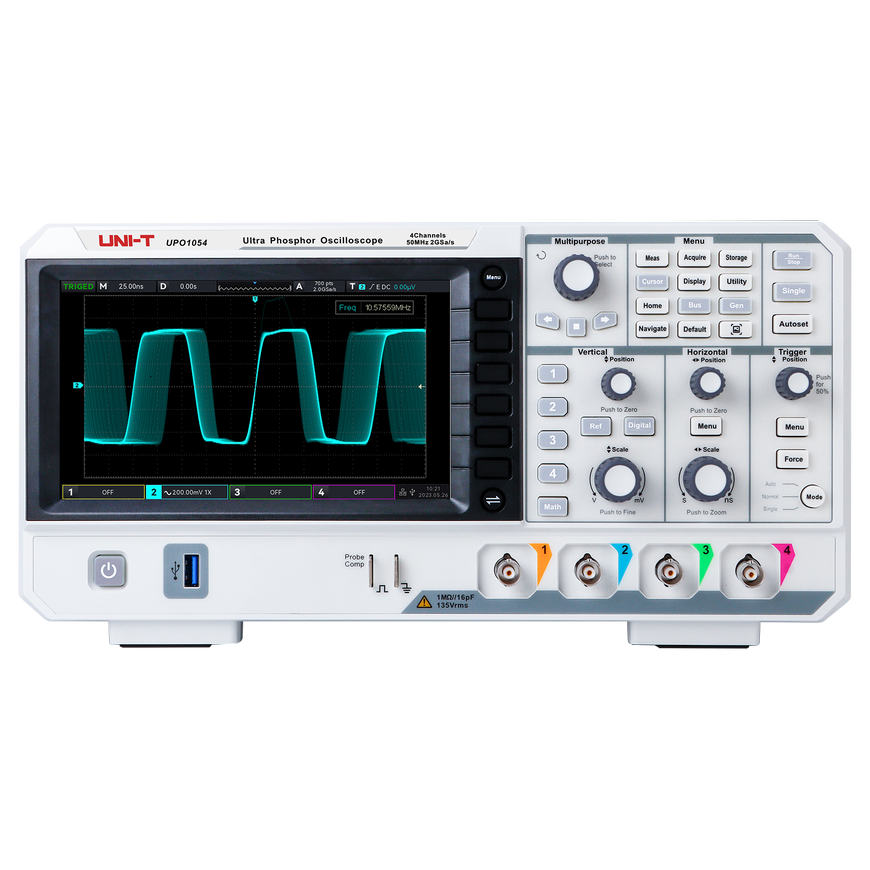

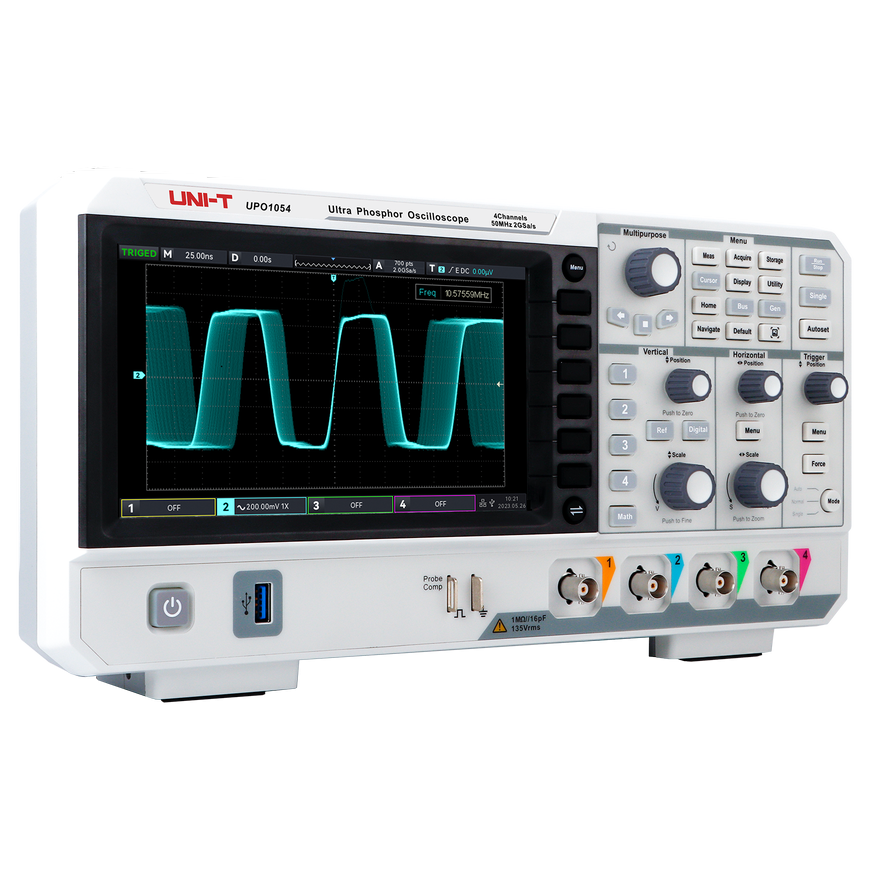

Oscilloscope Uni-T UPO1054
488.99 €
Ikm. maksa no 13,49 €
3568885 MIE0522
5901890121712
Piegāde 9-13 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
-----------MAIN PARAMETERS
------------
Analog bandwidth: 50 MHz
Rise time: <=7 ns
Number of channels: 4
Sampling rate: 1 GS/s
Memory Depth: 56 Mpts (1 channel)
Waveform capture speed: 500,000 wfms/s
Time base: 5 ns/div ~ 50 s/div
Input impedance: (1MOhm ±2%) II (20pF ±3pF)
Vertical sensitivity: 1mV/div ~ 20V/div (1M?)
Signal amplification accuracy: <=±3%
Waveform recording: 120,000 frames
Triggering methods: edge, pulse width, run, window, N-edge, delay, timeout, duration, setup/hold, slope, video, code
Serial bus decoding options: RS232/UART, I2C
Waveform operations: A+B, AB, AxB, A/B, FFT, logical operations, advanced
Automatic measurement of 27 parameters: highest maximum, amplitude, maximum, minimum, top, bottom, average, average, cycle average, average cycle area, overshoot, pre-shoot, frequency, cycle, rise time, fall time, positive pulse, negative pulse, A-> delay A->B (falling edge), delay B->A (rising edge), delay B->A (falling edge).
Results display types: 5 results at a time
Measurement statistics: average, maximum, minimum, standard deviation, number of measurements
Frequency window: 6 bits

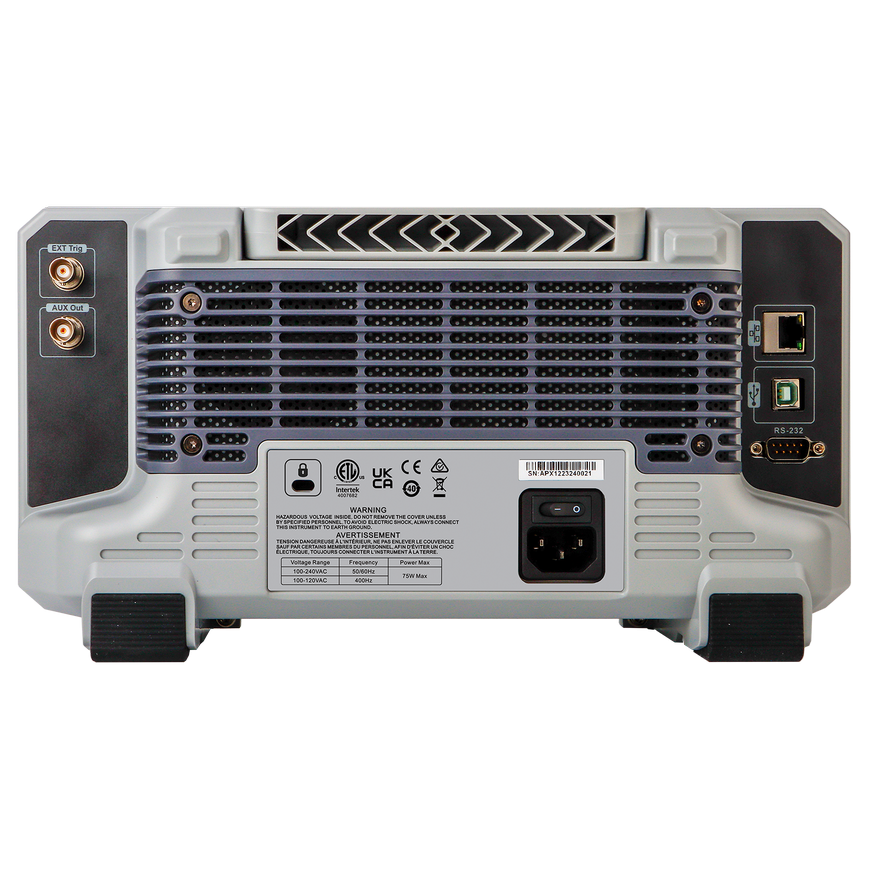

Interfaces: USB-Host, USB-Device, LAN, EXT Trig, AUX (Trig Out, Pass/Fail, DVM)
------------
GENERAL FEATURES
------------
Power supply: 100V~240VAC, 50Hz/60Hz
Display: 7 inch TFT LCD, WVGA (800 × 480 px)
Weight: 2.45 kg
Dimensions: 336 x 170 x 110 mm
