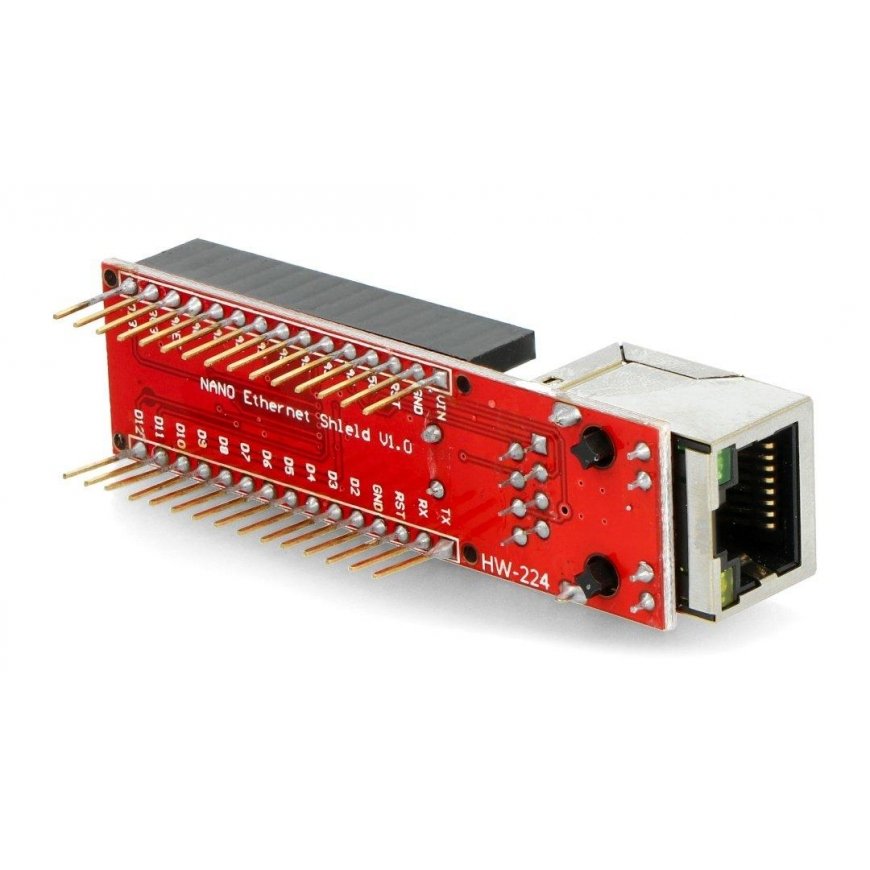

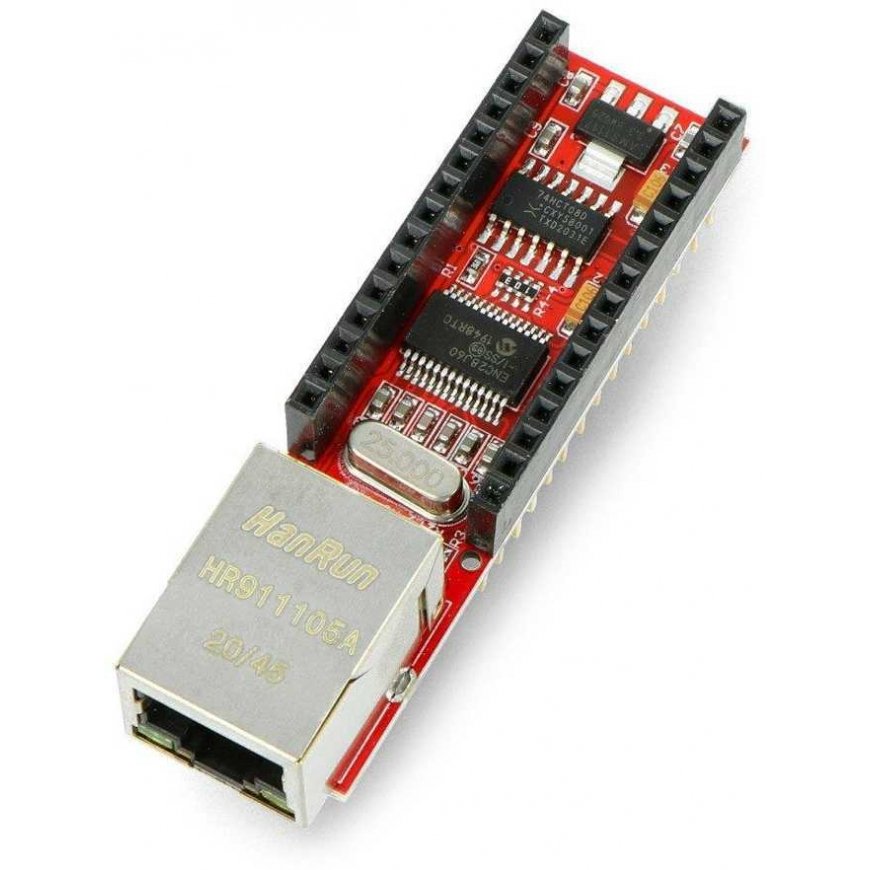

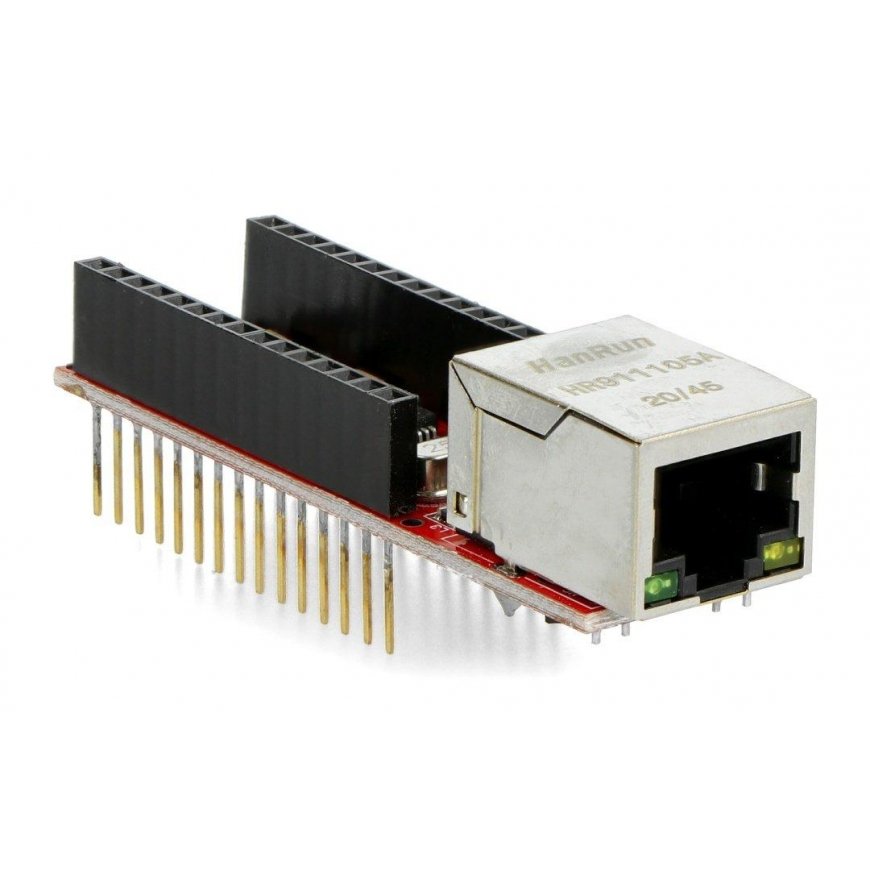

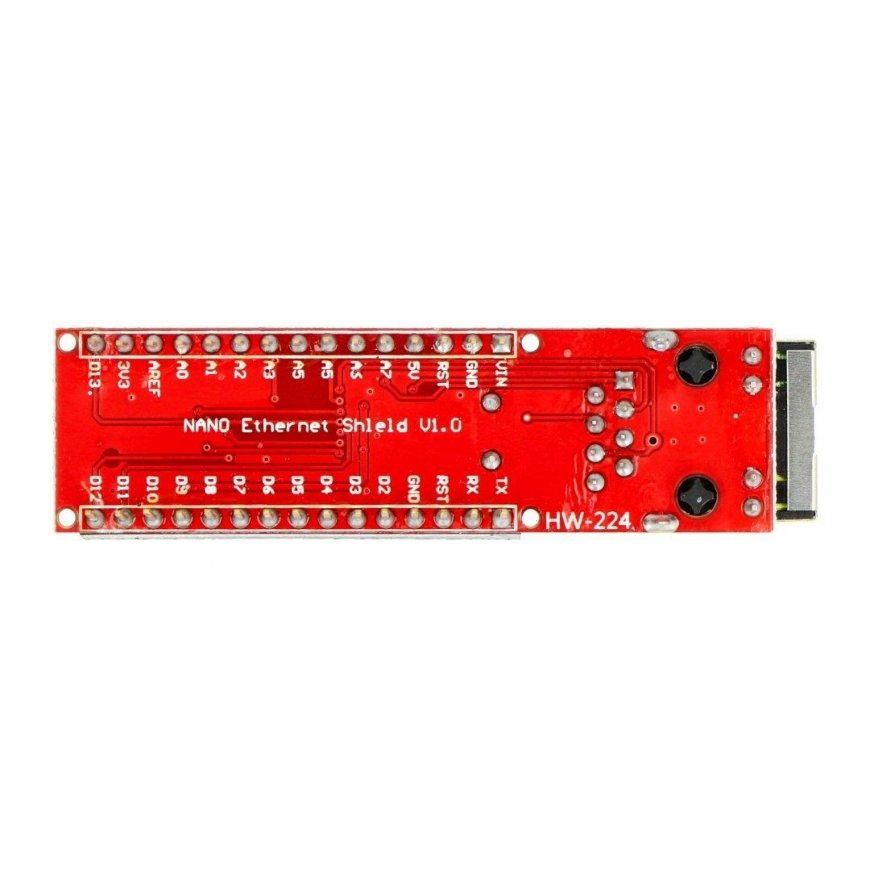

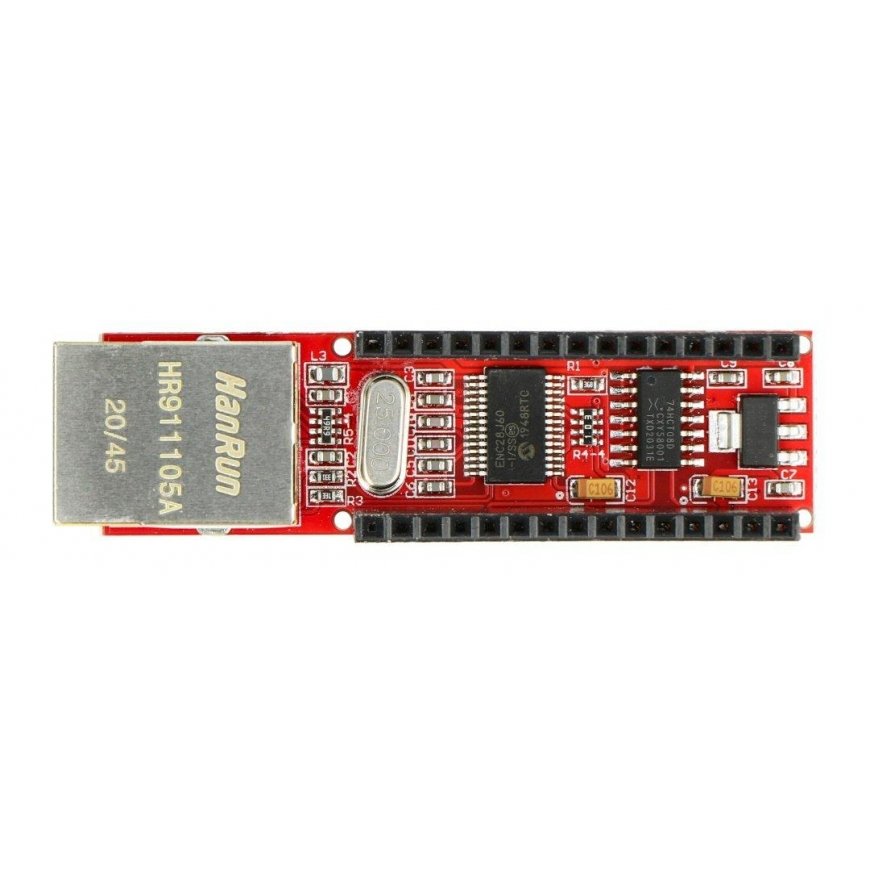

Ethernet Network Module Plug-in v1.0 for Arduino Nano
29.00 €
3567787 AN-19944
5904422350796
Piegāde 9-14 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
This module allows you to connect the Arduino Nano microcontroller to an Ethernet network. The board has an RJ-45 Ethernet socket for a network cable and soldered gold pins necessary for connecting it to the motherboard. The module can also be connected to a breadboard or connected to other expansions to form a cascade. The chip's supply voltage is 3.3 V. The product is compatible with 10/100/1000 Base-T networks. The dimensions of the add-on are 67 x 18 x 15 mm.Specifications:
- Compatible with Arduino Nano board
- Chip ENC28J60
- Compatible with 10/100/1000 Base-T networks
- Supply voltage: 3.3V
- RJ-45 Ethernet jack
- ENC28J60 chipset
- Dimensions: 67 x 18 x 15 mm
