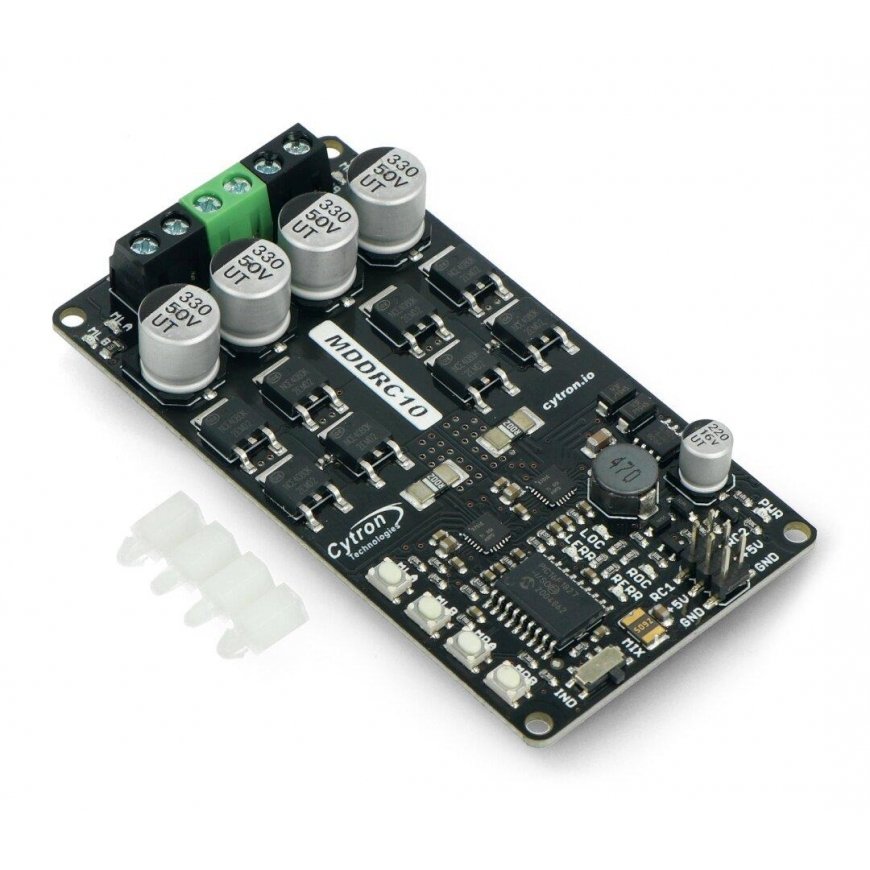

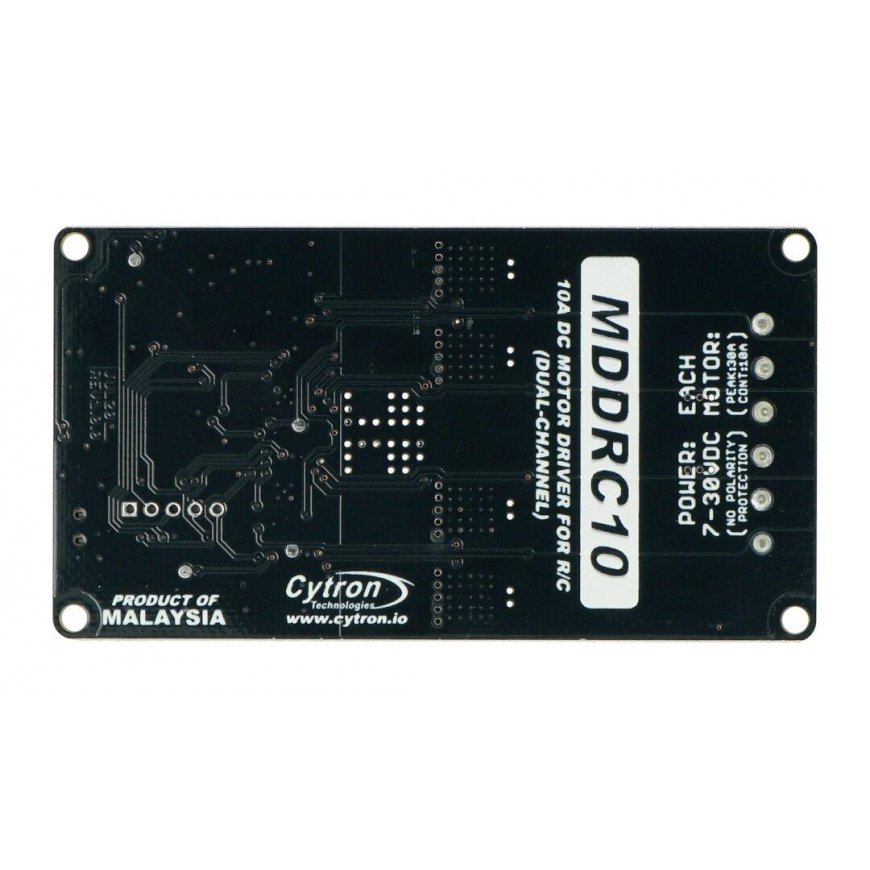

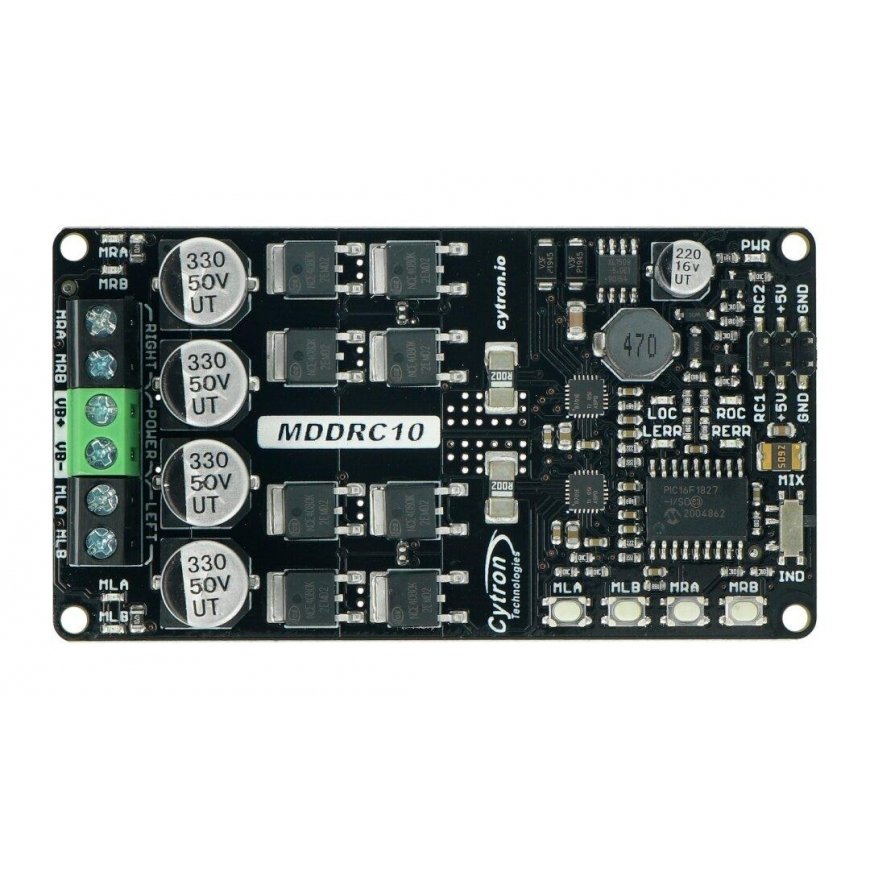

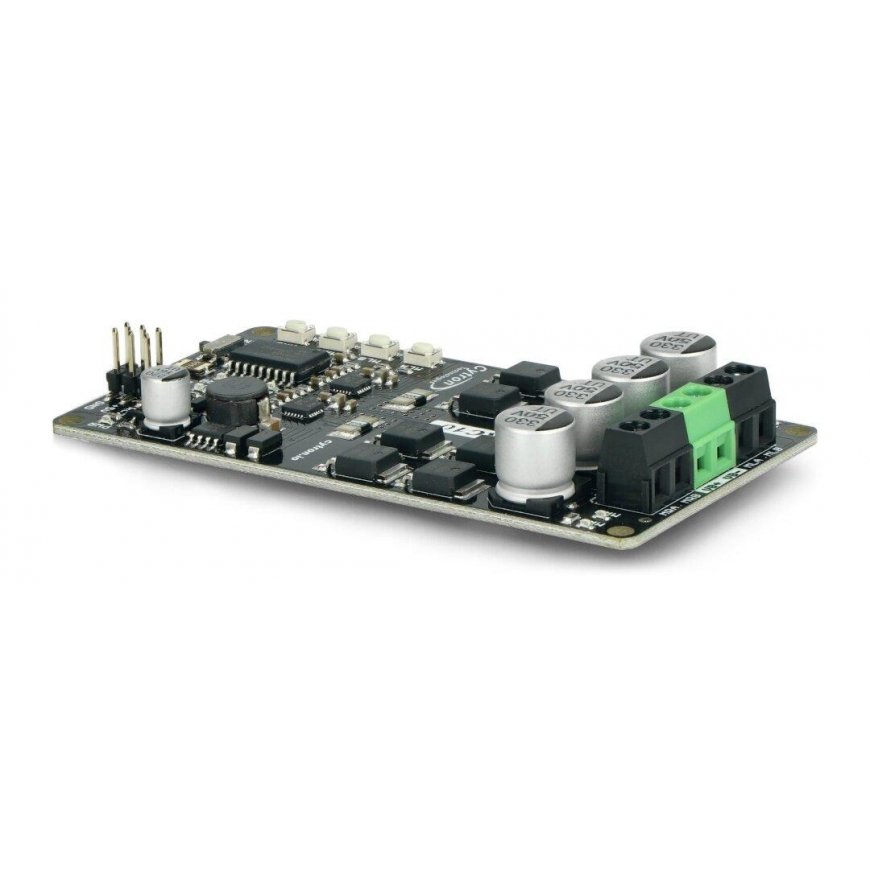

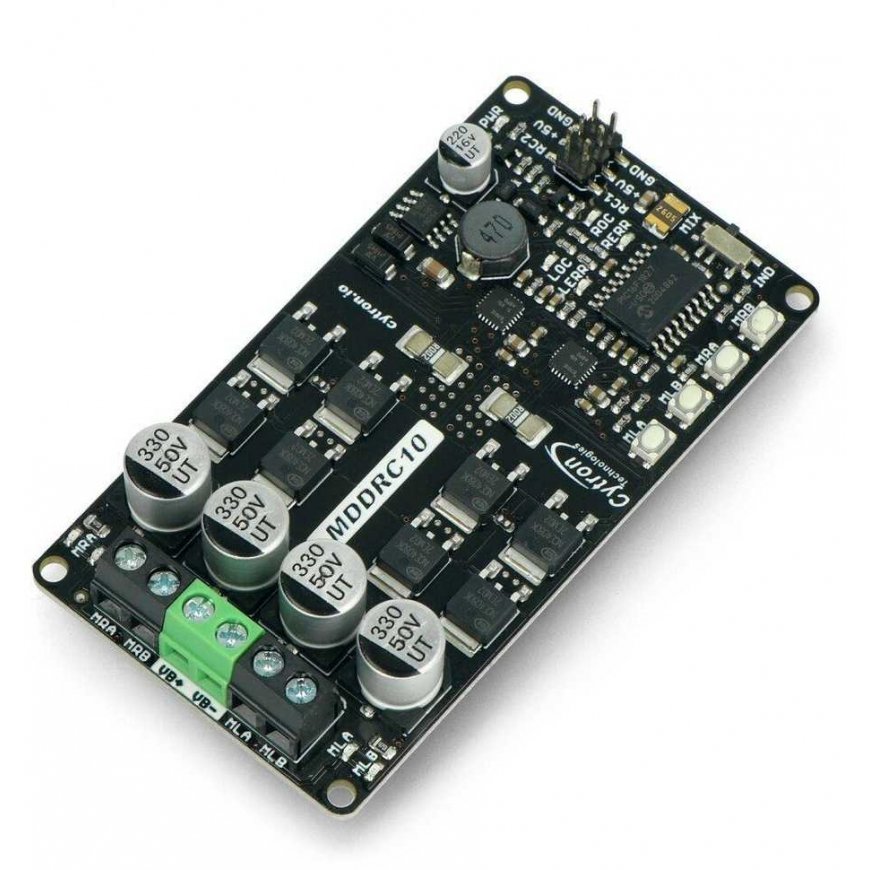

Cytron MDDRC10 - two-channel controller for DC 10A 7V-30V motors
69.01 €
Ikm. maksa no 2,68 €
3567080 AN-18994
5904422360900
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Two-channel DC motor controller with a supply voltage of 7 V to 30 V. The continuous current consumption per channel is 10 A and instantaneous 30 A. When the controller is turned on, automatic calibration occurs. In addition, the controller module is equipped with manual buttons that allow you to quickly test the system. Information about the motor output status is displayed by LEDs. The controller also has protections that protect the module from excessive voltage supply.Specifications:
- Plug and Play function and control directly from the RC level
- Automatic calibration when the controller is turned on
- Two input modes to choose from
- Bidirectional control of two DC brushed motors
- Operating voltage: 7 V to 30 V DC
- Maximum motor current consumption:
- continuous: 10 A
- instantaneous: 30 A
- Number of channels: 2
- Equipped with quick system test buttons
- Information about the motor output status via LEDs
- PWM speed control frequency: up to 20 kHz
- Protection: overcurrent with active current limit and low voltage protection
- Thermal protection
- Dimensions: 88.90 x 48.3 mm
- DC motor controller
- Gaskets - 4 pcs.
