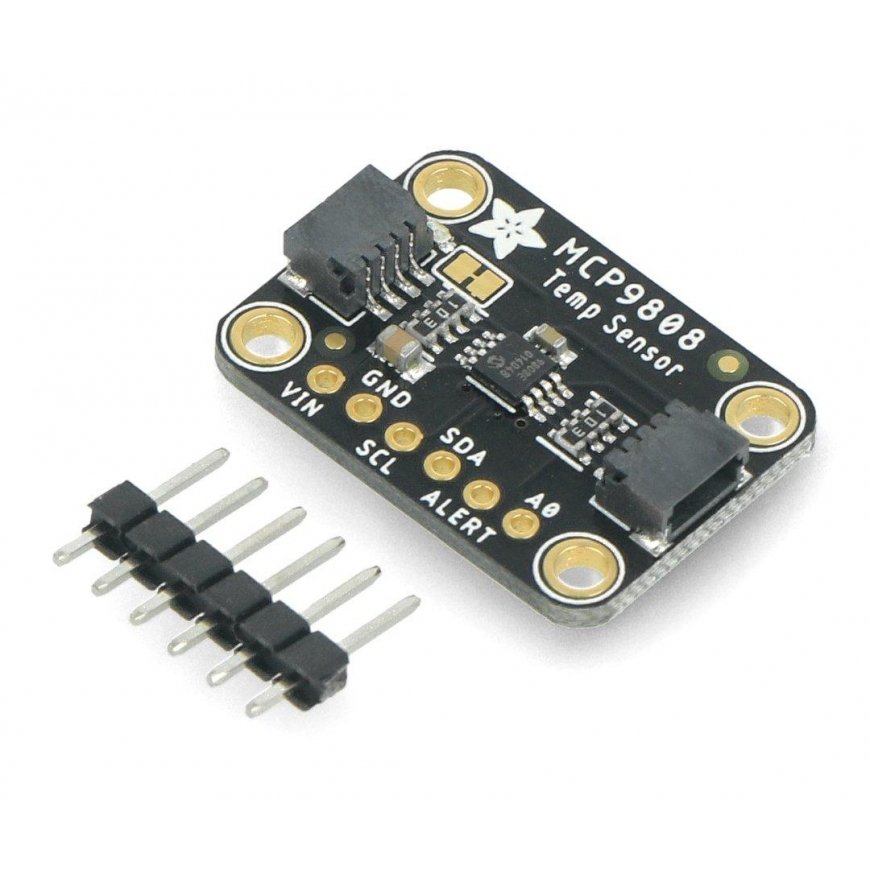

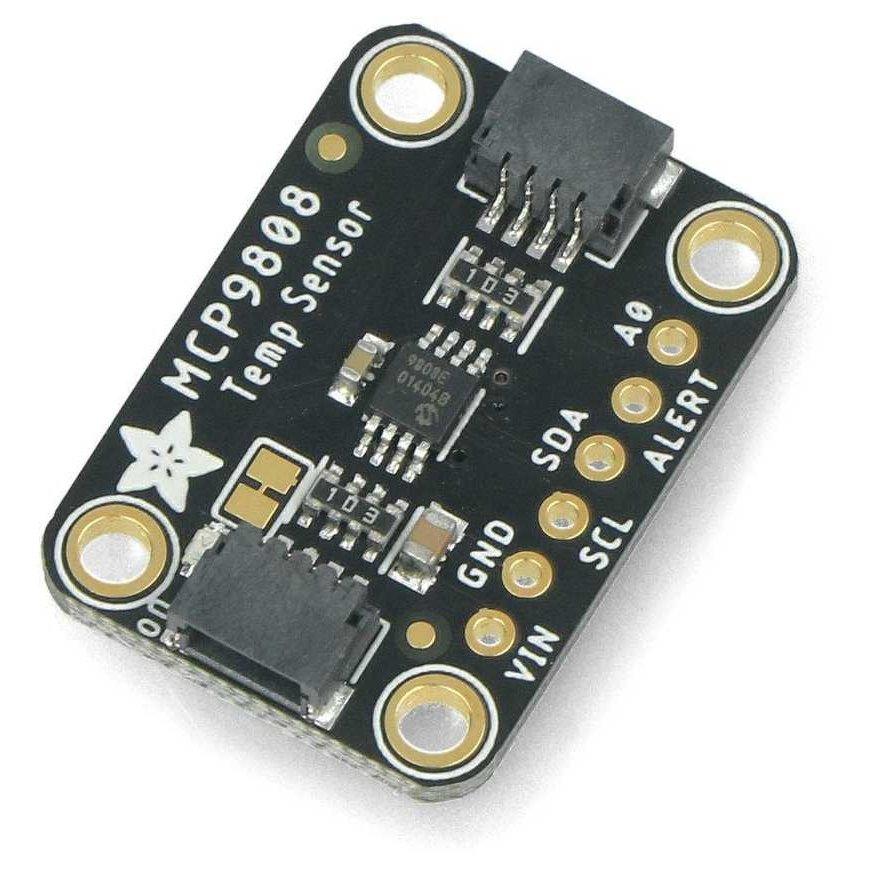

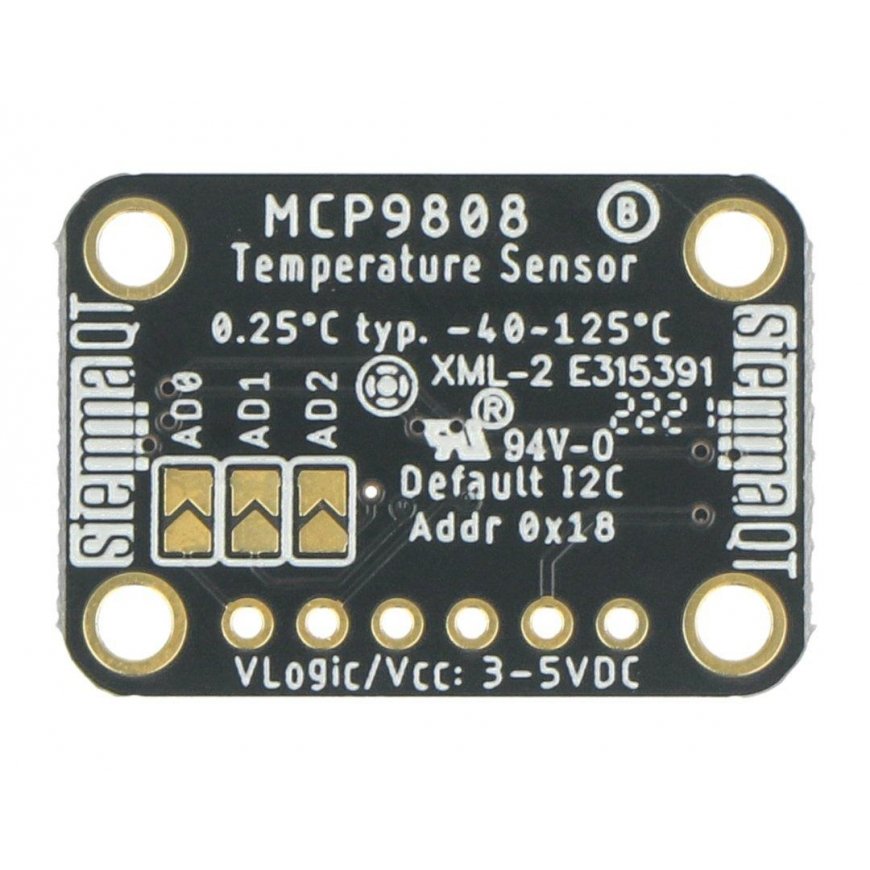

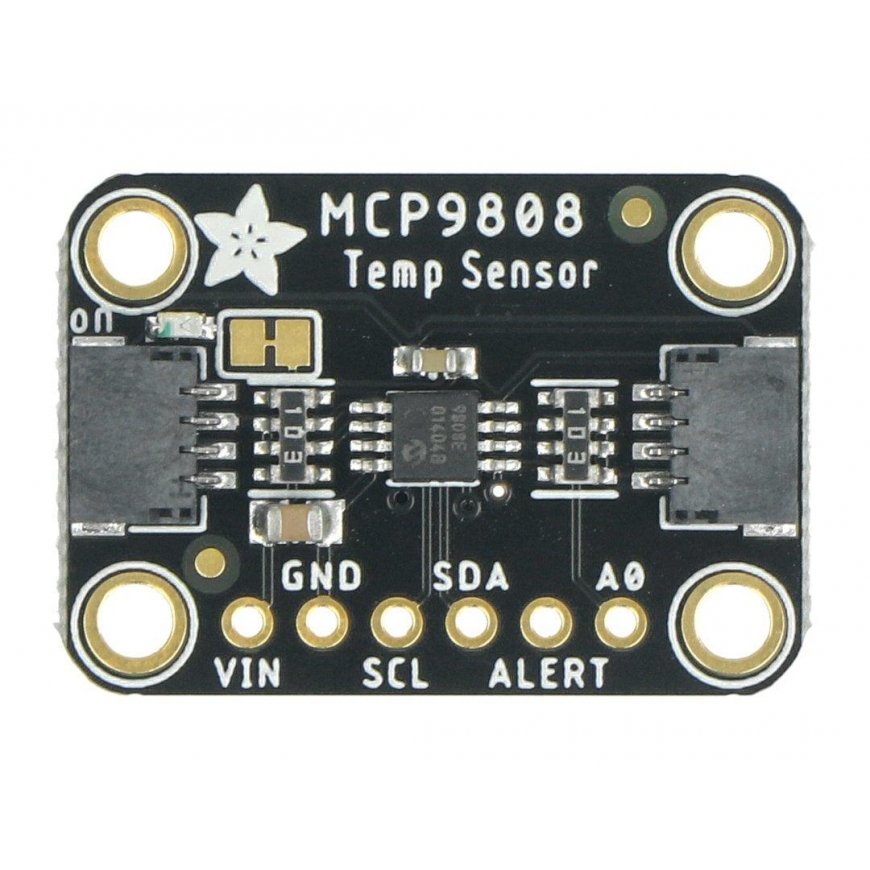

High-precision digital temperature sensor, MCP9808, I2C, STEMMA QT/Qwiic, Adafruit 5027
21.49 €
3565342 AN-19785
5904422347550
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
A digital temperature sensor made by Adafruit. It has high measurement accuracy from -40 °C to 125 °C. The measured values have an accuracy of +0.25 °C and a resolution of 0.0625 °C. The temperature sensor uses the I2C bus to communicate with the controller module. It works with controllers such as Arduino and Raspberry.Specifications:
- Type: High-precision digital temperature sensor
- Built-in chip: MCP9808
- Temperature measurement range: -40 °C to 125 °C
- Typical temperature measurement accuracy: +0.25 °C
- Measurement resolution: 0.0625 °C
- Interface: I2C bus
- I2C interface address:
- 0x18 (default)
- 0x1A
- 0x1C
- Supply voltage: 3 V to 5.5 V
- Current consumption: 200 μA
- Connectors: STEMMA QT / Qwiic / solder pads - 2.54 mm
- Mounting holes - x4
- Board dimensions: 25.4 x 17.6 x 4.6 mm
- Weight: 1.6 g
- High-precision digital temperature sensor - MCP9808
- 1x6 gold pin strip - 2.54 mm
