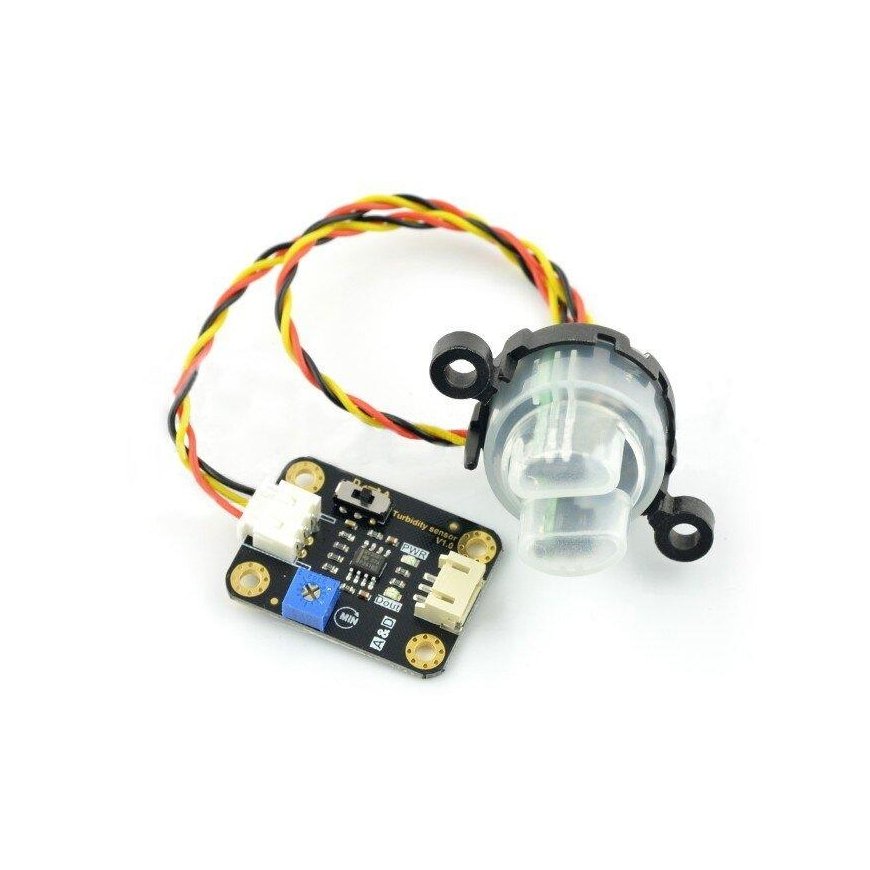

DFRobot Gravity analog turbidity sensor
23.27 €
3564274 AN-05318
5903351243506
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The sensor is designed to test water quality by measuring its turbidity. It detects suspended particles in water, measuring light transmittance and propagation velocity, which change with increasing total solids content (TSS). The higher the TSS, the higher the turbidity.
Turbidity sensors are used to measure the water quality of rivers, streams, wastewater, and laboratory instruments.
Specifications:
- Power supply voltage: 5V DC
- Operating current: up to 40mA
- Response time: less than 500 ms
- Insulation resistance: 100 M
- Two output signal modes:
- Analog: voltage from 0 V to 4.5 V
- Digital: low and high states - trigger level can be adjusted using the integrated potentiometer
- Operating temperature: -30 °C to 80 °C
- Weight: 30 g
- Probe dimensions: 28 x 34 mm
- Module dimensions: 28 x 38 mm

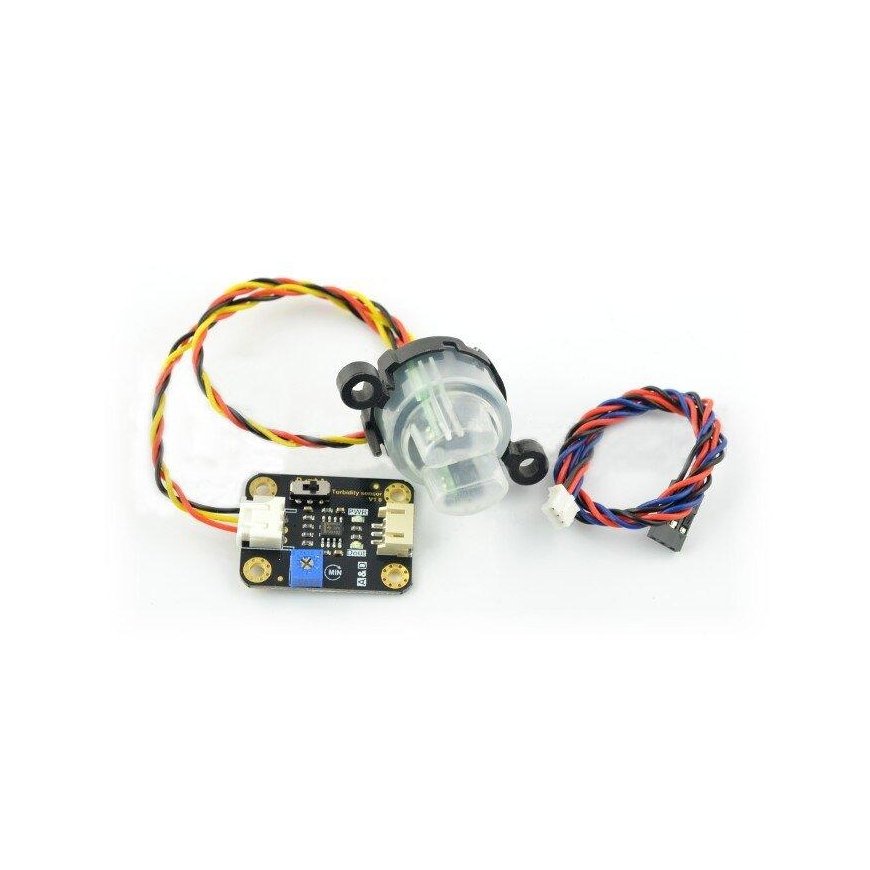

In the package:
- Turbidity sensor adapter x1
- Turbidity sensor probe x1
- Turbidity sensor cable x1
- Gravity analog sensor cable x1
Links:
Manufacturer's page
Manual
