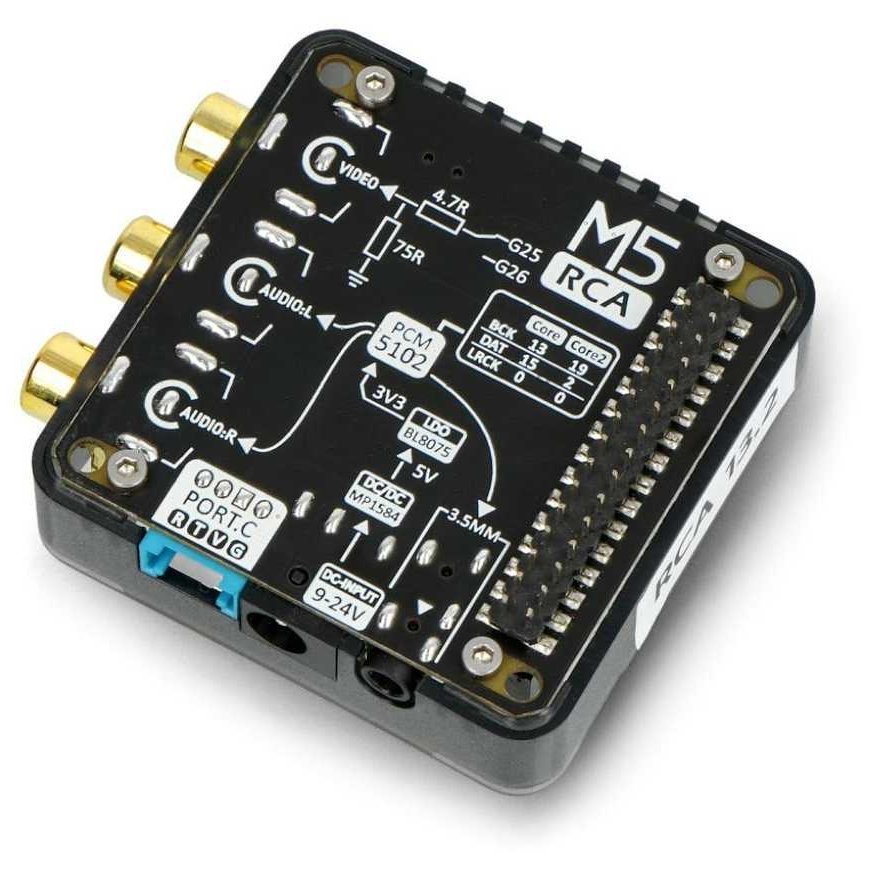

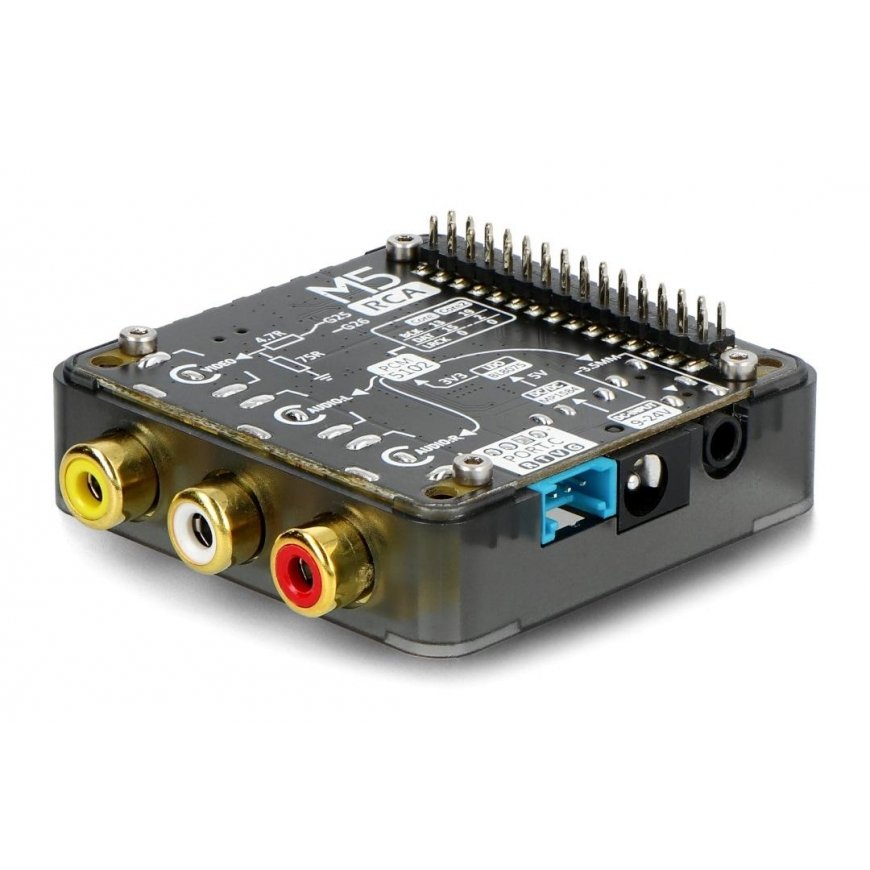

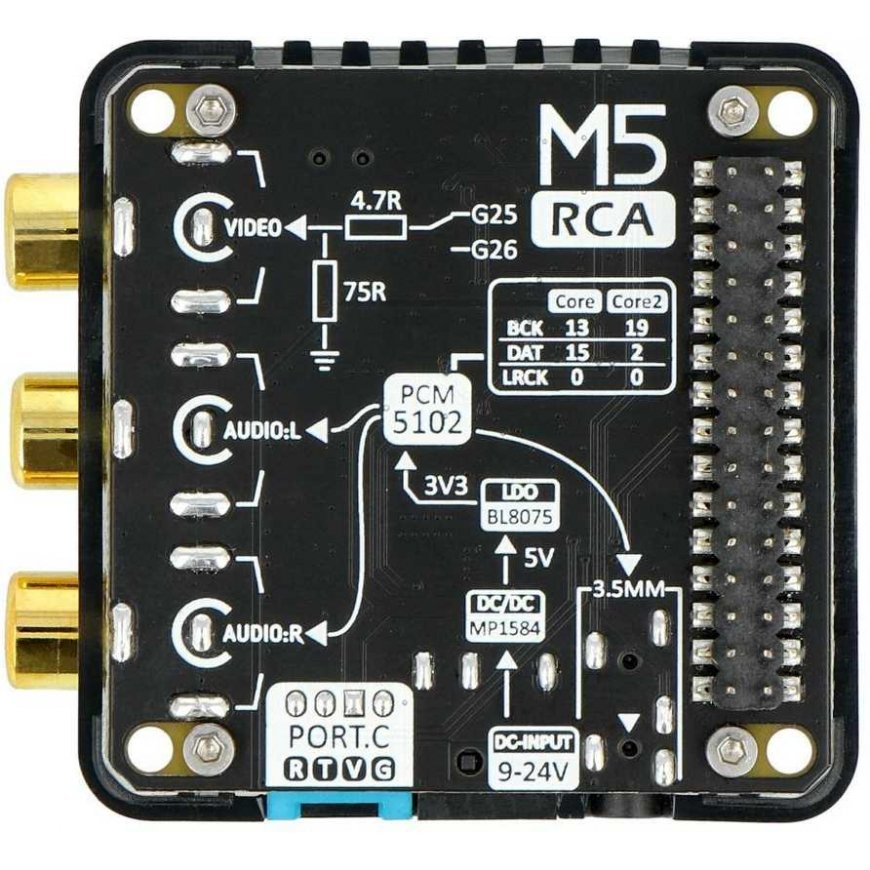

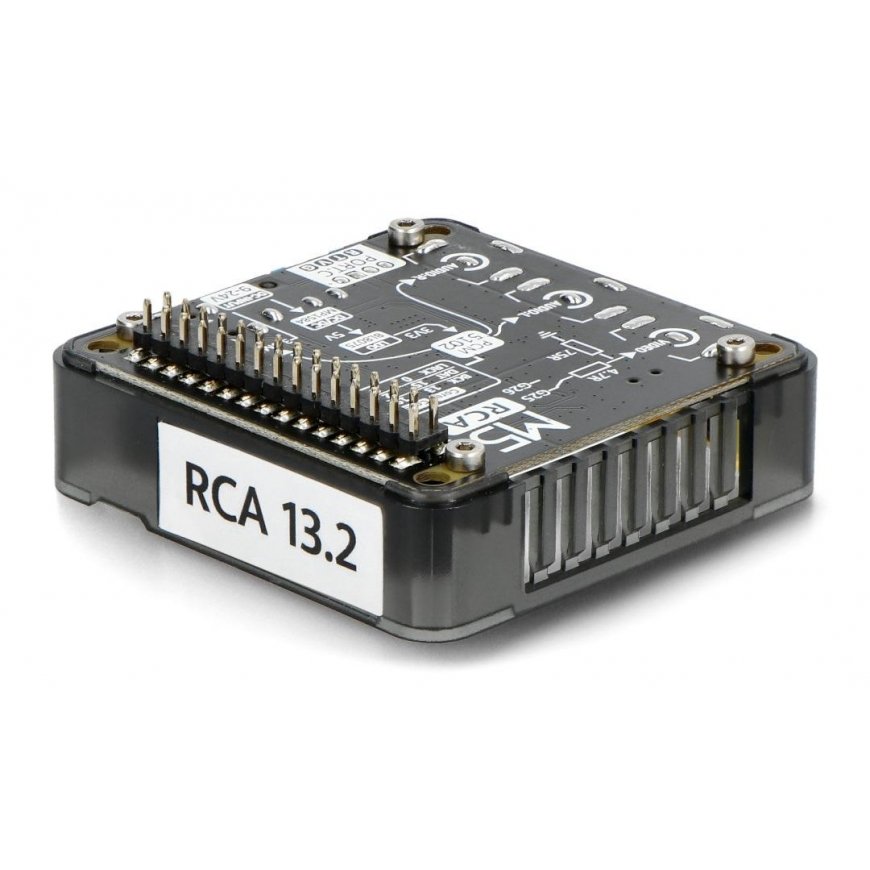

M5 RCA 13.2 - PCM5102 - composite audio and video module - for M5Stack development modules
29.00 €
3563760 AN-22451
6972934173935
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

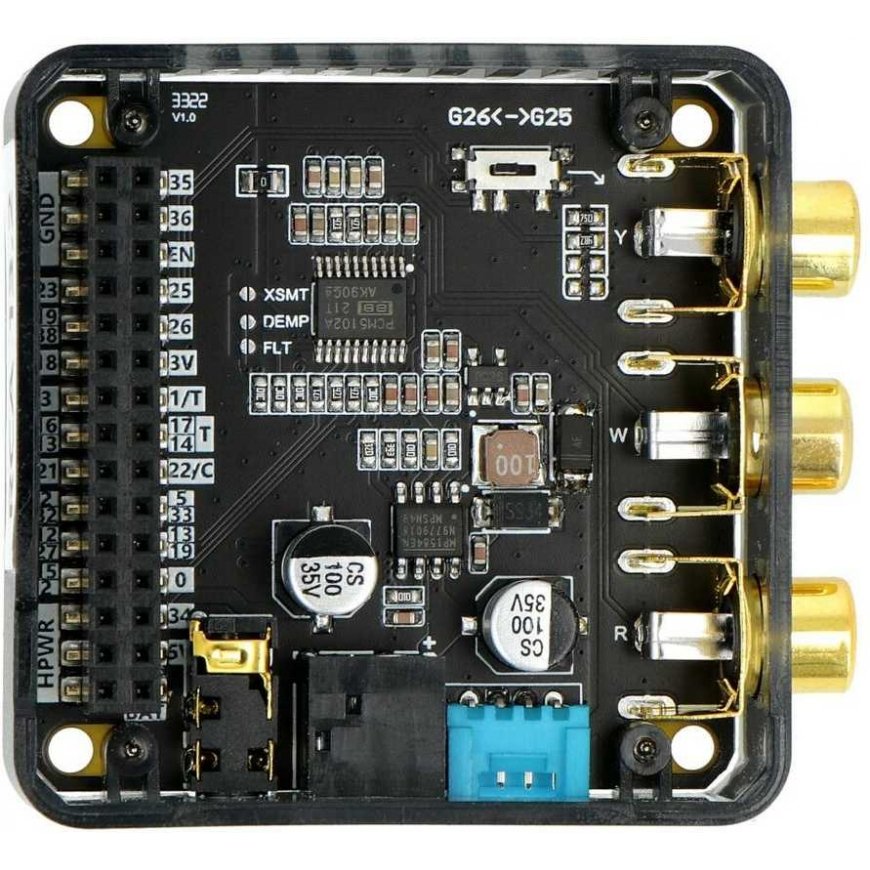

The M5 RCA 13.2 module manufactured by M5Stack is a module with audio systems, a stereo DAC PCM5102APWR and a step-down converter MP1584EN. The module has RCA connectors that can transmit audio and video signals - 2x audio connectors - left L and right R, and 1x video connector. Main features:
- Built-in RCA audio and video component jacks
- 3.5 mm jack audio output for connecting headphones
- PCM5102 stereo DAC
- Built-in step-down voltage converter, allowing the module to be powered from 9 V to 24 V
Specifications:
- Type: Analog-to-Digital Converter DAC
- Integrated chip: PCM5102
- Resolution: 32 bits
- Very low noise level
- Communication interface: I2S
- Connector standard: RCA
- two audio connectors - left L and right R
- one video connector
- Video output interface: CVBS (switching GPIO25 <-> GPIO26)
- Maximum image resolution: 864x576px (PAL, PAL_M)
- Headphone jack: 3.5 mm jack
- DC output: 9V to 24V
- Built-in step-down converter: MP1584EN
- Switching level: 5 V
- Module dimensions with pins: 54 x 54 x 19.7 mm
- Module weight: 22.5 g
