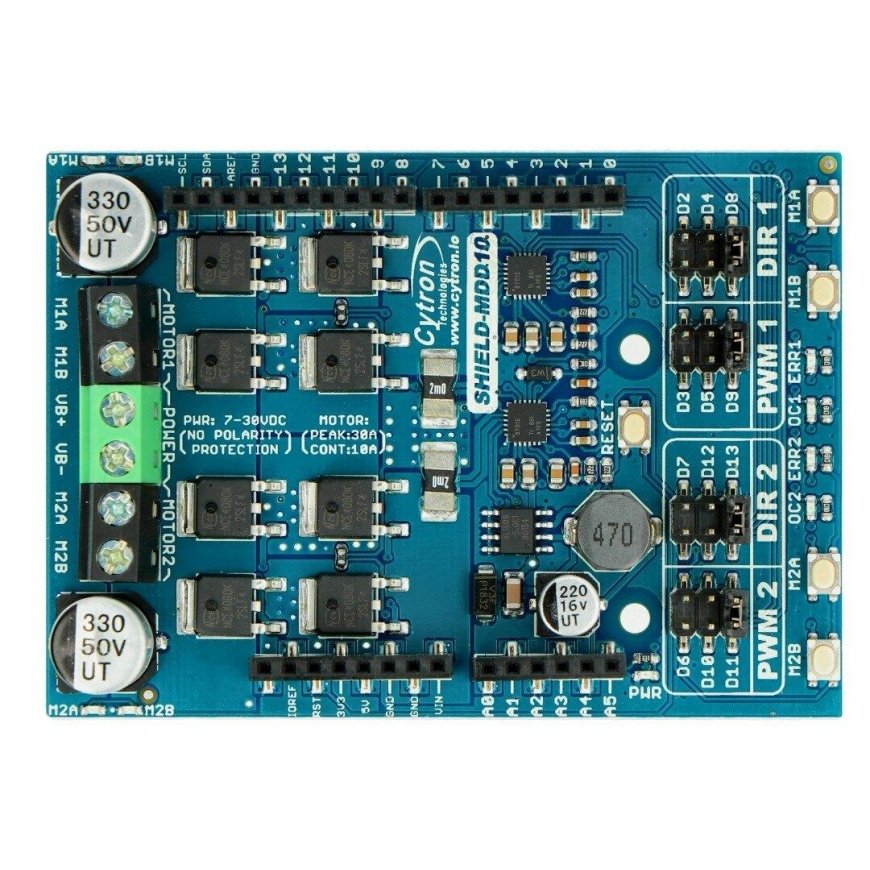

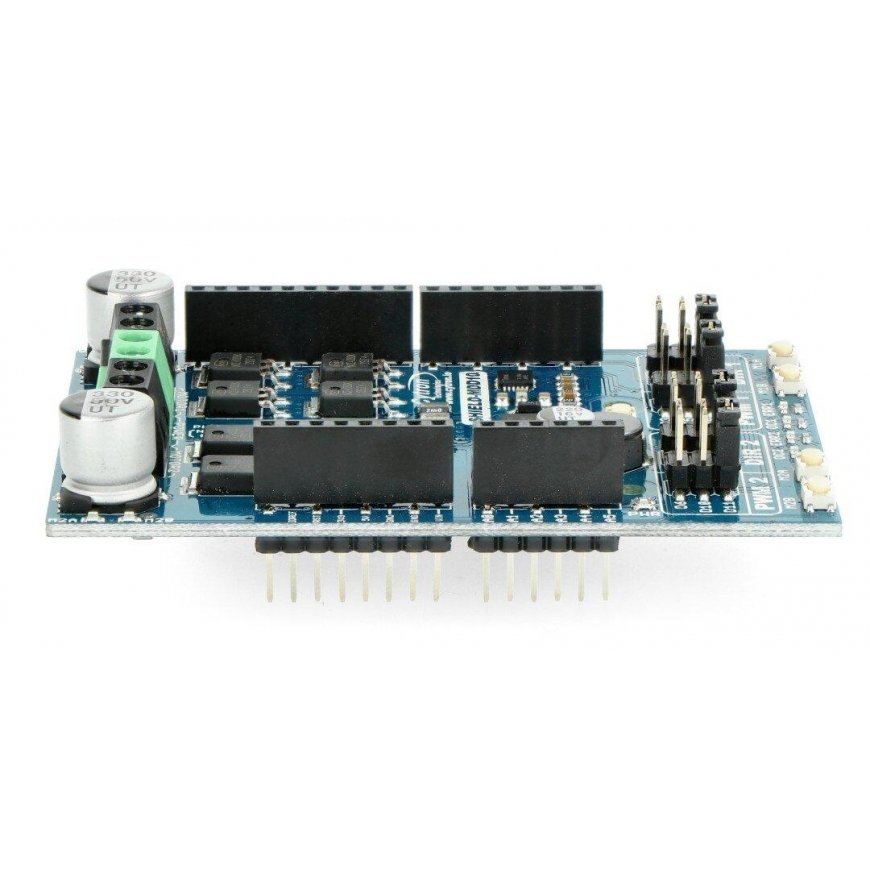

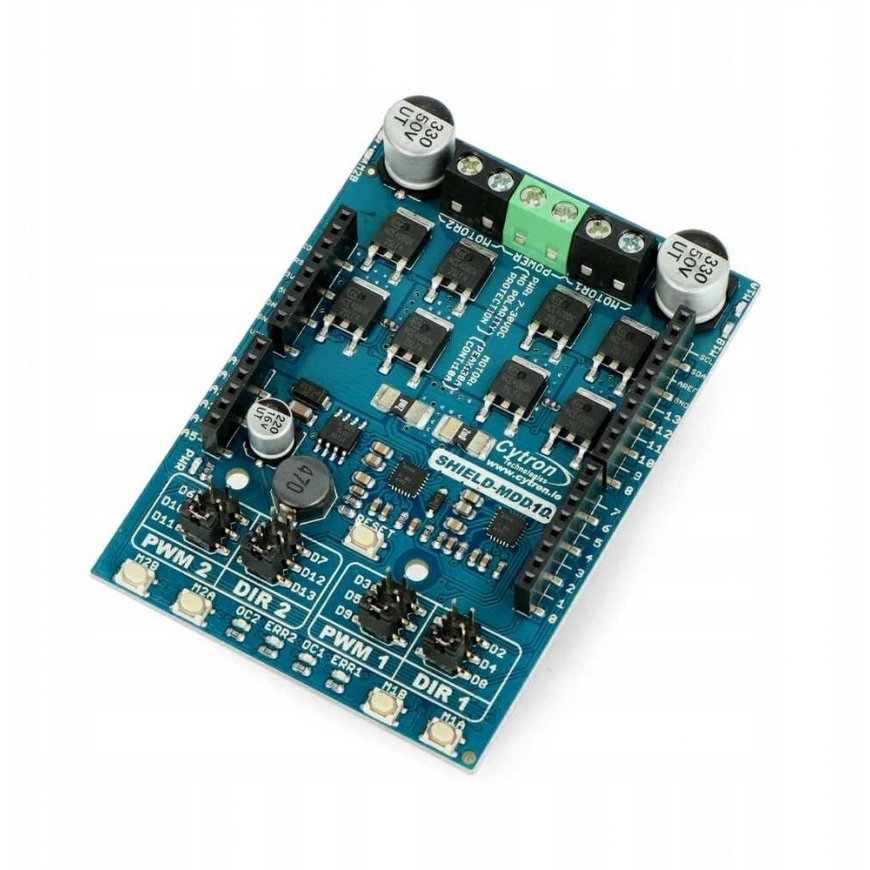

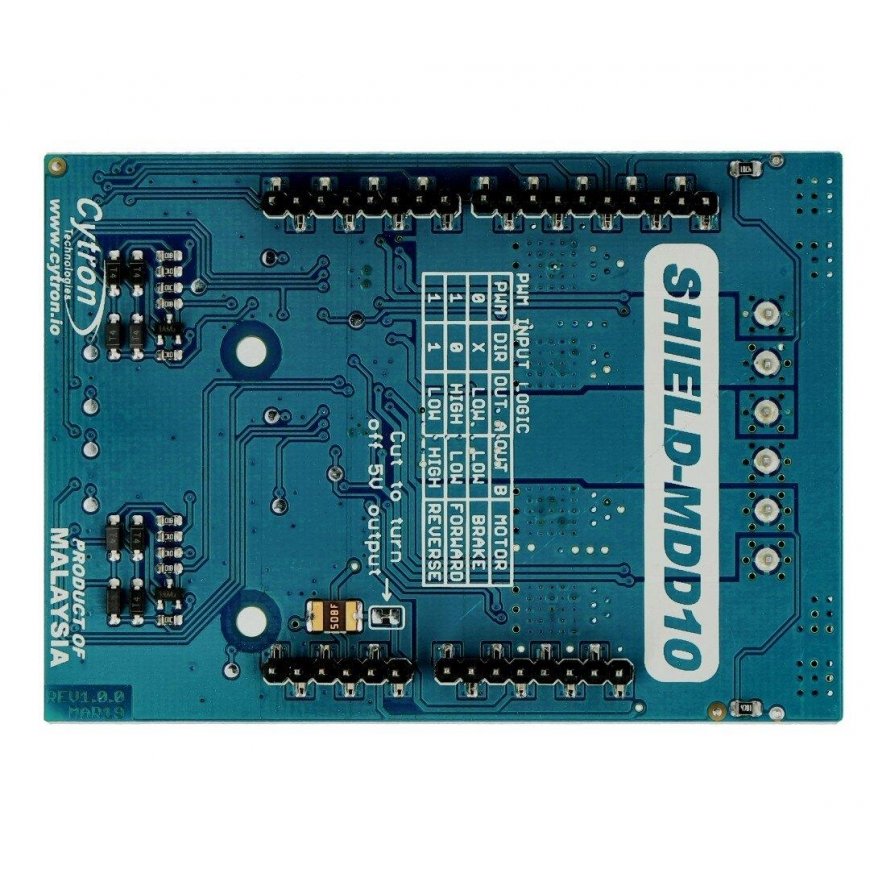

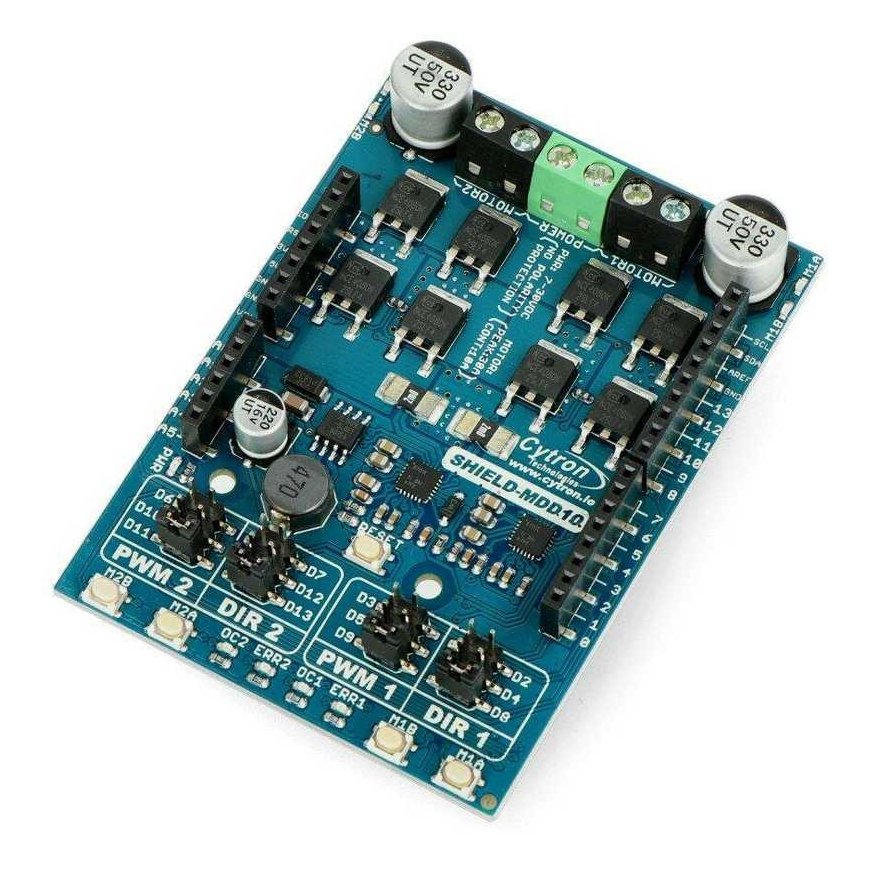

Cytron add-on MDD10 - dual-channel DC motor controller - 7V-30V/10A - Arduino add-on
49.00 €
Ikm. maksa no 2,16 €
3562797 AN-14815
5904422322656
Piegāde 8-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
A module that allows you to control two DC motors or one stepper motor using Arduino. The add-on allows you to adjust the direction and speed of motors with current consumption up to 10 A (instantaneous up to 30 A) and supply voltage from 7 to 30 V. The add-on has jumpers that allow you to select the pins responsible for PWM and the DIR signal supplied to the controller.Specifications:
- Supply voltage: 7 V to 30 V
- Maximum continuous current: 10 A
- Maximum instantaneous current: 30 A
- Many channels:
- DC motor: 2
- Stepper motor: 1
- PWM signal frequency: 20 kHz
- Output power: 5V/500mA
- Dimensions: 83 x 59 x 15 mm
- Weight: 40 g
