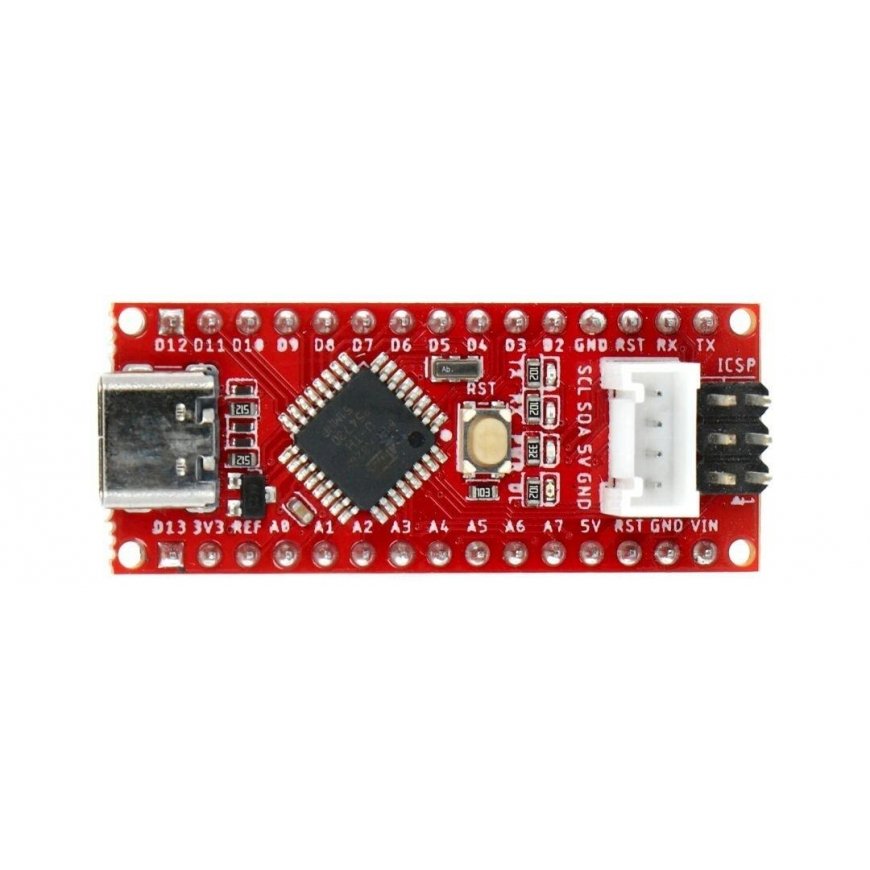

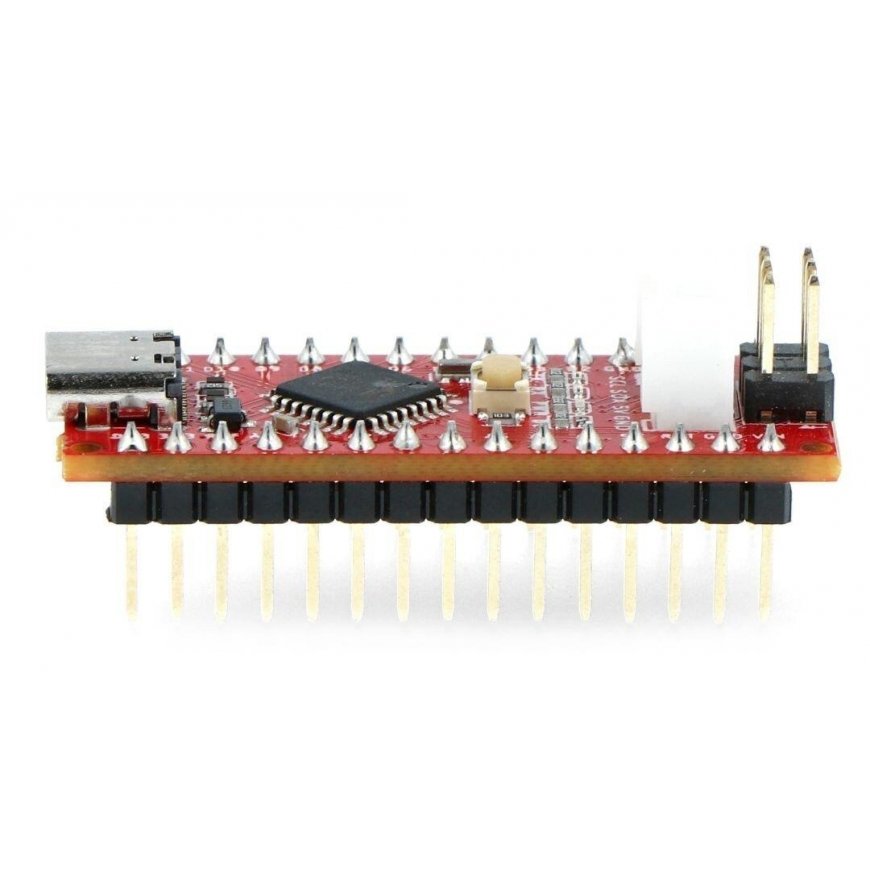

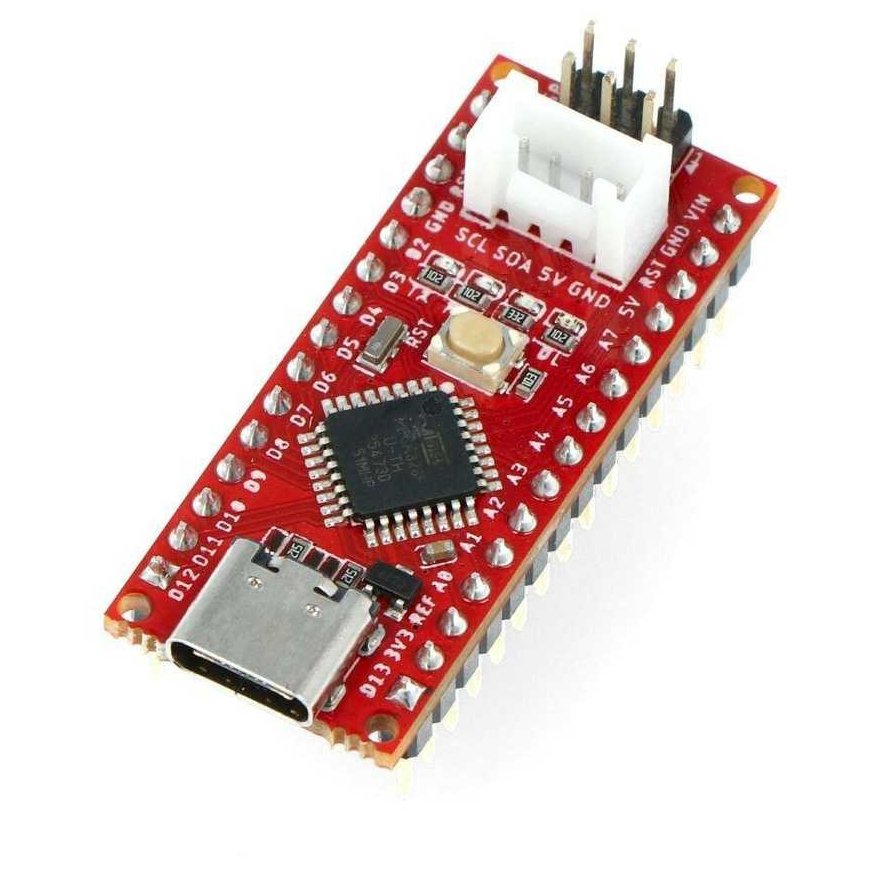

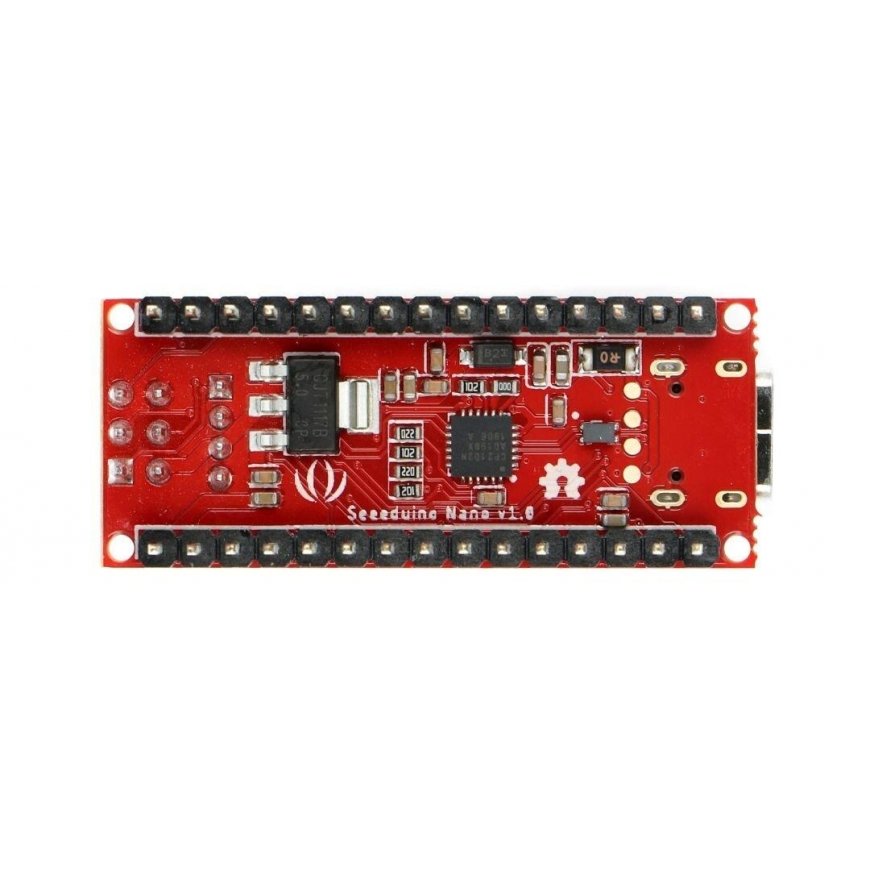

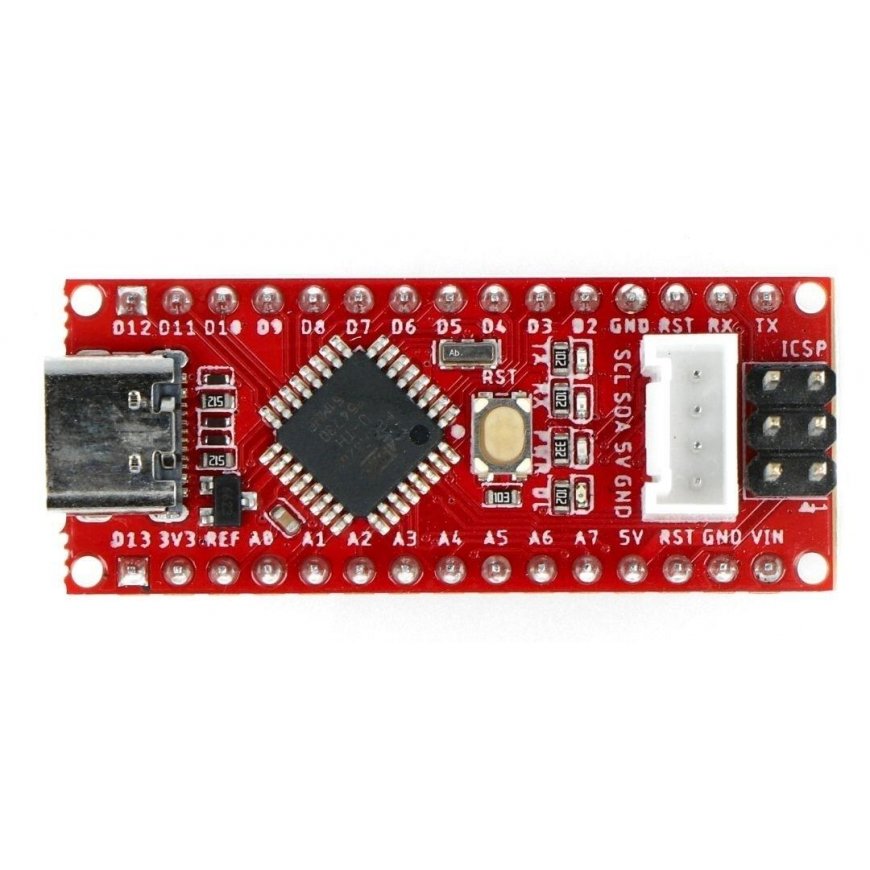

Seeed Studio Seeeduino Nano
3562225 AN-14993
5904422322847
Piegāde 8-11 d.d.
Viss par produktu
It is a small board similar to the Seeeduino V4.2 / Arduino UNO and is fully compatible with the Arduino Nano in terms of pins and dimensions. The Seeeduino Nano, like the Seeeduino V4.2, is built around an 8-bit ATmega328P microcontroller. So you can use the same program codes on both boards. The Seeeduino Nano is almost 4 times smaller than the Seeeduino V4.2, but has the same features. Its small size (43mm x 18mm) will help you save more space when building projects. Instead of powering via the USB C port, you can power the Seeeduino using the VIN and GND pins. The VIN input range is from 7V to 12V. Also note that there is no pull-up resistor on the I2C interface. A 4.7k resistor is recommended.
Main features:
- Fully compatible with Arduino Nano
- Instead of a miniUSB connector (like the Arduino Nano), it has a symmetrical USB Type-C connector
- Has one I2C connector
- There is a small size
- Built around the ATmega328P microcontroller
Links:
Manufacturer's page
Manual
