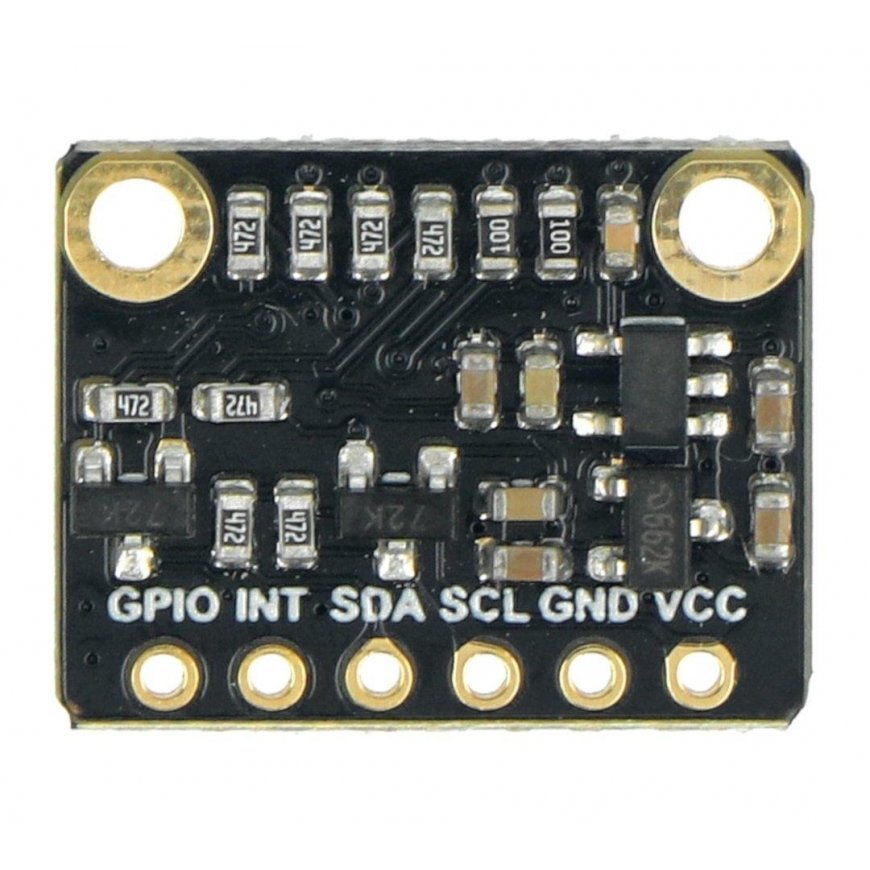

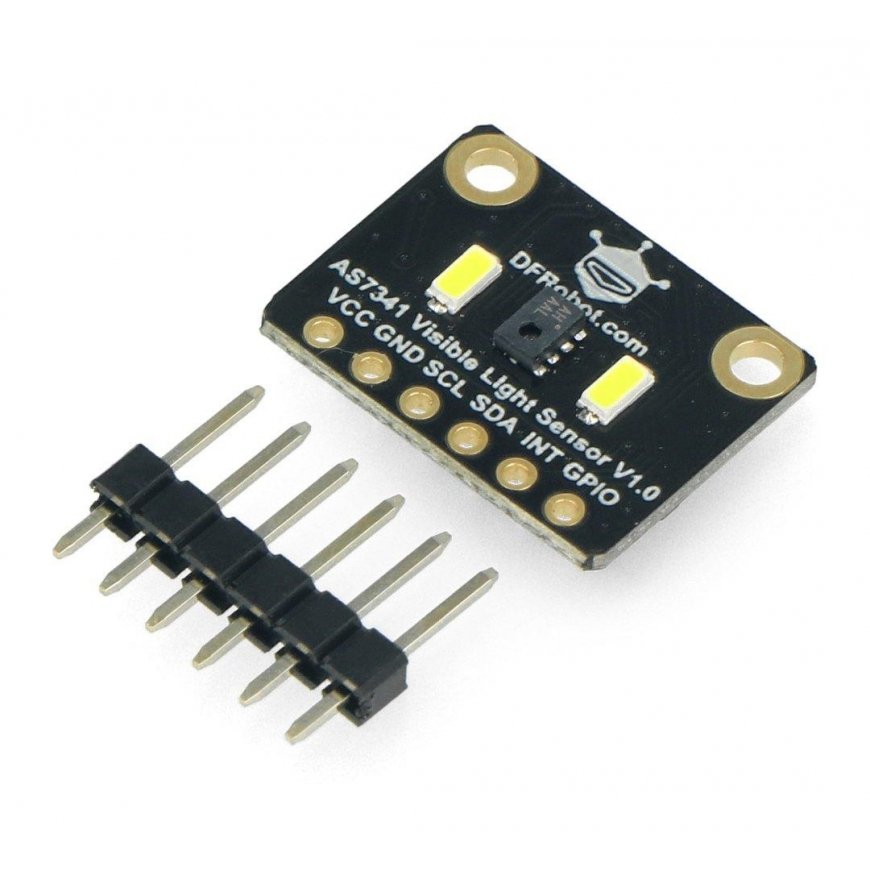

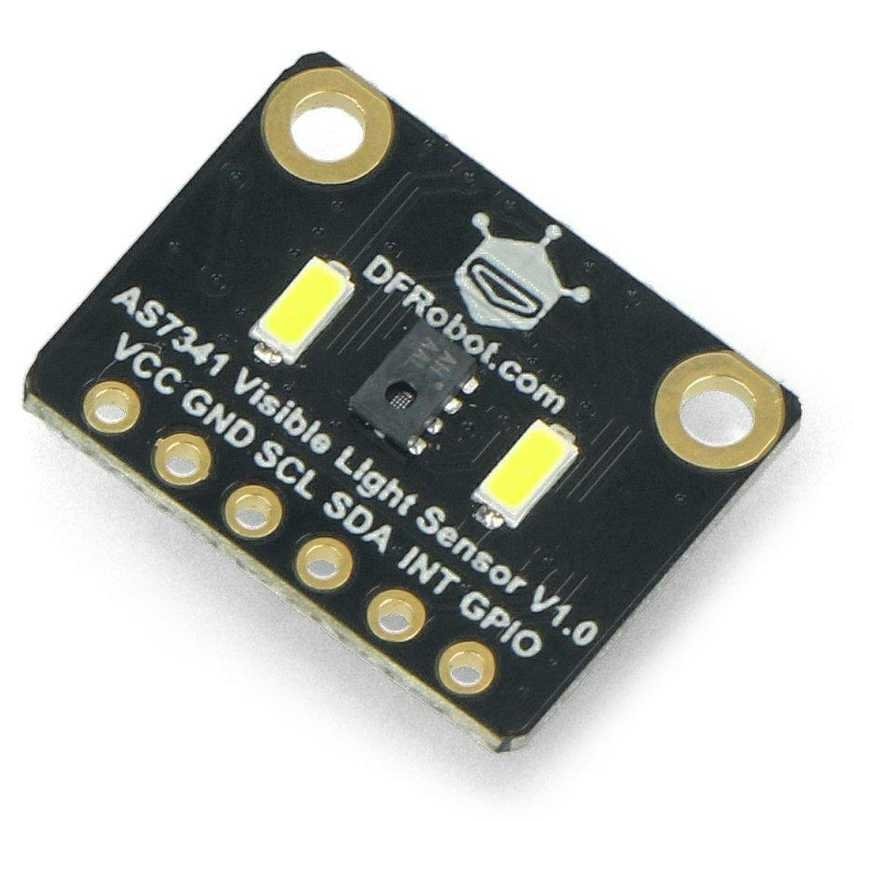

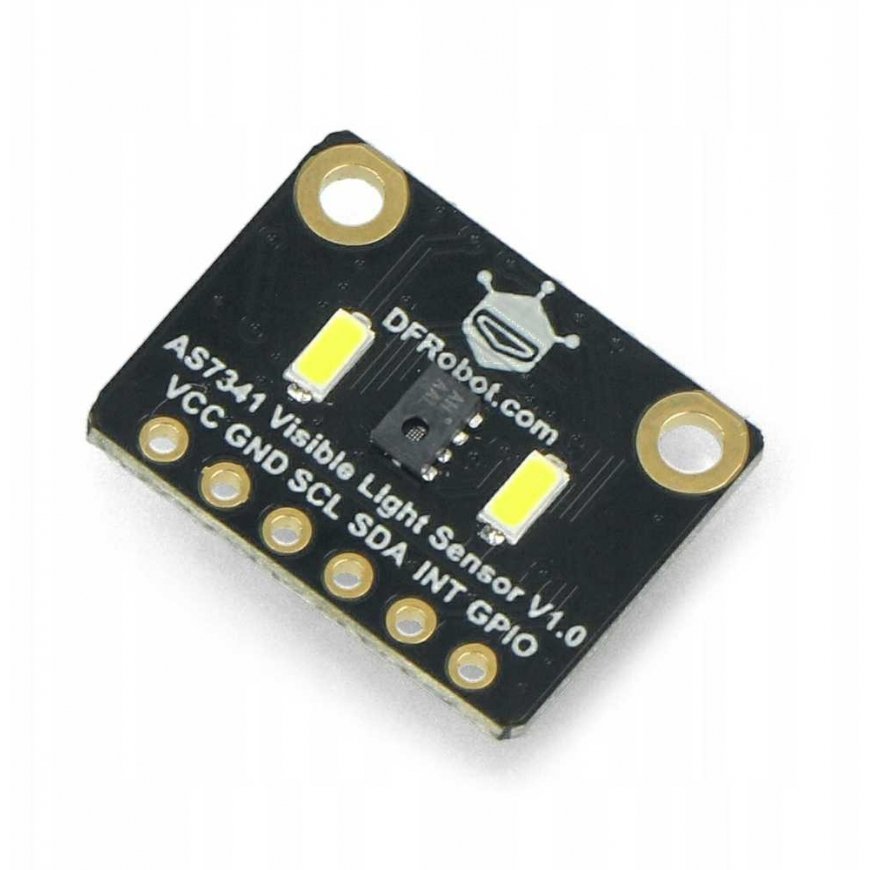

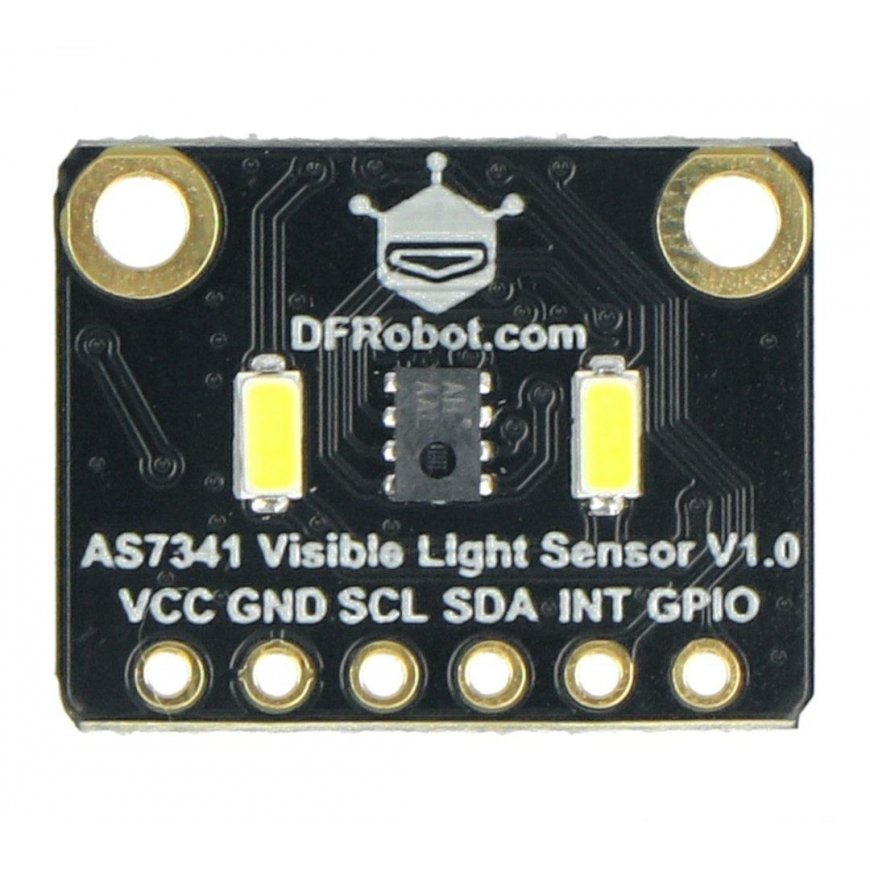

Fermion, AS7341 11-channel visible light sensor, DFRobot SEN0365
39.00 €
Ikm. maksa no 1,90 €
3562204 AN-19201
5904422379353
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
DFRobot manufactured module with embedded AS7341 chip. This is an 11-channel visible light sensor that uses a new generation of chips - spectral sensor. The module has eight visible light channels, one near-infrared channel and one filter-free channel. In addition, it also has one channel for detecting ambient light flicker. The DFRobot sensor has 6 independent 16-bit ADC channels, allowing for parallel data processing.Main features:
- 8 optical channels covering the visible spectrum range
- 50 Hz and 60 Hz ambient light flicker
- 6 independent 16-bit ADC channels
- Accurate color detection and matching
- Setting the color mixing effect
- Can be used, among other things, to adjust the color temperature of the lighting
- Module: Visible light sensor
- Embedded chip: AS7341
- Number of channels: 11
- Visible light detection ranges:
- F1 - from 405 to 425 nm
- F2 - from 435 to 455 nm
- F3 - from 470 to 490 nm
- F4 - from 505 to 525 nm
- F5 - from 545 to 565 nm
- F6 - from 580 to 600 nm
- F7 - from 620 to 640 nm
- F8 - from 670 to 690 nm
- Input voltage range: 3.3V to 5V
- Operating current (diode off): <5 mA
- LED control current: Class 1-20 (4 to 42 mA)
- Interface: I2C bus
- Interface address: 0x39
- Operating temperature range: -30 °C to 85 °C
- Operating humidity range: 5% to 85% RH
- Module dimensions: 18 x 14 mm
- 11-channel visible light sensor AS7341
- 1x6 gold pin strip - 2.54 mm
