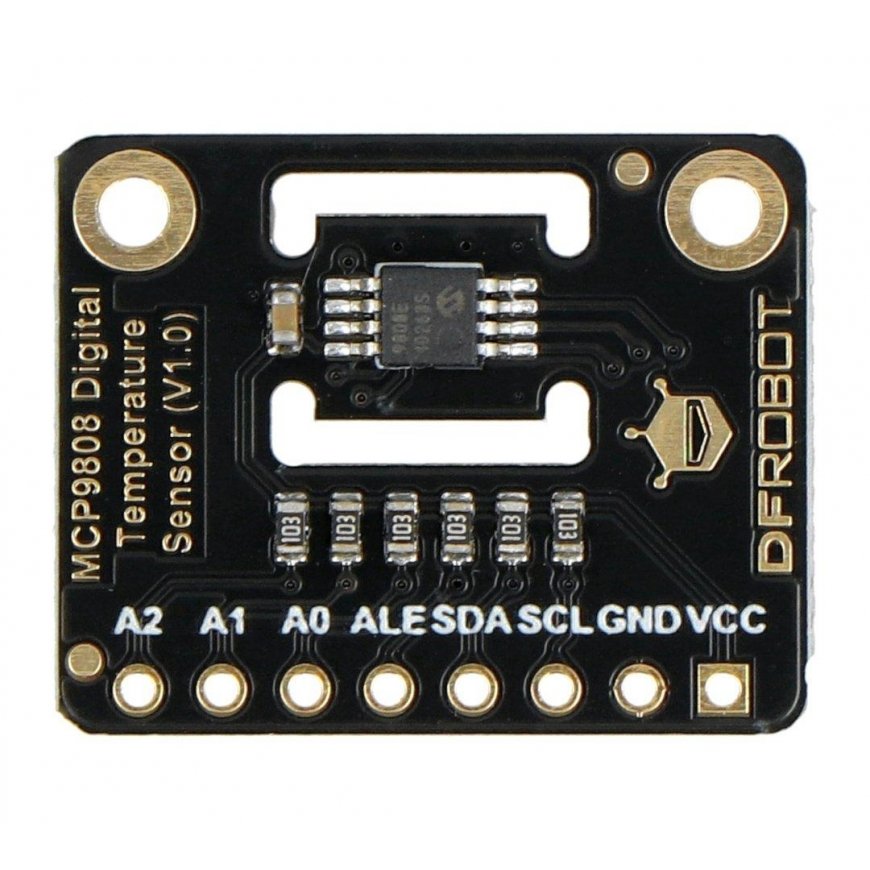

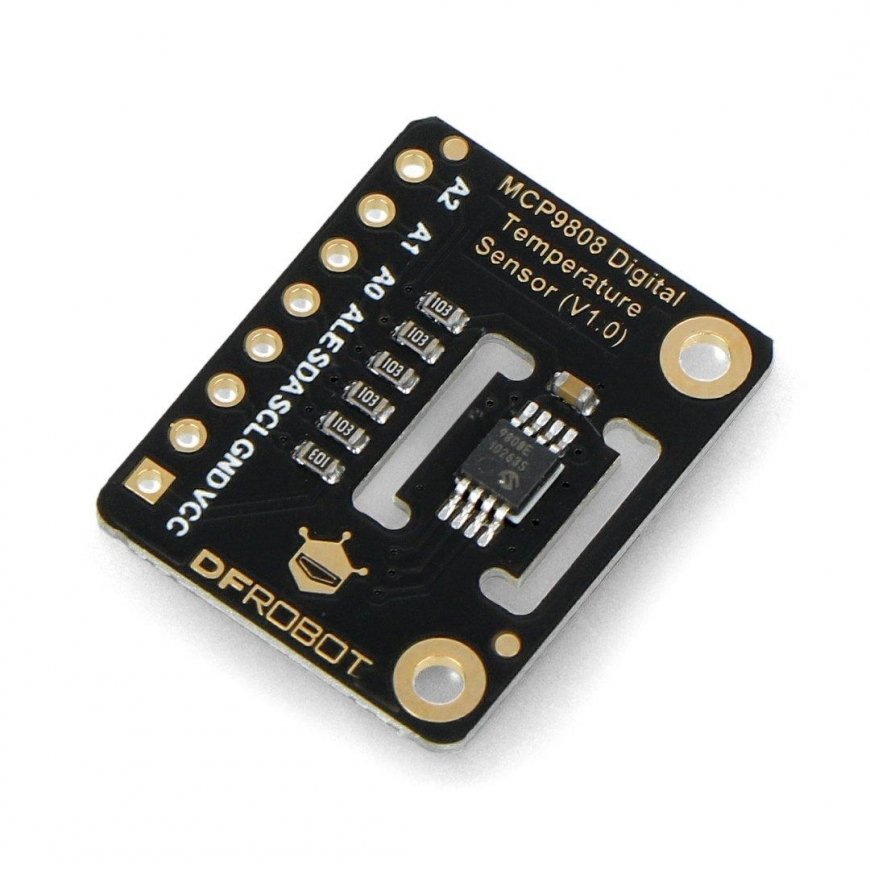

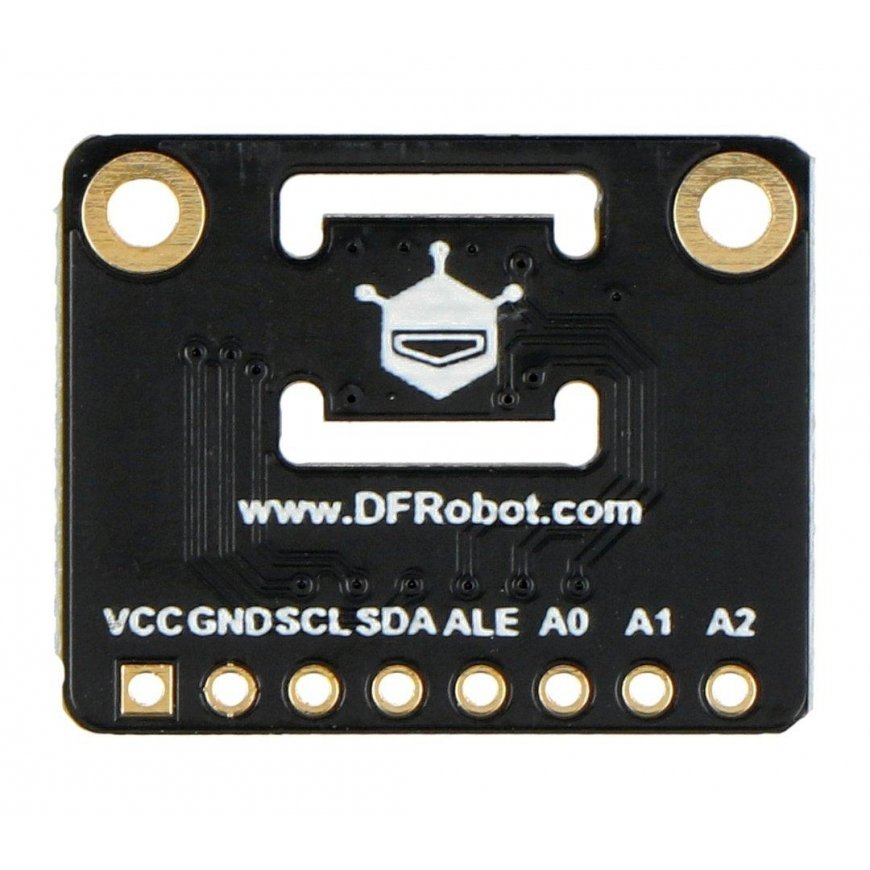

Fermion - High Precision Digital Temperature Sensor - MCP9808 - I2C - DFRobot SEN0435
19.77 €
3559184 AN-21229
6959420921942
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Digital temperature sensor with MCP9808 chip, manufactured by DFRobot. It has high measurement accuracy from -40 °C to 125 °C. Measurement accuracy ranges from ± 0.25 °C to ± 1 °C, and the resolution of the data provided is selected by the user and can be ± 0.5 °C, ± 0.25 °C, ± 0.125 °C or ± 0.0625 °C. The temperature sensor uses the I2C bus to communicate with the controller module. Works with controllers such as Arduino.Specifications:
- Type: High-precision digital temperature sensor
- Integrated chip: MCP9808
- Temperature measurement range: -40 °C to 125 °C
- Temperature measurement accuracy:
- ± 0.25 °C (typical) from -40 °C to 125 °C
- ± 0.5 °C (maximum) -20 °C to 100 °C
- ± 1 °C (maximum) from -40 °C to 125 °C
- Measurement resolution: user selectable
- ± 0.5°C
- ± 0.25°C
- ± 0.125°C
- ± 0.0625 °C
- Interface: I2C bus
- Supply voltage: 2.7 V to 5.5 V
- Current consumption: 200 μA
- Wires: solder pads - 2.54 mm pitch
- Mounting holes: 4 pcs.
- Dimensions: 23 x 18.5 mm

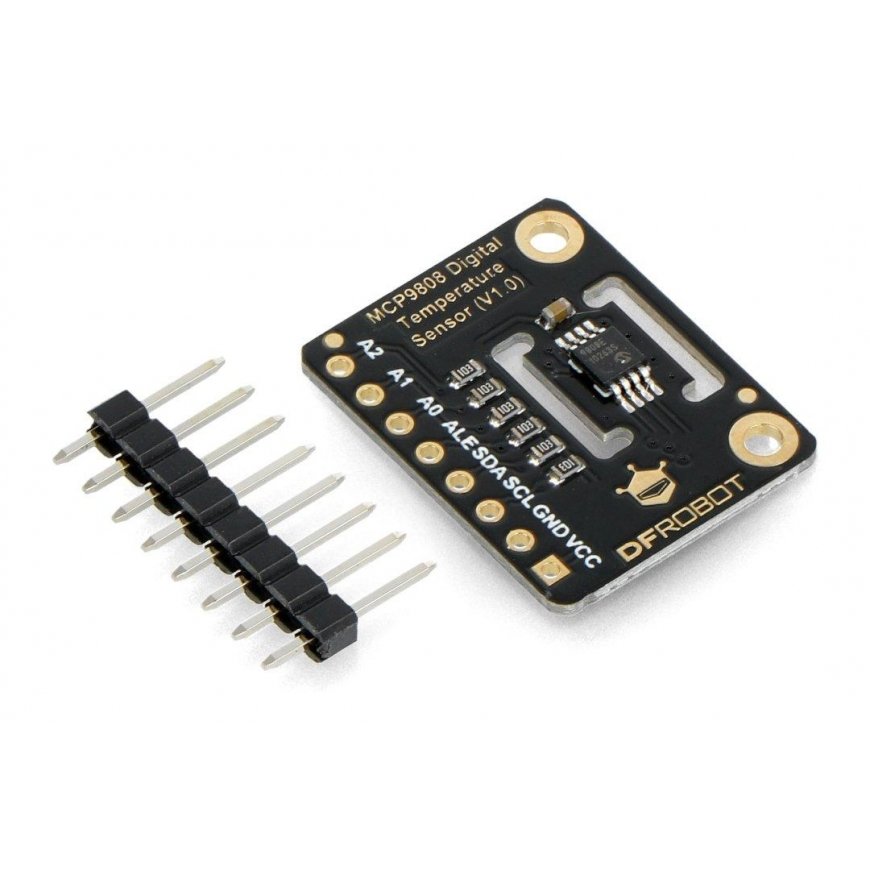

- Fermion - High Precision Digital Temperature Sensor - MCP9808 - I2C - DFRobot SEN0435 - 1 pc
- Gold pin strip 1x8 - 2.54 mm pitch - 1 pc.
